Hospitality - Meeting Package

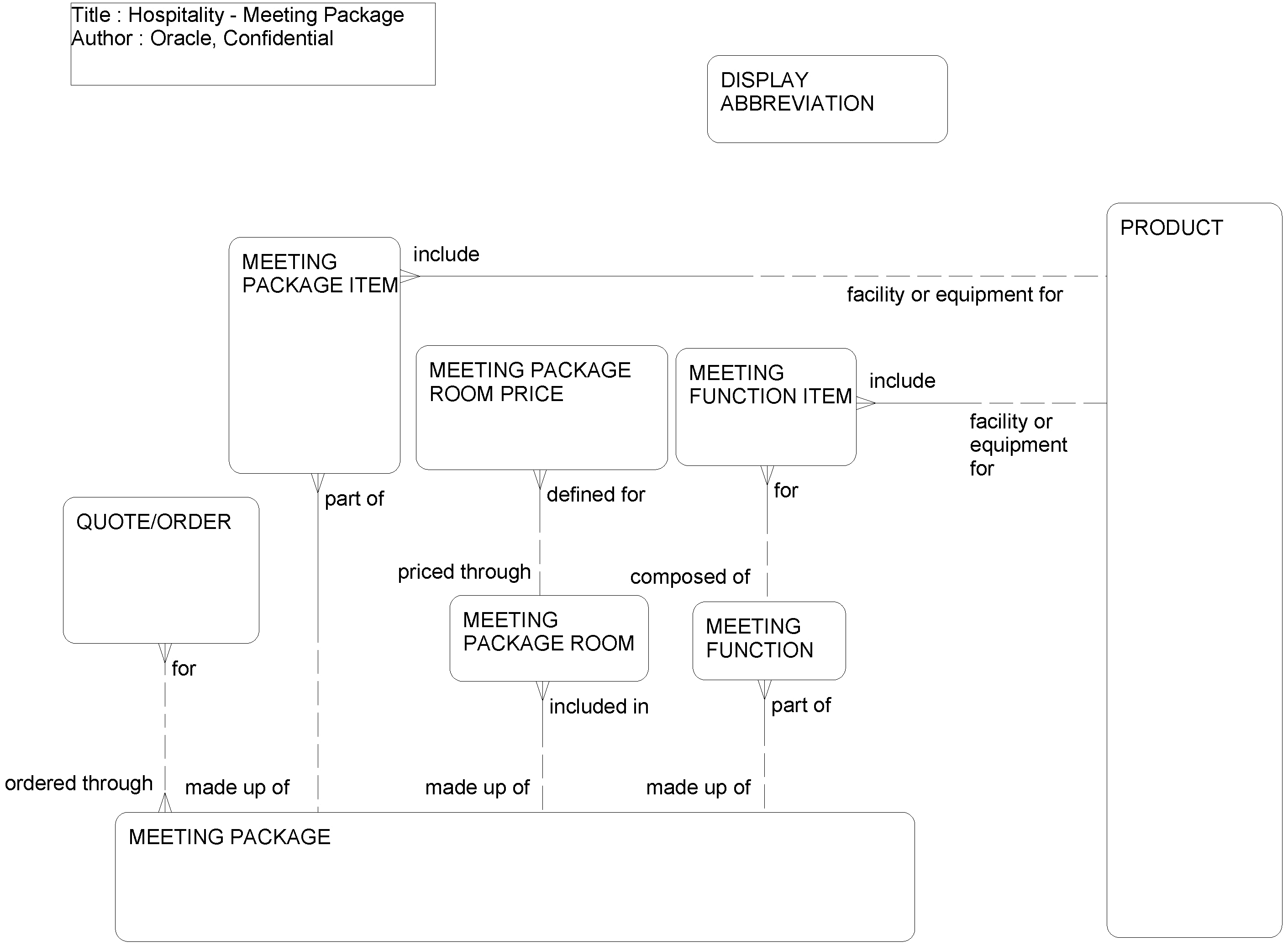

This ERD (see the following figure) illustrates how offerings from a hospitality organization can be packaged as a product. Products can include one or more functions, such as breakfasts, dinners, weddings, receptions, board meetings, or share holders' meetings, as well as facilities used for the functions, such as rooms, conference halls, and dining halls. The package can also include video and audio equipment, and so forth.

The following table lists the entities in this ERD and their corresponding tables.

Entity	Table
Display Abbreviation	S_PTY_LOV_ABBR
Meeting Function	S_MTG_FNCTN
Meeting Function Item	S_MTG_FNCTN_ITM
Meeting Package	S_PROD_MTG_PKG, S_PROD_INT
Meeting Package Item	S_MTG_PKG_ITEM
Meeting Package Room	S_MTG_PKG_ROOM
Meeting Package Room Price	S_MTG_PKGRM_PRI
Product	S_PROD_INT
Quote/Order	S_DOC_QUOTE, S_DOC_ORDER, S_QTE_MTG_PKG
