Insurance Claims

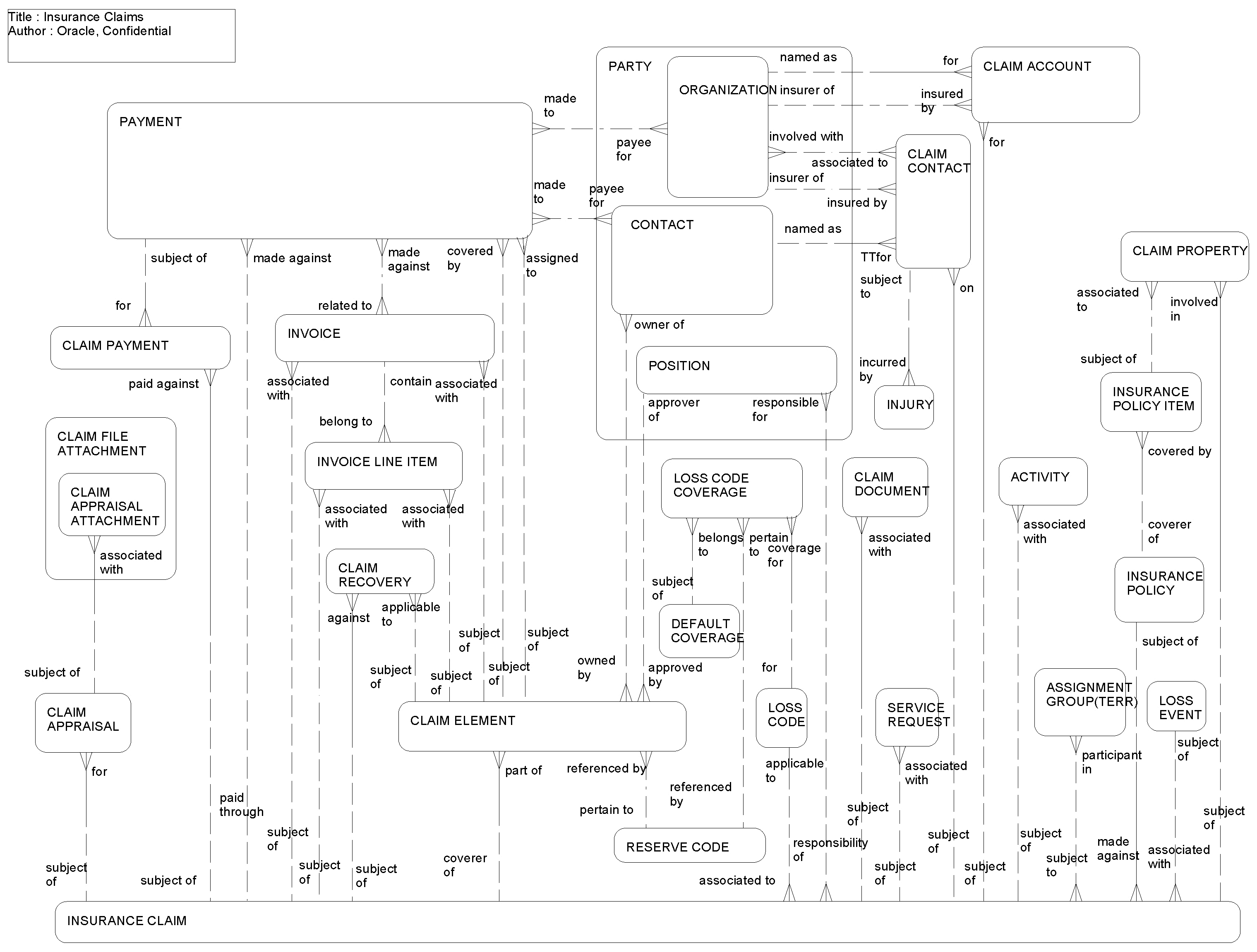

This ERD (see the following figure) shows the important entities in the Insurance Claim recording and handling process. It illustrates the relationship between claims and claim elements and the various parties to the claim. It covers the association of invoices, invoice line items, payments and recoveries to claims. Also illustrated is the relationship between claim and insurance policy, activity, service request, document, appraisal, and so forth. The diagram also shows the metadata that supports claims and claim elements.

The following table lists the entities in this ERD and their corresponding tables.

Entity	Table
Activity	S_EVT_ACT, S_EVT_ACT_FNX
Assignment Group (Territory)	S_ASGN_GRP, S_INSCLM_TERR
Claim Account	S_INSCLM_ORG
Claim Appraisal	S_INSCLM_APRSL
Claim Appraisal Attachment	S_INSCLM_AP_ATT
Claim Contact	S_INSCLM_CON, S_INSCLMCON_ORG
Claim Document	S_INSCLM_DOC
Claim Element	S_INSCLM_ELMNT
Claim File Attachment	S_INSCLM_CL_ATT
Claim Payment	S_SRCPAY_INSCLM
Claim Property	S_INSCLM_PRPTY
Claim Recovery	S_INSCLM_RECVRY
Contact	S_CONTACT, S_PARTY, S_CONTACT_FNX
Default Coverage	S_DEFAULT_ADMIN
Injury	S_INSCLM_INJURY
Insurance Claim	S_INS_CLAIM S_INSCLM_FRAUD S_INSCLM_SBRGTN S_INSCLM_UW
Insurance Policy	S_ASSET
Insurance Policy Item	S_INS_ITEM
Invoice	S_INVOICE, S_INVC_PAYMENT
Invoice Line Item	S_INVOICE_ITEM
Loss Code	S_INS_LOSS_CODE, S_LOSSCD_PLNITM
Loss Code Coverage	S_INS_LOSCD_COV
Loss Event	S_INSCLM_EVT
Organization	S_ORG_EXT S_PARTY S_ORG_EXT_FNX
Party	S_PARTY
Payment	S_SRC_PAYMENT S_SRCPAYMT_CON S_SRCPAYMT_ORG S_INVC_PAYMENT
Position	S_POSTN, S_PARTY
Reserve Code	S_INS_RSRV_CODE
Service Request	S_SRV_REQ, S_SRV_REQ2_FNX
