Time Sheet

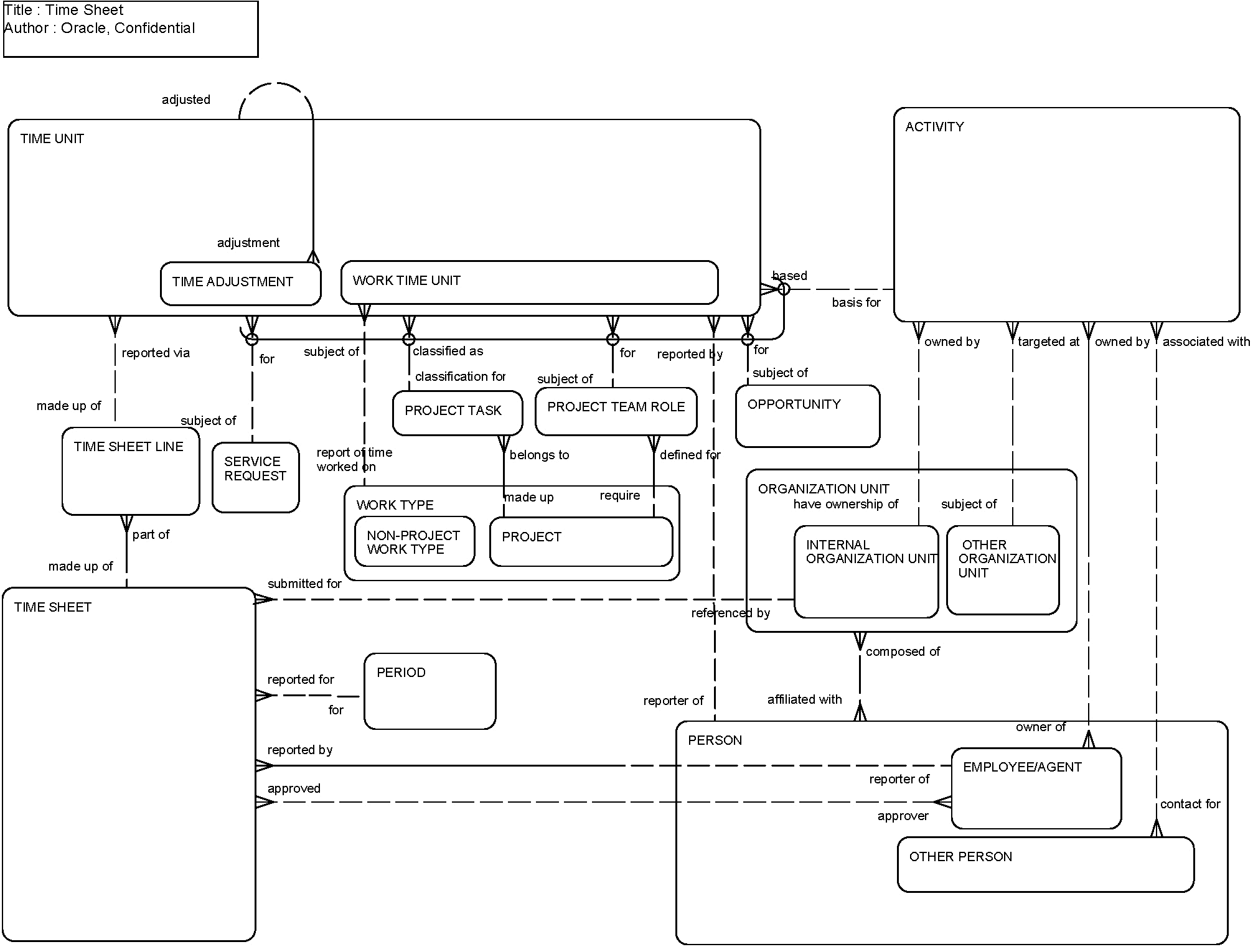

This ERD (see the following figure) illustrates how Siebel Business Applications track employee time sheets. Employees can track time spent for client billing or for other purposes. Time can be entered for projects, activities, service requests, and so on. These time units can then be aggregated into time sheets through time sheet lines. A time sheet is reported for a specified reporting period and lists time spent on specific project or nonproject work such as vacation, sick leave, training, and so on. Each time sheet line is specific to a given day within the reporting period.

The following table lists the entities in this ERD and their corresponding tables.

Entity	Table
Activity	S_EVT_ACT
Organization Unit	S_ORG_EXT, S_PARTY
Period	S_PERIOD
Person	S_CONTACT, S_PARTY
Project	S_PROJ
Project Team Role	S_PROJ_RSRC
Service Request	S_SRV_REQ
Time Unit	S_TMSHT_ITEM
Timesheet	S_TMSHT
Timesheet Approval	S_TMSHT_APPR
Timesheet Line	S_TMSHT_LN
Work Type	S_PROJ
