Universal Customer Master

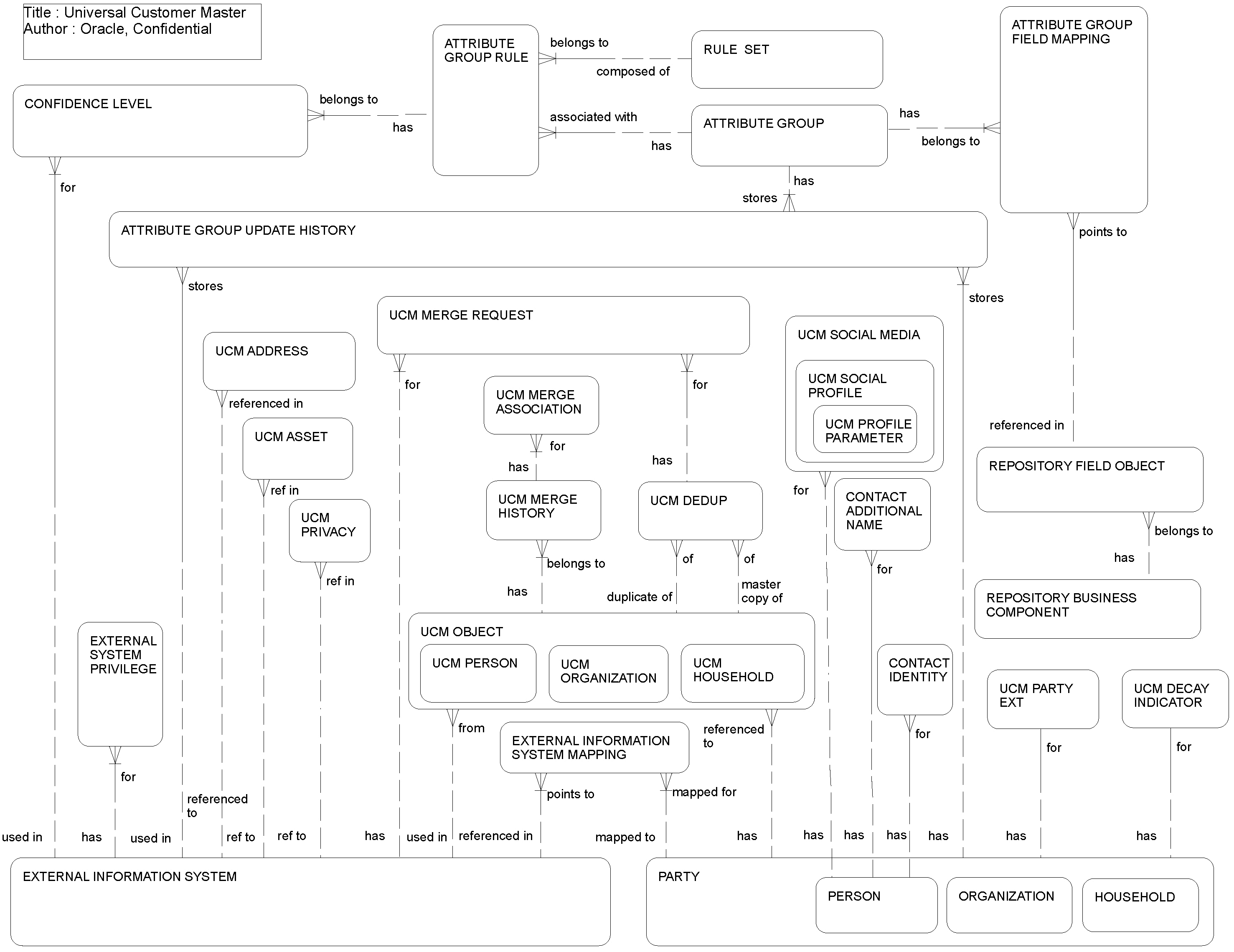

This ERD (see the following figure) illustrates how Universal Customer Master works with external applications and the Siebel application. This ERD also shows the UCM engine schematics including the survivorship rule set and its relationship with repository-based information, UCM objects, and operations such as deduplication, merge, and history of changes.

The following table lists the entities in this ERD and their corresponding tables.

Entity	Table
Attribute Group	S_UCM_ATGP
Attribute Group Field Mapping	S_UCM_ATGP_FLD
Attribute Group Rule	S_UCM_ATGP_RULE
Attribute Group Update History	S_UCM_CON_ATGP, S_UCM_ORG_ATGP, S_UCM_OGP_ATGP
Confidence Level	S_UCM_CONF_LVL
Contact Additional Name	S_CONTACT_NAME
Contact Identity	S_CON_IDNTY_DOC
External Information System	S_CIF_EXT_SYST
External Information System Mapping	S_CIF_CON_MAP, S_CIF_ORGRP_MAP, S_CIF_ORG_MAP
External System Privilege	S_CIF_SYS_DTL
Named Hierarchy	S_DYN_HRCHY
Named Hierarchy Account	S_DYN_HRCHY_REL
Rule Set	S_UCM_RULE_SET
UCM Address	S_UCM_ADDR_PER
UCM Asset	S_UCM_ASSET
UCM Child Object	S_UCM_CON_CHILD, S_UCM_OGP_CHILD, S_UCM_ORG_CHILD
UCM Decay Indicator	S_UCM_CON_DECAY, S_UCM_ORG_DECAY
UCM Deduplication	S_UCM_DEDUP
UCM Merge Association	S_UCM_MRG_ASSOC
UCM Merge History	S_UCM_CON_MERGE, S_UCM_ORG_MERGE, S_UCM_ORGRP_MRG
UCM Merge Request	S_UCM_MERGE_REQ
UCM Named Hierarchy	S_UCM_HRCHY
UCM Named Hierarchy Account	S_UCM_HRCHY_REL
UCM Object	S_UCM_CONTACT, S_UCM_ORG_EXT, S_UCM_ORGGRP
UCM Party Ext	S_PARTY_UCMX, S_CONTACT_UCMX
UCM Privacy	S_UCM_PRIVACY
UCM Social Media Profile of Contacts	S_UCM_CN_SMPROF, S_CONSMPROF_UPD, S_CIF_SMPROFMAP
UCM Social Media Profile Attribute of Contacts	S_UCM_CN_SMATTR, S_CIF_SMATTRMAP
