Products or Services

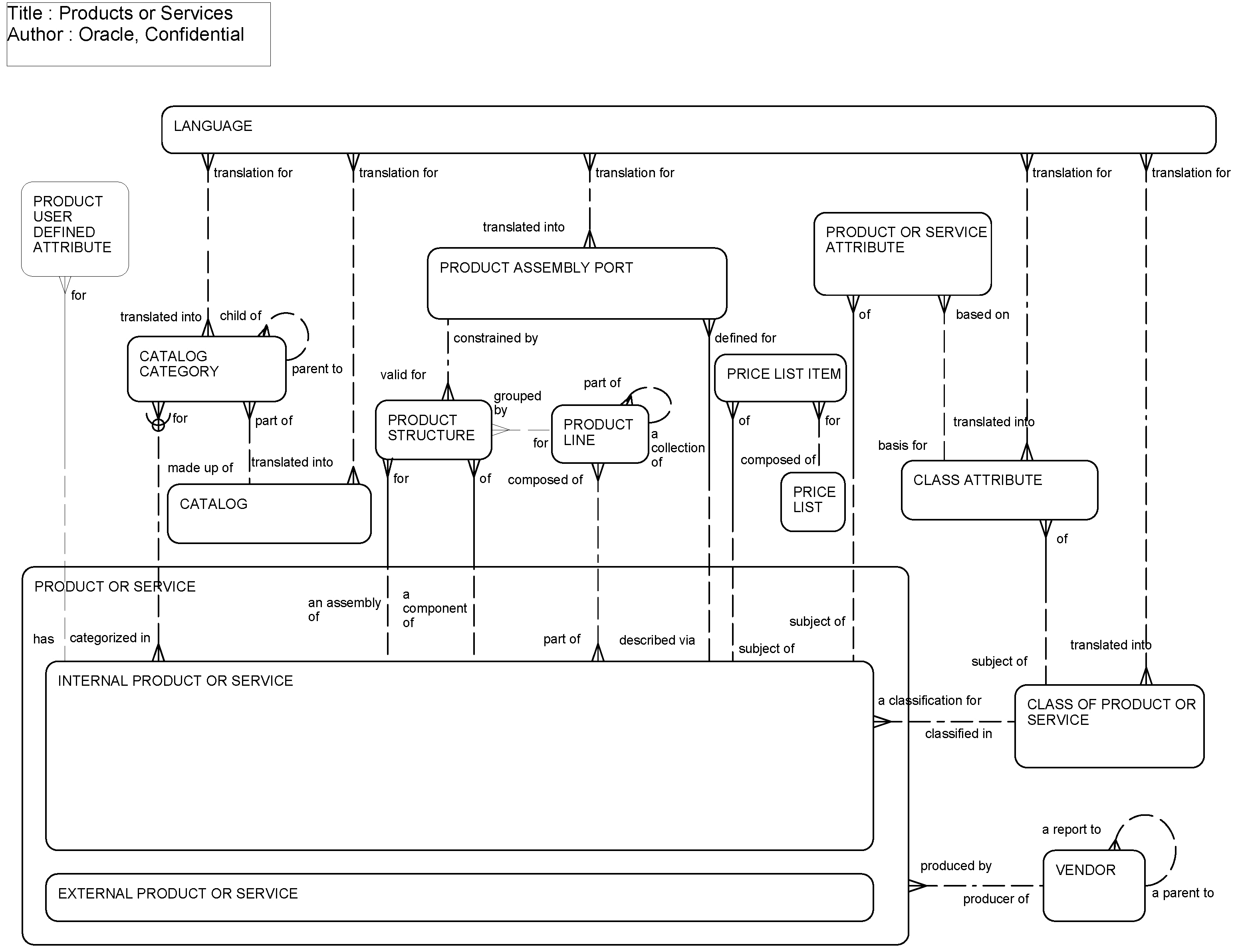

This ERD (see the following figure) illustrates the significant entities related to a product including product components (product structure), substitute or competitive products (product comparison), the product's vendor, the product line or lines to which the product belongs, and so on. In addition, this diagram illustrates the relationship between products and product prices, as well as the language translations for some of these entities.

The following table lists the entities in this ERD and their corresponding tables.

Entity	Table
Catalog	S_CTLG
Catalog Category	S_CTLG_CAT
Class Attribute	S_XA_ATTR
Class of Product or Service	S_VOD, S_VOD_VER
Language	S_LANG
Price List	S_PRI_LST
Price List Item	S_PRI_LST_ITEM
Product Assembly Port	S_PROD_ITEM
Product Line	S_PROD_LN
Product or Service	S_PROD_INT or S_PROD_EXT
Product or Service Attribute	S_PROD_INT_XA
Product Structure	S_PROD_ITEM, S_PROD_REL
Product User Defined Attribute	S_PROD_USRDEFATR
Vendor	S_ORG_EXT, S_PARTY
