Message List Template

The Applet List Message template uses the AppletListMessage Web template. Siebel CRM uses it on a home page to display news or timely information. Each record displays a bullet and provides a placeholder for a link and short descriptive text. It supports a title that you can map to ID 90 or ID 184 and layout controls.

The following image includes the generic layout that this template uses.

Generic Layout of the AppletListMessage Template. This image is described in surrounding text.

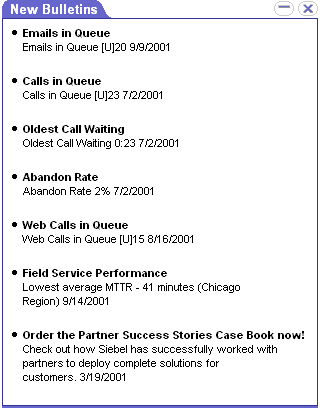

The following image includes an example of this template.

Example of the Applet List Message Template. In this image, the applet is labeled New Bulletins. A list of records follows the label. Each record has a bullet followed by a link and short descriptive text.

This template uses the following structure:

CCAppletListMessage
   CCApplet_Spacer
   CCLayoutTitlePortal
      CCApplet_Spacer
      CCLayoutButtons
      CCBottomApplet
   CCTitle_Portal
      CCLayoutButtons
   CCListButtonsTopNoRecNav
      CCButtons
      CCListButtonsTopRight
   CCListBodyBullet
   CCBottomApplet

The following table lists the items that Siebel CRM can map for this template. For more information, see About Mapping IDs to Placeholders.

ID	Placeholder
2	Back
90	Title
106	Query
107	Go (ExecuteQuery)
108	Cancel (Query)
109 through 111	Control
131	New
132	Edit
133	Delete
134	Reset
135	Cancel
136	Save
139 through 143	Control
150 through 151	Control
157	Label
160 through 164	Control
184	Drilldown Title
203	MinimizeApplet
204	MaximizeApplet
207	MoveAppletUp
208	MoveAppletDown
211	ShowApplet
212	HideApplet
501	Field
502 through 511	Field
555	Label
580	New
599	Save
1100	Outside Applet Help Text
