One Column Form Template

The DotCom Applet Form 1-Column template uses the DotComAppletForm1Col web template. It can do the following:

  • Display labels before fields.

  • Display buttons at the end of the form.

The following image includes the generic layout that this template uses.

Generic Layout of the DotComAppletForm1Col Template. In this image of a template, there is a tab at the beginning of the image. After that, label and field pairs appear in a column. At the end of the form, there are placeholders for two buttons.

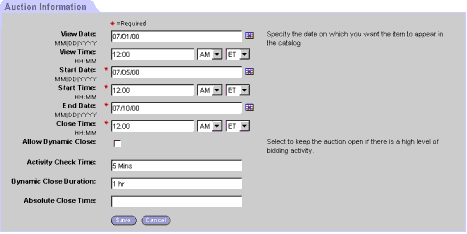

The following image includes an example of this template.


Example of the DotComAppletForm1Col Template. In this image of a form, there is a tab at the beginning of the image which is labeled: Auction Information. Field labels appear on the near side of the form with fields for entering data appearing after the field labels. Two buttons appear at the end of the form.

This template uses the following structure:

DotComAppletForm1Col
   CCApplet_NamedSpacer
   CCTitle_Named
      CCTitle
   CCTogglebar_drop
   dCCForm1Col
      dCCButtons_Form

The following table lists the items that Siebel CRM can map for this template. For more information, see About Mapping IDs to Placeholders.

ID Placeholder

2

Back

106

Query

107

Go (ExecuteQuery)

108

Cancel (Query)

109 through 110

Control

131

New

132

Edit

133

Delete

134

Reset

135

Cancel

136

Save

139 through 143

Control

157 through 158

Control

1000

FormSection

1001

FormSection

1002

FormSection

1003

FormSection

1004

FormSection

1005

FormSection

1006

FormSection

1300 through 1305

Required or Label

1306 through 1311

Required or Label

1312 through 1317

Required or Label

1318 through 1323

Required or Label

1324 through 1329

Required or Label

1330 through 1335

Required or Label

1336 through 1341

Required or Label

1500

Required or Legend
