Totals List Template for Base or Edit List Mode

The Applet List Totals (Base/EditList) template uses the AppletListTotals (Base/EditList) web template. You can map up to 40 fields in this template. For more information about configuring these fields, see Configuring How Siebel CRM Uses the Columns Displayed Feature.

This template supports the parent, child, and grandchild styles.

The following image includes the generic layout that this template uses.

Generic Layout of the AppletListTotals Template. In this image, there is a bar at the beginning of the image with placeholders for buttons. After the bar, there is a shaded row. There are seven columns and eight rows. The row that appears at the end of the image has a plus sign (+) before it and a shaded line appears before it, separating it from the other rows. A shaded area appears inside the first cell of the last row.

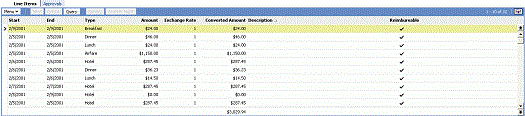

The following image illustrates how you can use this template for a read-only or editable list that displays column totals in the last row. You must make sure you apply a Totals label to the placeholder in the first column.

Example of the AppletListTotals (Base/Edit List) Template. In this image of a list applet, there are tabs at the beginning of the image. After the tabs, there are buttons. Some buttons are active and some are shaded (unavailable). After the buttons, there is row of column headers. After the column headers, there is a list of records. The last row contains only one value (total).

This template uses the following structure:

AppletListTotals (Base/EditList)
   CCApplet_NamedSpacer
   CCTitle_Named
      CCTitle
   CCListButtonsTop
      CCButtons
      CCRecordNav
      CCTogglebar_drop
      CCListButtonsTopRight
   CCListHeaderTotals
   CCListBodyTotals

The following table lists the items that Siebel CRM can map for this template. For more information, see About Mapping IDs to Placeholders.

ID	Placeholder
106	Query
107	Go (ExecuteQuery)
108	Cancel (Query)
109 through 111	Control
121	First
122	Previous
123	Next
124	Last
131	New
132	Edit
133	Delete
134	Reset
135	Cancel
136	Save
139 through 143	Control
142 through 143	Control
144	Selected Row
145	Control
146	Save
147	Pick Control
150 through 151	Control
160 through 164	Control
199	Totals Label
501 through 540	Control
580	New
599	Save
611 through 650	Control
1100	Outside Applet Help Text
1500	Required or Legend
