Siebel Action
The Siebel Action ASI is based on the Siebel Action Business Component. It is an ASI for business processes related to Activity management (for example, a Calendar event such as an appointment). This ASI facilitates inbound and outbound activity data synchronization between Siebel 6.3 applications and Siebel 7.5 applications.

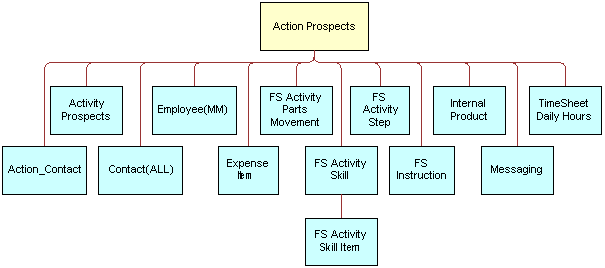

The following image shows the Siebel Action ASI structure. Action (prospects) has the following components: Action_Contact, Activity Prospects, Contact (ALL), Employee(MM), Expense, FS Activity Parts Movement, FS Activity Skill (FS Activity Skill Item), FS Activity Step, FS Instruction, Internal Product, Messaging, TimeSheet Daily Hours.
The following table lists the integration components and user keys of the Siebel Action ASI.
| Integration Component | XML Tag | User Keys |
|---|---|---|
Action |
Action |
|
Action_Contact |
Action_Contact |
|
Activity Prospects |
ActivityProspects |
|
Contact(All) |
ContactAll |
|
Employee (MM) |
EmployeeMm |
|
Expense Item |
ExpenseItem |
|
FS Activity Parts Movement |
FsactivityPartsMovement |
|
FS Activity Skill |
FsActivitySkill |
|
FS Activity Skill Item |
FsActivitySkillItem |
|
FS Activity Step |
FsActivityStep |
|
FS Instruction |
FsInstruction |
|
Internal Product |
InternalProduct |
|
Messaging |
Messaging |
|
Time Sheet Daily Hours |
TimeSheetDailyHours |
|
Action Fields in Siebel Action ASI
The following table lists the Action fields and their attributes in Siebel Action ASI. Fields without a length specified do not have a maximum length associated with them.
| Name | XML Tag | Data Type | Length | Req. |
|---|---|---|---|---|
Account Id |
AccountId |
DTYPE_ID |
N/A |
No |
Activity SR Id |
ActivitySRId |
DTYPE_ID |
N/A |
No |
Activity UID |
ActivityUID |
DTYPE_TEXT |
30 |
No |
Alarm |
Alarm |
DTYPE_TEXT |
N/A |
No |
Appt Alarm Time Min |
ApptAlarmTimeMin |
DTYPE_NUMBER |
N/A |
No |
Asset Id |
AssetId |
DTYPE_ID |
N/A |
No |
Assignment Excluded |
AssignmentExcluded |
DTYPE_TEXT |
N/A |
No |
Associated Cost |
AssociatedCost |
DTYPE_TEXT |
N/A |
No |
Audience |
Audience |
DTYPE_TEXT |
30 |
No |
Billable Flag |
BillableFlag |
DTYPE_TEXT |
N/A |
No |
Call Id |
CallId |
DTYPE_TEXT |
30 |
No |
Class |
Class |
DTYPE_TEXT |
30 |
No |
Comment |
Comment |
DTYPE_TEXT |
1,500 |
No |
Currency Code |
CurrencyCode |
DTYPE_TEXT |
N/A |
No |
Description |
Description |
DTYPE_TEXT |
100 |
No |
Display |
Display |
DTYPE_TEXT |
30 |
No |
Done |
Done |
DTYPE_DATETIME |
N/A |
No |
Due |
Due |
DTYPE_TEXT |
N/A |
No |
Est Work Time Remaining |
EstWorkTimeRemaining |
DTYPE_NUMBER |
N/A |
No |
Exchange Date |
ExchangeDate |
DTYPE_DATETIME |
N/A |
No |
Id |
Id |
DTYPE_ID |
30 |
No |
Meeting Location |
MeetingLocation |
DTYPE_TEXT |
100 |
No |
No Sooner Than Date |
NoSoonerThanDate |
DTYPE_DATETIME |
N/A |
No |
Opportunity Id |
OpportunityId |
DTYPE_ID |
N/A |
No |
Percent Complete |
PercentComplete |
DTYPE_NUMBER |
N/A |
No |
Planned |
Planned |
DTYPE_DATETIME |
N/A |
No |
Planned Completion |
PlannedCompletion |
DTYPE_DATETIME |
N/A |
No |
Previous Activity Id |
PreviousActivityId |
DTYPE_ID |
N/A |
No |
Price List Id |
PriceListId |
DTYPE_ID |
N/A |
No |
Primary Owner Id |
PrimaryOwnerId |
DTYPE_ID |
N/A |
No |
Priority |
Priority |
DTYPE_TEXT |
30 |
No |
Private |
Private |
DTYPE_TEXT |
N/A |
No |
Rate List Id |
RateListId |
DTYPE_ID |
N/A |
No |
Repeating Expires |
RepeatingExpires |
DTYPE_DATETIME |
N/A |
No |
Repeating Type |
RepeatingType |
DTYPE_TEXT |
30 |
No |
Resolution Code |
ResolutionCode |
DTYPE_TEXT |
30 |
No |
Started |
Started |
DTYPE_DATETIME |
N/A |
No |
Status |
Status |
DTYPE_TEXT |
30 |
No |
Status Report Flag |
StatusReportFlag |
DTYPE_TEXT |
N/A |
No |
Type |
Type |
DTYPE_TEXT |
30 |
No |
operation |
operation |
DTYPE_TEXT |
30 |
No |
searchspec |
searchspec |
DTYPE_TEXT |
250 |
No |
Action_Contact Fields in Siebel Action ASI
The following table lists the Action_Contact fields and their attributes in Siebel Action ASI. Fields without a length specified do not have a maximum length associated with them.
| Name | XML Tag | Data Type | Length | Req. |
|---|---|---|---|---|
Contact Id |
Contact Id |
DTYPE_ID |
30 |
No |
IsPrimaryMVG |
IsPrimaryMVG |
DTYPE_TEXT |
1 |
No |
Activity_Prospects Fields in Siebel Action ASI
The following table lists the Activity_Prospects field and attributes in Siebel Action ASI. Fields without a length specified do not have a maximum length associated with them.
| Name | XML Tag | Data Type | Length | Req. |
|---|---|---|---|---|
Prospective Contact UID |
ProspectiveContactUID |
DTYPE_TEXT |
100 |
No |
Contact (All) Fields in Siebel Action ASI
The following table lists the Contact field and attributes in Siebel Action ASI. Fields without a length specified do not have a maximum length associated with them.
| Name | XML Tag | Data Type | Length | Req. |
|---|---|---|---|---|
Party UId |
PartyUId |
DTYPE_TEXT |
30 |
No |
Employee (MM) Fields in Siebel Action ASI
The following table lists the Employee (MM) field and attributes in Siebel Action ASI. Fields without a length specified do not have a maximum length associated with them.
| Name | XML Tag | Data Type | Length | Req. |
|---|---|---|---|---|
Party UId |
PartyUId |
DTYPE_TEXT |
30 |
No |
Expense Item Fields in Siebel Action ASI
The following table lists the Expense Item fields and their attributes in Siebel Action ASI. Fields without a length specified do not have a maximum length associated with them.
| Name | XML Tag | Data Type | Length | Req. |
|---|---|---|---|---|
Account Id |
AccountId |
DTYPE_ID |
N/A |
No |
Amount |
Amount |
DTYPE_TEXT |
N/A |
No |
Billable Flag |
BillableFlag |
DTYPE_TEXT |
N/A |
No |
Comments |
Comments |
DTYPE_TEXT |
250 |
No |
Currency Code |
CurrencyCode |
DTYPE_TEXT |
20 |
No |
Description |
Desc |
DTYPE_TEXT |
250 |
No |
End Date |
EndDate |
DTYPE_DATETIME |
N/A |
No |
Establishment |
Establishment |
DTYPE_TEXT |
50 |
No |
Exchange Date |
ExchangeDate |
DTYPE_DATETIME |
N/A |
No |
Exchange Rate |
ExchangeRate |
DTYPE_NUMBER |
N/A |
No |
Expense Item Number |
ExpenseItemNumber |
DTYPE_ID |
N/A |
No |
Expense Item Type |
ExpenseItemTypeName |
DTYPE_TEXT |
50 |
No |
Internal Comments |
InternalComments |
DTYPE_TEXT |
250 |
No |
Item Room Amount |
ItemRoomAmount |
DTYPE_TEXT |
N/A |
No |
Item Room Other Tax Amount |
ItemRoomOtherTaxAmount |
DTYPE_TEXT |
N/A |
No |
Item Room Tax Amount |
ItemRoomTaxAmount |
DTYPE_TEXT |
N/A |
No |
Mileage Distance |
MileageDistance |
DTYPE_NUMBER |
N/A |
No |
Mileage Rate |
MileageRate |
DTYPE_TEXT |
N/A |
No |
Mileage Route |
MileageRoute |
DTYPE_TEXT |
100 |
No |
Opty Id |
OptyId |
DTYPE_ID |
N/A |
No |
Owner Id |
OwnerId |
DTYPE_ID |
N/A |
No |
Payment Type |
PaymentType |
DTYPE_TEXT |
30 |
No |
Project Billing Class |
ProjectBillingClass |
DTYPE_TEXT |
30 |
No |
Reimbursable Flag |
ReimbursablFlag |
DTYPE_TEXT |
N/A |
No |
Start Date |
StartDate |
DTYPE_DATETIME |
N/A |
No |
FS Activity Parts Movement Fields in Siebel Action ASI
The following table lists the FS Activity Parts Movement fields and their attributes in Siebel Action ASI. Fields without a length specified do not have a maximum length associated with them.
| Name | XML Tag | Data Type | Length | Req. |
|---|---|---|---|---|
Asset Id |
AssetId |
DTYPE_ID |
N/A |
No |
Billable Flag |
BillableFlag |
DTYPE_TEXT |
N/A |
No |
Commit Txn Flag |
CommitTxnFlag |
DTYPE_TEXT |
N/A |
No |
Destination |
Destination |
DTYPE_TEXT |
30 |
No |
Movement Date |
MovementDate |
DTYPE_DATETIME |
N/A |
No |
Order Id |
OrderId |
DTYPE_ID |
N/A |
No |
Order Item Id |
OrderItemId |
DTYPE_ID |
N/A |
No |
PartMvtNum |
PartMvtNum |
DTYPE_ID |
N/A |
No |
Product Id |
ProductId |
DTYPE_ID |
N/A |
No |
Product Name |
ProductName |
DTYPE_TEXT |
100 |
No |
Source |
Source |
DTYPE_TEXT |
30 |
No |
Status |
Status |
DTYPE_TEXT |
30 |
No |
Trunk Invloc Id |
TrunkInvlocId |
DTYPE_ID |
N/A |
No |
Used Quantity |
UsedQuantity |
DTYPE_NUMBER |
N/A |
No |
FS Activity Skill Fields in Siebel Action ASI
The following table lists the FS Activity Skill fields and their attributes in Siebel Action ASI. Fields without a length specified do not have a maximum length associated with them.
| Name | XML Tag | Data Type | Length | Req. |
|---|---|---|---|---|
Comments |
Comments |
DTYPE_TEXT |
250 |
No |
Item Type Name |
ItemTypeName |
DTYPE_TEXT |
75 |
No |
Name |
Name |
DTYPE_TEXT |
50 |
No |
FS Activity Skill Item Fields in Siebel Action ASI
The following table lists the FS Activity Skill Item fields and their attributes in Siebel Action ASI. Fields without a length specified do not have a maximum length associated with them.
| Name | XML Tag | Data Type | Length | Req. |
|---|---|---|---|---|
Expertise Code |
ExpertiseCode |
DTYPE_TEXT |
30 |
No |
Low Char 1 |
LowChar1 |
DTYPE_TEXT |
50 |
No |
Low Char 2 |
LowChar2 |
DTYPE_TEXT |
50 |
No |
Low Number 1 |
LowNumber1 |
DTYPE_NUMBER |
N/A |
No |
Product Id |
ProdId |
DTYPE_TEXT |
N/A |
No |
FS Activity Step Fields in Siebel Action ASI
The following table lists the FS Activity Step fields and their attributes in Siebel Action ASI. Fields without a length specified do not have a maximum length associated with them.
| Name | XML Tag | Data Type | Length | Req. |
|---|---|---|---|---|
Comments |
Comments |
DTYPE_TEXT |
250 |
No |
End Date |
EndDate |
DTYPE_DATETIME |
N/A |
No |
Performed |
Performed |
DTYPE_TEXT |
N/A |
No |
Performed by |
Performedby |
DTYPE_ID |
N/A |
No |
SeqNum |
SeqNum |
DTYPE_NUMBER |
N/A |
No |
Start Date |
StartDate |
DTYPE_DATETIME |
N/A |
No |
Step Type Id |
StepTypeId |
DTYPE_ID |
N/A |
No |
FS Instruction Fields in Siebel Action ASI
The following table lists the FS Instruction fields and their attributes in Siebel Action ASI. Fields without a length specified do not have a maximum length associated with them.
| Name | XML Tag | Data Type | Length | Req. |
|---|---|---|---|---|
Instruction |
Instruction |
DTYPE_NOTE |
N/A |
No |
Instruction Type |
InstructionType |
DTYPE_TEXT |
30 |
No |
Messaging Fields in Siebel Action ASI
The following table lists the Messaging fields and their attributes in Siebel Action ASI. Fields without a length specified do not have a maximum length associated with them.
| Name | XML Tag | Data Type | Length | Req. |
|---|---|---|---|---|
Account Id |
AccountId |
DTYPE_ID |
N/A |
No |
Alert Type CD |
AlertTypeCD |
DTYPE_TEXT |
30 |
No |
Comments |
Comments |
DTYPE_TEXT |
2000 |
No |
Contact Last Name |
ContactLastName |
DTYPE_TEXT |
50 |
No |
Creation Time |
CreationTime |
DTYPE_TEXT |
N/A |
No |
Message Number |
MessageNumber |
DTYPE_TEXT |
30 |
No |
Message Status CD |
MessageStatusCD |
DTYPE_TEXT |
30 |
No |
Message Text |
Message Text |
DTYPE_TEXT |
2000 |
No |
Opportunity Id |
OpportunityId |
DTYPE_ID |
N/A |
No |
Priority |
Priority |
DTYPE_TEXT |
30 |
No |
Private Flag |
PrivateFlag |
DTYPE_TEXT |
N/A |
No |
Recipient Id |
Recipient Id |
DTYPE_ID |
N/A |
No |
Sender Id |
SenderId |
DTYPE_ID |
N/A |
No |
Service Request Id |
ServiceRequestId |
DTYPE_ID |
N/A |
No |
Time Sheet Daily Hours Fields in Siebel Action ASI
The following table lists the Time Sheet Daily Hours fields and their attributes in Siebel Action ASI. Fields without a length specified do not have a maximum length associated with them.
| Name | XML Tag | Data Type | Length | Req. |
|---|---|---|---|---|
Billable Flag |
BillableFlag |
DTYPE_TEXT |
N/A |
No |
Billing Class |
BillingClass |
DTYPE_TEXT |
N/A |
No |
Billing Rate Type |
BillingRateType |
DTYPE_TEXT |
N/A |
No |
Created |
Created |
DTYPE_DATETIME |
N/A |
No |
End Time |
EndTime |
DTYPE_DATETIME |
N/A |
No |
External Comments |
ExternalComments |
DTYPE_TEXT |
N/A |
No |
Id |
Id |
DTYPE_ID |
N/A |
No |
Internal Comments |
InternalComments |
DTYPE_TEXT |
N/A |
No |
Item Date |
ItemDate |
DTYPE_DATETIME |
N/A |
No |
Oppty Id |
OpptyId |
DTYPE_ID |
N/A |
No |
Owner Id |
OwnerId |
DTYPE_ID |
N/A |
No |
Project Id |
ProjectId |
DTYPE_ID |
N/A |
No |
Service Request Id |
ServiceRequestId |
DTYPE_ID |
N/A |
No |
Start Time |
StartTime |
DTYPE_DATETIME |
N/A |
No |
Time Sheet Item Num |
TimeSheetItemNum |
DTYPE_TEXT |
N/A |
No |
