Siebel Contact

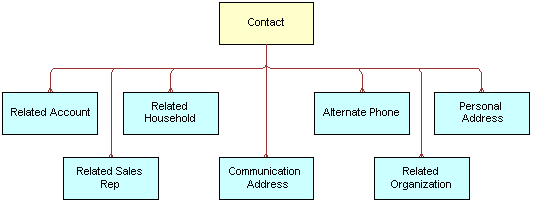

The Siebel Contact ASI is an ASI for customer information management-related business processes. This ASI facilitates inbound and outbound contact data synchronization between a Siebel application and any external system. The following image shows the Siebel Contact ASI structure, which contains the following components: Related Account, Related Sales Rep, Related Household, Communication Address, Alternate Phone, Related Organization, Personal Address.
The following table lists the integration component and user keys of this ASI.
| Integration Component | XML Tag | User Keys |
|---|---|---|
Contact |
Contact |
|
Related Account |
RelatedAccount |
|
Personal Address |
PersonalAddress |
|
Communication Address |
CommunicationAddress |
|
Alternate Phone |
AlternatePhone |
|
Related Households |
RelatedHouseholds |
|
Related Organization |
RelatedOrganization |
|
Related Sales Rep |
RelatedSalesRep |
|
Contact Fields in Siebel Contact ASI
The following table lists the Contact fields and their attributes in Siebel Contact ASI.
| Name | XML Tag | Data Type | Length | Req. | Note |
|---|---|---|---|---|---|
Alias |
Alias |
DTYPE_TEXT |
50 |
No |
None |
Assistant |
Assistant |
DTYPE_TEXT |
50 |
No |
None |
Birth Date |
BirthDate |
DTYPE_DATETIME |
7 |
No |
None |
Cellular Phone # |
CellularPhone |
DTYPE_TEXT |
NA |
No |
None |
Comment |
Comment |
DTYPE_TEXT |
255 |
No |
None |
Disable Data Cleansing |
DisableDataCleansing |
DTYPE_TEXT |
NA |
No |
None |
Email Address |
EmailAddress |
DTYPE_TEXT |
50 |
No |
None |
Fax Phone # |
FaxPhone |
DTYPE_TEXT |
NA |
No |
None |
First Name |
FirstName |
DTYPE_TEXT |
50 |
No |
None |
Gender |
Gender |
DTYPE_TEXT |
255 |
No |
None |
Home Phone # |
HomePhone |
DTYPE_TEXT |
NA |
No |
None |
Id |
Id |
DTYPE_ID |
30 |
No |
None |
Income |
Income |
DTYPE_TEXT |
NA |
No |
None |
Income Currency Code |
IncomeCurrencyCode |
DTYPE_TEXT |
20 |
No |
None |
Income Exchange Date |
IncomeExchangeDate |
DTYPE_DATETIME |
NA |
No |
None |
Integration Id |
IntegrationId |
DTYPE_TEXT |
30 |
No |
User key field |
Job Title |
JobTitle |
DTYPE_TEXT |
75 |
No |
None |
Last Name |
LastName |
DTYPE_TEXT |
50 |
No |
None |
Manager First Name |
ManagerFirstName |
DTYPE_TEXT |
50 |
No |
None |
Manager Id |
ManagerId |
DTYPE_ID |
15 |
No |
None |
Manager Integration Id |
ManagerIntegrationId |
DTYPE_TEXT |
30 |
No |
None |
Manager Last Name |
ManagerLastName |
DTYPE_TEXT |
50 |
No |
None |
Manager Middle Name |
ManagerMiddleName |
DTYPE_TEXT |
50 |
No |
None |
Manager Primary Organization |
ManagerPrimaryOrganization |
DTYPE_TEXT |
100 |
No |
None |
Manager UId |
ManagerUId |
DTYPE_TEXT |
100 |
No |
None |
Middle Name |
MiddleName |
DTYPE_TEXT |
50 |
No |
None |
operation |
operation |
DTYPE_TEXT |
30 |
No |
None |
Person UId |
PersonUId |
DTYPE_TEXT |
100 |
No |
None |
Personal Title |
PersonalTitle |
DTYPE_TEXT |
15 |
No |
None |
Preferred Communications |
PreferredCommunications |
DTYPE_TEXT |
30 |
No |
None |
Preferred Language Code |
PreferredLanguageCode |
DTYPE_TEXT |
3 |
No |
None |
Primary Address Id |
PrimaryAddressId |
DTYPE_ID |
N/A |
No |
None |
Social Security Number |
SocialSecurityNumber |
DTYPE_TEXT |
N/A |
No |
None |
Status |
Status |
DTYPE_TEXT |
30 |
No |
Bound by CONTACT_STATUS LOV |
Suppress All Calls |
SuppressAllCalls |
DTYPE_TEXT |
1 |
No |
None |
Suppress All Emails |
SuppressAllEmails |
DTYPE_TEXT |
1 |
No |
None |
Suppress All Faxes |
SuppressAllFaxes |
DTYPE_TEXT |
N/A |
No |
None |
Suppress All Mailings |
SuppressAllMailings |
DTYPE_TEXT |
1 |
No |
None |
Time Zone Id |
TimeZoneId |
DTYPE_ID |
N/A |
No |
None |
Time Zone Name |
TimeZoneName |
DTYPE_TEXT |
100 |
No |
None |
Work Phone # |
WorkPhone |
DTYPE_TEXT |
N/A |
No |
None |
Work Phone Extension |
WorkPhoneExtension |
DTYPE_TEXT |
10 |
No |
None |
Personal Address Fields in Siebel Contact ASI
The following table lists the Personal Address fields and their attributes in Siebel Contact ASI.
| Name | XML Tag | Data Type | Length | Req. | Note |
|---|---|---|---|---|---|
Id |
Id |
DTYPE_ID |
30 |
No |
None |
Integration Id |
IntegrationId |
DTYPE_TEXT |
30 |
No |
None |
IsPrimaryMVG |
IsPrimaryMVG |
DTYPE_TEXT |
1 |
No |
None |
operation |
operation |
DTYPE_TEXT |
30 |
No |
None |
Personal City |
PersonalCity |
DTYPE_TEXT |
50 |
No |
None |
Personal Country |
PersonalCountry |
DTYPE_TEXT |
50 |
No |
None |
Personal Postal Code |
PersonalPostalCode |
DTYPE_TEXT |
30 |
No |
None |
Personal State |
PersonalState |
DTYPE_TEXT |
10 |
No |
None |
Personal Street Address |
PersonalStreetAddress |
DTYPE_TEXT |
200 |
No |
None |
Personal Street Address 2 |
PersonalStreetAddress2 |
DTYPE_TEXT |
100 |
No |
None |
searchspec |
searchspec |
DTYPE_TEXT |
250 |
No |
None |
Communication Address Fields in Siebel Contact ASI
The following table lists the Communication Address fields and their attributes in Siebel Contact ASI.
| Name | XML Tag | Data Type | Length | Req. | Note |
|---|---|---|---|---|---|
Alternate Email Address |
AlternateEmailAddress |
DTYPE_TEXT |
100 |
No |
None |
Communication Address Medium Type |
CommunicationAddressMediumType |
DTYPE_TEXT |
30 |
No |
None |
Communication Address Name |
CommunicationAddressName |
DTYPE_TEXT |
50 |
No |
None |
Id |
Id |
DTYPE_ID |
30 |
No |
None |
Integration Id |
IntegrationId |
DTYPE_TEXT |
30 |
No |
None |
IsPrimaryMVG |
IsPrimaryMVG |
DTYPE_TEXT |
1 |
No |
None |
operation |
operation |
DTYPE_TEXT |
30 |
No |
None |
searchspec |
searchspec |
DTYPE_TEXT |
250 |
No |
None |
Alternate Phone Fields in Siebel Contact ASI
The following table lists the Alternate Phone fields and their attributes in Siebel Contact ASI.
| Name | XML Tag | Data Type | Length | Req. | Note |
|---|---|---|---|---|---|
Alternate Phone # |
AlternatePhone |
DTYPE_TEXT |
100 |
No |
None |
Alternate Phone Medium Type |
AlternatePhoneMediumType |
DTYPE_TEXT |
30 |
No |
None |
Alternate Phone Name |
AlternatePhoneName |
DTYPE_TEXT |
50 |
No |
None |
Id |
Id |
DTYPE_ID |
30 |
No |
None |
Integration Id |
IntegrationId |
DTYPE_TEXT |
30 |
No |
None |
IsPrimaryMVG |
IsPrimaryMVG |
DTYPE_TEXT |
1 |
No |
None |
operation |
operation |
DTYPE_TEXT |
30 |
No |
None |
searchspec |
searchspec |
DTYPE_TEXT |
250 |
No |
None |
Related Account Fields in Siebel Contact ASI
The following table lists the Related Account fields and their attributes in Siebel Contact ASI.
| Name | XML Tag | Data Type | Length | Req. | Note |
|---|---|---|---|---|---|
Account |
Account |
DTYPE_TEXT |
100 |
No |
None |
Account Location |
AccountLocation |
DTYPE_TEXT |
50 |
No |
None |
Account Organization |
AccountOrganization |
DTYPE_TEXT |
100 |
No |
None |
Id |
Id |
DTYPE_ID |
30 |
No |
None |
Integration Id |
IntegrationId |
DTYPE_TEXT |
30 |
No |
None |
IsPrimaryMVG |
IsPrimaryMVG |
DTYPE_TEXT |
1 |
No |
None |
operation |
operation |
DTYPE_TEXT |
30 |
No |
None |
searchspec |
searchspec |
DTYPE_TEXT |
250 |
No |
None |
Related Households Fields in Siebel Contact ASI
The following table lists the Related Households fields and their attributes in Siebel Contact ASI.
| Name | XML Tag | Data Type | Length | Req. | Note |
|---|---|---|---|---|---|
HouseHold Name |
HouseHoldName |
DTYPE_TEXT |
50 |
No |
None |
Household Number |
HouseholdNumber |
DTYPE_TEXT |
100 |
No |
None |
Id |
Id |
DTYPE_ID |
30 |
No |
None |
Integration Id |
IntegrationId |
DTYPE_TEXT |
30 |
No |
None |
IsPrimaryMVG |
IsPrimaryMVG |
DTYPE_TEXT |
1 |
No |
None |
operation |
operation |
DTYPE_TEXT |
30 |
No |
None |
searchspec |
searchspec |
DTYPE_TEXT |
250 |
No |
None |
Related Organization Fields in Siebel Contact ASI
The following table lists the Related Organization fields and their attributes in Siebel Contact ASI.
| Name | XML Tag | Data Type | Length | Req. | Note |
|---|---|---|---|---|---|
Id |
Id |
DTYPE_ID |
30 |
No |
None |
Integration Id |
IntegrationId |
DTYPE_TEXT |
30 |
No |
None |
Organization |
Organization |
DTYPE_TEXT |
50 |
No |
None |
IsPrimaryMVG |
IsPrimaryMVG |
DTYPE_TEXT |
1 |
No |
None |
operation |
operation |
DTYPE_TEXT |
30 |
No |
None |
searchspec |
searchspec |
DTYPE_TEXT |
250 |
No |
None |
Related Sales Rep Fields in Siebel Contact ASI
The following table lists the Related Sales Rep fields and their attributes in Siebel Contact ASI.
| Name | XML Tag | Data Type | Length | Req. | Note |
|---|---|---|---|---|---|
Division |
Division |
DTYPE_TEXT |
255 |
No |
None |
Id |
Id |
DTYPE_ID |
30 |
No |
None |
Integration Id |
IntegrationId |
DTYPE_TEXT |
30 |
No |
None |
IsPrimaryMVG |
IsPrimaryMVG |
DTYPE_TEXT |
1 |
No |
None |
Login |
Login |
DTYPE_TEXT |
50 |
No |
None |
operation |
operation |
DTYPE_TEXT |
30 |
No |
None |
Position |
Position |
DTYPE_TEXT |
50 |
No |
None |
searchspec |
searchspec |
DTYPE_TEXT |
250 |
No |
None |
