Using the Multi Value Property Window

The tabs described in the following table appear in the Multi Value Property Window (MVPW) pane. You use the MVPW pane to define the Process Properties, Input Arguments and Output Arguments for a Workflow Process.

For more information about how process properties and step arguments (input/output) work with one another, see Process Property and the Property Set.

Tab	Description	How to Access the Tab
Process Properties	Stores values that Siebel CRM applies to the entire Workflow Process.	Click anywhere on the Process Designer canvas, making sure not to select a step or connector, and the Process Properties tab appears in the MVPW pane.
Input Arguments	Communicates information about input arguments between a process property and a Workflow Process step.	Click a step in the Workflow Process and then go to the Input Arguments tab in the MVPW pane to define input arguments for the step as required .
Output Arguments	Communicates information about output arguments between a process property and a Workflow Process step.	Click a step in the Workflow Process and then go to the Output Arguments tab in the MVPW pane to define output arguments for the step as required .

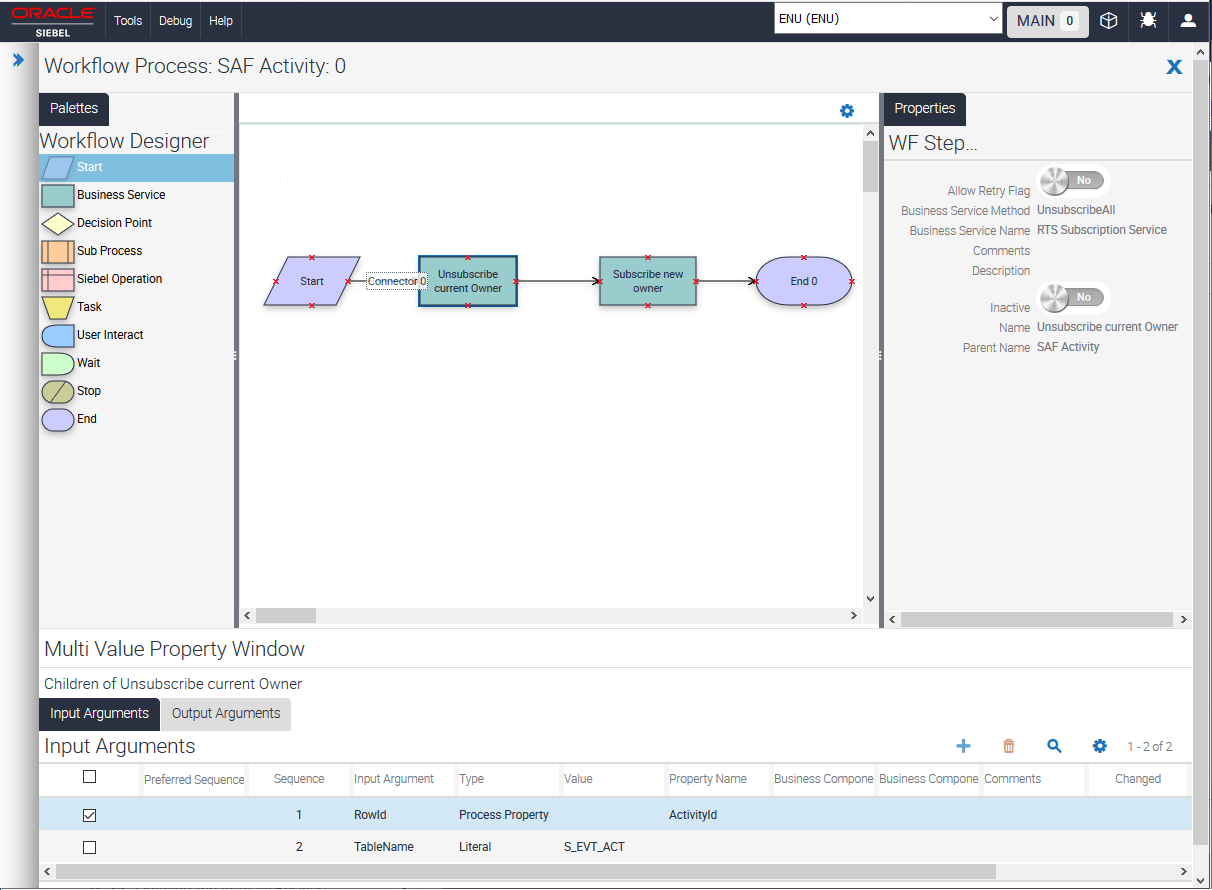

The example MVPW pane in the following figure shows the input arguments (RowId and TableName) for the Unsubscribe Current Owner step.
