How a Business Object Uses a Link

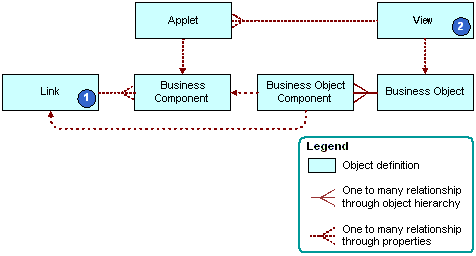

The following figure describes how a business object uses a link.

How a Business Object Uses a Link: This image is described in the surrounding text.

Explanation of Callouts

As shown in this figure, a link that Siebel CRM uses with a business object includes the following objects:

  1. Link. In a master-detail view, to create the parent-child relationship, Siebel CRM includes a link to a business object. This relationship applies to any use of the two business components that Siebel CRM uses in the context of the business object.

  2. View. Each view references the business object that it uses in the Business Object property of the view. This configuration forces the view to operate as a master-detail view, as defined in the link, without more configuration of the view.
