Vehicle

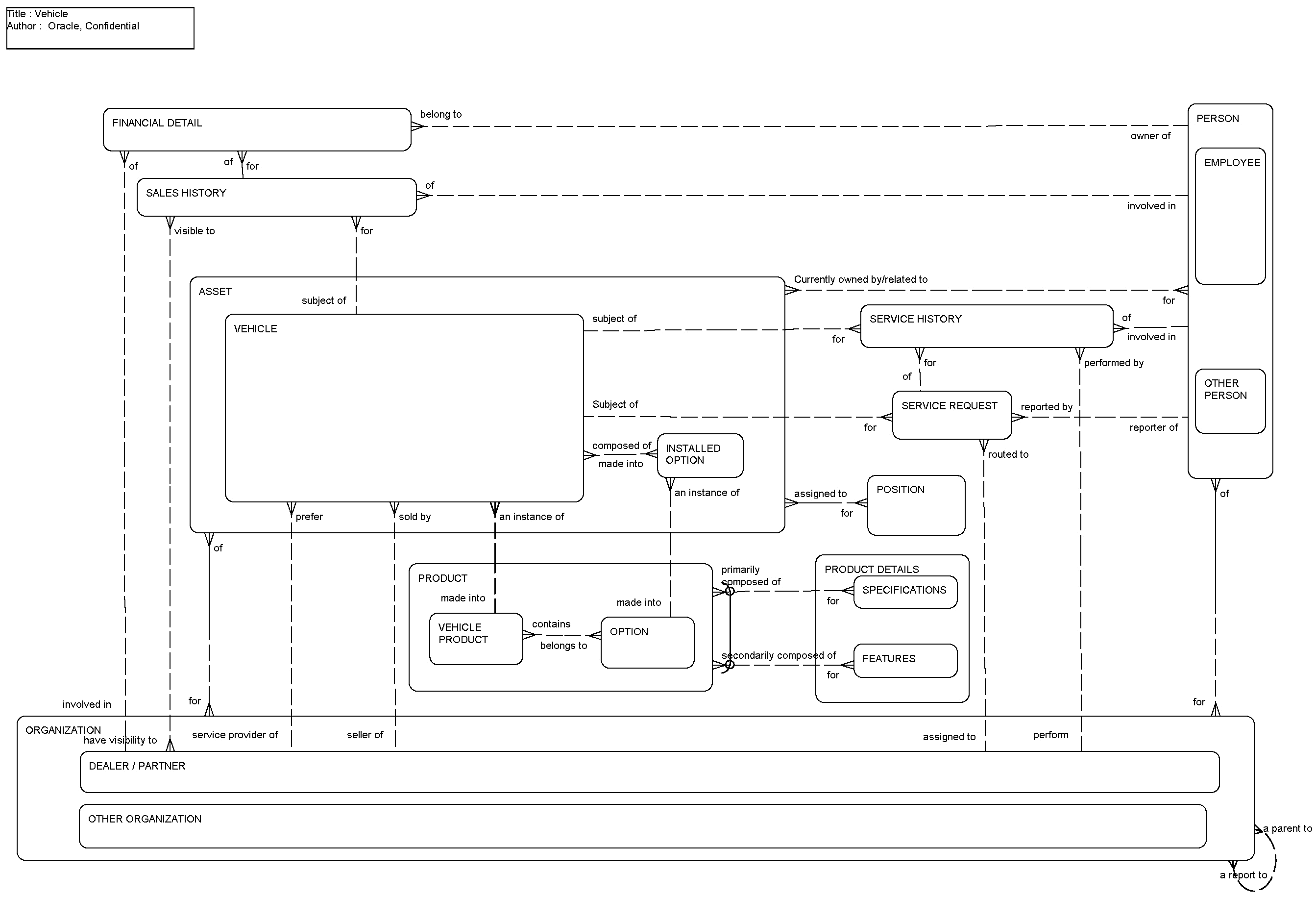

This ERD (see the following figure) illustrates how Siebel Automotive tracks the configuration and relationships associated with a vehicle. Vehicles represent a physical asset based on a product that can be related to one or more contacts, organizations, accounts, and positions. In addition to the attributes inherited from the product upon which it is based, a vehicle can also have one or more options (also products) associated with it. A vehicle's sales history, financial detail, service history and service requests can be tracked through its life cycle.

Universal Customer Master: This image is described in the surrounding text.

The following table lists the entities in this ERD and their corresponding tables.

Entity	Table
Asset	S_ASSET
Contact	S_CONTACT, S_PARTY
Dealer	S_ORG_EXT, S_PARTY
Features	S_PROD_SPEC
Financial Detail	S_VHCL_FIN_DTL
Installed Option	S_ASSET_REL
Option	S_PROD_REL
Position	S_POSITION, S_PARTY
Product	S_PROD_INT
Product Features	S_PROD_SPEC
Sales History	S_VHCL_SALES
Service History	S_VHCL_SRV
Service Request	S_SRV_REQ
Specifications	S_PROD_SPEC
Vehicle	S_ASSET, S_ASSET_ATX
Vehicle Product	S_PROD_INT
