RAF Create Activity Workflow

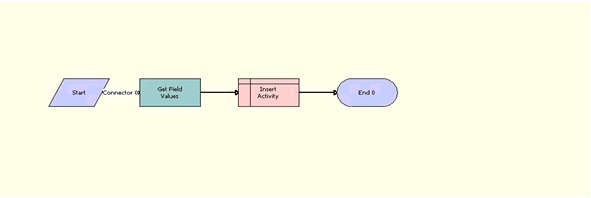

RAF Create Activity Workflow, shown in the following figure, creates a record in activity applet which has details of the rejected product offer. It is called if the action is the type Run Process, and the workflow name is RAF Create Activity.

The RAF Create Activity workflow is described in the surrounding text.

Workflow Description

This workflow performs the following actions:

  • Get Field Values. This step calls the method GetFieldValue of the business service CMU External Integration Service to get values for the fields Activity Description, Activity Type and Account Id from workflow parameters defined in Product Offer.

  • Insert Activity. This step inserts a record in the Action business component with the details from previous step.
