Originating Applet of a Dynamic List

The originating applet contains the control or list column that calls the pick applet. It can contain other controls or list columns into which Siebel CRM enters data if the user chooses a value from the list applet. The originating applet does not require special configuration.

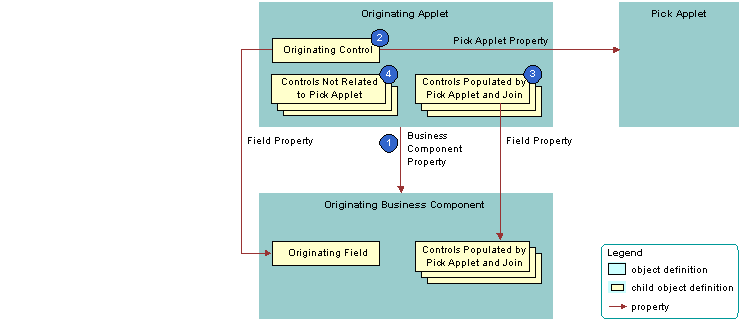

The following figure describes the details of the originating applet that How Siebel CRM Creates a Dynamic List includes.

As shown in this figure, Siebel CRM uses the following objects in the originating applet of a dynamic list:

1. Business component property. Creates the association between the originating applet and the originating business component.

2. Originating control. Calls the pick applet if the user clicks the arrow. The Pick Applet property of the originating control defines the name of the pick applet. The Field property of the originating control defines the originating field. It includes definitions for the pick map child object. For more information, see Originating Business Component of a Dynamic List.

   The Runtime property of the control or list column must be TRUE.

3. Controls that contain data from a pick applet and join. If the user chooses a value from the pick applet, then Siebel CRM updates each control that contains data from a pick applet and join.

4. Controls not related to pick applet. Other controls in the applet.
