Field Service Scheduler

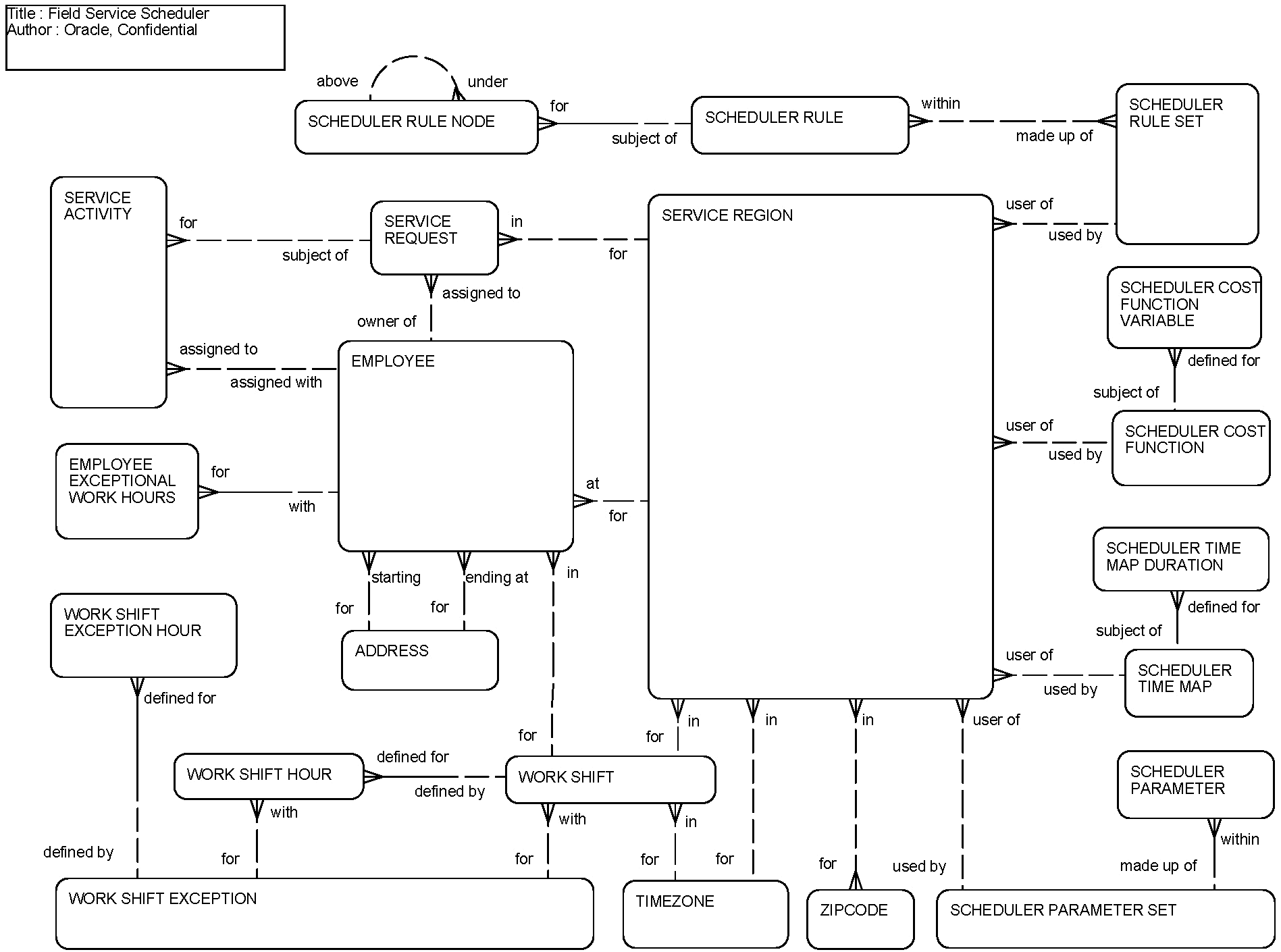

This ERD (see the following figure) illustrates how the Siebel Data Model supports the scheduling of employees to perform service activities within configured service regions. A service region corresponds to one or more ZIP codes or other geographical representation, but can only be associated with a single time zone. The service region defines a number of parameters, time duration maps, cost functions, and rule sets that constrain the scheduling of resources within the region. A given service request or activity is assigned to a service region and then to an employee, based on the employee's working hours and current schedule.

The following table lists the entities in this ERD and their corresponding tables.

Entity	Table
Address	S_ADDR_ORG (Siebel Cross-Industry Applications) S_ADDR_PER (Siebel Industry Applications)
Employee	S_EMP_PER, S_CONTACT, S_PARTY
Employee Exceptional Work Hours	S_EMP_EXCPT_HRS
Scheduler Cost Function	S_SCH_CSTFN
Scheduler Cost Function Variable	S_SCH_CSTFN_VAR
Scheduler Parameter	S_SCH_PARAM
Scheduler Parameter Set	S_SCH_PARAM_SET
Scheduler Rule	S_SCH_RULE
Scheduler Rule Node	S_SCH_RULENODE
Scheduler Rule Set	S_SCH_RLST
Scheduler Time Map	S_SCH_TMMAP
Scheduler Time Map Duration	S_SCH_TMMAP_DUR
Service Activity	S_EVT_ACT
Service Region	S_SRV_REGN
Service Request	S_SRV_REQ
Timezone	S_TIMEZONE
Work Shift	S_SCHED_CAL
Work Shift Exception	S_EXCPT_CAL
Work Shift Exception Hour	S_EXCPT_CAL_HRS
Work Shift Hour	S_SCHED_CAL_HRS
Zipcode	S_ZIPCODE
