Siebel Management Console Screens
The screens within the Siebel Management Console are described here. This topic is part of Running the Siebel Management Console.
You can move from one screen to another by choosing a different selection from the navigation menu in the side panel. Alternatively, in some views of the Siebel Deployment, Profiles, Configuration, and Management screens, you can move to another screen by clicking an icon representing that screen, while also preserving context. For example, if you are configuring a Siebel Server, then clicking the icon for the Siebel Deployment screen navigates to that screen, with the same Siebel Server selected.
See also Supported Activities in Siebel Management Console.
Siebel Deployment Screen
The following figure shows the Siebel Deployment screen in Siebel Management Console. Use this screen to deploy new items, using profiles that you have created, or to review or update settings for existing deployed items, where possible. When you select a deployment item that you have added, the icons change to include those that correspond to actions that you can perform on this deployment item.
A legend identifies the deployment status values that each deployment item might have, such as Staging, Deployment in Progress, Deployed, Deployment Failed, and so on. More information is provided later about some of these status values. The legend status values are shown when you point to the Legend label.
Profiles Screen

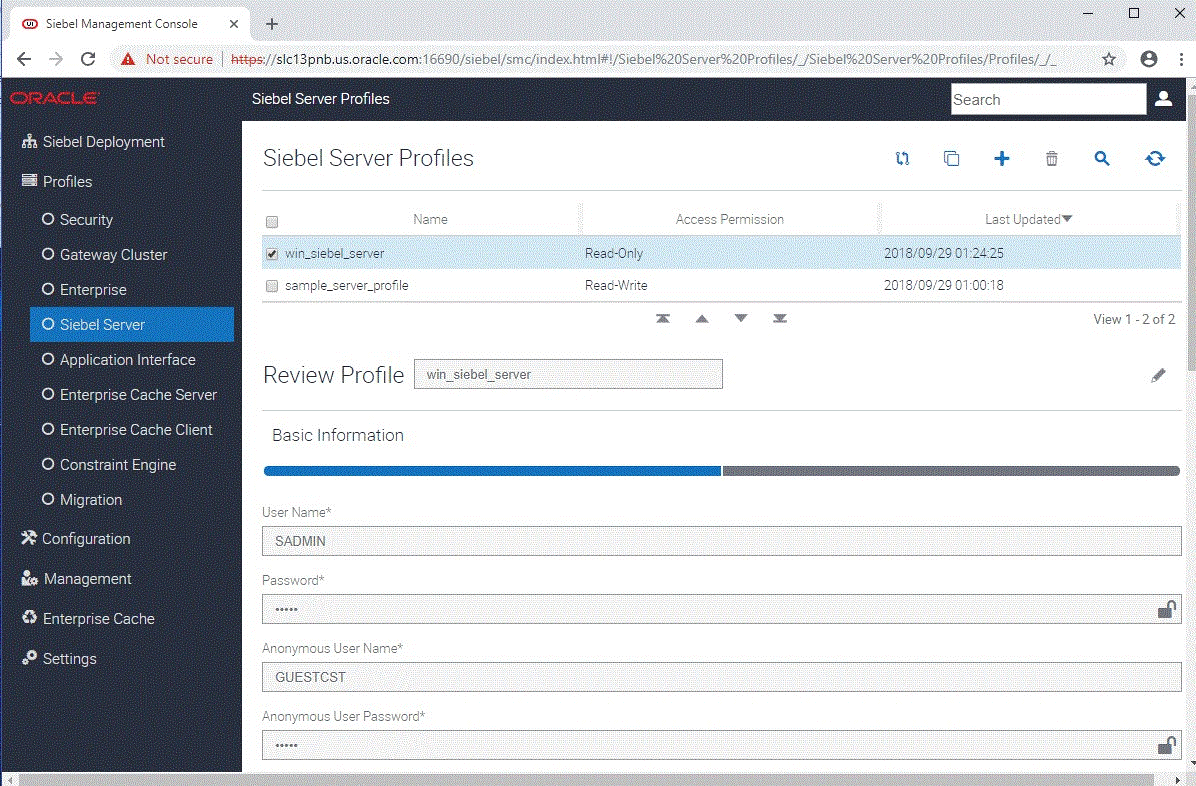

The following figure shows the Profiles screen in Siebel Management Console. Use this screen to create new profiles or to review or update settings for existing profiles. The navigation menu is shown in the side panel.
Configuration Screen
The figure in About the Configuration Screen shows the Configuration screen in Siebel Management Console. You can optionally use this screen to perform configuration activities for the Siebel Enterprise, Siebel Server, server components, and related areas. For more information, see Configuring the Siebel Deployment.
Management Screen
The figure in About the Management Screen shows the Management screen in Siebel Management Console. You can optionally use this screen to perform management activities for the Siebel Enterprise, Siebel Server, server components, and related areas. For more information, see Managing the Siebel Deployment.
Other Screens
Siebel Management Console also includes the Settings screen, which you can use to refresh the configuration and perform other tasks. For more information, see Supported Activities in Siebel Management Console.
