About Batch Data Loading and Synchronization

Oracle Data Integrator is used to perform the initial and on-going batch synchronization of data between Oracle FLEXCUBE Universal Banking and Siebel CRM. Oracle Data Integrator synchronizes data for the following entities:

• Branch

  In Siebel CRM, a branch is mapped to a Siebel division.

• Product

• Product Rate

• Contracts

• Limit

• Mandate

During the Oracle Data Integrator configuration process, you generate scenarios for the Oracle Data Integrator packages that are provided with the Integration, as described in Generating Scenarios for Integration Packages.

Note: In this guide, the term, the Integration, refers to Siebel CRM Integration to Oracle FLEXCUBE Universal Banking.

As shown in the following image, the scenarios perform the following steps:

1. Extract the data from the Oracle FLEXCUBE Universal Banking staging tables.

2. Load the extracted data into the Siebel Enterprise Integration Manager (EIM) tables.

3. Update the batch number variables, and start the Siebel EIM jobs using Siebel Server Manager.

   The batch number variables are used as input for running the Siebel EIM jobs.

4. The EIM jobs import the data into Siebel base tables.

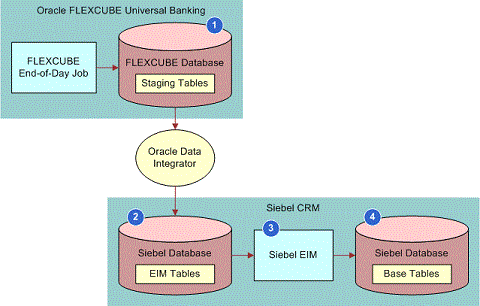

The following illustrates the batch data synchronization process.

For each entity that is batch loaded, the following table lists the Oracle FLEXCUBE Universal Banking staging table that stores the data that is transferred to Siebel CRM. It also lists the corresponding Siebel EIM table that the staging table data is loaded into.

Entity	Oracle FLEXCUBE Universal Banking Staging Tables	Siebel EIM Tables
Branch	STTM_BRANCH_HANDOFF	EIM_FN_ACCNT1 EIM_ADDR_PER
Product	CSTM_PRD_HANDOFF	EIM_PROD_INT EIM_PROD_LN EIM_PROD_INT1
Account Class	STTM_ACLASS_HANDOFF
Rate (Loans)	CLTM_LOAN_RATE_HDF	EIM_FN_CNDTN EIM_FN_PRDINT1
Rate (Corporate Deposit)	LDTM_CDRATE_HANDOFF
Rate (CASA and Retail Deposit)	STTM_ACCLASS_UDE_VALHF; STTM_CHGRATE_HANDOFF
Contract (Bills and Collections)	BCTB_CONTRACT_HANDOFF	EIM_ASSET EIM_FN_ASSET EIM_FN_ASSET3
Contract (Letter Of Credit and Guarantees)	LCTB_CONTRACT_HANDOFF
Limit	GETM_LIMITS_HANDOFF	EIM_FN_LIMIT
Mandate	PCTM_CLIENT_HANDOFF	EIM_FN_ASSET1

The following lists each of the packages used by the Integration and the task performed by each package.

Package	Task
FINS_BIB_INITIAL_SETUP	Runs scripts to create the database entities required for other packages.
FINS_BIB_BRANCH_PKG	Loads branch data.
FINS_BIB_PRODUCT_PKG	Loads product data.
FINS_BIB_PRODUCT_RATE_PKG	Loads product rate data.
FINS_BIB_LIMIT_PKG	Loads limit data.
FINS_BIB_MANDATE_PKG	Loads mandate data.
FINS_BIB_CONTRACT_PKG	Loads contract data.

The way in which data in the staging tables is mapped to data in the Siebel EIM tables during the batch integration process is described in Data Mappings to Siebel EIM Tables
