Party Model

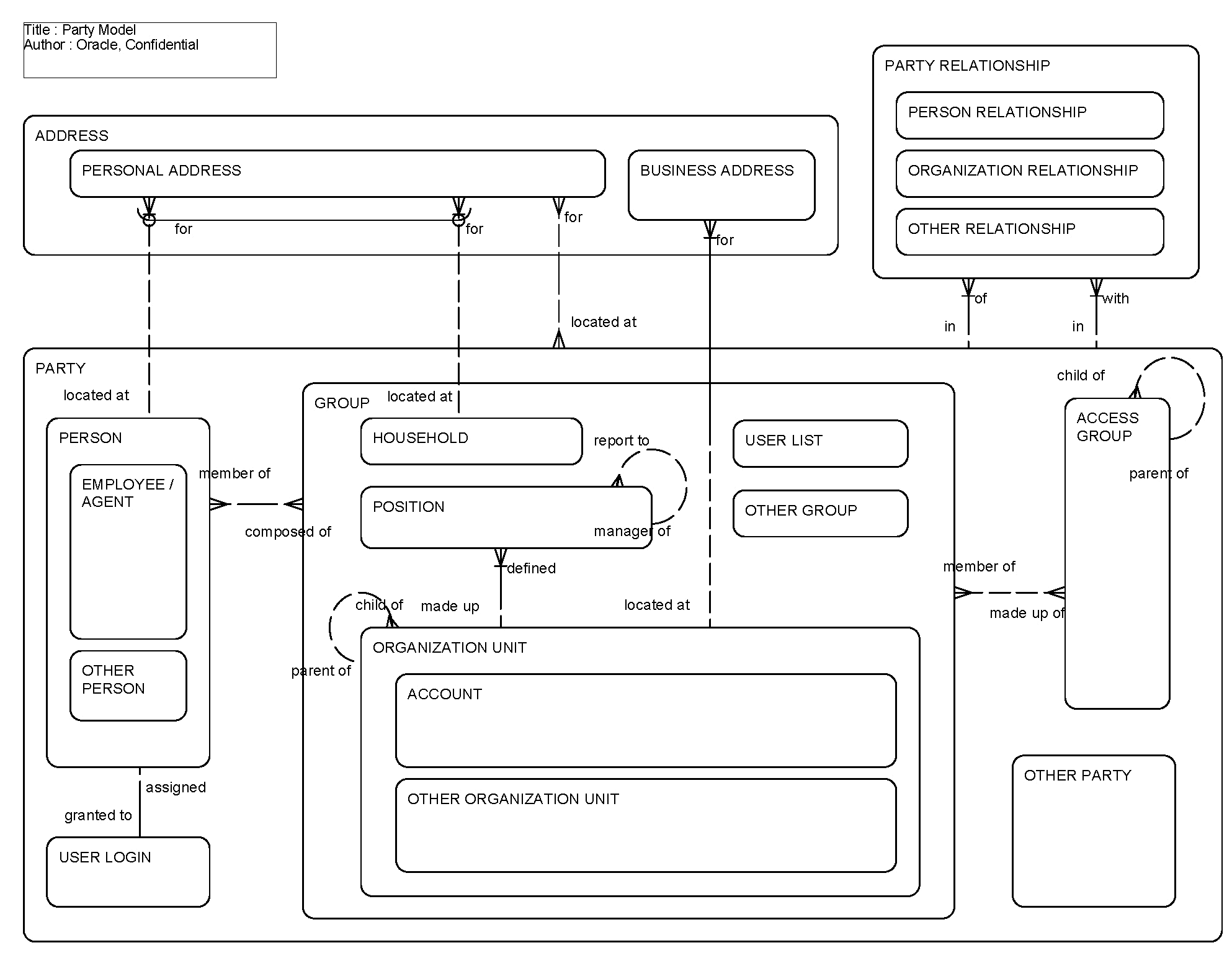

This ERD (see the following figure) illustrates the structure of the party entity, its significant subtypes, and relationships. A party is either a person or some grouping of people such as an organization, a household, a position or a list of users. A person can be an employee or agent of the company using Siebel Business Applications. A person can also be considered a user if he or she has been granted user login credentials. An access group is a type of party that is made up of one or more groups. Addresses can be tracked for a person, a household, or an organization.

The following table lists the entities in this ERD and their corresponding tables.

Entity	Table
Access Group	S_PARTY
Account	S_ORG_EXT, S_PARTY
Business Address	S_ADDR_ORG (Siebel Cross-Industry Applications) S_ADDR_PER (Siebel Industry Applications)
Employee/Agent	S_EMP_PER, S_CONTACT, S_PARTY
Group	S_PARTY
Household	S_ORG_GROUP, S_PARTY
Organization Relationship	S_ORG_REL (Siebel Cross-Industry Applications) S_PARTY_REL (Siebel Industry Applications)
Organization Unit	S_ORG_EXT, S_PARTY
Party	S_PARTY
Party Relationship	S_PARTY_REL
Person	S_CONTACT, S_PARTY
Person Relationship	S_PARTY_REL or S_CONTACT_REL
Personal Address	S_ADDR_PER
Position	S_POSTN, S_PARTY
User List	S_PARTY
User Login	S_USER
