Application Synchronization for Siebel Mobile

Note: This topic applies only for Siebel Mobile disconnected applications.

The Siebel Synchronization Server component, which runs on the Siebel application server can accept concurrent synchronization requests from multiple synchronization clients. The Siebel Synchronization Server component in this instance is the Siebel Application Object Manager for the Siebel Mobile disconnected application, which can be one of the following for example: ePharmamObjMgr_enu or ServicemObjMgr_enu. For more information about object managers for Siebel Mobile disconnected applications, see Adding Object Managers for Siebel Mobile.

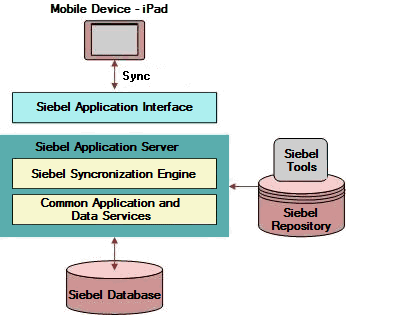

The following image illustrates the synchronization infrastructure for Siebel Mobile disconnected applications as follows:

• The Siebel Synchronization Engine and the Common Application and Data Services reside on the Siebel Server.

• The Siebel Database, Siebel Repository, and Siebel Tools communicate with the Siebel Application Server.
