FINS BIB Deposit Account Update Workflow

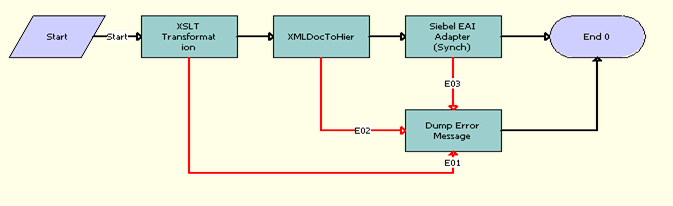

FINS BIB Deposit Account Update Workflow, shown in the following figure, invokes the FINCORP BIB Deposit Account Update FAF Workflow to update the Deposit Account details sent by Oracle FLEXCUBE Universal Banking.

The FINS BIB Deposit Account Update Workflow is described in the following topic.

Workflow Description

This workflow does the following:

  1. XSLT Transformation. This step transforms the UpdateDepositAccountEBM message structure to FINCORP Account IO using the EAI XSLT service.

  2. XMLDoc To IIO. This step converts the SiebelMessage into XML Hierarchy using the IntObjHierToXMLHier method of the EAI XML Convertor service.

  3. Siebel EAI Adapter (Upsert). Using the Upsert method of from the EAI Siebel Adapter, this step upserts the Deposit Account details into the Siebel Finance database.
