2. US CHIPS
CHIPS (Clearing House Interbank Payments System) is the largest private-sector, US dollar-based, money transfer system in the United States. It is a privately operated, and bank owned, system for electronic payments that are transferred and settled in US dollars.
Highlights of CHIPS Payments Module:
l Sanctions check by interfacing with an external Sanctions screening system
l External Credit Approval Check
l Accounting
l CHIPS Message generation
2.2.1 US CHIPS Network Preference Maintenance
You can use this maintenance screen to capture CHIPS network preference. You can invoke “US CHIPS Network Preferences Detailed” screen by typing ‘PSDCHPNP’ in the field at the top right corner of the Application tool bar and clicking on the adjoining arrow button. Click New button on the Application toolbar.
You can specify the following fields:
Network Code
Select the specific Network Code from list of values. The list of values lists US CHIPS network defined in the host.
Network Description
System defaults the description of the Network code.
Network Type Description
System defaults the Network Type Description on the Network code selected.
Host Code
System defaults the Host Code details on clicking the ‘New’ button.
Host Code Description
System defaults the description of the host code.
Transaction Type
Select the Transaction Type either Incoming or Outgoing.
Exchange Rate Preference
FX Rate Type
Specify the FX Rate Type from the list of values that lists Currency Rate Type.
External Exchange Rate Applicable
You can check this box to indicate whether external exchange rate applicable or not.
Cutoff
Cutoff Hours
Specify the network Cutoff Hours.
Cutoff Minutes
Specify the network Cutoff Minutes.
Beneficiary Name Match Required
You can check this box to capture whether Beneficiary name validation required or not.
Value Dating Preferences
Debit value date basis for outbound payments
Select the applicable values from either Activation Date or Instruction Date.
Note
Value Dating preference is applicable only when Transaction Type selected is 'Outgoing'.
Beneficiary Name Match Required is applicable only when Transaction Type selected is 'Incoming'.
Value '0' for both Cutoff Hours/Cutoff Mins fields is not allowed.
2.2.1.1 US CHIPS Network Preferences Summary
You can invoke “US CHIPS Network Preferences Summary” screen by typing ‘PSSCHPNP’ in the field at the top right corner of the Application tool bar and clicking on the adjoining arrow button.
You can search using the following parameter:
l Authorization Status
l Record Status
l Host Code
l Network code
l Transaction Type
Once you have specified the search parameters, click ‘Search’ button. The system displays the records that match the search criteria.
2.2.2 US CHIPS Network Currency Preferences Detailed
You can use this maintenance screen to capture CHIPS network preference. You can invoke “US CHIPS Network Currency Preferences Detailed” screen by typing ‘PSDCHPNC’ in the field at the top right corner of the Application tool bar and clicking on the adjoining arrow button. Click new button on the Application toolbar.
You can specify the following fields:
Network Code
Select the specific Network Code from list of values. The list of values lists US CHIPS network defined in the host. Network code for Payment Type 'high Value' is defined in Network Code Maintenance (PMDNWCOD).
Network Description
System defaults the description of the Network code.
Network Type Description
System defaults the Network Type Description on the Network code selected.
Host Code
System defaults the Host Code details on clicking the ‘New’ button.
Host Code Description
System defaults the description of the host code.
Transaction Type
Select the Transaction Type either Incoming or Outgoing.
Transaction Currency
Specify the Transaction Currency from the list of values. By default, USD is selected.
Limit Details
Minimum Amount
Specify the Minimum Amount.
Maximum Amount
Specify the Maximum Amount.
Pricing Details
Transaction Pricing Code
Specify the Transaction Pricing Code from the list of values. List of all valid (Open/Authorized) pricing codes are defined in the host.
Accounting Codes
Debit Liquidation
Specify the Debit Liquidation from the list of values. List of all valid (Open/Authorized) accounting codes are defined in the host where Main Transaction Dr/Cr Indicator is 'Debit'.
Credit Liquidation
Specify the Credit Liquidation from the list of values. List of all valid (Open/Authorized) accounting codes are defined in the host where Main Transaction Dr/Cr Indicator is 'Credit'
Small FX Limit
Small FX Limit Currency
Specify the Small FX Limit Currency from the list of values. List of all valid (Open/Authorized) currency codes are defined.
Small FX Limit Amount
Specify the Small FX Limit Amount.
Network Account Details
Network Account
Specify the Network Account from the list of values. List of all valid (Open/Authorized) NOSTRO accounts are defined in the host
Note
Maximum Amount if provided to be maintained more than the Minimum Amount.
2.2.2.1 US CHIPS Network Currency Preferences Summary
You can invoke “US CHIPS Network Currency Preferences Summary” screen by typing ‘PSSCHPNC’ in the field at the top right corner of the Application tool bar and clicking on the adjoining arrow button.
You can search using the following parameter:
l Authorization Status
l Record Status
l Host Code
l Network code
Once you have specified the search parameters, click ‘Search’ button. The system displays the records that match the search criteria.
2.2.3 US CHIPS Network Connectivity Detailed
You can use this maintenance screen to capture CHIPS network connectivity preference. You can invoke “US CHIPS Network Connectivity Detailed” screen by typing ‘PSDCHNCT’ in the field at the top right corner of the Application tool bar and clicking on the adjoining arrow button. Click new button on the Application toolbar.
You can specify the following fields:
Host Code
System defaults the Host Code details on clicking the ‘New’ button.
Host Code Description
System defaults the description of the host code.
Network Code
Select the specific Network Code from list of values. List of all valid (Open/Authorized) US CHIPS networks are defined in the host.
Network Code Description
System defaults the description of the Network code.
Network Type Description
System defaults the Network Type Description on the Network code selected.
Outgoing Queue Details
Outgoing Queue Profile
Specify the Outgoing Queue Profile from the list of values.
Outgoing Queue Name
Specify the Queue name.
Incoming Queue Details
Incoming Queue Profile
Specify the Incoming Queue Profile from the list of values.
Incoming Queue Name
Specify the Queue name.
2.2.3.1 US CHIPS Network Connectivity Summary
You can invoke “US CHIPS Network Connectivity Summary” screen by typing ‘PSSCHNCT’ in the field at the top right corner of the Application tool bar and clicking on the adjoining arrow button.
You can search using the following parameter:
l Authorization Status
l Record Status
l Host Code
l Network code
l Outgoing Queue Profile
l Incoming Queue Profile
Once you have specified the search parameters, click ‘Search’ button. The system displays the records that match the search criteria.
2.3 Outbound Transaction screens
2.3.1 US CHIPS Inbound Transaction Input Detailed
You can use this maintenance screen for manual transaction booking. You can invoke “US CHIPS Inbound Transaction Input Detailed” screen by typing ‘PSDOCHNL’ in the field at the top right corner of the Application tool bar and clicking on the adjoining arrow button. Click new button on the Application toolbar.
You can specify the following fields:
Host Code
System defaults the Host Code details on clicking the ‘New’ button.
Transaction Identification
This field displays Transaction Reference Number
Transaction Branch
System defaults the Host Code details on clicking the ‘New’ button.
Source Reference Number
Specify the Source Reference Number
Source Code
Specify the Source Code from the list of values. List of all valid [Open/Authorized] source codes defined in the host.
Related Reference Number
Specify the Related Reference Number.
Network Code
Select the specific Network Code from list of values. Lists all US CHIPS networks defined in the host (Open/Authorize).
Transfer Type
Select the Transfer Type as either Bank Transfer - B or Customer Transfer - C.
2.3.1.1 Main Tab
Payment Details
Booking Date
System defaults to current branch date.
Requested Execution Date
System defaults to current branch date.
Value Date
System defaults to current branch date
Activation Date
System defaults to current branch date
Debit Value Date
Specify the Debit entry value date.
Credit Value Date
Specify the Credit entry value date.
Instructed Currency Indicator
Select the Instructed Currency Indicator as either Transfer Currency or Debit Currency.
Instructed Currency
Specify the Instructed Currency from the list of values. List of all valid (Open/Authorized) currencies defined.
Instructed Amount
Specify the Debit amount.
Transfer Currency
Specify the Transfer Currency from the list of values. System defaults to currency code value as USD.
Transfer Amount
Specify the Transfer amount.
Debit Account
Specify the Debit Account from the list of values. Lists all valid [Open/Authorized] defined in the host - External Customer Account (STDCRACC)
Debit Branch
System defaults the currency of the debit account selected.
Debit Currency
System defaults the branch code of the debit account selected.
Debit Amount
Specify the Debit Amount.
Customer No
Specify the Customer Number from displayed resolved customer number.
Customer Service Model
Specify the Customer Service model of the resolved customer.
Charge Bearer
Select the Charge Bearer as either SHA or BEN.
Exchange Rate
Specify the Exchange Rate. Exchange Rate if Debit account currency is different from Transfer currency or Instructed Currency is different from Transfer Currency.
FX Reference Number
Specify the FX Reference Number.
Remarks
Specify the Remarks, if any.
[500 OR 502] Originator
Type
Select the Identifier Type from the values listed below:
l UID
l BIC
l DDA
Identifier
If BIC is selected as Identifier type, all valid (Open/Authorized) SWIFT BICs are listed to specify.
Name
Specify the Name.
Address Line 1, 2, 3
Specify the address.
Note
Name and Address fields are only allowed, Identifier type is selected as F Option.
[510 OR 512] Originator FI
Type
Select the Identifier Type from the values listed below:
l UID
l BIC
l DDA
Identifier
If BIC is selected as Identifier type, all valid (Open/Authorized) SWIFT BICs are listed to specify.
Name
Specify the Name.
Address Line 1, 2, 3
Specify the address.
Note
Name and Address fields are only allowed, Identifier type is selected as F Option.
[420 thru 422] Beneficiary
Type
Select the Identifier Type from the below given values:
l UID
l BIC
l DDA
Identifier
If BIC is selected as Identifier type, all valid (Open/Authorized) SWIFT BICs are listed to specify.
Code
Specify the Code.
Name
Specify the Name.
Address Line 1, 2, 3
Specify the address.
[410 thru 412] Beneficiary FI
Type
Select the Identifier Type from the values listed below:
l UID
l BIC
l DDA
l F Option
Identifier
If BIC is selected as Identifier type, all valid (Open/Authorized) SWIFT BICs are listed to specify.
Code
Specify the Code.
Name
Specify the Name.
Address Line 1, 2, 3
Specify the address.
Receiver
Receiver ABA Number
Specify the Receiver ABA Number from the list of values. Lists all the valid (Open/Authorized) CHIPS ABA Number.
Receiver Short Name
This field displays the bank name of the receiver.
2.3.1.2 Other Details
Click the Other Details in the screen to invoke this sub screen.
2.3.1.3 Charges Information
Click the Charges Information in the screen to invoke this sub screen.
2.3.1.4 FI Information Tab
Click the FI Information in the screen to invoke this sub screen.
This sub-screen defaults values of UDF fields that are part of the UDF group specified for the ‘Manual’ source.
2.3.1.5 UDF Tab
Click the ‘UDF’ Section in the Transaction View screen to invoke this sub screen.
This sub-screen defaults values of UDF fields that are part of the UDF group specified for the ‘Manual’ source.
Specify the following details.
Fields
Field Label
The system displays all fields that are part of the associated UDF group.
Value
The system displays the default value, where exists for the UDF fields. You can change the default value or specify value for other fields (where default value does not exist)
2.3.1.6 MIS Tab
You can maintain the MIS information for the Transaction. If the MIS details are not entered for the Transaction the same is defaulted from the product maintenance. Click the ‘MIS’ link to invoke the ‘MIS’ sub-screen
Specify the following details
Transaction Reference
The system displays the transaction reference number of the transaction.
MIS Group
Specify the MIS group code. Alternatively, you can select the MIS group code from the option list. The list MIS group displays all valid MIS groups maintained in the system for different sources in the Source maintenance. By default, the MIS group linked to the ‘Manual’ source is populated while booking a transaction from this screen.
Default button
Click this button after selecting a MIS group different from the default MIS Group (which was populated) so that any default MIS values can be populated from to link to the Transaction MIS and Composite MIS classes.
Transaction MIS
The default MIS values for Transaction MIS classes are populated for the MIS group. You can change one or more default MIS values or specify more MIS values. Alternatively, you can select MIS values from the option list.
Composite MIS
The default MIS values for Composite MIS classes are populated for the MIS group. You can change one or more default MIS values or specify more MIS values. Alternatively, you can select MIS values from the option list.
2.3.1.7 Enrich / Validations
When you click on enrich button, below validations are done:
– Originator [500 OR 502] details are mandatory.
– For Transfer Type 'Customer Transfer', Beneficiary details [420 thru 422] are mandatory.
– The Originator bank [410] thru [412] information is mandatory, when Instructing bank [520 thru 522] details added.
After successful validation, below processing are done:
– Activation date, Debit Value date, Credit Value date are derived and populated.
– Debit Amount or Transfer amount derivation is done. Exchange Rate is picked up if Debit Account currency is different from Transfer currency.
– Pricing calculation is done and the pricing details are populated in Pricing tab.
– MIS / UDF values are defaulted, if not added.
2.3.1.8 All Messages
You can invoke this screen by clicking ‘All Messages’ tab in the screen.
2.3.1.9 Accounting Entries
Click the Accounting Entries tab and view the accounting entries for the transaction initiated.
By default, the following attributes of the Accounting Entries tab are displayed:
l Event Code
l Transaction Date
l Value Date
l Account
l Account Branch
l TRN Code
l Dr/Cr.
l Amount Tag
l Account Currency
l Transaction Amount
l Netting
l Offset Account
l Offset Account Branch
l Offset TRN Code
l Offset Amount Tag
l Offset Currency
l Offset Amount
l Offset Netting
l Handoff Status
2.3.1.10 US CHIPS Outbound Transaction Input Detailed Summary
You can invoke “US CHIPS Outbound Transaction Input Detailed Summary” screen by typing ‘PSSOCHNL’ in the field at the top right corner of the Application tool bar and clicking on the adjoining arrow button.
You can search using the following parameter:
l Transaction Identification
l Value Date
l Network code
l Booking Date
l Transaction Branch
l Instruction Date
l Source Code
l Authorization Status
l Source Reference Number
l Debtor Account Number
Once you have specified the search parameters, click ‘Search’ button. The system displays the records that match the search criteria.
2.3.2 US CHIPS Outbound Transaction Input View Detailed
You can use this maintenance screen for manual transaction booking. You can invoke “US CHIPS Outbound Transaction Input View Detailed” screen by typing ‘PSDOCHVW’ in the field at the top right corner of the Application tool bar and clicking on the adjoining arrow button. Click new button on the Application toolbar.
.
Please refer Section 2.3.1, "US CHIPS Inbound Transaction Input Detailed" for field details.
2.3.2.1 Processing Details
Click the Processing Details in the screen to invoke this sub screen..
Status Details
Queue Code
Select the Queue Code.
Transaction Status
Select the Transaction Status.
View Queue
You can view the queue action for the respective transaction.
Debit Liquidation Status
Select the Debit Liquidation Status.
Credit Liquidation Status
Select the Credit Liquidation Status.
External Communications
Sanction Check Status
Select the Sanction Check Status.
Sanction Reference
Specify the Sanction Reference.
Sanction Seizure
Select the Sanction Seizure.
External Credit Approval Status
Select the External Credit Approval Status.
External Credit approval Ref
Specify the External Credit approval Ref.
External Exchange Rate Status
Select the External Exchange Rate Status.
External Exchange Rate Reference
Specify the External Exchange Rate Reference.

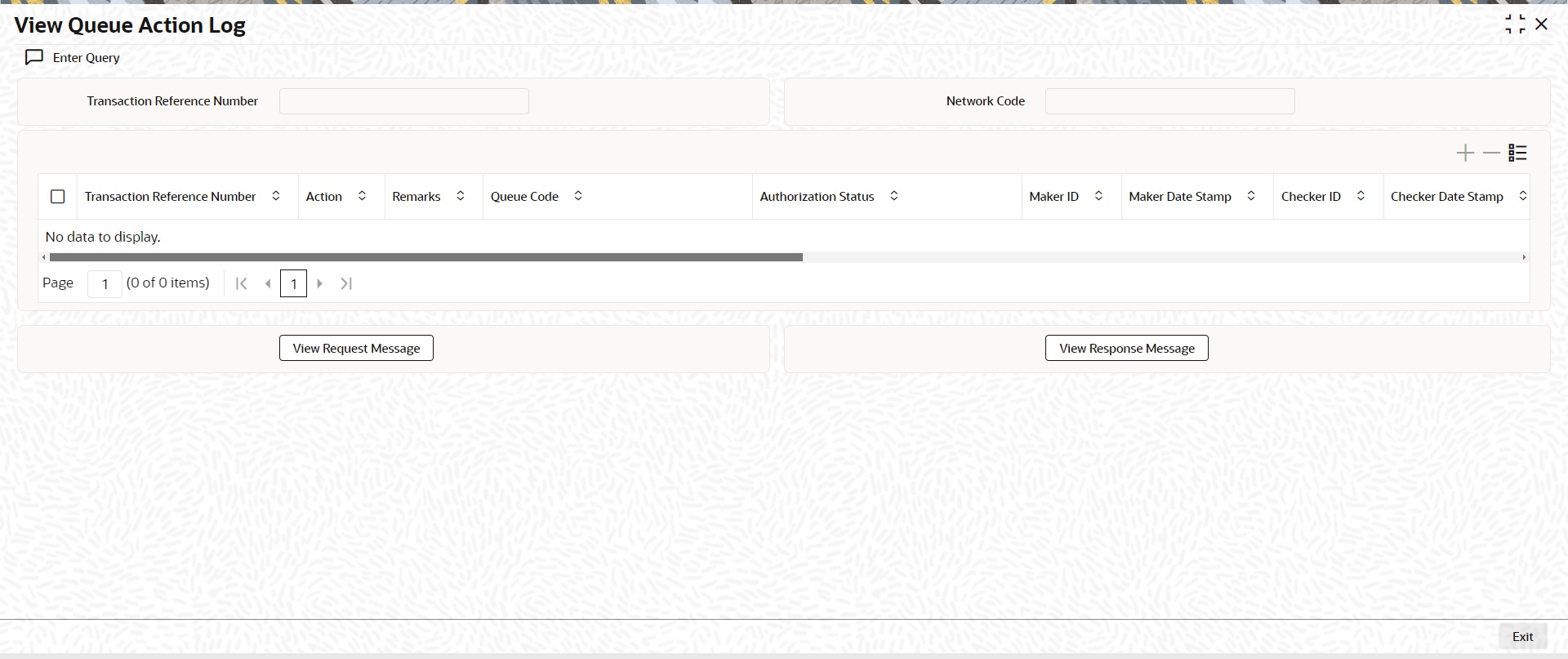

2.3.2.2 View Queue Action Log
You can view all the queue actions for the respective transaction initiated. You can invoke this screen by clicking the ‘View Queue Action’ tab in the screen, where the Transaction Reference Number is auto populated and Queue movement related details are displayed.
Following details are displayed:
l Transaction Reference Number
l Network Code
l Action
l Remarks
l Queue Code
l Authorization Status
l Maker ID
l Maker Date Stamp
l Checker ID
l Checker Date Stamp
l Queue Status
l Queue Reference No
l Primary External Status
l Secondary External Status
l External Reference Number
You can view the request sent and the corresponding response received for each row in Queue Action Log.
Also you can view the request sent to and the response received from external systems for the following:
l Sanction system
l External credit approval
l External Account Check
l External FX fetch
l External price fetch
l Accounting system
2.3.2.3 US CHIPS Outbound Transaction Input Detailed View Summary
You can invoke “US CHIPS Outbound Transaction Input Detailed View Summary” screen by typing ‘PSSOCHVW’ in the field at the top right corner of the Application tool bar and clicking on the adjoining arrow button.
You can search using the following parameter:
l Transaction Identification
l Value Date
l Network code
l Booking Date
l Transaction Branch
l Instruction Date
l Source Code
l Authorization Status
l Source Reference Number
l Debtor Account Number
Once you have specified the search parameters, click ‘Search’ button. The system displays the records that match the search criteria.
2.4 Inbound Transaction screens
2.4.1 US CHIPS Inbound Transaction Input Detailed
You can use this screen for manual transaction booking. You can invoke “US CHIPS Inbound Transaction Input Detailed” screen by typing ‘PSDICHNL’ in the field at the top right corner of the Application tool bar and clicking on the adjoining arrow button. Click new button on the Application toolbar.
.
You can specify the following fields:
Host Code
System defaults the Host Code details on clicking the ‘New’ button.
Transaction Identification
This field displays Transaction Reference Number
Transaction Branch
System defaults the Host Code details on clicking the ‘New’ button.
Source Reference Number
Specify the Source Reference Number
Source Code
Specify the Source Code from the list of values. List of all valid [Open/Authorized] source codes defined in the host.
Related Reference Number
Specify the Related Reference Number.
Network Code
Select the specific Network Code from list of values. Lists all US CHIPS networks defined in the host (Open/Authorize).
Transfer Type
Select the Transfer Type as either Bank Transfer - B or Customer Transfer - C.
2.4.1.1 Main Tab
Payment Details
Booking Date
System defaults to current branch date.
Requested Execution Date
System defaults to current branch date.
Value Date
System defaults to current branch date
Activation Date
System defaults to current branch date
Debit Value Date
Specify the Debit entry value date.
Credit Value Date
Specify the Credit entry value date.
Instructed Currency Indicator
Select the Instructed Currency Indicator as either Transfer Currency or Debit Currency.
Instructed Currency
Specify the Instructed Currency from the list of values. List of all valid (Open/Authorized) currencies defined.
Instructed Amount
Specify the Debit amount.
Transfer Currency
Specify the Transfer Currency from the list of values. System defaults to currency code value as USD.
Transfer Amount
Specify the Transfer amount.
Debit Account
Specify the Debit Account from the list of values. Lists all valid [Open/Authorized] defined in the host - External Customer Account (STDCRACC)
Debit Branch
System defaults the currency of the debit account selected.
Debit Currency
System defaults the branch code of the debit account selected.
Debit Amount
Specify the Debit Amount.
Customer No
Specify the Customer Number from displayed resolved customer number.
Customer Service Model
Specify the Customer Service model of the resolved customer.
Charge Bearer
Select the Charge Bearer as either SHA or BEN.
Exchange Rate
Specify the Exchange Rate. Exchange Rate if Debit account currency is different from Transfer currency or Instructed Currency is different from Transfer Currency.
FX Reference Number
Specify the FX Reference Number.
Remarks
Specify the Remarks, if any.
[500 OR 502] Originator
Type
Select the Identifier Type from the values listed below:
l UID
l BIC
l DDA
Identifier
If BIC is selected as Identifier type, all valid (Open/Authorized) SWIFT BICs are listed to specify.
Name
Specify the Name.
Address Line 1, 2, 3
Specify the address.
Note
Name and Address fields are only allowed, Identifier type is selected as F Option.
[510 OR 512] Originator FI
Type
Select the Identifier Type from the values listed below:
l UID
l BIC
l DDA
Identifier
If BIC is selected as Identifier type, all valid (Open/Authorized) SWIFT BICs are listed to specify.
Name
Specify the Name.
Address Line 1, 2, 3
Specify the address.
Note
Name and Address fields are only allowed, Identifier type is selected as F Option.
[420 thru 422] Beneficiary
Type
Select the Identifier Type from the below given values:
l UID
l BIC
l DDA
Identifier
If BIC is selected as Identifier type, all valid (Open/Authorized) SWIFT BICs are listed to specify.
Code
Specify the Code.
Name
Specify the Name.
Address Line 1, 2, 3
Specify the address.
[410 thru 412] Beneficiary FI
Type
Select the Identifier Type from the values listed below:
l UID
l BIC
l DDA
l F Option
Identifier
If BIC is selected as Identifier type, all valid (Open/Authorized) SWIFT BICs are listed to specify.
Code
Specify the Code.
Name
Specify the Name.
Address Line 1, 2, 3
Specify the address.
Receiver
Receiver ABA Number
Specify the Receiver ABA Number from the list of values. Lists all the valid (Open/Authorized) CHIPS ABA Number.
Receiver Short Name
This field displays the bank name of the receiver.
2.4.1.2 Other Details
Click the Other Details in the screen to invoke this sub screen.
2.4.1.3 Charges Information
Click the Charges Information in the screen to invoke this sub screen.
2.4.1.4 FI Information Tab
Click the FI Information in the screen to invoke this sub screen.
This sub-screen defaults values of UDF fields that are part of the UDF group specified for the ‘Manual’ source.
2.4.1.5 UDF Tab
Click the ‘UDF’ Section in the Transaction View screen to invoke this sub screen.
This sub-screen defaults values of UDF fields that are part of the UDF group specified for the ‘Manual’ source.
Specify the following details.
Fields
Field Label
The system displays all fields that are part of the associated UDF group.
Value
The system displays the default value, where exists for the UDF fields. You can change the default value or specify value for other fields (where default value does not exist)
2.4.1.6 MIS Tab
You can maintain the MIS information for the Transaction. If the MIS details are not entered for the Transaction the same is defaulted from the product maintenance. Click the ‘MIS’ link to invoke the ‘MIS’ sub-screen
Specify the following details
Transaction Reference
The system displays the transaction reference number of the transaction.
MIS Group
Specify the MIS group code. Alternatively, you can select the MIS group code from the option list. The list MIS group displays all valid MIS groups maintained in the system for different sources in the Source maintenance. By default, the MIS group linked to the ‘Manual’ source is populated while booking a transaction from this screen.
Default button
Click this button after selecting a MIS group different from the default MIS Group (which was populated) so that any default MIS values can be populated from to link to the Transaction MIS and Composite MIS classes.
Transaction MIS
The default MIS values for Transaction MIS classes are populated for the MIS group. You can change one or more default MIS values or specify more MIS values. Alternatively, you can select MIS values from the option list.
Composite MIS
The default MIS values for Composite MIS classes are populated for the MIS group. You can change one or more default MIS values or specify more MIS values. Alternatively, you can select MIS values from the option list.
2.4.1.7 Enrich / Validations
When you click on enrich button, below validations are done:
– Originator [500 OR 502] details are mandatory.
– For Transfer Type 'Customer Transfer', Beneficiary details [420 thru 422] are mandatory.
– The Originator bank [410] thru [412] information is mandatory, when Instructing bank [520 thru 522] details added.
After successful validation, below processing are done:
– Activation date, Debit Value date, Credit Value date are derived and populated.
– Debit Amount or Transfer amount derivation is done. Exchange Rate is picked up if Debit Account currency is different from Transfer currency.
– Pricing calculation is done and the pricing details are populated in Pricing tab.
– MIS / UDF values are defaulted, if not added.
2.4.1.8 All Messages
You can invoke this screen by clicking ‘All Messages’ tab in the screen.
2.4.1.9 Accounting Entries
Click the Accounting Entries tab and view the accounting entries for the transaction initiated.
By default, the following attributes of the Accounting Entries tab are displayed:
l Event Code
l Transaction Date
l Value Date
l Account
l Account Branch
l TRN Code
l Dr/Cr.
l Amount Tag
l Account Currency
l Transaction Amount
l Netting
l Offset Account
l Offset Account Branch
l Offset TRN Code
l Offset Amount Tag
l Offset Currency
l Offset Amount
l Offset Netting
l Handoff Status
2.4.1.10 US CHIPS Inbound Transaction Input Detailed Summary
You can invoke “US CHIPS Outbound Transaction Input Detailed Summary” screen by typing ‘PSSICHNL’ in the field at the top right corner of the Application tool bar and clicking on the adjoining arrow button.
You can search using the following parameter:
l Transaction Identification
l Value Date
l Network code
l Booking Date
l Transaction Branch
l Instruction Date
l Source Code
l Authorization Status
l Source Reference Number
l Debtor Account Number
Once you have specified the search parameters, click ‘Search’ button. The system displays the records that match the search criteria.
2.4.2 US CHIPS Inbound Transaction Input View Detailed
You can use this maintenance screen for manual transaction booking. You can invoke “US CHIPS Inbound Transaction Input View Detailed” screen by typing ‘PSDICHVW’ in the field at the top right corner of the Application tool bar and clicking on the adjoining arrow button. Click new button on the Application toolbar.
Please refer Section 2.3.2, "US CHIPS Outbound Transaction Input View Detailed" for field details.
2.4.2.1 US CHIPS Inbound Transaction Input Detailed View Summary
You can invoke “US CHIPS Outbound Transaction Input Detailed View Summary” screen by typing ‘PSSICHVW’ in the field at the top right corner of the Application tool bar and clicking on the adjoining arrow button.
You can search using the following parameter:
l Transaction Identification
l Value Date
l Network code
l Booking Date
l Transaction Branch
l Instruction Date
l Source Code
l Authorization Status
l Source Reference Number
l Debtor Account Number
Once you have specified the search parameters, click ‘Search’ button. The system displays the records that match the search criteria.
