5.1.1 Viewing Traces

Perform the following procedure to view traces on the IDIH GUI:

1. On the IDIH GUI, in the left navigation pane, click the ProTrace tab. The following page appears with the list of traces.

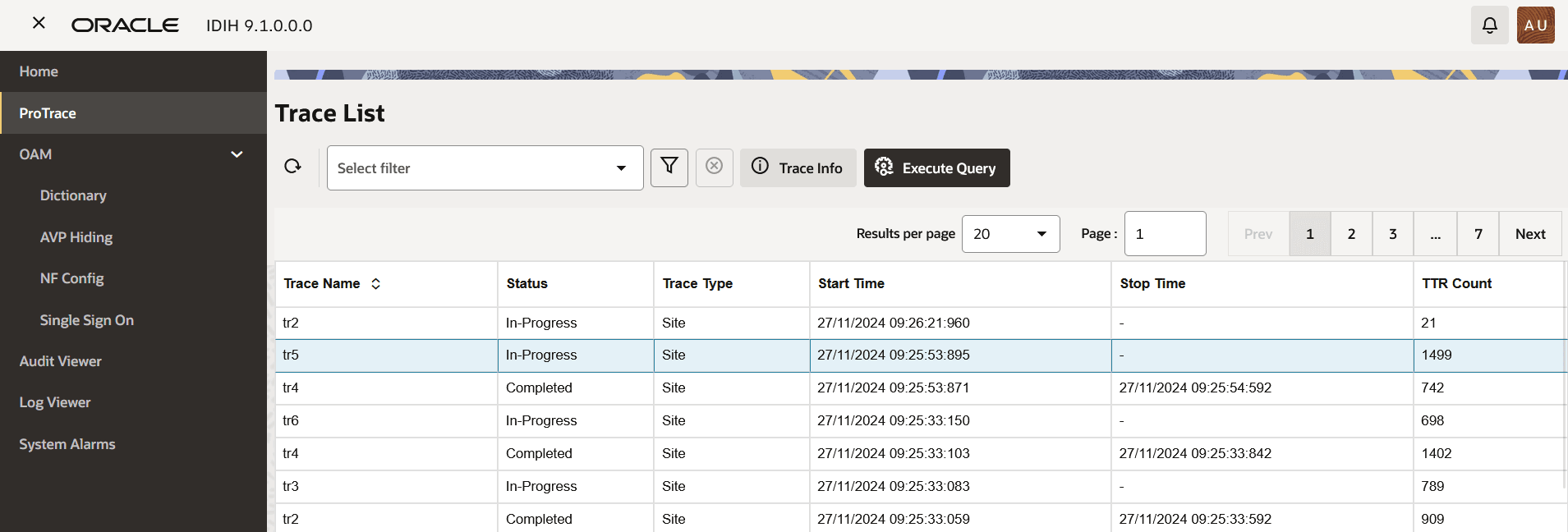

   Figure 5-1 Viewing Traces








2. To view the summary of a trace, click the required trace from the Trace Name column.
3. In the upper center of the page, click Trace info.

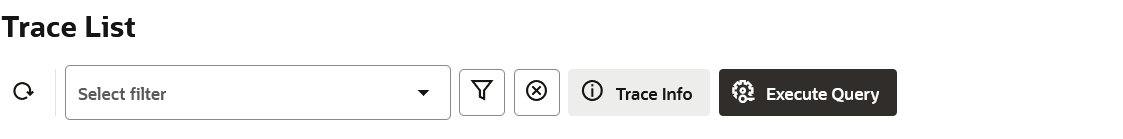

   Figure 5-2 Trace Info









   The summary of the trace appears on the screen.

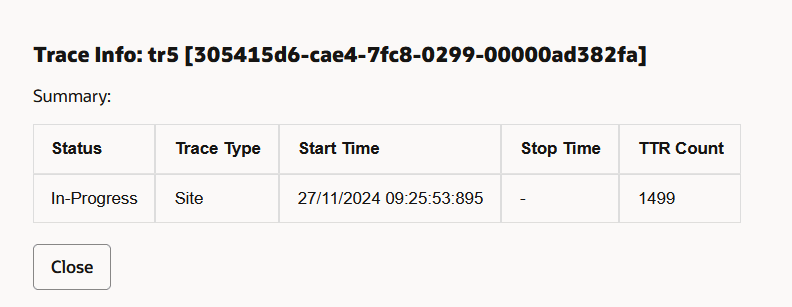

   Figure 5-3 Trace summary









Note:

In case you encounter the following error, close all the multiple IDIH sessions and try after certain time.

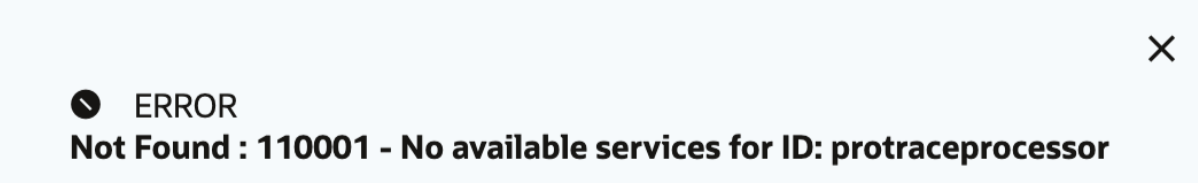

Figure 5-4 Error
