Upgrading Cloud Manager PeopleTools Using Command Line

The command line has the following hierarchy:

Command > Task > Operation > Subtask >Activity

• Command

  The command is run_cloud_manager_update.

• Task

  For Cloud Manager Update Image 9, the only supported task is cm_upgrade [-t option].

• Operation

  Multiple operations [-o option] are available for a task. For cm_upgrade operations see Command Line Operations for cm_upgrade

• Subtasks

  Each operation contains one or more subtasks. See Subtasks for PeopleTools Upgrade [PTU] in Cloud Manager Instance.

• Activity

  Each subtask may have multiple activities.

The task cm_upgrade is used to perform a PeopleTools Upgrade [PTU] in the Cloud Manager instance. The input values are given as a response file. The format is:

run_cloud_manager_update -t cm_upgrade  -o <operation_name> -r <response_file.json>

This table lists the operation/subtask details.

The cm_upgrade task is used to perform a PeopleTools Upgrade [PTU] in Cloud Manager instance. The input values should given as response file. This task will upgrade PeopleTools on the Cloud Manager instance with no manual stop.

The following sub tasks are performed.

1. Validate the Cloud Manager PTU response file input values.

   The validation activity (PsftCMUpdateValidationActivity) will validate:

   • WinRm connectivity to the Windows client instance

   • Windows client user id and password

   • File server validation

   • Current PeopleTools version

   • PeopleTools DPK for the new PeopleTools version

   • Database information in TNS entry

   • PIA port - http and https

   • psftserver values and jolt port in wls config

   • WLS port and Jolt port in Application domain

   • Operator id/password

   • WLS admin is/password

   • Web profile user id/password

   • DB admin password

   • Operator id and password

   • Connect id and password

   • Access id and password

   • All user input mandatory values

2. Take a backup of current CM_PS_HOME and PS_CFG_HOME.

   The activity to prepare for the update (PsftPrepareCMUpdateActivity) will:

   • Take a backup of PS_HOME and PS_CFG_HOME

   • Take a backup of PTU specific files.

   • Copy the PTC and ODC DPK from CM DPKs to the file server.

3. Stop the Cloud Manager psft domains.

   The activity to shut down PSFT domains (PsftCMDomainRestartActivity) will run,

4. Cloud Manager PTU upgrade process.

   This subtask contains multiple activities:

   • Copy the Cloud folder from Cloud Manager file server to Windows client.

   • Install the PeopleTools client for current CM PeopleTools version.

   • Install the PeopleTools client for new CM PeopleTools version.

   • Configuration Change Assistant for CM PeopleTools Upgrade process.

   • Trigger the Change Assistant PTU command line process.

5. Cloud Manager PTP update process.

   This subtask contains multiple activities:

   • Copy the Cloud folder from Cloud Manager file server to Windows client.

   • Install the PeopleTools client for new CM PeopleTools version.

   • Configuration Change Assistant for CM PeopleTools Update process.

   • Trigger the Change Assistant PTP command line process.

6. Uninstall the Cloud Manager middle tier.

   The activity to uninstall the middle tier will:

   • Uninstall middle tier from the Cloud Manager instance.

   • Call the puppet clean up command using the root user.

7. Re-provision the Cloud Manager middle tier.

   This subtask contains multiple activities:

   • Provision middle tier:

     • Installation of new PeopleTools middle tier in the Cloud Manager middle tier.

     • Restore old configuration files in Cloud Manager.

     • Restore log4j, open ssl, puppet config and processing scripts.

     • Will do Cloud Manager specific configuration in Cloud Manager puppet yaml file and will trigger the Cloud Manager specific puppet profiles.

     • Run puppet apply using root user for recreating the middle tier.

   • Place holder for doing the post mid-tier creation steps, if any.

8. Cloud Manager PTU post update settings.

   The activity for PTU post update settings will:

   • Post the upgrade task.

   • Run the application engine program for notifying the UI about the processing status.

9. Restarting the Cloud Manager domains.

   The activity will restart all Cloud Manager psft domains.

Create a json file that includes all the mandatory values. The other values will be discovered in job processing. If the mandatory values are not included in the response file, running the job results in an error.

This is an example of the response file containing the mandatory values:

{

  "pum_source": {

    "windows_client": {

      "private_ip": "<windows_client private IP>",

      "remote_password": "<Windows Client Password>"

    }

  },

  "pum_target": {

    "psft": {

      "access_pwd": "<Access Password>",

      "opr_pwd": "<Operator Password>",

      "admin_pwd": "<DB Admin Password>",

      "connect_pwd": "<Connect Password>",

      "gw_admin_user_pwd": "<Gateway User Password>",

      "webprofile_user_pwd": "<Web Profile User Password>",

      "weblogic_admin_pwd": "<Webserver Admin Password>"

    }

  }

}

The response file can also contain additional values, however the mandatory values must be included.

This is an example of a response file with additional values:

{

  "file_server": {

    "hostname": "hostname.example.com"

  },

  "pum_source": {

    "windows_client": {

      "host_name": "win_client_hostname",

      "private_ip": "<Windows Client Private IP>",

      "remote_password": "<Windows Client Password>"

    }

  },

  "pum_target": {

    "psft": {

      "opr_id": "CLADM",

      "connect_id": "people",

      "access_id": "SYSADM",

      "weblogic_admin_user": "system",

      "gw_admin_user": "administrator",

      "db_name": "CMPSDB",

      "db_service_name": "CMPSDB",

      "db_host": "hostname.example.com",

      "psft_server": "hostname.example.com",

      "wsl_port": "7000",

      "jolt_port": "9033",

      "pia_https_port": "8443",

      "pia_http_port": "8000",

      "db_port": "1522",

      "tools_version": "8.56.12",

      "new_tools_version": "8.57.03",

      "pi_number": "8",

      "access_pwd": "<Access Password>",

      "opr_pwd": "<Operator Password>",

      "admin_pwd": "<DB Admin Password>",

      "connect_pwd": "<Connect Password>",

      "gw_admin_user_pwd": "<Gateway User Password>",

      "webprofile_user_pwd": "<Web Profile User Password>",

      "weblogic_admin_pwd": "<Webserver Admin Password>"

    }

  }

}

Use the following command to get the current status of the PeopleTools Upgrade:

run_cloud_manager_update -t CM_UPGRADE -o get_status

When the PeopleTools Upgrade begins, the status will show in progress and you can see what step is running.

This example illustrates Cloud Manager PeopleTools Upgrade Status.

If a step fails, the status will show failure. You will need to correct the failure and either retry or mark the step as complete in order to continue.

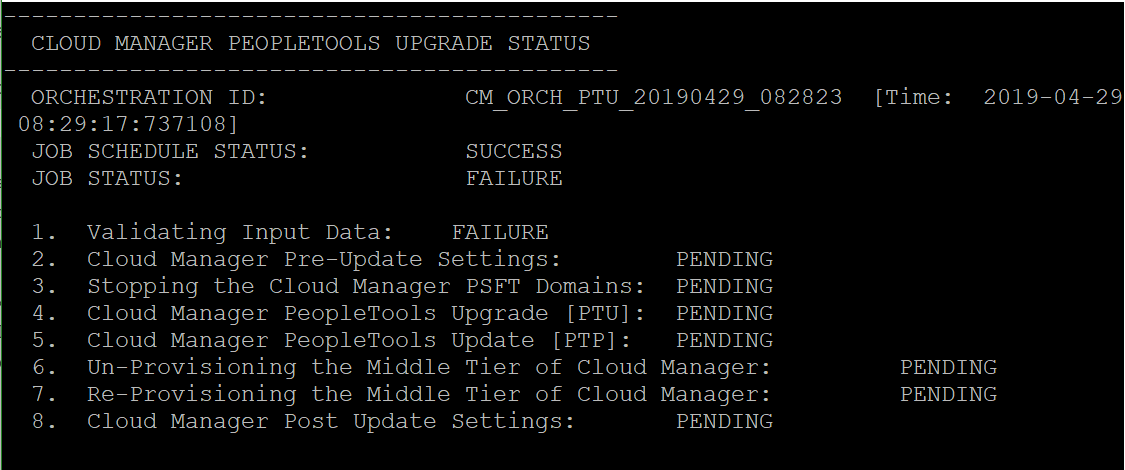

This example illustrates Cloud Manager PeopleTools Upgrade Status where a step has failed.

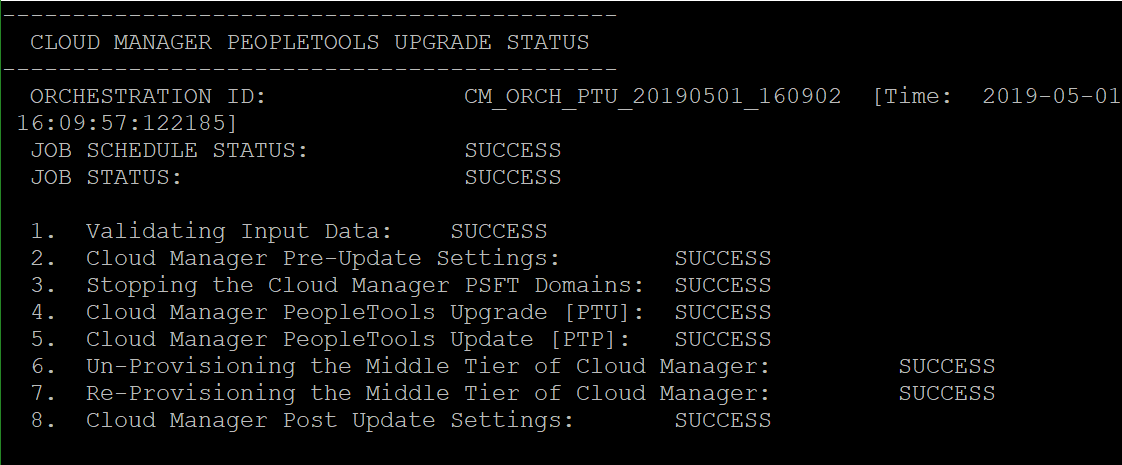

This example illustrates Cloud Manager PeopleTools Upgrade Status where all steps are successful.

run_cloud_manager_update -t CM_UPGRADE -o get_status -v

--------------------------------------------
  CLOUD MANAGER PEOPLETOOLS UPGRADE STATUS
--------------------------------------------
  ORCHESTRATION ID:              CM_ORCH_PTU_20190501_160902  [Time:  2019-05-01 16:09:57:122185]
  JOB SCHEDULE STATUS:           SUCCESS
  JOB STATUS:                    SUCCESS
  JOB DETAILS:                   Successfully completed
  JOB LOG:                       /home/psadm2/psft/data/cloud/cmlogs/envs/CLOUD_MANAGER_INSTANCE/CM_ORCH_PTU_20190501_160902/cm_job_psft_cm_ptu_job_0_20190501_160903_out.log
  JOB SCHEDULER LOG:             /home/psadm2/psft/data/cloud/cmlogs/envs/CLOUD_MANAGER_INSTANCE/CM_ORCH_PTU_20190501_160902/out.log
  JOB STATUS CHECK LOG:          /home/psadm2/psft/data/cloud/cmlogs/envs/CLOUD_MANAGER_INSTANCE/CM_DATA/out_20190501.log

  1.  Validating Input Data:    SUCCESS
      TASK DETAILS:              Successfully completed
      TASK LOG:                 /home/psadm2/psft/data/cloud/cmlogs/envs/CLOUD_MANAGER_INSTANCE/CM_PTU_VALIDATE_0_20190501_160906/out.log
      1.1  CM Update Validation Process:        SUCCESS
            Details: Successfully completed

  2.  Cloud Manager Pre-Update Settings:        SUCCESS
      TASK DETAILS:              Successfully completed
      TASK LOG:                 /home/psadm2/psft/data/cloud/cmlogs/envs/CLOUD_MANAGER_INSTANCE/CM_PRE_UPDATE_0_20190501_160912/out.log
      2.1  Cloud Manager Prepare Update Process:        SUCCESS
            Details: Successfully completed

  3.  Stopping the Cloud Manager PSFT Domains:  SUCCESS
      TASK DETAILS:              Successfully completed
      TASK LOG:                 /home/psadm2/psft/data/cloud/cmlogs/envs/CLOUD_MANAGER_INSTANCE/CM_DOMAIN_STOP_0_20190501_160918/out.log
      3.1  CM Domain Restart/Stop Process:      SUCCESS
            Details: Successfully completed

  4.  Cloud Manager PeopleTools Upgrade [PTU]:  SUCCESS
      TASK DETAILS:              Successfully completed
      TASK LOG:                 /home/psadm2/psft/data/cloud/cmlogs/envs/CLOUD_MANAGER_INSTANCE/CM_PTU_UPGRADE_0_20190501_160924/out.log
      4.1  Performing PsftActivityWindowsCloudFolderSync:       SUCCESS
            Details: Successfully completed

      4.2  Performing Cloud Manager Windows Client Install Activity [Source PeopleTools]:       SUCCESS
            Details: Successfully completed

      4.3  Performing Windows Client Install Activity:  SUCCESS
            Details: Successfully completed

      4.4  Adding Environment Info to CA:       SUCCESS
            Details: Successfully completed

      4.5  CA PTU Apply Process:        SUCCESS
            Details: Successfully completed

  5.  Cloud Manager PeopleTools Update [PTP]:   SUCCESS
      TASK DETAILS:              Successfully completed
      TASK LOG:                 /home/psadm2/psft/data/cloud/cmlogs/envs/CLOUD_MANAGER_INSTANCE/CM_PTP_UPDATE_0_20190501_160930/out.log
      5.1  Performing PsftActivityWindowsCloudFolderSync:       SUCCESS
            Details: Successfully completed

      5.2  Performing Windows Client Install Activity:  SUCCESS
            Details: Successfully completed

      5.3  Adding Environment Info to CA:       SUCCESS
            Details: Successfully completed

      5.4  CA PTP Apply Process:        SUCCESS
            Details: Successfully completed

  6.  Un-Provisioning the Middle Tier of Cloud Manager:         SUCCESS
      TASK DETAILS:              Successfully completed
      TASK LOG:                 /home/psadm2/psft/data/cloud/cmlogs/envs/CLOUD_MANAGER_INSTANCE/CM_UNPROV_MT_0_20190501_160936/out.log
      6.1  Performing Unprovision MT:   SUCCESS
            Details: Successfully completed

  7.  Re-Provisioning the Middle Tier of Cloud Manager:         SUCCESS
      TASK DETAILS:              Successfully completed
      TASK LOG:                 /home/psadm2/psft/data/cloud/cmlogs/envs/CLOUD_MANAGER_INSTANCE/CM_REPROV_MT_0_20190501_160942/out.log
      7.1  Performing Reprovision MT:   SUCCESS
            Details: Successfully completed

      7.2  Cloud Manager Post MT Reprovision Process:   SUCCESS
            Details: Successfully completed

  8.  Cloud Manager Post Update Settings:       SUCCESS
      TASK DETAILS:              Successfully completed
      TASK LOG:                 /home/psadm2/psft/data/cloud/cmlogs/envs/CLOUD_MANAGER_INSTANCE/CM_POST_UPDATE_0_20190501_160948/out.log
      8.1  Cloud Manager Post Update Process:   SUCCESS
            Details: Successfully completed

Several logs are available to assist the users in troubleshooting errors that may occur during the upgrade process.
