Using the Lift Process to Migrate an Environment to the Oracle Cloud Infrastructure (OCI)
|
Page Name |
Definition Name |
Usage |
|---|---|---|
|
ECL_LAS_HOME_FL_GBL (CREF for the tile) |
To access Lift and Shift landing page. |
|
|
ECL_LAS_HOME_FL |
The landing page containing the lift utility and the lifted containers. |
Use the Lift and Shift tile (ECL_LAS_HOME_FL_GBL) to access Lift and Shift landing page. The Lift and Shift tile is delivered as part of the Cloud Manager home page.
This example illustrates the Lift and Shift tile.
Use the Lift and Shift landing page (ECL_LAS_HOME_FL_GBL) to view and access the lifted environments (uploaded customer DPKs in Oracle Cloud for Cloud Manager).
Navigation:
Click the Lift and Shift tile on the delivered Cloud Manager Fluid Home page. The Lift and Shift page is displayed.

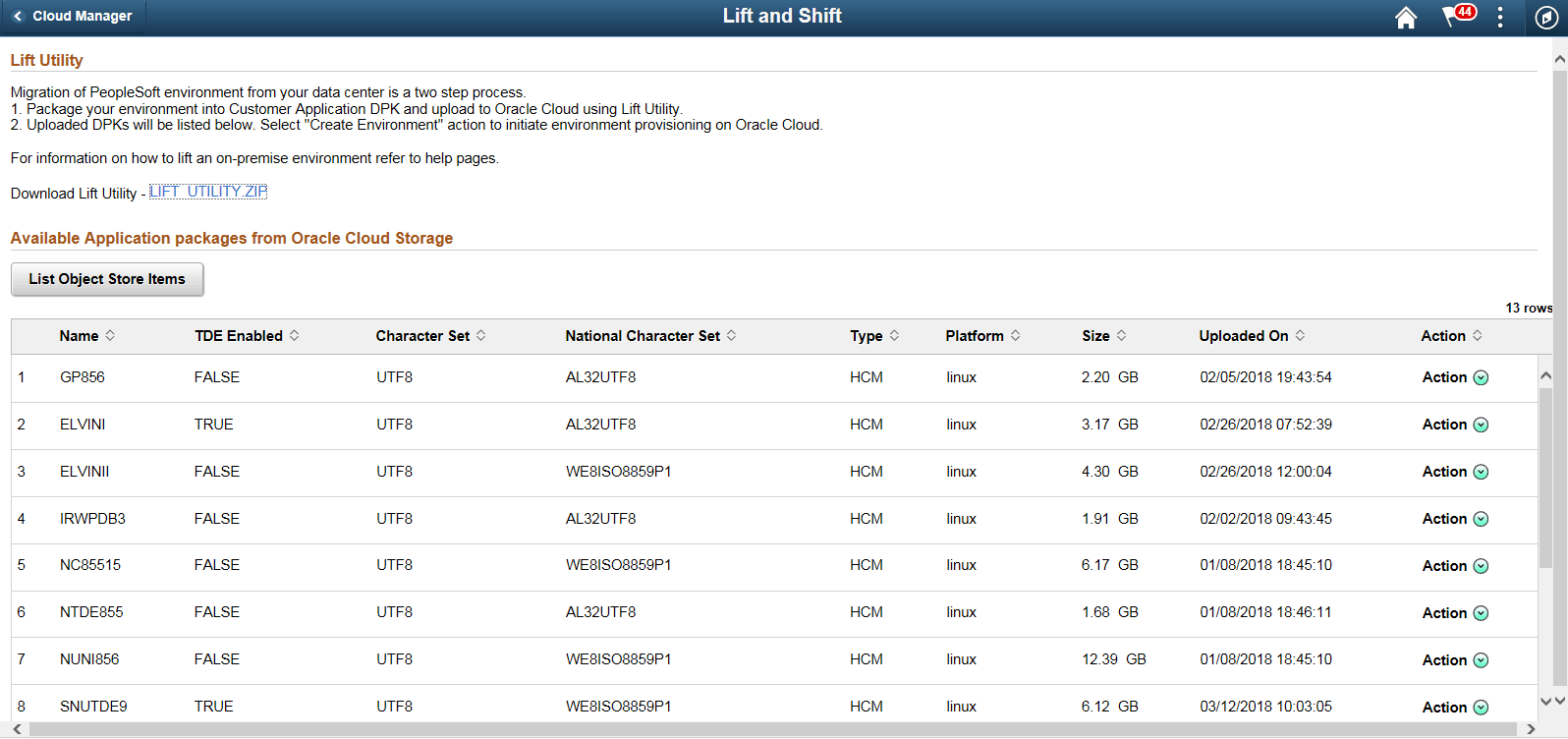

This example illustrates the fields and controls on the Lift and Shift page.
Note: Currently, in PeopleSoft Cloud Manager, an updated version of the Lift utility is available that captures more details from on premise environment. DPKs that were lifted earlier using Lift Utility from Cloud Manager Update Image 8 or older can no longer be deployed in Cloud Manager Update Image 10 and later. Hence, you must delete those old DPKs and do a lift operation again on the on-premises environments.
Field or Control |
Description |
|---|---|
Name |
Name of the lifted environment. |
TDE Enabled |
Whether the database has encrypted tablespaces or not. |
Character Set |
The database character set used for lift operation. |
National Character Set |
Whether the database is unicode or non unicode. AL32UTF8 indicates unicode database and the value WE8ISO8859P1 indicates non unicode database. |
Type |
Shows the PeopleSoft application product pillar. |
Platform |
Indicates the Operating System platform. |
Size |
Total size of the lifted DPKs. Note: Assume that if the lifted DPK size is K, then the disk size should be 2.5 times K. |
Uploaded On |
The date and time on which the DPKs were uploaded in Oracle Cloud. |
Action |
Use this button to perform a variety of related actions, such as viewing the details of each of the lifted DPKs, provisioning a new environment, and to delete a lifted DPK. |
List Object Store Items |
Click this button to refresh the lifted application list and make it current. |
