Transaction Configuration Requirements

Once a transaction has been configured with at least the required elements, there are two business rules that must be attached so that the transaction will process successfully. These rules are automatically attached to the transaction when it is created in the Rules Palette. Also the transaction must be listed in the EligibleTransactionsByPolicyStatus rule and security access must be granted to appropriate security groups or it will not be visible to the user in OICE. A description of these requirements is listed below.

Important: Specific values from the database can be retrieved without writing SQL statements, by using the available defined prefixes and fields for configuration. Please see the Available Prefixes and Fields for Configuration for a listing.

Required Transaction Elements

There are only two elements that must be present in a transaction. The first is the <Transaction> opening and end tag and the second is <EffectiveDate>. All other elements are optional and are only configured if they are required in order for the transaction to process as desired.

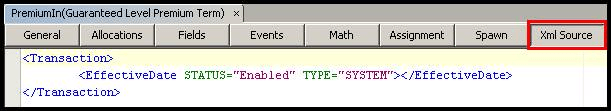

Example of Transaction Rule XML
