6.1 Prerequisites for Test Case Execution

Activation Manually (As done in release 9.0.1 and before Excluding DSA)

This section provides information about the prerequisites that must be met in the following sequence before running the test cases:

  1. Ensure no hyphen is present in the stack name of NOAM and SOAM while deploying the VDSR stack through VNFM.
  2. Location of the Test Cases
    • The Cust-Roaming-Suite directory path is /var/lib/jenkins/workspace/Regression/Cust-Roaming-Suite.
    • The Cust-Core-DSR directory path is /var/lib/jenkins/workspace/Regression/Cust-Core-DSR.
    • The New-Features are located in /var/lib/jenkins/workspace/New-Features
    • The Performance test cases are located in /var/lib/jenkins/workspace/Performance/Radius_Traffic
    • All Cleanup pipeline test cases are located in /var/lib/jenkins/workspace/Cleanup/Cust-Cleanup-DSR
    • All DSA stateless and stateful pipeline test cases are located in the /var/lib/ jenkins/workspace/DSA file.
    • All MDS pipeline test cases are located in the /var/lib/jenkins/workspace/MDS file.
    • All vSTP test cases are divided into four different suites:

      /var/lib/jenkins/workspace/vSTP_Regression/behave_test_framework/vSTP-Suite1/

      /var/lib/jenkins/workspace/vSTP_Regression/behave_test_framework/Cust-vSTP-Suite2/

      /var/lib/jenkins/workspace/vSTP_Regression/behave_test_framework/Cust-vSTP-Suite3/

      /var/lib/jenkins/workspace/vSTP_Regression/behave_test_framework/Cust-vSTP-Suite4/

      /var/lib/jenkins/workspace/vSTP_Regression/behave_test_framework/Cust-vSTP-Suite5/

      /var/lib/jenkins/workspace/vSTP_Regression/behave_test_framework/Cust-vSTP-Suite6/

  3. SUT Requirements

    Table 6-1 DSR and SDS SUT Details

    Server Quantity
    DSR SUT
    DSR NOAM Active 1
    DSR NOAM Standby 1
    DSR Signaling SOAM Active 1
    DSR Signaling SOAM Standby 1
    DA-MP 2
    IPFE 2
    SDS SUT
    SDS NOAM Active 1
    SDS NOAM Standby 1
    Query Server 1
    SDS Signaling SOAM Active 1
    SDS Signaling SOAM Standby 1
    DP Server 1

    Table 6-2 vSTP SUT Details

    Server Quantity
    vSTP SUT
    vSTP NOAM Active 1
    vSTP NOAM Standby 1
    vSTP Signaling SOAM Active 1
    vSTP Signaling SOAM Standby 1
    MP 2

    Note:

    When the SUT is created using VNFM, ensure that Mediation, FABR, and RBAR features are enabled.
  4. Update SUT Information in ATS
    Following are the mandatory steps for Cleanup, New-Features, Performance, Regression, DSA, MDS, VDSR-HealthCheck suites:
    1. Update /home/cloud-user/Verizon-drop1/dsr-atsV2/dut.yaml with the SUT details. The same will be automatically copied to the required location when the execution starts from Jenkins.

      Update dut.yaml file by referring to the following file:

      DSRVIP:
 - name: DSRNOVIP
    IP: 10.75.191.136
  - name: DSRSOVIP
    IP: 10.75.191.222

    #Pick the DSR XMI/XSI IPv6/ipv4 addresses from Main Menu: Configuration -> Networking -> Devices GUI screen

    SIGNALING_IPs:
      - IP: 10.196.14.175
        type: LocalIp
      - IP: 10.196.15.170
        type: LocalIp
      - IP: 10.196.14.124
        type: IpfeTsa
      - IP: 10.196.14.124
        type: IpfeTsa
    ipfeInitiatorDampIp:
      - IP: 10.196.14.175

    MP_XMI:

      - IP: 10.75.191.133
        type: LocalIp
      - IP: 10.75.191.115
        type: LocalIp

    MP_IMI:
      - IP: 192.167.1.125
        type: LocalIp
      - IP: 192.167.1.203
        type: LocalIp

# If DSR ips are ipv6, entire dut file should be updated with ipv6 ips.
# If Ipv6 SDS is not available, make sure to comment each parameter in SDS or remove ipv4
  ips from yaml file.

    SDSVIP:

    - name: SDSNOVIP
    IP: 10.75.191.130
    - name: SDSSOVIP
    IP: 10.75.191.45
    - name: SDSQS
    IP: 10.75.191.168

    SDS_IMI:
    - name: SDP00imi
      IP: 192.167.1.4
    - name: SDP01imi
      IP: 192.167.1.108

    UDR_IMI:
    - name: UDR00imi
      IP: 192.167.1.3
    - name: UDR01imi IP: 192.167.1.10

    UDR:
    - name: udr
    - IP:10.75.157.241

#DSR/SDS NOAM host and SOAM host IPs should be VIPs.
#If host IPs are in IPv6 format, IP address should be enclosed with [].

    UI_data:
  - name: UIData
    PassWordUI: ########
    UserNameUI: ########
    UDR: https://10.75.157.242
    noamHost: http://10.75.191.136
    soamHost: http://10.75.191.222
    StandBysoamHost: http://10.75.191.33
    StandBynoamHost: http://10.75.191.92
    sdsnoamHost: http://10.75.191.130
    sdssoamHost: http://10.75.191.45
    StandBysdssoamHost: http://10.75.191.85
    StandBysdsnoamHost: http://10.75.191.85
    ATSIP:
    - name: ATSXMIIP
      IP: 10.75.157.102
    2. Update /home/cloud-user/Verizon-drop1/dsr-atsV2/auth.yaml file. The same is automatically copied to the required location when the execution starts from Jenkins. Server credentials, such as username and password, displayed in the following image can be updated if required.
    3. Perform the following command to verify if the jenkins is running:
      ps -eaf | grep jenkins

      Output:

      Figure 6-1 Output


      Output

      If not, run the following command:
      ./jenkins_start.sh
    4. The rerun functionality in the roaming suite can be changed by updating the following values in the dut.yaml file:
      • RERUN_COUNT: 1
      • SDS_ENABLE: N
    Following are the mandatory tasks for vSTP-Regression suite:
    1. Update /home/cloud-user/Verizon-drop1/vSTP-ats/vstp_signalling_ips.yaml with the SUT details for vSTP test cases. The same will be automatically copied to the required location when the execution starts from Jenkins. Edit the vstp_signalling_ips.yaml file. Update the vstp_signalling_ips.yaml file by referring to the following file:
      VSTP_SIGNALLING_IP:
# MP XSI IP on which traffic is to be run
  - name: XSI1
    IP: 121.131.152.209
MEAT_SIGNALLING_IP:
# MEAT XSI IP from which traffic is to be run
  - name: meat1
    IP: 121.131.152.207
ACTIVE_SO_IPS:
#Current active SO XMI IP
  - name: so_sg1
    IP : 10.75.162.138
  - name: so_sg2
    IP : 10.75.162.245
ACTIVE_NO_IP:
#Current active NO XMI IP
    IP: 10.75.162.199
VSTP_TPCs:
#TPC not to be changed to be kept as such
  - vstp_tpc_itui: 3-45-4
    vstp_tpc_itun: '8734'
    vstp_tpc_ansi: 5-44-8
# XMI IP of meat machine from which traffic is to run
MEAT_IP: 10.75.162.228
UDR:
#UDR IP for future use
  - name: udr1
    IP: 10.75.218.250
NUM_MP_PER_SITE: 2
ALL_SITE_XSI1_IP:
# Name and XMI IP of all MP's present
  - name: so1mp1
    IP: 121.131.152.209
  - name: so1mp2
    IP: 121.131.152.140
    2. Update /home/cloud-user/Verizon-drop1/vSTP-ats/passwords/auth.yaml. The same will be automatically copied to the required location when the execution starts from Jenkins. Server credentials, such as username and password, displayed in the following image can be updated if required.
    3. Perform the following command to verify:
      ps -eaf | grep jenkins

      Output:

      Figure 6-2 Output


      Output

      If not, run the following command:
      ./jenkins_start.sh

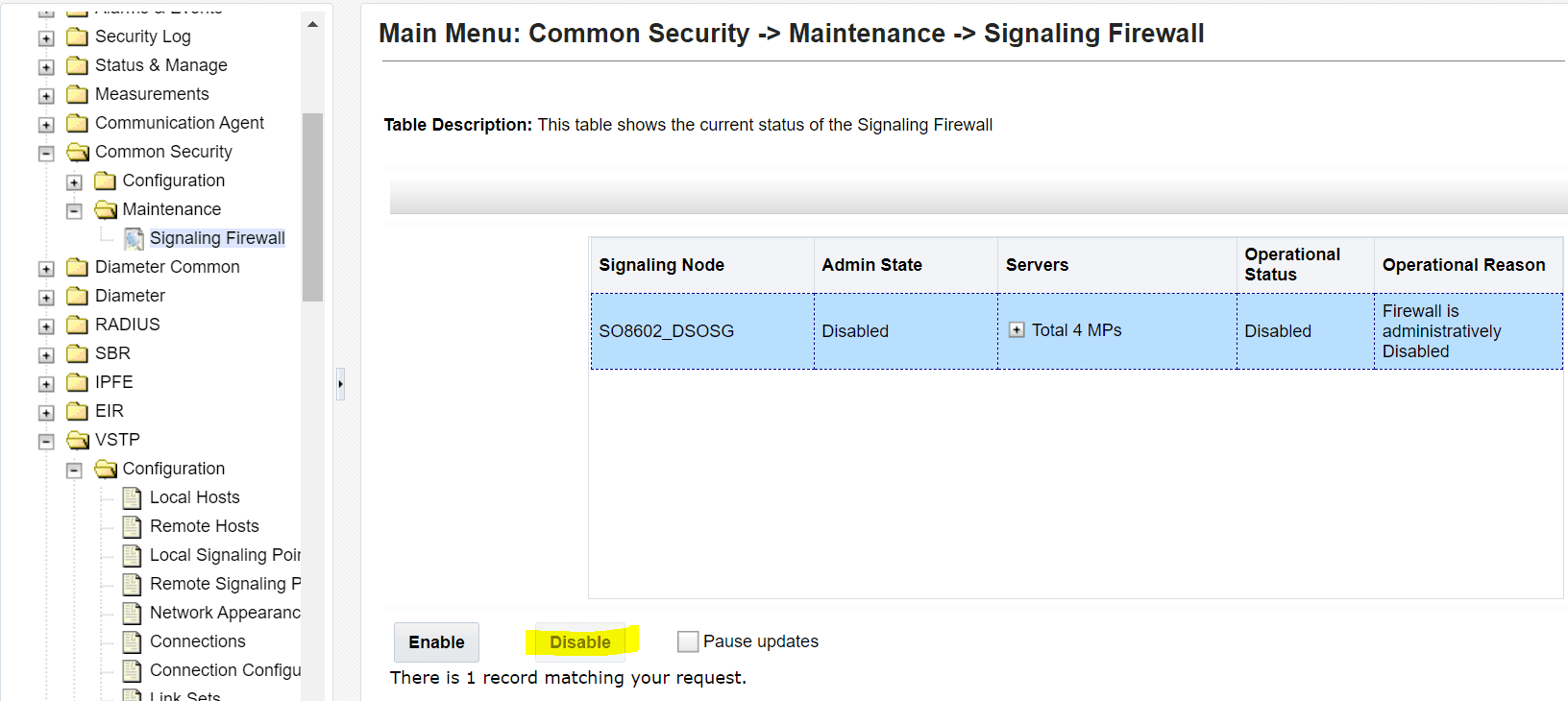

    4. Disable firewall from an active SOAM of vSTP as shown in the below image.
      disable firewall

    5. To access the MPs from the ATS machine, the user must run the vSTP suite with the following command for each MP. Replace <stp ip> with XMI IP of one MP at a time.
      cat ~/.ssh/id_rsa.pub | ssh admusr@<stp ip> "mkdir -p ~/.ssh && chmod 700 ~/.ssh && cat >> ~/.ssh/authorized_keys"
  5. Enabling the Feature on SUT

    Below is the list of suites in ATS 9.0.2 and later, along with their corresponding mandatory DSR features that must be activated:

    Table 6-3 list of the suites in ATS 9.0.2

    Suit Name DSR’s Features Required to be activated
    Regression Custom Roaming RBAR, Mediation

    Custom- Core FABR, Mediation, RBAR
    New -Features RSA, RBAR
    DSA DCA
    Performance FABR

    Note:

    Before activating and deactivating RSA and DSA using Jenkins GUI, delete both the files /root/.ssh/known_hosts and /home/cloud-user/known_hosts files.

    Activation through automation

    Before starting the execution of any test suites, its required to activate RBAR, FABR, and Mediation. The activation process for these features must be carried out through the Regression Suite. User can either select All option as shown below or, you can select to run each feature (RBAR, FABR, and Mediation) individually.

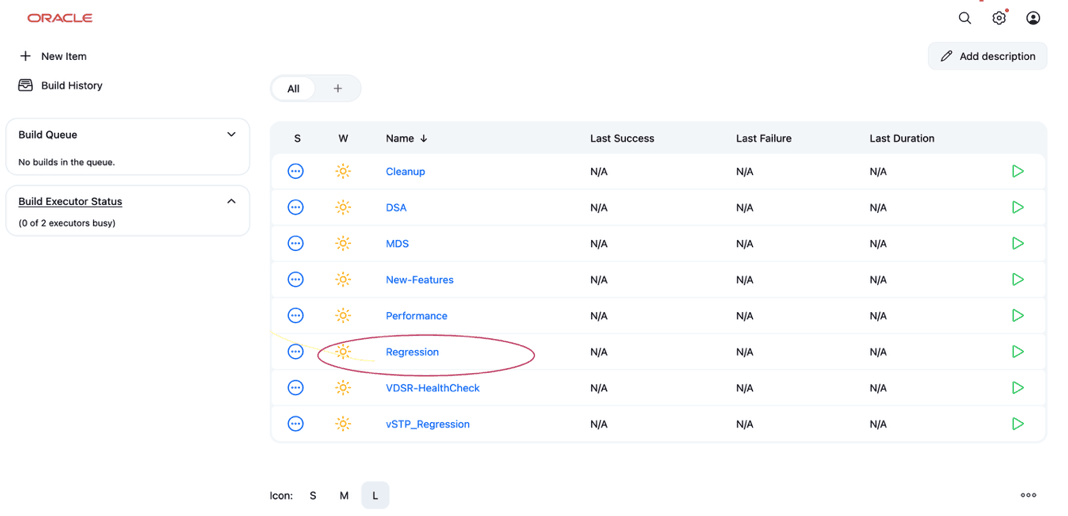

    Figure 6-3 Choosing a Suite


    Choosing a Suite

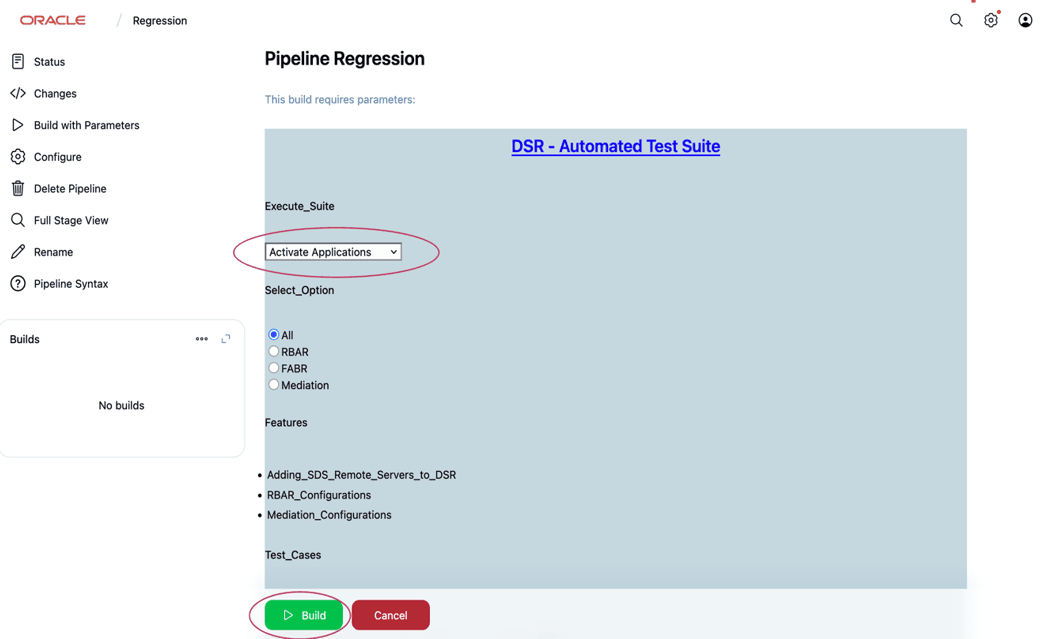

    Figure 6-4 Activate application


    Activate application

    Location of all the activation related feature files:

    • RBAR, FABR and Mediation
      • The feature activation file is located in the following directory path:/var/lib/jenkins/workspace/Regression/Cust-Roaming-Suite/Activation.feature
    • RSA
      • The RSA activation file is located in the following directory path:
         /var/lib/jenkins/workspace/New-Features/Activate_RSA.feature
    • DSA
      • The DSA activation file is located in the following directory path: /var/lib/jenkins/workspace/DSA/Activate_DSA.feature

    Activating the features

    RBAR FABR Mediation:

    1. Log in to ATS Jenkins GUI https://<ATS IP>:8443.

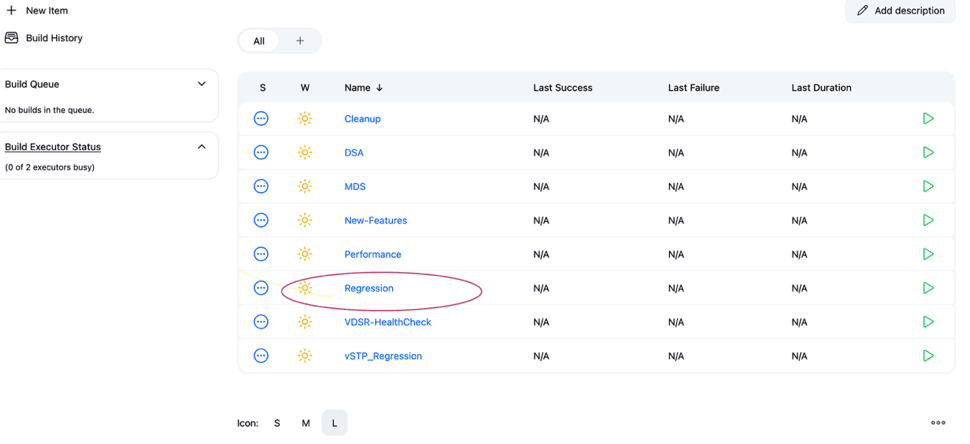

    2. To activate ATS Jenkins GUI, click Regression, as shown in the following image:

      Figure 6-5 Regression


      Regression

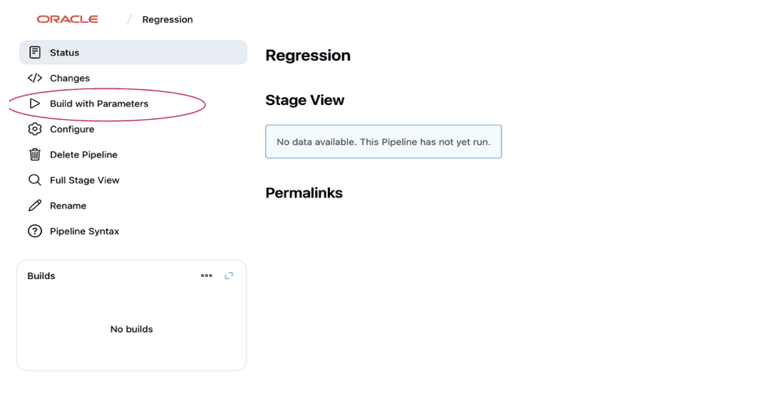

    3. Click Build with Parameters to build the parameters required for the activation.

      Figure 6-6 Build with parameters


      Build with parameters

    4. You can either select the All option as shown below or, you can select to run each feature (RBAR, FABR, and Mediation) individually.
    5. Click Build to Activate Applications.

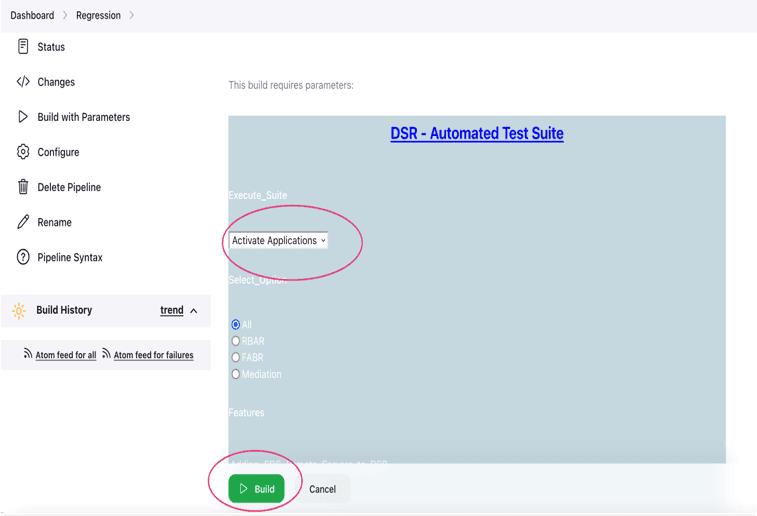

      Figure 6-7 Build


      Build

      Figure 6-8 Applications


      Applications

    6. RSA:
      1. Log in to ATS Jenkins GUI https://<ATS IP>:8443.
      2. Select New-Features, and then click Build with Parameters .
    7. Select Activate RSA Application, and click Build.

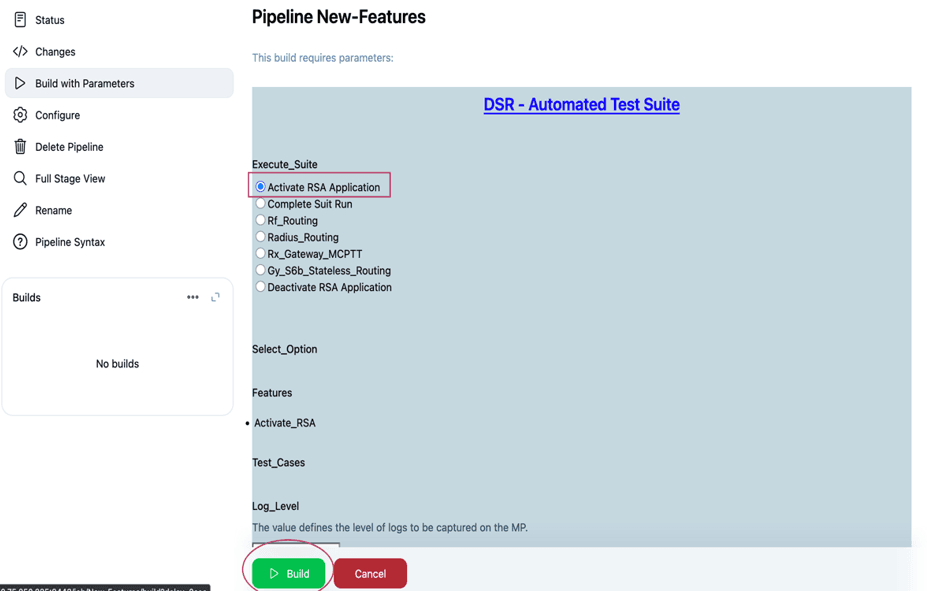

      Figure 6-9 Activate RSA


      Activate RSA

    8. The following image shows the result

      Figure 6-10 Result


      Result

    9. To deactivate, select Deactivate RSA Application, and click Build.

      Figure 6-11 Deactivate


      Deactivate

    10. To configure DSA:
      1. Log in to ATS Jenkins GUI https://<ATS IP>:8443.
      2. Select DSA, as shown in the following image, and then click Build with Parameters

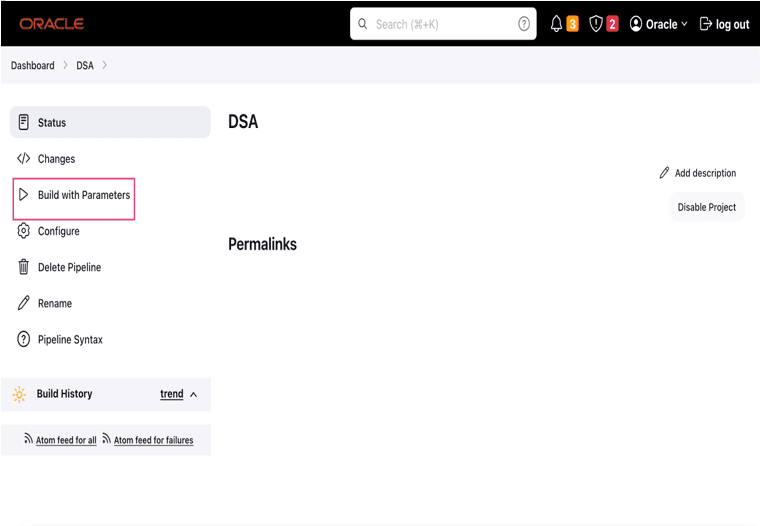

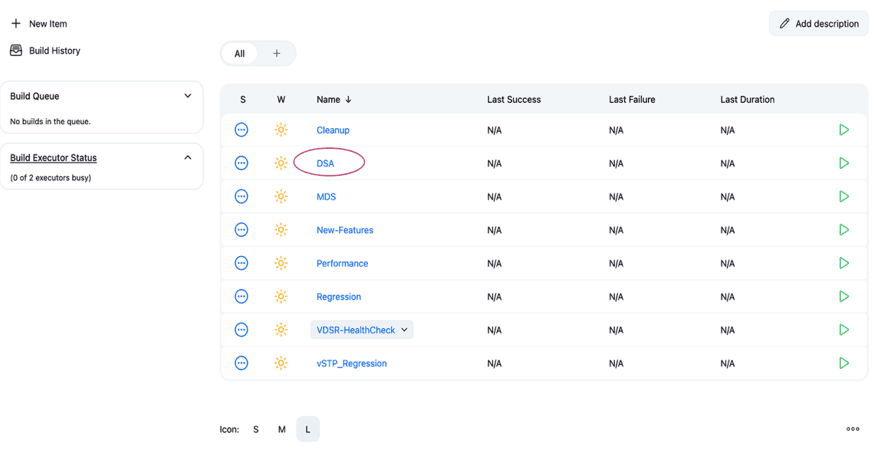

        Figure 6-12 DSA


        DSA

        Figure 6-13 DSA


        DSA

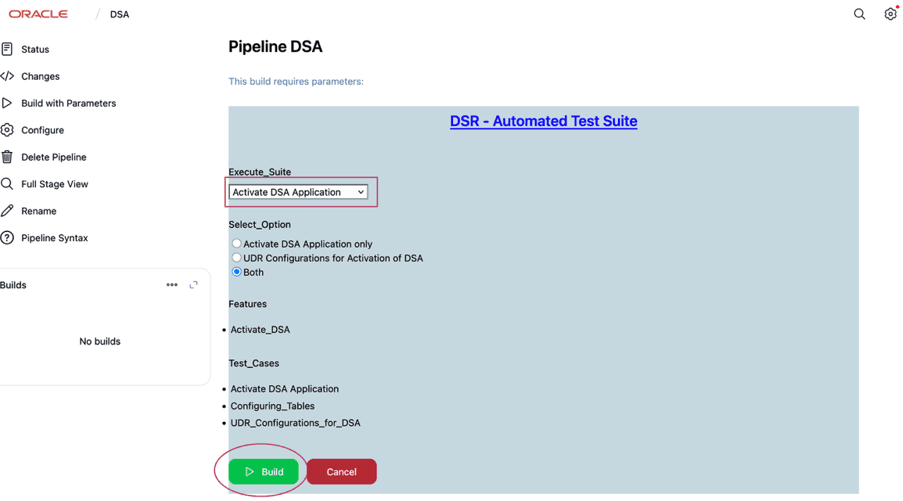

    11. To activate, select Activate DSA Application, and then click Build.

      Figure 6-14 Activate DSA Application


      Activate DSA Application

    12. Following is the result shown in the image:

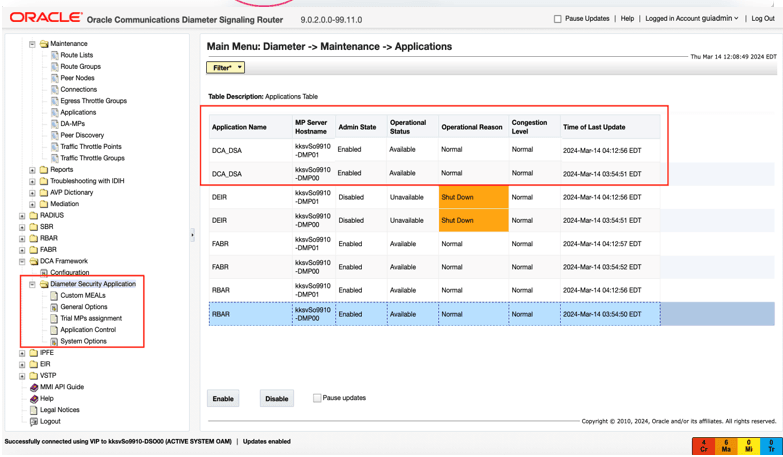

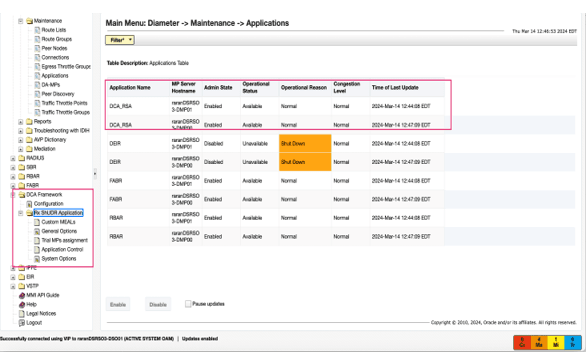

      Figure 6-15 Result


      Result

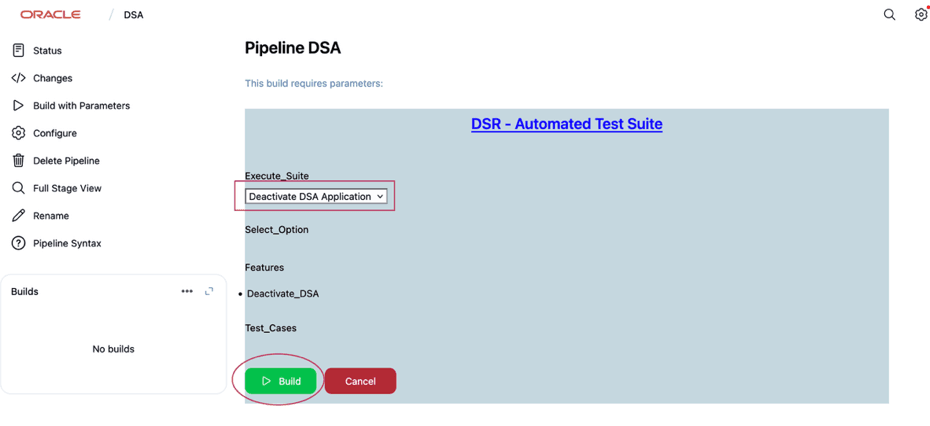

    13. To deactivate, select Deactivate DSA Application, and then click Build.

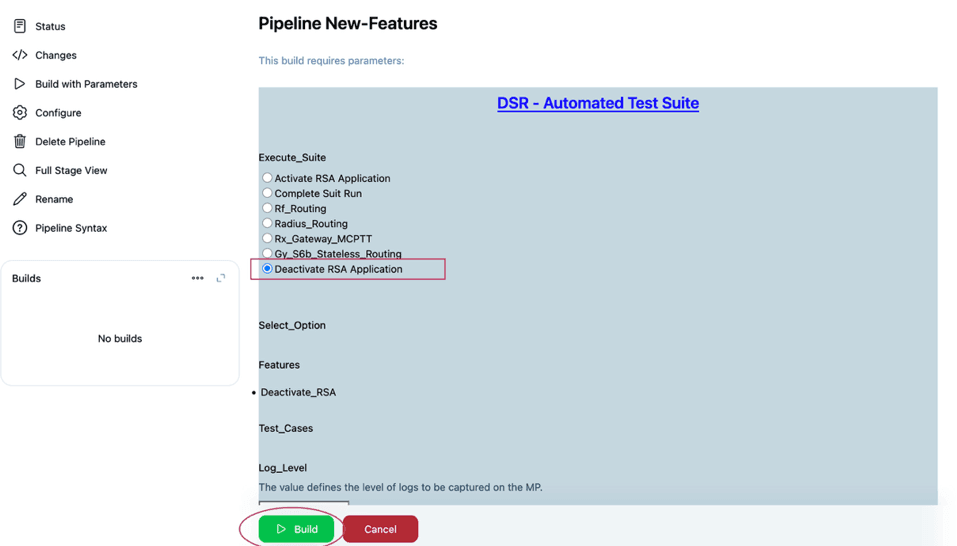

      Figure 6-16 Deactivate DSA Application


      Deactivate DSA Application

    To configure MDS:
    • Login to ATS Jenkins GUI.
      https://<ATSIP>:8443

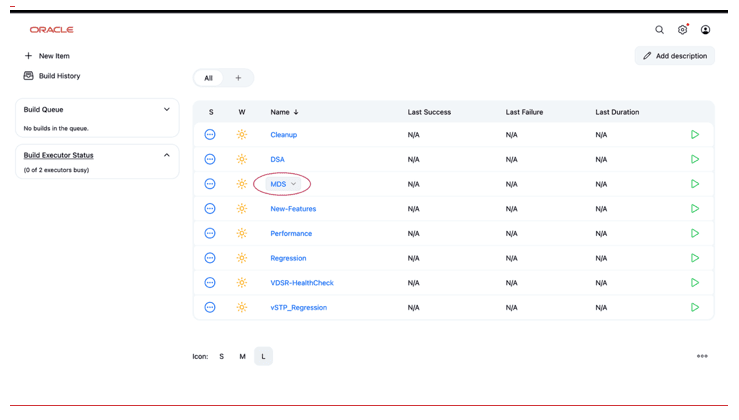

    • Select MDS, as shown in the following image, and click Build with Parameters.

      Figure 6-17 MDS Selection


      MDS Selection

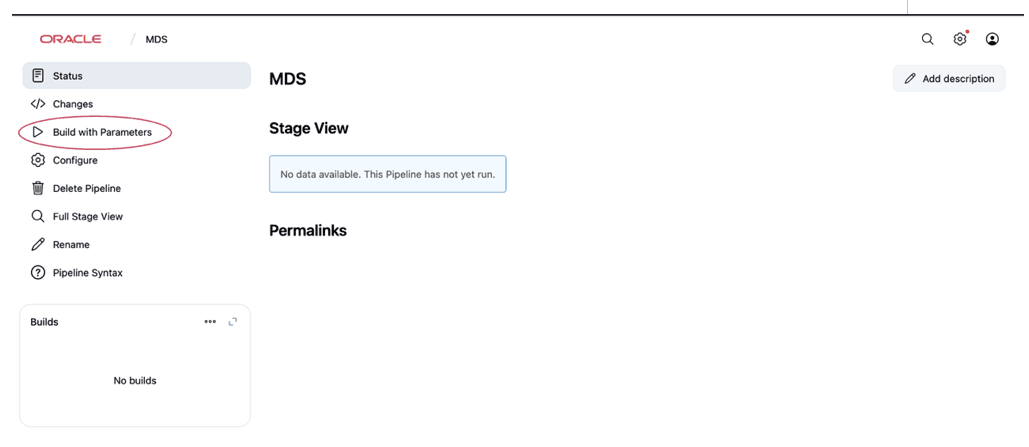

      Figure 6-18 Build with Parameters


      Build with Parameters

    • To activate, select Activate MDS Application, and click Build.

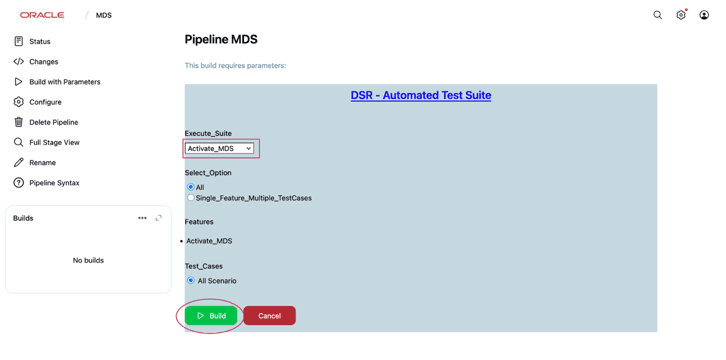

      Figure 6-19 Activate MDS


      Activate MDS

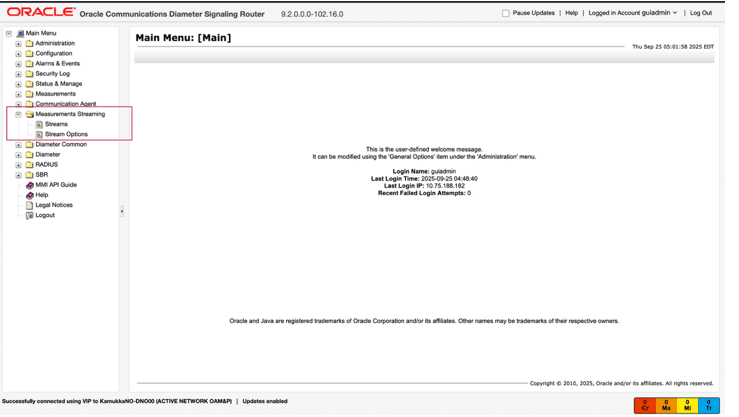

      Figure 6-20 Result


      Result

    • To deactivate, select Deactivate MDS Application, and click Build.

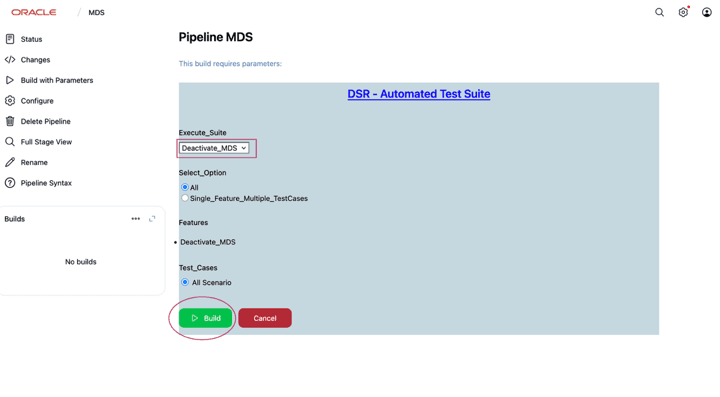

      Figure 6-21 Deactivate MDS Application


      Deactivate MDS Application

      Note:

      • Deactivate DSA before activating RSA, and vice versa.
      • Activation and Deactivation option for respective suites are available in DSA, MDS, and New Features Suites respectively.
      • For FABR, RBAR, and Mediation, there is no Deactivate option, since they serve as prerequisites for multiple suites.

Note:

Ensure there are no backup files in the /var/TKLC/db/filemgmt/backup location while running the database restore test case on SOAM. If there are backup files, then the Mediation feature must be enabled in each backup file. Otherwise, the Mediation feature might get disabled.

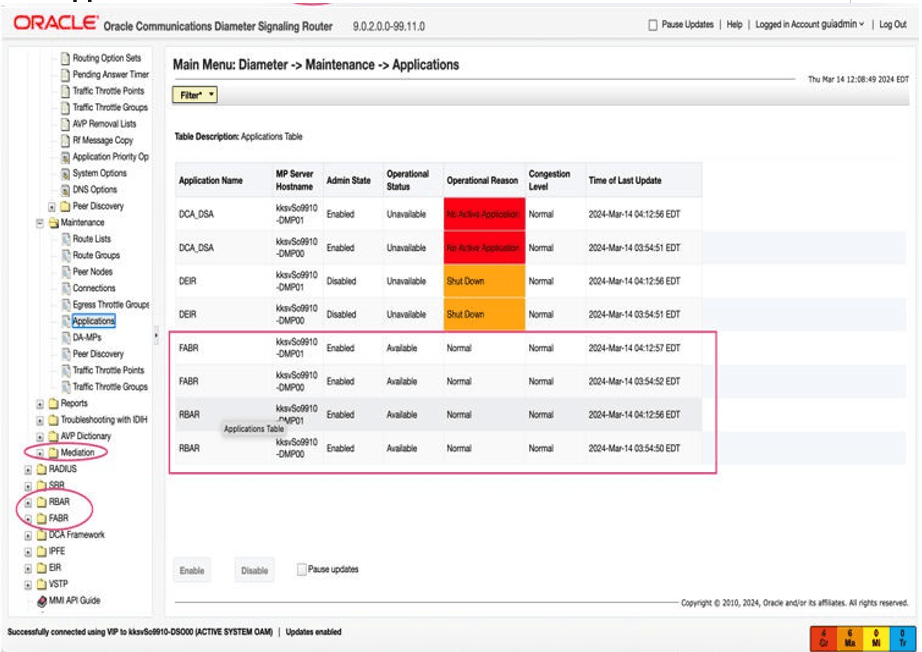

Ensure RBAR and FABR are enabled as displayed in the following image:

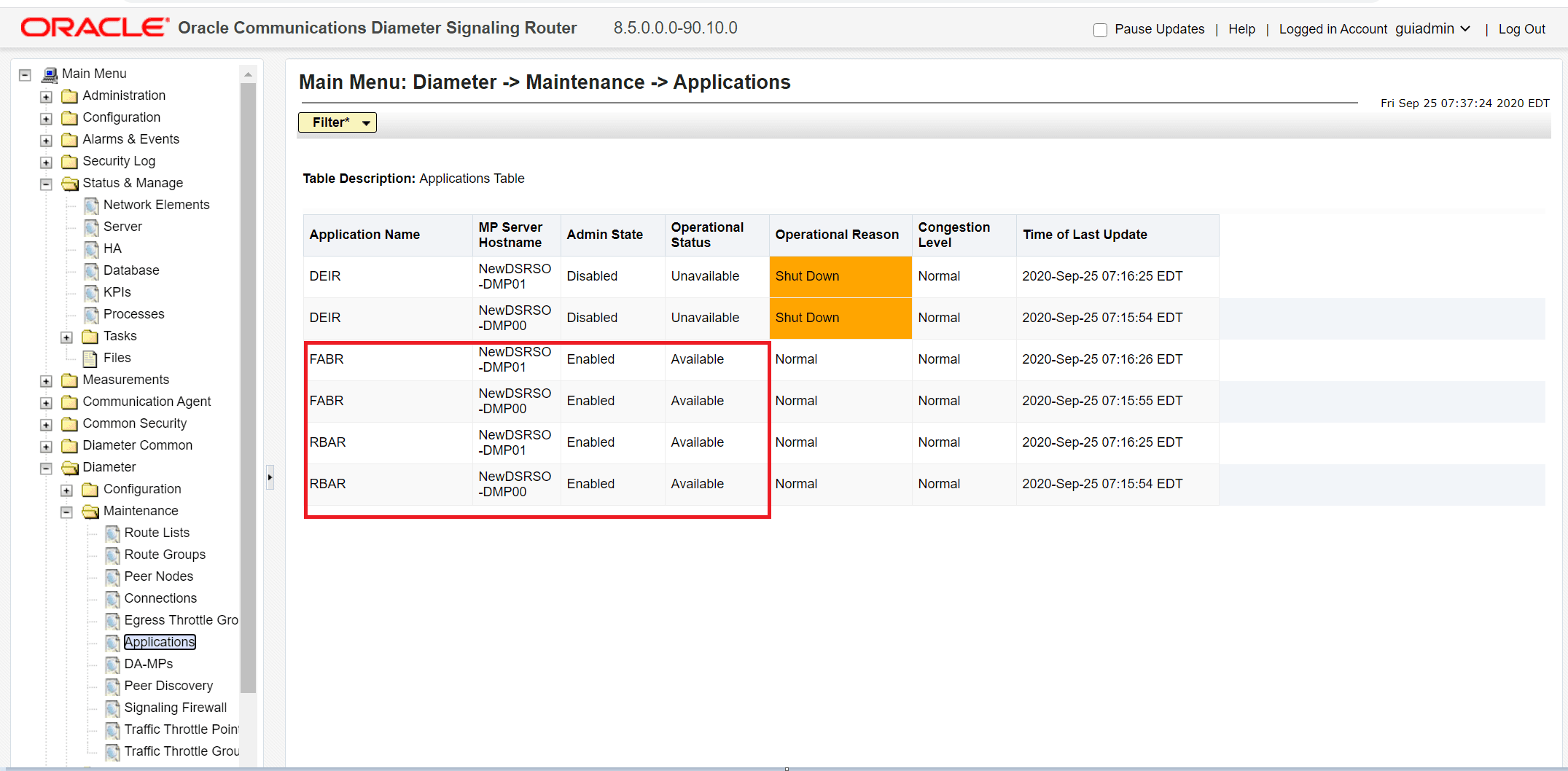

Figure 6-22 RBAR and FABR Enabled on the DSR GUI

RBAR and FABR Enabled

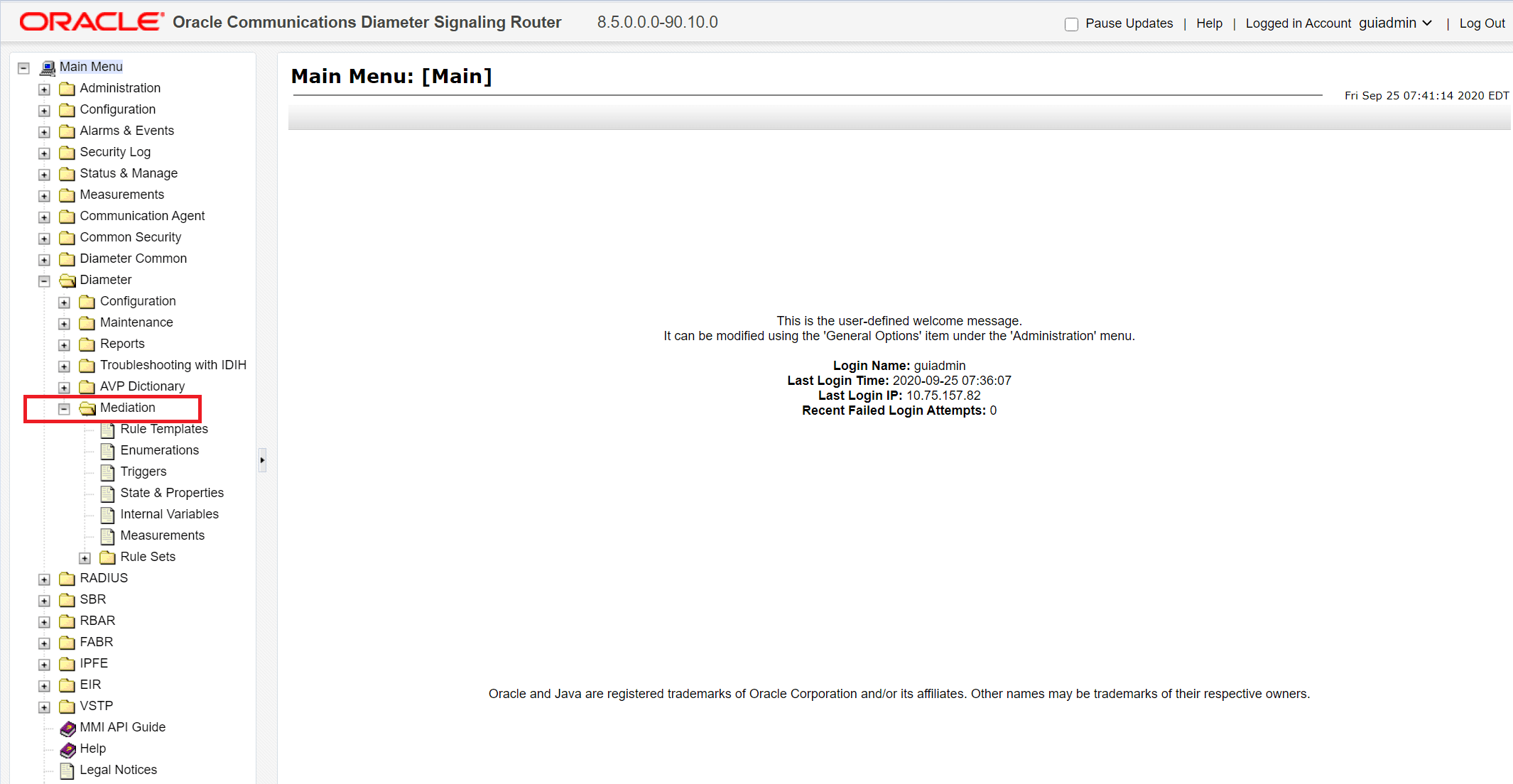

  • Ensure Mediation is enabled as displayed in the following image:

    Figure 6-23 Mediation Enabled on the DSR GUI

    Mediation Enabled
  • Ensure DCA is enabled as displayed in the following image:

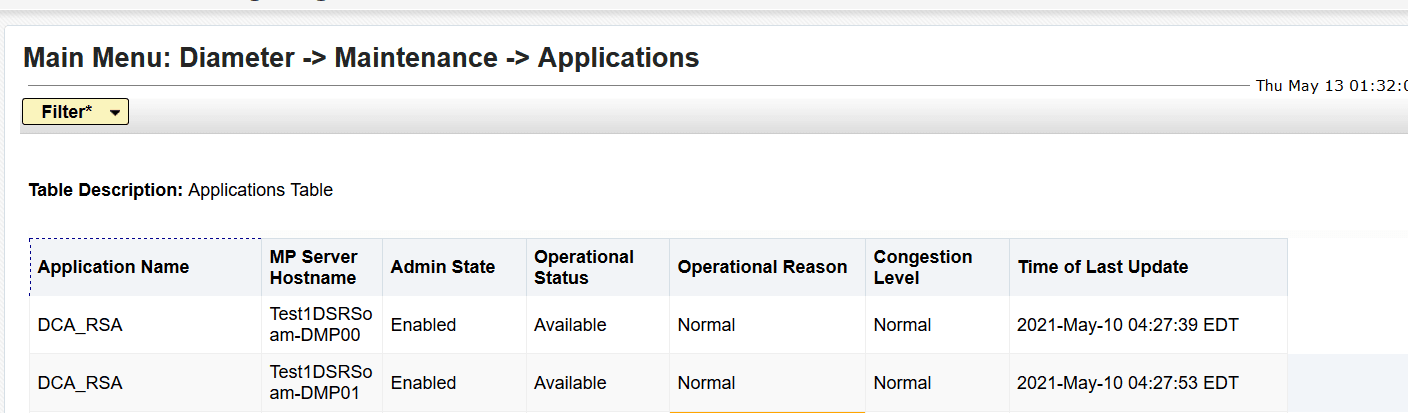

    Figure 6-24 DCA Enabled on the DSR GUI

    DCA Enabled
  • Configure ComAgent connections on DSR by referring to Diameter Signaling Router Cloud Installation Guide.

    Note:

    DSR BUG 29035530 may lead to ATS GUI case failure due to a Security Violation error when the user performs any common GUI operation. This issue can be identified in the /var/TKLC/appw/logs/Process/AppWorksGui.log file by searching for the keyword" Security violation by a user".
