5.1.9 IDIH Trace Statistics

The IDIH gathers statistics based on the trace selected from the trace list panel.

Table 5-7 Trace statistics field

Field	Description
Back	Navigates to trace list panel.
Refresh	Reloads the current screen.

The statistics have various dimensions:

1. Total: displays the total value.
2. Success: displays the successful value of traces.
3. Failure: displays the failed value of traces.
4. Timeouts: number of time-out transactions.

   Figure 5-6 Statistics









   The statistics count the number of transactions for every combination of dimension values seen in received transactions. It counts transactions with result code only. If the TTR is missing an Answer message or the Answer message is missing a result code AVP, then the transaction is not counted. The statistics are continuously generated and stored in an mysql database. The complete statistics will be available up to five minutes after the trace has finished or has been stopped.

   ProTrace reads the statistics and displays it in the form of bar and pie charts:

   1. When you hover over the bar chart, it displays Node, Value, and Status.
      1. Node: Name of the trace.
      2. Value: value of the trace.
      3. Status: Provides the status of the trace.
   2. Pie chart

      When you hover over the pie chart, it displays the Series and Value.

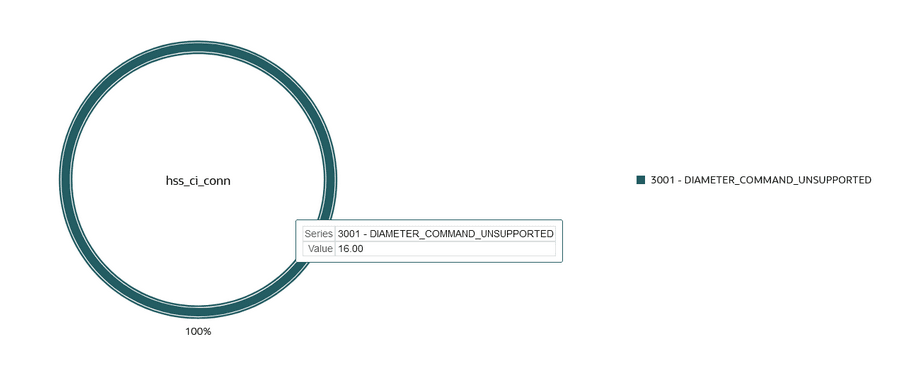

      Figure 5-7 Pie chart









   Note:

   If any stop event missed due to network issue or any other issues, IDIH GUI will mark those traces completed after 24 hours.
