2.3 DSR Architecture with MDS and Functionalities

DSR Architecture with MDS is shown in the following image:

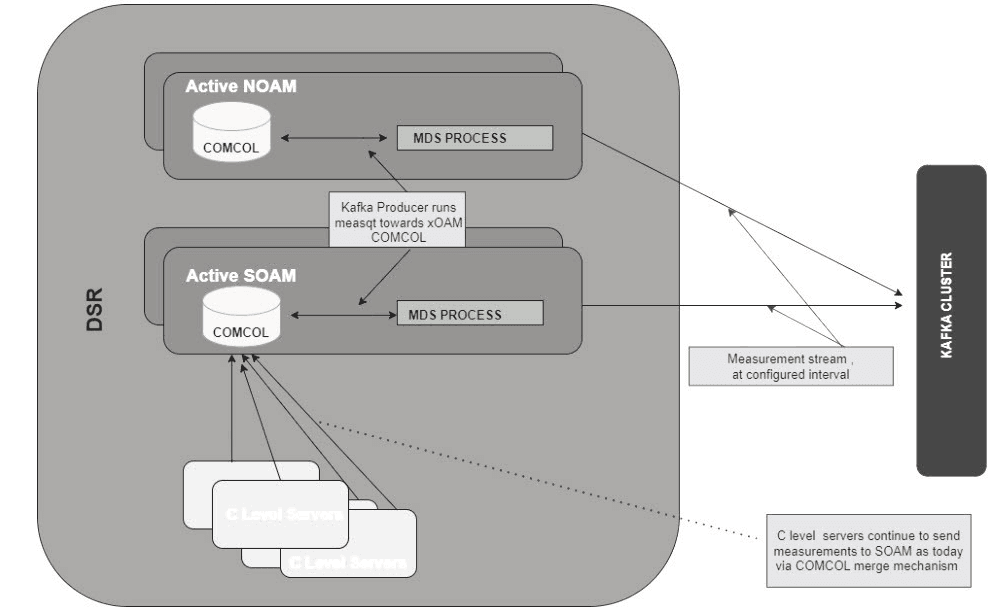

Figure 2-1 DSR Architecture with MDS

Functionalities of MDS feature:

• Feature Activation or Deactivation mode
• Interface for the user to enable the metrics for streaming
• Interface for the user to configure Kafka and DSR properties
• Handling of failure data
• Standard MEALs
