2.5.1 TIF GRN Message Flows

The following figure shows TIF GRN use cases for TIF CdPN service.

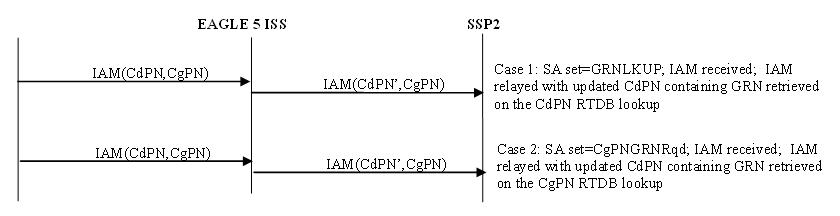

Figure 2-22 ISUP IAM Message Flows for TIF GRN for TIF CdPN Service

The following figure shows TIF GRN use cases with NPRLS and NPNRLS for TIF CdPN service.

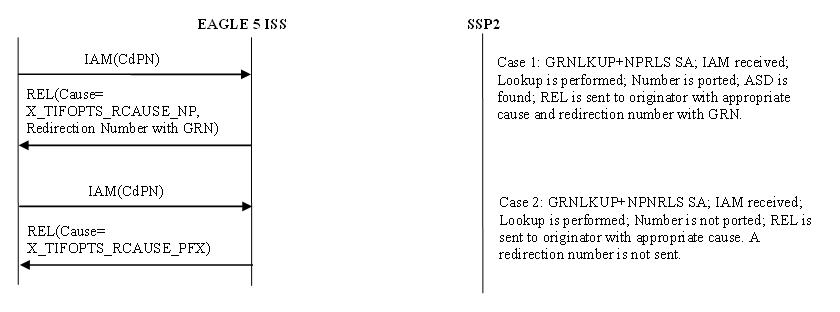

Figure 2-23 ISUP REL Message Flow for TIF GRN for TIF CdPN Service with NPRSL and NPNRLS

The following figure shows TIF GRN use cases for TIF CgPN service.

Figure 2-24 ISUP IAM Message Flows for TIF GRN for TIF CgPN Service
