Updating Schema Registration

When you initially set up XBRL in Reporting Studio, you must update the schema registration. After the update, you only must update when adding or deleting schemas / taxonomies from the xbrlfiles directory.

The schema registration should be a reflection of the schemas stored in the xbrlfiles directory. Therefore, whenever a schema is added or removed from the xbrlfiles directory on the Report Server, the schema registration should be updated.

  To update schema registration:

  1. Log on to Reporting Studio.

  2. Select File, then New, then Report.

  3. Confirm that you added the desired taxonomy to the xbrlfiles directory on the Report Server.

  4. Select Task, then XBRL Management, and then Schema Manager. The Manage Schemas dialog box is empty if no registered schemas have been updated.

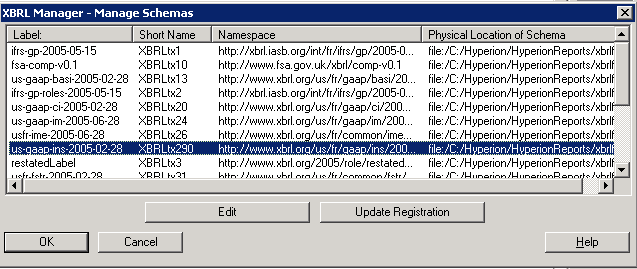

    The image shows the Manage Schemas dialog box where you can add or delete taxonomies.

  5. Click Update Registration. If new taxonomies are added to the xbrlfiles directory, a list of registrations are displayed in the top list box.

  6. Click OK to update the list of schema registrations.

    Note:

    Some taxonomies import multiple schema. All schema registrations associated with a taxonomy are updated at this time.

    Note:

    All columns in the XBRL Schema Manager dialog box can be sorted by clicking on the header column.
