เพิ่มข้อมูลที่ผู้ใช้ระบุในองค์ประกอบ HTML

คุณสามารถเพิ่มแผงข้อมูล การตั้งค่าที่กำหนดเอง ซึ่งมีฟิลด์ต่างๆ สำหรับอีลิเมนต์ข้อมูลทั้งหมดที่คุณกำหนดในองค์ประกอบ HTML ของคุณ จากนั้น ผู้ใช้สามารถป้อนค่าสำหรับอินสแตนซ์ขององค์ประกอบในเพจที่แผงข้อมูล การตั้งค่าที่กำหนดเอง

ในการเพิ่มข้อมูลที่ผู้ใช้ระบุในองค์ประกอบ HTML ให้ทำดังนี้
  1. อัปเดตเทมเพลท HTML ในไฟล์ render.html เพื่อรวมอีลิเมนต์ข้อมูลที่คุณต้องการ ตัวอย่างต่อไปนี้จะใช้ภาษาเทมเพลท JS ของ Mustache จึงต้องเพิ่มอีลิเมนต์ข้อมูลโดยใช้รูปแบบคำสั่ง {{ and }} ดังนี้
    <ul class="wrapper">
      <li class="box">
         <h1 class="title">{{title1}}</h1>
         <p class="text">{{text1}}</p>
      </li>
      <li class="box">
         <h1 class="title">{{title2}}</h1>
         <p class="text">{{text2}}</p>
      </li>
      <li class="box">
         <h1 class="title">{{title3}}</h1>
         <p class="text">{{text3}}</p>
      </li>
      <li class="box">
         <h1 class="title">{{title4}}</h1>
         <p class="text">{{text4}}</p>
      </li>
    </ul>
  2. ระบุค่าดีฟอลต์สำหรับฟิลด์ข้อมูลต่อไปนี้ โดยแก้ไขเนื้อหาของไฟล์ appinfo.json ในองค์ประกอบ HTML ของคุณ:
    {
      "id": "html-component-id",

      "settingsData": {
        "settingsHeight":600,
        "settingsWidth": 300,
        "settingsRenderOption": "dialog",
        "componentLayouts": [],
        "triggers": [],
        "actions": []
      },
      "initialData": {
        "styleClassName": "html-component",
        "customSettingsData": {
          "title1":"One",
          "title2":"Two",
          "title3":"Three",
          "title4":"Four",
          "text1":"Lorem ipsum dolor sit amet, consectetur adipiscing elit, sed do eiusmod tempor incididunt ut labore et dolore magna aliqua.",
          "text2":"Lorem ipsum dolor sit amet, consectetur adipiscing elit, sed do eiusmod tempor incididunt ut labore et dolore magna aliqua.",
          "text3":"Lorem ipsum dolor sit amet, consectetur adipiscing elit, sed do eiusmod tempor incididunt ut labore et dolore magna aliqua.",
          "text4":"Lorem ipsum dolor sit amet, consectetur adipiscing elit, sed do eiusmod tempor incididunt ut labore et dolore magna aliqua."
        },
        "nestedComponents": []
      }
    }
  3. เพิ่มแผงข้อมูล การตั้งค่าที่กำหนดเอง ซึ่งจะมองหาค่าข้อมูลในไฟล์เทมเพลท HTML render.html เพื่อสร้างการตั้งค่าสำหรับผู้ใช้เพื่อเปลี่ยนแปลงในโปรแกรมแก้ไข แก้ไขเนื้อหาของไฟล์ settings.html เป็นรายการต่อไปนี้
    <!DOCTYPE html>
    <html lang="en">
    <head>
       <!-- only allow embedding of this iFrame in SCS -->
      <meta http-equiv="Content-Type" content="text/html; charset=UTF-8">

       <title>H1 Mustache Component</title>

      <!-- include sample apps styling -->
      <link href="/_sitescloud/renderer/app/sdk/css/app-styles.css" rel="stylesheet">

       <!-- include supporting files -->
      <script type="text/javascript" src="/_sitescloud/renderer/app/apps/js/knockout.min.js"></script>
      <script type="text/javascript" src="/_sitescloud/renderer/app/apps/js/jquery.min.js"></script>

      <!-- include the Sites SDK -->
      <script type="text/javascript" src="/_sitescloud/renderer/app/sdk/js/sites.min.js"></script>
    </head>
    <body data-bind="visible: true" style="display:none; margin:0px; padding:0px;background:transparent;background-
    image:none;">
       <!-- ko if: initialized() -->
       <div class="scs-component-settings">
                 <div>
                          <!-- Width -->
                          <label id="headingTextLabel" for="headingText" class="settings-heading" data-bind="text:
    'Heading Text'"></label>
                          <input id="headingText" data-bind="value: headingText" placeholder="Heading" class="settings-
    text-box">
                 </div>
        </div>
        <div data-bind="setSettingsHeight: true"></div>
        <!-- /ko -->
        <!-- ko ifnot: initialized() -->
        <div data-bind="text: 'waiting for initialization to complete'"></div>
        <!-- /ko -->
        <script type="text/javascript">

                   // set the iFrame height when we've fully rendered
                   ko.bindingHandlers.scsCompComponentImpl = {
                            init: function (element, valueAccessor, allBindings, viewModel, bindingContext) {
                                       var body = document.body,
                                                html = document.documentElement;

                                       SitesSDK.setHeight(Math.max(
                                                body.scrollHeight,
                                                body.offsetHeight,
                                                html.clientHeight,
                                                html.scrollHeight,
                                                html.offsetHeight));
                            }
                   };

                   // define the viewModel object
                   var SettingsViewModel = function () {
                            var self = this;

                            // create the observables for passing data
                            self.headingText = ko.observable('Heading 1');

                            // create rest of viewModel
                            self.initialized = ko.observable(false);
                            self.saveData = false;

                            // Get custom settings
                            SitesSDK.getProperty('customSettingsData', function (data) {
                                     //update observable
                                     self.headingText(data.headingText);

                                     // note that viewModel is initialized and can start saving data
                                     self.initialized(true);
                                     self.saveData = true;
                            });

                            // save whenever any updates occur
                            self.save = ko.computed(function () {
                                      var saveconfig = {
                                               'headingText': self.headingText()
                                      };

                                      // save data in page
                                      if (self.saveData) {
                                                  SitesSDK.setProperty('customSettingsData', saveconfig);
                                      }
                            }, self);
                };


                // apply the bindings
                ko.applyBindings(new SettingsViewModel());
       </script>
    </body>

    หมายเหตุ:

    เนื่องจากคุณได้แก้ไขไฟล์ appinfo.json คุณต้องรีเฟรชเบราเซอร์ และเพิ่มองค์ประกอบของคุณอีกครั้งในเพจเพื่อให้การเปลี่ยนแปลงมีผล

ในการตรวจสอบว่าขณะนี้องค์ประกอบของคุณจะใช้ค่าดีฟอลต์จากไฟล์ appinfo.json และคุณสามารถแก้ไขค่าในแผงข้อมูล การตั้งค่าที่กำหนดเอง (จุดตรวจสอบ 2) ให้ทำดังนี้

  1. หลังจากคุณแก้ไขไฟล์ appinfo.json โปรดจำไว้ว่าคุณต้องรีเฟรชเบราเซอร์ และเพิ่มองค์ประกอบของคุณอีกครั้งในเพจเพื่อให้การเปลี่ยนแปลงมีผล

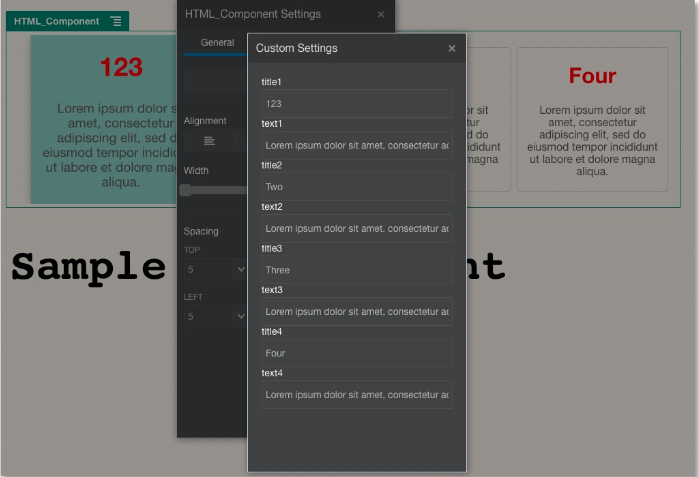

  2. เปิดแผงข้อมูล การตั้งค่าที่กำหนดเอง ในองค์ประกอบ HTML และป้อนข้อมูล


    คำอธิบาย GUID-1E8B54B1-CA2D-463D-A424-E6F3E08A4934-default.png มีดังนี้
    คำอธิบายภาพ GUID-1E8B54B1-CA2D-463D-A424-E6F3E08A4934-default.png
  3. ตรวจสอบว่าองค์ประกอบ Oracle Content Management ของคุณใช้ HTML และ CSS กับเทมเพลท JS ของ Mustache เพื่อแสดงผลเนื้อหาตามข้อมูลที่คุณป้อนในแผงข้อมูล การตั้งค่าที่กำหนดเอง
