1 The LSR Interconnection API
This section describes the implementation concepts of the LSR Interconnection API.
Overview
Oracle's LSR Interconnection API (LSR API) for LSOG 10 provides IDL for Local Service Ordering Guidelines (LSOG) versions 10.
The LSR API is fully runtime backward compatible because a newer release of the API server continues to work with an existing release of a third-party vendor's product. Some examples are provided below:
-
Customer A upgrades to a newer release of the core MetaSolv Solution software and APIs.
-
Third-party vendor B is currently deployed, API client product (third-party application B is used by customer A) continues to work against the newer release of the API server. However, third-party vendor B's product does not support any of the new functionality implemented in the newer release of the API server.
For example, this situation occurs if a new operation is added to an existing interface that uses a new operation on an existing notification interface.
Note:
The third-party vendor recompiles with the newer IDL and is required to implement the new operations of existing interfaces using stub implementations. The IDL is not compiler backward compatible.Beginning with version 4.2.0 the LSR API maintains backward compatibility because each type of LSR order that can be exported has:
-
A separate succeeded operation within the WDINotification interface
-
A service specific structure in the WDILSRTypesn (where n represents the LSOG version)
LSR API Interfaces

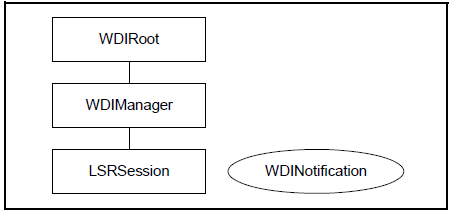

Figure 1-1 shows the relationship of the interfaces in the LSR API.
WDIRoot Interface
The following table lists the operations in the WDIRoot interface of the LSR API.
Table 1-1 WDIRoot Interface Operations
| Operation | Description |
|---|---|
|
connect |
Obtains the object reference to the WDIManager |
|
disconnect |
Terminates the connection |
To begin a connection, the third-party application must connect to the MetaSolv Solution Application Server. This connection verifies the user ID and password, and returns the object reference to the API server's WDIRoot. A successful connect operation on the WDIRoot object returns an object reference to a WDIManager object.
WDIManager Interface
The LSR API's WDIManager interface enables LSRSession, signal, insignal, and transaction management. Table 1-2 describes the operations in the WDIManager interface.
Table 1-2 WDIManager Interface Operations
| WDIManager Operation | Description |
|---|---|
|
startLSRSession destroyLSRSession |
Starts/destroys an LSR session for the client on the LSR API server. StartLSRSession returns an object reference to the LSRSession object. |
|
startTransaction destroyTransaction |
Starts/destroys a Transaction object for the client on the LSR API server. StartTransaction returns an object reference to the Transaction object. The Transaction object provides the connection to the MetaSolv Solution database. For more information, see "Transaction Management and the LSR API". |
|
startSignal destroySignal |
Starts/destroys a WDISignal object for the client on the LSR API server. StartSignal returns a WDISignal object reference that you can use to update the status of outbound gateway events. |
|
startInSignal destroyInSignal |
Starts/destroys a WDInSignal object for the client on the LSR API server. StartInSignal returns a WDIInSignal object reference that you can use to update the status of inbound gateway events. |
Transaction Management and the LSR API
Note:
See MSS CORBA API Developer's Reference for more information about the operations described in Table 1-2, "WDIManager Interface Operations".The WDITransaction interface is defined in the WDI.IDL file. See MSS CORBA API Developer's Reference for detailed information about transaction and signal processing.
In all cases, you must create and pass a transaction object to the LSR API. After a successful commit, you can reuse the transaction object. After a rollback, the transaction object is destroyed and you must create a new one to continue using the LSR API.
You are required to call the commit or rollback operation after calling the importDSCN, importDSRED, or importNPLSR, operations in all cases. However, there are two possible approaches to handling database transactions when you call the importLR and importLSR operations. These approaches are:
-
Your application can call commit and rollback in every case. In this case, your application is responsible for ensuring that the data provided in the structures imported into the MetaSolv Solution database via the LSR API is compliant with published OBF/LSOG guidelines.
-
The LSR API automatically handles database commits and rollbacks every time you call these operations, with these possible results for any given operation:
-
If the operation fails, the LSR API automatically rolls back the database changes and calls the related failure notification operation.
-
If the operation succeeds, the LSR API automatically commits the database changes and calls the related succeeded notification operation.
-
If the operation succeeds but the commit fails, the database automatically rolls back the changes and the LSR API calls the related failure notification operation.
-
The setting of the ForceAutoCommit parameter in the Session section of the Application Server's GATEWAY.INI file determines the type of transaction management used by the LSR API for the importLR and importLSRCM operations. Regardless of the setting of this parameter, you are required to call the commit or rollback operation after calling the importDSCN, importDSRED, or importNPLSR operations.
-
If ForceAutoCommit is set to "true" (recommended), the LSR API handles transaction management for these operations.
-
If ForceAutoCommit is set to "false", your application handles transaction management for all LSR API operations.
The recommended approach is to have the LSR API handle transaction management unless you must use a single transaction object to group the results of a number of LSR API operations into a unit of work and you want to rollback the entire string of operations if any of the operations fails. When the LSR API handles transaction management for an operation, the commit happens just prior to the API calling the success or failure notification. If you group the results of a number of API operations together in your code but have the LSR API handle transaction management, a number of successful operations could be committed before a later operation fails and your application would be unable to rollback the already committed operations. This could lead to mismatched data or other unexpected results.
When designing your application to handle transaction processing for the purposes of the LSR API, you need to know:
-
Until you invoke the commit operation, any changes you make are not reflected in the database. If you delay calling commit, you can adversely impact the processing of service requests. For example, if you update the status of a gateway event but do not commit your update immediately, the gateway event status remains unchanged and no task that is waiting on that event can be completed.
-
If you lose your connection to the LSR API for any reason, the LSR API rolls back all transactions for which you have not called commit.
Signal Processing and the LSR API
The WDISignal and WDIInSignal interfaces are defined in the WDI.IDL file. These interfaces are used in common by the MetaSolv Solution APIs. See MSS CORBA API Developer's Reference for detailed explanation about signal processing. For the LSR API you need to know:
-
The operations in the WDISignal interface allow you to communicate with the LSR API regarding outbound gateway events. Your application is responsible for implementing the eventOccurred and eventTerminated operations. The LSR API implements this interface's remaining operations.
-
The operations in the WDIInSignal interface allow you to communicate with the LSR API regarding inbound gateway events. The LSR API implements all operations in this interface.
LSRSession Interface Operations
The following table lists the operations available in the LSRSession interface of the WDILSR.IDL file.
Table 1-3 LSRSession Interface Operations
| Operation | WDINotifications |
|---|---|
|
exportLSR |
LSRExportLSSucceeded LSRExportPSSucceeded LSRExportPSLSSucceeded LSRExportNPSucceeded LSRExportLSNPSucceeded LSRExportRSSucceeded LSRExportCRSSucceeded LSRExportFailed |
|
exportLR |
LRExportSucceeded LRExportFailed |
|
exportLSRCM |
LSRCMExportSucceeded LSRCMExportFailed |
|
exportDL |
LSRExportDLSucceeded |
|
importLR |
LRImportSucceeded LRImportFailed |
|
importLSRCM |
LSRCMImportSucceeded LSRCMImportFailed |
|
importNPLSR |
NPLSRImportSucceeded NPLSRImportFailed |
|
importDSRED |
DSREDImportSucceeded DSREDImportFailed |
|
importDSCN |
DSCNImportSucceeded DSCNImportFailed |
|
listLSR |
N/A |
|
listCCNA |
N/A |
|
listPONSForCCNA |
N/A |
|
ListLSRForPONCCNAVER |
N/A |
LSRSession Interface Operations
Refer to the current OBF/LSOG guidelines for operation descriptions.
Import Operations
-
importLR: LSOG 10 Local Service Request Confirmation
-
importLSRCM: LSOG 10 Local Service Response/Completion
-
importNPLSR: LSOG 10 Number Portability LSR
-
importDSRED: LSOG 10 Directory Service Request Error Details
-
importDSCN: LSOG 10 Directory Service Completion Notice
Export Operations
-
exportLSR: Every LSR export (exportLSR) operation uses the LSR and EU forms. In addition the exported LSR must contain either one of the following mutually exclusive forms: LS, NP, LSNP, RS, CRS, PS or a combination of the PS and LS forms. Table 1-4 lists the forms.
Table 1-4 LSR Export Form Usage by LSOG Version
| Form | LSOG 10 |
|---|---|
|
LSR (Local Service Request) |
X |
|
EU (End User) |
X |
|
LS (Loop Service) |
X |
|
NP (Number Portability) |
X |
|
LSNP (Loop Service with NP) |
X |
|
RS (Resale) |
X |
|
CRS (Centrex) |
X |
|
PS (Port Service) |
X |
|
PS and LS (combined Port and Loop) |
X |
|
HGI (Hunt Group Identification) |
X |
-
exportLSRCM: LSOG 10 Local Service Response/Completion
-
exportLR: LSOG 10 Local Response
-
exportDL: LSOG 10 Directory Listing
Process Flows
This section contains sample process flows for each type of signal: solicited and unsolicited. Use the sample flow as a template for developing your own process flows.
Solicited Messages
A solicited message is a message initiated by the MetaSolv Solution software. The MetaSolv Solution software plays the role of the client, and the third-party application plays the role of the server. The third-party application must use the IDL files provided with Oracle's LSR API to implement the interfaces and operations for the structures listed in Table 1-5.
Table 1-5 WDIRoot, WDIManager, and WDISignal Operations for Solicited Messages
| Interface | For Implementing These Operations |
|---|---|
|
WDIRoot |
connect disconnect |
|
WDIManager |
startSignal destroySignal |
|
WDISignal |
eventOccurred eventTerminated |
Sample Solicited Message Process Flow
When the MetaSolv Solution software is the client, the overall process flows as follows:
-
The API client binds to the third-party server to get a WDIRoot object reference.
-
The API client invokes the connect operation of the WDIRoot interface, and the connect operation yields a WDIManager object reference.
-
The API client invokes the startSignal operation of the WDIManager interface to get a WDISignal object reference.
-
The client invokes the eventOccurred operation of the WDISignal interface to notify the third-party application that an event registered to them has occurred within the MetaSolv Solution software.
-
The API client invokes the destroySignal operation of the WDIManager interface.
-
The API client invokes the disconnect operation of the WDIRoot interface.
If the third-party application encounters an error, it throws a WDIExcp as defined by the IDL. The client handles CORBA system exceptions and WDIExcp exceptions.
Unsolicited Messages
An unsolicited message is a message initiated by the third-party application. Oracle's software plays the role of the server, and a third-party application plays the role of the client, with the exception of the callback processing.
Table 1-6 lists the operations that the LSR API implements. Some IDL compilers require you to provide trivial implementations of these operations in your application.
Table 1-6 LSR Root, Manager, and Signal Operations for Unsolicited Messages
| Interface | Operations Implemented by the LSR API |
|---|---|
|
WDIRoot |
connect disconnect |
|
WDIManager |
startSignal destroySignal startInSignal destroyInSignal startTransaction destroyTransaction startLSRSession destroyLSRSession |
|
WDITransaction |
commit rollback |
|
WDISignal |
eventErrored eventInProgress eventCompleted |
|
WDIInSignal |
eventErrored eventInProgress eventCompleted |
|
LSRSession |
exportLSR exportLR exportLSRCM exportDL importLR importLSRCM importNPLSR importDSRED importDSCN listLSR listCCNA listPONSForCCNA listLSRForPONCCNAVER |
Table 1-7 lists the operations that your application must implement.
Table 1-7 LSR Notification Operations
| Interface | Operations Implemented by Your Application |
|---|---|
|
WDINotification |
LSRExportLSSucceeded LSRExportPSSucceeded LSRExportPSLSSucceeded LSRExportNPSucceeded LSRExportLSNPSucceeded LSRExportRSSucceeded LSRExportCRSSucceeded LSRExportDLSucceeded LSRExportFailed LRImportSucceeded LRImportFailed LSRCMImportSucceeded LSRCMImportFailed NPLSRImportSucceeded NPLSRImportFailed DSREDImportSucceeded DSREDImportFailed DSCNImportSucceeded DSCNImportFailed LSRImportSucceeded LSRImportFailed LRExportSucceeded LRExportFailed LSRCMExportSucceeded LSRCMExportFailed |
Sample Business Flows for Sending an LSOG 10 CRS
The following two sample flows show the process for exporting an LSOG 10 CRS (Centrex Resale Services) order and importing an LSOG 10 LR (Local Response).
Exporting an LSOG 10 CRS
Assume the following infrastructure setup is in place:
-
A gateway defined pointing to a third-party LSR API server. The host and server names must be those of the third-party's LSR API server.
-
The gateway has a gateway event defined for export of the LSR. The export of the LSR is defined as an outbound, order level event.
-
A provisioning plan exists with a task that has the export LSR gateway event associated to it.
The following process describes the business flow for exporting or sending an LSOG 10 CRS electronically:
-
The user enters an LSOG 10 LSR for CRS into the MetaSolv Solution software.
-
The user generates tasks for the CRS LSR using the provisioning plan described in the infrastructure setup of this business flow.
-
The user goes to the work queue and initiates the export LSR gateway event on the task. This action causes the following steps to occur:
-
The MetaSolv Solution software binds to the third-party server using the information provided in the definition of the gateway in the MetaSolv Solution software's Infrastructure subsystem. This binding yields a WDIRoot object reference.
-
The MetaSolv Solution software invokes the connect operation on the WDIRoot interface yielding a WDIManager object reference.
-
The MetaSolv Solution software invokes the startSignal operation of the WDIManager interface yielding a WDISignal object reference.
-
The MetaSolv Solution software invokes the eventOccurred operation of the WDISignal interface. The MetaSolv Solution software passes a fully populated WDIEvent structure. This structure informs the third-party that a LSR order is ready for export from the MetaSolv Solution database to the trading partner. Note the ServItemID is null in the WDIEvent structure because the export CRS is an order level event.
-
-
Upon receiving the eventOccurred signal the third-party performs the following:
-
The third-party application binds to the MetaSolv Solution LSR API server to get a WDIRoot object reference.
-
The third-party application invokes the connect operation of the WDIRoot interface, which yields a WDIManager object reference.
-
The third-party application invokes the startTransaction operation of the WDIManager interface, which yields a WDITransaction object reference. This action starts a database transaction on the MetaSolv Solution LSR API server.
-
The third-party application invokes the startSignal operation of the WDIManager interface, which yields a WDISignal object reference. This object reference is used later in the process flow to update Gateway Event status information.
-
The third-party application invokes the startLSRSession operation of the WDIManager interface, which yields a LSRSession object reference.
-
The third-party application instantiates a WDINotification object.
-
The third-party application invokes the exportLSR operation of the LSRSession interface. The WDITransaction, WDINotification, and WDIEvent.documentNumber are supplied as input parameters.
-
-
The LSR API server receives and processes the exportLSR operation.
-
If the LSR API server is successful it invokes the LSRExportCRSSucceeded operation of the WDINotification interface.
-
If the LSR API server is unsuccessful it invokes the LSRExportFailed operation of the WDINotification interface.
-
The following process occurs if the LSRExportCRSSucceeded operation was invoked:
-
The third-party application invokes the eventInProgress operation of the WDISignal interface passing a populated WDIEvent structure. The data to populate the WDIEvent structure comes from the WDIEvent structure passed on the eventOccurred operation.
-
The third-party application invokes the commit operation of the WDITransaction interface.
-
The third-party application formats the CRS data passed on the notification on to the provider.
-
If the provider successfully processes the CRS:
The third-party application invokes the eventCompleted operation of the WDISignal interface passing a populated WDIEvent structure. The data to populate the WDIEvent structure comes from the WDIEvent structure passed on the eventOccurred operation.
-
If the provider is unable to process the CRS:
The third-party application invokes the eventErrored operation of the WDISignal interface passing a populated WDIEvent structure. The data to populate the WDIEvent structure comes from the WDIEvent structure passed on the eventOccurred operation. The third party can populate the WDIErrSeq sequence with the reason(s) for the failure.
-
The third-party application invokes the commit operation of the WDITransaction interface.
-
-
If the LSRExportFailed operation was invoked:
-
The third-party application issues the rollback operation of the WDITransaction interface.
-
The third-party application invokes the startTransaction operation of the WDIManager interface, because the rollback terminates the WDITransaction object reference.
-
The third-party application invokes the eventErrored operation of the WDISignal interface passing a populated WDIEvent structure. The data to populate the WDIEvent structure comes from the WDIEvent structure passed on the eventOccurred operation. The third-party can populate the WDIErrSeq sequence with the reasons for the failure.
-
The third-party application invokes the commit operation of the WDITransaction interface.
-
-
The third-party application invokes the destroySignal operation of the WDIManager interface.
-
The third-party application invokes the destroyLSRSession operation of the WDIManager interface.
-
The third-party application invokes the destroyTransaction operation on the WDIManager interface.
-
The third-party application invokes the disconnect operation of the WDIRoot interface.
Receiving an LSOG 10 LR (Local Response)
Assume the following infrastructure setup is in place:
-
A gateway defined pointing to a third-party LSR API server. The host and server names must be those of the third-party's LSR API server.
-
The gateway has a gateway event defined for import of the LR. The Import LR should be defined as an inbound, order level event.
-
A provisioning plan exists with a task that has the import LR gateway event associated to it.
The following describes the business flow for receiving an LSOG10 LR electronically:
-
The third-party application binds to the LSR API server to get a WDIRoot object reference.
-
The third-party application invokes the connect operation of the WDIRoot interface, which yields a WDIManager object reference.
-
The third-party application invokes the startTransaction operation of the WDIRoot interface to get a WDITransaction object reference and start a database transaction.
-
The third-party application invokes the startInSignal operation of the WDIManager interface, which yields a WDIInSignal object reference.
-
The third-party application invokes the eventInProgress operation of the WDIInSignal interface, passing a populated WDIInEvent structure.
-
The third-party application invokes the commit.
-
The third-party application invokes the startLSRSession operation of the WDIManager interface, which yields a LSRSession object reference.
-
The third-party application instantiates a WDINotification object.
-
The third-party application invokes the importLR operation of the LSRSession interface. The WDITransaction, WDINotification, third-party's document identifier, and the WDILSRTypes10 LR structure are supplied as input parameters.
-
The LSR API server processes the importLR operation of the LSRSession and invokes the appropriate callback operation of the input WDINotification. In this example the operations are LRImportSucceeded and LRImportFailed.
-
If the LRImportSucceeded operation is invoked, the third party performs the following:
-
The third-party application invokes the eventCompleted operation of the WDIInSignal interface.
-
The third-party application invokes the commit operation of the WDITransaction object.
-
-
If the LRImportFailed operation was invoked the third party performs the following:
-
Invoke the rollback operation of the WDITransaction interface and proceed with the appropriate error logging.
-
-
The third-party application invokes the startTransaction operation of the WDIManager interface, because the rollback terminates the WDITransaction object reference.
-
The third-party application invokes the eventErrored operation of the WDIInSignal interface.
-
The third-party application invokes the commit operation of the WDITransaction object.
-
The third-party application invokes the destroyInSignal operation of the WDIManager interface.
-
The third-party application invokes the destroyLSRSession operation of the WDIManager interface.
-
The third-party application invokes the destroyTransaction operation on the WDIManager interface.
-
The third-party application invokes the disconnect operation of the WDIRoot interface.
LSR Field Validation Rules
This section provides information about the LSR field validation rules.
General Rules
-
If a city field is populated it must contain a city that exists in the MetaSolv Solution software's Infrastructure subsystem.
-
If a state code field is populated it must contain a state code existing in the MetaSolv Solution Infrastructure subsystem.
-
Telephone number fields must be numeric and be of appropriate length as specified by the OBF LSOG guidelines.
Importing LSOG 10 LSR Orders for NP
The LSR API assumes the LSR is LSOG compliant. Tables (UNKNOWN STEP NUMBER) through (UNKNOWN STEP NUMBER) define the validations that are performed by the MetaSolv Solution LSR API for importing LSOG 10 LSR (Local Service Request) orders for NP (Number Portability). These tables do not encompass all the rules the OBF guidelines suggest. However, these are additional validations that you might not infer from the OBF guidelines.
Table 1-8 LSR Admin. Field Validation Rules for Importing LSOG 10 Orders for NP
| LSR Admin. Field | Rule |
|---|---|
|
LSRADMIN.lsrno |
This field is optional. |
|
LSRADMIN.htqty |
Required when reqeusting one or more hunt groups for this service request, otherwise prohibited. |
|
LSRADMIN.an |
Required when either the EAN field on the EU form or the ATN field is not populated or when a new AN is requested, otherwise optional. |
|
LSRADMIN.atn |
Required when either the EATN field on the EU Form or the AN field is not populated or when a new ATN is requested, otherwise optional. |
|
LSRADMIN.sc1 |
Required if different from the SC field, otherwise optional. |
|
LSRADMIN.resid |
Prohibited when the RESID field on the LS Form is populated, otherwise optional. |
|
LSRADMIN.dsptch |
Optional when the ACT field is "N," "C," or "T," and the DSIND field on the preorder response is returned, otherwise prohibited. |
|
LSRADMIN.dddo |
1. Required when the service is to be suspended and the DDD field is populated with a restoral date. 2. Required for short term service (for example, trade shows) and the DDD field is populated with an install date. 3. Required for dual service or when the DDDO field is different from the DDD field for an outside move. 4. Other optional. |
|
LSRADMIN.dfdt |
Prohibited when the first position of the REQTYP field is "G", "H" or "J", otherwise optional. |
|
LSRADMIN.p |
Required when the first position of the REQTYP field is "N", otherwise prohibited. |
|
LSRADMIN.sli |
Optional when the first position of hte REQTYP field on the LSR Form is "A" or "B", other prohibited. |
|
LSRADMIN.mi |
Optional when the ACT field is "V" or "W", otherwise prohibited. |
|
LSRADMIN.sup |
1. Prohibited on initial requests. 2. Prohibited when changing a service inquiry to a firm order. 3. Prohibited when changing service type, which results in a change to the first position of the REQTYP field. 4. Otherwise optional. |
|
LSRADMIN.exp |
Required when the DDD field is less than the standard interval for the provisioning of the service, otherwise optional. |
|
LSRADMIN.afo |
Required when the associated request form(s) is applicable and sent, otherwise prohibited. |
|
LSRADMIN.cc |
Required when the CCNA field is "CUS", otherwise optional. |
|
LSRADMIN.nnsp |
Required when the first position of the REQTYP field is "B" or "C", the NPT field is "D" and the NNSP field entry is different than the entry in the CC field, otherwise optional. |
|
LSRADMIN.onsp |
Required when the first postion of the REQTYP field is "E", "F", "M", "N", or "P", and the NPI field is "C"or "D", otherwise optional. |
|
LSRADMIN.agauth |
Required when the customer is acting as an end user agent, otherwise optional. |
|
LSRADMIN.dated |
Required when the AGAUTH field is "Y", otherwise optional. |
|
LSRADMIN.porttyp |
Required when the first position of the REQTYP field is "F" or "M" and the second position of the TOS field is not "M" or "N" or the second position of the LTOS field on the PS Form is not "M" or "N", otherwise prohibited. |
|
LSRADMIN.actl |
1. Required when the first position of the REQTYP field is "A" or "B" and the ACT field is not "D" or "R". 2. Prohibited when the first position of the REQTYP field is "D", "E", "G", "H" or "J". 3. Otherwise optional. |
|
LSRADMIN.sactl |
Required when the SLI field is "A", otherwise prohibited. |
|
LSRADMIN.ai |
Required when the APOT field is populated, otherwise prohibited. |
|
LSRADMIN.apot |
Required when the ACTL field does not identify the specific physical termination point of service, otherwise optional. |
|
LSRADMIN.lst |
1. Required when the first position of the REQTYP field is "F" or "M" and the second postion of the TOS field is not "M" or "N" or the second position of the LTOS field on the PS Form is not "M" or "N". 2. Required when the first position of the REQTYP field is "E" and the entry is different than the end user's local serving office. 3. Otherwise optional. |
|
LSRADMIN.tos |
Required when the ACT field is "N", "C", "T", "V" or "W" and the first position of the REQTYP field is "E", "F" or "M" and the LTOS field on the service specific form is not populated, otherwise optional. |
|
LSRADMIN.pbt |
Optional when the ACT field is "N", "C", or "D" and the customer's ACTL field entry is a physical collocation arrangement, otherwise prohibited. |
|
LSRADMIN.nci |
Required when the NC field is populated, otherwise prohibited. |
|
LSRADMIN.channel |
Prohibited when the NC and NCI fields are populated, otherwise optional. |
|
LSRADMIN.rord |
Required when the provider has preassigned a related order number, otherwise prohibited. |
|
LSRADMIN.lsp auth |
1. Required when the second character of the TOS field is "P" or the second character of the LTOS field on the PS Form is "P" and the CCNA field is not equal to the ACNA field. 2. Required when the second character of the TOS field is "P" or the second character of the LTOS field on the PS Form is "P" and the CCNA field and the company represented in the CC field are not the same entity. 3. Otherwise optional. |
|
LSRADMIN.lsp auth date |
Required when the LSP AUTH field is populated, otherwise optional. |
|
LSRADMIN.lsp auth name |
Required when the LSP AUTH field is populated, otherwise optional. |
|
LSRADMIN.npdi |
Optional when the ACT field is "N", "C" or "V" and the first position of the REQTYP field is "C", otherwise optional. |
|
LSRADMIN.adet |
This field is conditional. Note 1: Optional when the ACT field is "C" or "R" and the first position of the REQTYP field is not "J" otherwise prohibited. These are valid entry notes, but they need to be coded as follows: Note 1: Valid entries "A", "B" and "D" are applicable when the ACT field is "R". Note 2: Valid entry "C" is applicable when the ACT field is "C". |
|
LSRADMIN.pid |
This field is optional. |
|
EU.pon |
Required. Must match LSR.pon. |
|
EULocationAndAccess.locNum |
Required. Must be sequential, consecutive numbers starting with 1. |
|
EULocationAndAccess.Name |
Required. |
|
EULocationAndAccess.Sasn |
Required. |
|
EULocationAndAccess.City |
Required. |
|
EULocationAndAccess.State |
Required. |
|
EULocationAndAccess.ZipCode |
Required. |
|
EULocationAndAccess.ean |
Required when the LSR.act = V and the EULocationAndAccess.eatn is not provided. |
|
EULocationAndAccess.eatn |
Required when the LSR.act = V and the EULocationAndAccess.ean is not provided. |
|
NPServiceDetail.pon |
Required. Must match LSR.pon. |
|
NPServiceDetail.npQty |
Required. Must be equal to the total number of ported telephone numbers for the entire order. |
|
NPServiceDetail.locNum |
Required. Must match an EULocationAndAccess.locNum on the order. Must be sequential, consecutive number. |
|
NPServiceDetail.lNum |
Required. Must be a sequential, consecutive number within the locNum. The combination of locNum/lNum must be unique at the pon level. |
|
NPServiceDetail.lna |
Required. |
|
NPServiceDetail.portedNum (LSOG 3) NPServiceDetail.portedNbr (LSOG 4 and LSOG 5) |
Required. Renamed from portedNum to portedNbr in LSOG 4. LSOG 3 supports a single telephone number. LSOG 4 and LSOG 5 support a single telephone number or a range of telephone numbers. All telephone numbers must exist in the MetaSolv Solution software's Telephone Number Inventory and be available to be ported out. |
|
NPServiceDetail.npt |
Required. |
|
NPServiceDetail.cftn |
Required when NPServiceDetail.npt = B, otherwise prohibited. |
|
NPServiceDetail.nptg |
Required when NPServiceDetail.npt = A, B, C and NPServiceDetail.lna = N or V. |
|
NPServiceDetail.nptg |
Required if NPServiceDetail.npt = A or C and NPServiceDetail.rti is not populated. |
|
NPServiceDetail.rti |
Required if NPServiceDetail.npt = A or C and NPServiceDetail.nptg is not populated. |
Table 1-9 LSR Bill Section field Validation Rules for Importing LSOG 10 Orders for NP
| Bill Section Field | Rule |
|---|---|
|
LSRBILL.bi1 |
Required when the BAN1 and BAN2 fields are populated, otherwise optional. |
|
LSRBILL.ban1 |
Required when a new billing account number is requested, otherwise optional. |
|
LSRBILL.bi2 |
Required when the BAN2 field is populated, other optional. |
|
LSRBILL.ban2 |
Required when the BI2 field is populated, otherwise prohibited. |
|
LSRBILL.acna |
Optional when the first position of the REQTYP field is "C" and the NPT field on the NP Form is "D", otherwise required. |
|
LSRBILL.billnm |
Required when the BAN (for example, BAN1 or BAN2) field is "N", otherwise optional. |
|
LSRBILL.te |
Required when the BAN (for example, BAN1 or BAN2) field is "N", otherwise optional. |
|
LSRBILL.street |
Required when the BAN (for example, BAN1 or BAN2) field is "N", otherwise optional. |
|
LSRBILL.city |
Required when the BAN (for example, BAN1 or BAN2) field is "N" and a billing profile is not established, otherwise optional. |
|
LSRBILL.state |
Required when the BAN (for example, BAN1 or BAN2) field is "N" and a billing profile is not established, otherwise optional. |
|
LSRBILL.zip |
Required when the BAN (for example, BAN1 or BAN2) field is "N" and a billing profile is not established, otherwise optional. |
|
LSRBILL.billcon |
Required when the BAN (for example, BAN1 or BAN2) field is "N", otherwise optional. |
|
LSRBILL.tel no |
Required when the BAN (for example, BAN1 or BAN2) field is "N", otherwise optional. |
Table 1-10 LSR Contact Section field Validation Rules for Importing LSOG 10 Orders for NP
| LSR Contact Section Field | Rule |
|---|---|
|
LSRCONTACT.tel no(init) |
Required field. No rule. |
|
LSRCONTACT.tel no(dsg) |
Required when the ALT IMPCON field is populated, otherwise prohibited. |
|
LSRCONTACT.street |
Required when the DSGCON field is populated, otherwise optional. |
|
LSRCONTACT.city |
Required when the DSGCON field is populated, otherwise optional. |
|
LSRCONTACT.zip |
Required when the DSGCON field is populated, otherwise optional. |
Table 1-11 End User Admin. Section field Validation Rules for Importing LSOG 10 Orders for NP
| EU Admin Section Field | Rule |
|---|---|
|
EUADMIN.an |
Required when either the EAN field or the ATN field is not populated or when a new AN is requested, otherwise optional. |
|
EUADMIN.atn |
Required when either the EATN field or the AN field is not populated or when a new ATN is requested, otherwise optional. |
|
EUADMIN.adqty |
Required when either the DISC NBR field or the DISC ECCKT field is populated, otherwise optional. |
Table 1-12 Location and Access field Validation Rules for Importing LSOG 10 Orders for NP
| Location and Access Field | Rule |
|---|---|
|
Eua |
Required when the MEU field on the LSR Form is populated, otherwise prohibited. |
|
name |
Optional when the SLI field on the LSR Form is "A", otherwise required. |
|
Ncon |
Optional when the ACT field on the LSR Form is "N", "T" or "V", otherwise prohibited. |
|
Sano |
Required when the AFT field is "C", otherwise optional. |
|
Sasf |
Optional when the SANO field is populated, otherwise prohibited. |
|
Sasn |
1. Optional when NPDI field on the LSR Form is populated with an "A" or "C". 2. Optional when the SLI field on the LSR Form is "A". 3. Otherwise required. |
|
Lv1 |
Optional when the LD1 field is populated, otherwise prohibited. |
|
Lv2 |
Optional when the LD2 field is populated, otherwise prohibited. |
|
Lv3 |
Optional when the LD3 field is populated, otherwise prohibited. |
|
City |
1. Optional when NPDI field on the LSR Form is populated with and "A" or "C". 2. Optional when the SLI field on the LSR Form is "A". 3. Otherwise required. |
|
State |
1. Optional when NPDI field on the LSR Form is populated with an "A" or "C". 2. Optional when the SLI field on the LSR form is "A". 2. Otherwise required. |
|
Zip1 |
1. Optional when NPDI field on the LSR Form is populated with an "A" or "C". 2. Optional when the SLI field on the LSR form is "A". 2. Otherwise required. |
|
Eumi |
Required when the NPT field on either the LSNP Form or the NP Form is "D", otherwise optional. |
|
Elt |
Required when the ACT field on the LSR Form is "V", otherwise prohibited. |
Table 1-13 Inside Wire field Validation Rules for Importing LSOG 10 Orders for NP
| Inside Wire Field | Rule |
|---|---|
|
iwcon |
Required when the IWO field is populated, otherwise optional. |
|
Tel no |
Required when the IWCON field is populated, otherwise prohibited. |
Table 1-14 Bill Section field Validation Rules for Importing LSOG 10 Orders for NP
| Bill Section Field | Rule |
|---|---|
|
Ean |
This field is conditional. Note 1: Required when the ACT field on the LSR Form is "V" or "W" and the EATN field is not populated, otherwise optional. Note 2: Required when the NPDI field on the LSR Form is "B" and TAX ID and SSN are not populated. Note 3: Otherwise optional. |
|
Eatn |
Required when the ACT field on the LSRForm is "V" or "W" and the EAN field is not populated, otherwise optional. |
|
billnm |
Required when the FBI field is "D", otherwise optional. |
|
street |
Required when the FBI field is "D", otherwise optional. |
|
City |
Optional when NPDI field on the LSR Form is populated with an "A" or "C", otherwise required. |
|
State |
Optional when NPDI field on the LSR Form is poulated with an "A" or "C", otherwise required. |
|
Zip |
Optional when NPDI field on the LSR Form is poulated with an "A" or "C", otherwise required. |
|
billcon |
Required when the FBI field is populated and/or this entry is different from the BILLNM field, otherwise optional. |
|
Telno |
Required when the BILLCON field is populated, otherwise optional. |
|
Ssn |
This field is conditional. Note 1: Required when the NPDI field on the LSR Form is "B" and EAN and TAX ID are not populated, otherwise optional. |
|
Tax Id |
This field is conditional. Note 1: Required when the NPDI field on the LSR Form is "B" and EAN and SSN are not populated, otherwise optional. |
Table 1-15 Disconnect field Validation Rules for Importing LSOG 10 Orders for NP
| Disconnect Field | Rule |
|---|---|
|
Tc to pri |
Required when the TC OPT field is not "blank" or "N", otherwise optional. |
|
Tc to sec |
Required when the TC OPT field is populated with a "T" or a customer code identifier that indicates split transfer of calls, otherwise prohibited. |
|
Tcid |
Required when the TC OPT field is "T" or a custom code identifier that indicates split transfer of calls, otherwise prohibited. |
|
tcname |
Required when the TC OPT field is "T" or a custom code identifier that indicates split transfer of calls, otherwise prohibited. |
|
Tc per |
Optional when the TC TO PRI field is populated, otherwise prohibited. |
Table 1-16 NP field Validation Rules for Importing LSOG 10 Orders for NP
| NP Field | Rule |
|---|---|
|
NP.an |
1. Required when the ATN field is not populated. 2. Required when the EAN field on the EU Form is "blank" or when a new AN is required. 3. Otherwise optional. |
|
NP.atn |
1. Required when the AN field is not populated. 2. Required when the EATN field on the EU Form is "blank" or when a new ATN is required. 3. Otherwise optional. |
|
NP.tdt |
Optional when the first position of the REQTYP field on the LSR Form is "C" and the NPT field is "D", otherwise prohibited. |
|
NP.tnp |
Required when the LNA field is "N", "T" or "V" and the NPT field is "A", "B" or "C", otherwise optional. |
|
NP.cftn |
Required when the NPT field is "B", otherwise optional. |
|
NP.npt |
Required when the LNA field is "N", "T" or "V", otherwise optional. |
|
NP.lscp |
1. Prohibited when the LSCP field is populated on the LSR Form. 2. Prohibited when the NPT field is "D". 3. Otherwise optional. |
|
NP.block |
1. Required when the BA field is "A" or "D". 2. Prohibited when the BA field is "blank". 3. Otherwise prohibited. |
|
NP.tc to pri |
Required when the TC OPT field is "S", "T" or a custom code identifier, otherwise optional. |
|
NP.tc to sec |
Required when the TC OPT field is "T" or a custom code identifier that indicates split transfer of calls, otherwise prohibited. |
|
NP.tcid |
Required when the TC OPT field is "T" or a custom code identifier that indicates split transfer of calls, otherwise prohibited. |
|
NP.tc name |
Required when the TC OPT field is "T" or a custom code identifier that indicates split transfer of calls, otherwise prohibited. |
|
NP.tc per |
Optional when the TC TO PRI field is populated, otherwise prohibited. |
|
NP.lean |
Optional when the ACT field on the LSR Form is "V" and the EAN or EATN fields on the EU Form or the LEATN field is not populated, otherwise prohibited. |
|
NP.leatn |
Optional when the ACT field on the LSR Form is "V" and the EAN or EATN fields on the EU Form or the LEAN field is not populated, otherwise prohibited. |
