Release Notes
Release 7.3.5
E81519-01
February 2017
This document provides information about Oracle Communications Network Integrity Release 7.3.5.
This document consists of the following sections:
Note:
For the Network Integrity documentation set for release 7.3.5, only Network Integrity Installation Guide and the release notes changed. Refer to the documentation set for Network Integrity Release 7.3.2 for the remaining documentation.See Oracle Communications Design Studio Release Notes for the release notes for the Design Studio for Network Integrity feature.
See Network Integrity Licensing Information User Manual for license and dependency information for Network Integrity components and cartridges.
See Network Integrity Installation Guide for more information about software requirements and compatibility.
Network Integrity 7.3.5 includes the following new features and enhancements:
The new device interface name modeling feature allows the extension of existing SNMP based cartridges to transform network entities discovered via SNMP. These network entities are transformed into the format readable names via the command-line interface (CLI). The entities are then used by Activation Systems or Domain Controllers for fulfillment purposes.
See "About Modeling Device Interfaces in MIB-II SNMP Cartridge" for more information.
With Network Integrity 7.3.5, the application platform upgrades Oracle Fusion Middleware Application software and Oracle WebLogic Server Enterprise Edition, and also other software version upgrades which include the following:
Oracle Fusion Middleware 12.2.1.2.0
Oracle WebLogic Server 12.2.1.2.0
Java JDK 8
Eclipse 4.6 (Neon)
There is no change in the version of the Oracle Database.
See Network Integrity Installation Guide for more information on the software version requirements.
With Network Integrity 7.3.5, the user interface screen layouts are changed. The new user interface provides for simple and uncluttered layouts. The new layout provides the following features:
Larger text
Faster loading
More open space allows for more focus on the data content
The data content is the same as the previous release of Network Integrity with fields and labels unchanged. Figure 1 shows a screenshot of a Manage Scan page as an example of the new user interface layout.
Figure 1 Network Integrity Manage Scans Window
In addition to the new user interface layout, the initial landing page display is enhanced. After a successful login, the initial landing page display has an area to the right that is populated with additional functional links to navigate to various areas of the application.
This section provides information on modeling of Device Interfaces in the Oracle Communications Network Integrity MIB-II SNMP cartridge. This feature provides enhanced modeling of device interface entities of SNMP based on configuration provided in Autodiscover.cfg file.
This enhancement supports a subset of the Autodiscover.cfg file properties which are relevant to Network Integrity Device Interface modeling. You can extend the existing remodeling. Table 1 contains the list of supported possible statement types in the Autodiscover.cfg file.
See "Customize Device Interface Name Modeling" for more information.
Table 1 Statement Types Supported in the Autodiscover.cfg File
Action | Description |
---|---|
Enterprise |
The Enterprise type defines a vendor to the discovery system. The Enterprise type identifies the device as belonging to a particular vendor and defines how IP Service Activator can communicate with the device, and what paradigm IP Service Activator uses when we configure the device. The syntax is as follows: Enterprise: For example: Enterprise:9;Cisco;cisco;yes;TACACS;Interface; See Oracle Communications IP Service Activator User's Guide website link below this table for more information on the parameter details. |
Main |
The syntax for Main is as follows: Main:<enterpriseNumber>;<highIfType>;<lowerIfType>;<regexp>; The parameters for Main are similar to Subinterface. For this interface, if the enterprise number, interface pair, and optionally the regex match, treat it as a main interface in IP Service Activator. For example: Main:9;32;39;îSerial.*; This example would map Cisco Frame Relay interfaces on a SONET controller as main interfaces in IP Service Activator if the description matches the regular expression îSerial.*. |
Ignore |
The syntax for Ignore is as follows: Ignore:<enterpriseNumber>;<highIfType>;<regexp>; This means for the device matching the enterprise number, interfaces matching the high interface type number (and optionally matching the regex) are ignored. Discovery of matching interfaces will not be reported to IP Service Activator. For example: Ignore:9;94;.*-adsl; |
Rename |
The syntax for Rename is as follows: Rename:<enterpriseNumber>;<ifType>;<string-to-match>;<string-to-replace>; For this interface number, for this interface type, if you find an interface name that matches this pattern, use the substitute pattern to modify the name that is reported to IP Service Activator.For example: Rename:9;134;-atm subif;; In this example, ATM subinterfaces are renamed so that the text "-atm subif" is removed from the name (that is, it is replaced with nothing). |
Subinterface |
Network Integrity supports only the modeling related actions. This action is not supported. |
Sublayer |
Network Integrity supports only the modeling related actions. This action is not supported. |
Vlan and Vlanport |
Network Integrity supports only the modeling related actions. This action is not supported. |
Ifname and Ifdesc |
Network Integrity supports only the modeling related actions. This action is not supported. |
Icmp |
Network Integrity supports only the modeling related actions. This action is IPSA specific and is not supported. |
Persistent |
Network Integrity supports only the modeling related actions. This action is IPSA specific and is not supported. |
Volatile |
Network Integrity supports only the modeling related actions. This action is IPSA specific and is not supported. |
AtmVcInterfaceSource |
Network Integrity supports only the modeling related actions. This action is IPSA specific and is not supported. |
Host and Device |
Network Integrity supports only the modeling related actions. This action is IPSA specific and is not supported. |
Controller |
Network Integrity supports only the modeling related actions. This action is IPSA specific and is not supported. |
See Oracle Communications IP Service Activator User's Guide for more detailed information on these actions and their parameters at this website:
http://docs.oracle.com/cd/E61089_01/doc.73/e61091/usr_discovery.htm#IPSUS194
As part of this feature implementation, Discover MIB II SNMP action is added with following two new discovery processors:
Device Interface Name Remodel Initializer Processor
This discovery processor initializes the ”remodelerProperties” based on following MBean properties:
Discover MIB II SNMP:DI Name Remodel Initializer:DeviceInterfaceNameModeling:PerformRemodeling Discover MIB II SNMP:DI Name Remodel Initializer:DeviceInterfaceNameModeling:LocationOfAutoDiscoverycfg
Device Interface Name Remodeler Processor
This discovery processor performs the remodeling of Logical Device hierarchy based on configuration information provided in AutoDiscover.cfg file. Table 2 provides the variable information for the processors.
Table 2 Variables for Processors
Processor Name | Variable |
---|---|
Device Interface Name Remodel Initializer |
Input: N/A Output:
|
Device Interface Name Remodeler |
Input:
Output: N/A |
These new processor changes on the ”Discover MIB II SNMP” action are also available in all the extended out-of-the-box actions, for example ”Discover Generic Cisco SNMP” and ”Discover Enhanced Cisco SNMP” to utilize this feature.
By default an SNMP scan does not run with the Device Interface Name Remodeler. To enable Device Interface Name Remodeler, you must set the ”PerformRemodeling” property to true and provide the AutoDiscovery.cfg file location to ”LocationOfAutoDiscoverycfg” for their specific SNMP scan. You do this using ”System MBean Browser” in Oracle Weblogic Enterprise Manager.

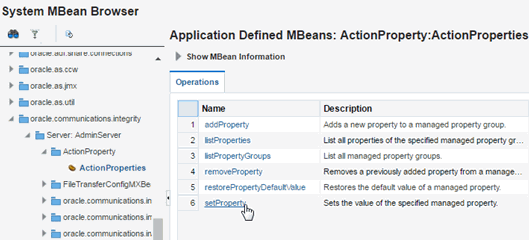

Figure 2 shows the ”System MBean Browser” in Oracle WebLogic Enterprise Manager for the Discover MIB II SNMP action.
Figure 2 Action Properties List in the Oracle Enterprise Manager
To enhance or customize the Device Interface name modeling, perform the following:
You must create a new Cartridge with a new Discovery Action extending MIB II / Cisco SNMP actions. This is because both the OOB MIB II and the Cisco cartridges are sealed and you do not modify them directly.
Add all required dependencies cartridges to the new cartridge. For example, Address_Handler and MIB_II_SNMP_Cartridge and select ”IPAddressHandler” as an Address Handler for a new discovery action.
Create a CustomDINameRemodeler class by extending the DefaultDINameRemodeler class in the package:
oracle.communications.integrity.mibiisnmpcartridge.discoveryprocessors
In the CustomDINameRemodeler class override the performDINameRemodeler() method or any specific function of DefaultDINameRemodeler based on your new requirement.
The following is an example of a CustomDINameRemodeler class:
public class CustomDINameRemodeler extends DefaultDINameRemodeler { @Override public void performDINameRemodeler(LogicalDevice logicalDevice, DINameRemodelerProperties properties) throws ProcessorException { // Custom Remodeling goes here. } }
Create a new discovery processor ”DI Name Remodeler Customizer” and move it above the ”DI Name Remodeler” processor in processor list and select ”remodelerProperties” as the input parameter.

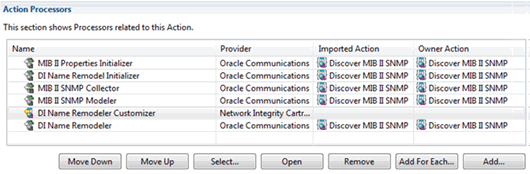

Figure 3 shows the result after you move the ”DI Name Remodeler Customizer” above the ”DI Name Remodeler” processor. Figure 4 shows the selection of the ”remodelerProperties” as the input parameter for the ”DI Name Remodeler Customizer”.
Figure 3 Processors Related to this Action
Create an implementation class for a new ”DI Name Remodeler Customizer” processor. For example, create the following class:
DINameRemodelerCustomizerProcessorImpl

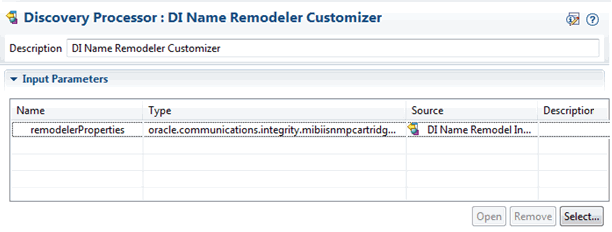

You set the instance of CustomDINameRemodeler to ”remodelerProperties” using the setNameRemodeler() method.
Set the implementation class for the ”DI Name Remodeler Customizer” with the package and implementation class name.
Example 1 provides code for a sample implementation class DINameRemodelerCustomizerProcessorImpl.
Example 1 Sample Implementation Class Code
public class DINameRemodelerCustomizerProcessorImpl implements DINameRemodelerCustomizerProcessorInterface { @Override public void invoke(DiscoveryProcessorContext context, DINameRemodelerCustomizerProcessorRequest request) throws ProcessorException { DINameRemodelerProperties remodelerProperties = request.getRemodelerProperties(); if(remodelerProperties.isPerformRemodeling()){ CustomDINameRemodeler customRemodeler = new CustomDINameRemodeler(); remodelerProperties.setNameRemodeler(customRemodeler); } } }
There are no new documents provided in this release. The Network Integrity Installation Guide has been updated for Release 7.3.5.
Table 3 lists and describes the known issues in this release.
Table 3 Known Problems for Release 7.3.5
Bug Number | Notes |
---|---|
25406312 |
Issue Detect Discrepancy text is partially visible after up taking Alta skin in the ”Manage scans” search result table. Workaround Drag the column in the manage scan result table to read the entire label. |
25413622 |
Issue After upgrade to 7.3.5 version, multi cartridge re-deployment is not working properly. Workaround Re-deploy each cartridge at a time. |
13087174 |
Issue Cartridge deployment fails in a clustered environment when the Cartridge Deployment Tool is configured to use SSL and the keystore location is provided. Workaround Do the following:
|
11676449 |
Issue When a scan action is configured to use the file transfer processor when the Source File Management is set to Rename or Delete, the scan status of a running scan may change from Running to Completed, even though other processes are still running. This issue occurs when Network Integrity incorrectly changes the scan status to Completed after the processor has finished its processing and modeling, instead of changing the status to Completed after the intended file has been renamed and deleted. You may observe this issue in situations where the remote file operation is required to delete or rename a large number of files or when the network connection is slow. Failures related to the remote file rename or delete operations are not reported by the Network Integrity user interface. Workaround None. |
11071255 |
Issue Manage Scans page is not displayed properly when you log in to Network Integrity again after the session times out in Internet Explorer. Workaround Refresh your browser if you are using Internet Explorer, or use Firefox. |
10065856 |
Issue If the Correct in UIM operation fails due to a session time out, no error message is displayed. Workaround None. |
19940521 |
Issue If you create new roles or policies using Oracle Enterprise Manager, the changes are not propagated to the managed servers unless the managed servers are restarted. Workaround After you create the roles and policies, you must restart the managed servers. Doing so enables the managed servers to receive updates related to the local LDAP server from the Administration server, and subsequently the new policies and roles are propagated to the managed servers. |
This section includes the Release Notes content for Network Integrity 7.3.2.
The following sections provide information on the new features of Network Integrity 7.3.2.
Network Integrity now includes support for single sign-on (SSO) authentication. Network Integrity implements the SSO authentication solution using Oracle Access Manager, which enables you to seamlessly access multiple applications without being prompted to authenticate for each application separately. The main advantage of SSO is that you are authenticated only once, which is when you log in to the first application; you are not required to authenticate again when you subsequently access different applications within the same web browser session.
Network Integrity also supports single logout (SLO). If you access multiple applications using SSO within the same web browser session, and then if you log out of any one of the applications, you are logged out of all the applications.
See "Setting Up Network Integrity for Single Sign-On Authentication" in Network Integrity Installation Guide for more information.
The Cisco Router and Switch SNMP cartridge and Cisco Router and Switch UIM Integration cartridge have been enhanced to support CPU utilization-enabled discovery. These cartridges now enable you to discover devices based on their CPU utilization by setting a threshold value (in percentage) in the discovery scan.
See Network Integrity Cisco Router and Switch SNMP Cartridge Guide and Network Integrity Cisco Router and Switch UIM Integration Cartridge Guide for more information.
If the CPU utilization value of a device exceeds the user-specified threshold value, the scan for that device is skipped. The discovery scans are run only for those devices whose CPU utilization value is less than the user-specified threshold value.
To support the discovery of devices based on CPU utilization, a new scan parameter group, CPU Utilization Parameters, has been added in the NetworkIntegritySDK cartridge. This scan parameter group adds the CPU Utilization % field to the Network Integrity UI Scan Configuration screen. The CPU Utilization % field accepts a value between 1 to 99.
See Network Integrity Developer's Guide for more information.
The Command Line Interface (CLI) cartridge allows you to build deployable cartridges that connect to devices and retrieve information using CLI commands over Telnet or Secure Shell (SSH) protocol.
The CLI cartridge provides the following key features:
Telnet protocol and SSH communication with CLI devices
Record and playback of CLI communication
The CLI cartridge is an abstract cartridge, meaning that Design Studio is used to configure and assemble the run time cartridge against devices before deploying it into Network Integrity.
The CLI cartridge ZIP file contains a reference implementation cartridge for discovering Cisco devices running the IOS XR operating system and retrieves information about virtual private LAN services (VPLSs) on the Cisco IOS XR devices.
See Network Integrity CLI Cartridge Guide for more information.
Network Integrity now enables you to model packet connectivity entities in Design Studio to enhance the integration with Oracle Communications Unified Inventory Management (UIM).
Note:
Network Integrity 7.3.2 supports Oracle Communications Information Model 7.3.0. For specific technical details about the Oracle Communications Information Model and the Network Integrity information model, see Oracle Communications Information Model Reference and Network Integrity Information Model Reference.To support packet connectivity, Network Integrity adds support to additional Oracle Communications Information Model (OCIM) entities in the following entity categories:
You can now define Connectivity specifications in Design Studio and classify entities based on those specifications in Network Integrity. In addition, when you define a Connectivity specification, you can designate its connectivity type.
Network Integrity now supports three types of Connectivity entities, each of which is designed for use with particular technologies. When you define a Connectivity specification, you specify one of the following connectivity types:
Multiplexed: Multiplexed (or Channelized) connectivities support technologies such as E-Carrier, T-Carrier, J-Carrier, SDH, and SONET, and WDM.
Packet: Packet connectivities support technologies such as Ethernet, DSL, Frame Relay, ATM, and MPLS. See "Logical Device Entities" for additional information.
Service: Service connectivities deliver services to end customers. Service connectivity consumes other types of connectivity and resources, but cannot be consumed itself. Service connectivities are used as part of service arrangements involving packet technology, such as Carrier Ethernet.
Connectivity entities take advantage of pre-defined rate codes and technologies that are provided by Oracle in the ora_uim_basemeasurements and ora_uim_basetechnologies cartridges.
See the Design Studio Modeling Inventory Help for more information.
Network Integrity now includes Logical Device entities to support networking technologies that are based on packet connectivity, including Ethernet, Frame Relay, Asynchronous Transfer Mode (ATM), and Multiprotocol Label Switching (MPLS).
Network Integrity now includes flow interfaces and flow identifiers that are used in packet scenarios. See "Flow Interfaces" and "Flow Identifiers" for more information.
To support packet connectivity, Network Integrity now includes Flow Interface entities.
Flow interfaces partition media interfaces (device interfaces at the top of their hierarchies) into virtual channels based on bit rate. Flow interfaces are similar to the sub-device interfaces used to terminate channelized connectivity, but are used to terminate packet connectivity only. They have configurations that capture their attributes.
When you define a Flow Interface specification, you specify one of four termination types:
Access: Indicates that the purpose of an interface is to terminate connectivity that provides access to a service provider network, such as Ethernet UNI connectivity.
Internetwork: Indicates that the purpose of an interface is to terminate connectivity that interconnects two service provider networks, such as Ethernet E-NNI connectivity.
Trunk: Indicates that the purpose of an interface is to terminate connectivity that connects equipment and devices in the same network, such as Ethernet I-NNI connectivity.
Unknown: Indicates that the purpose of the interface is unknown. Used to support scenarios not covered by the Access, Internetwork, and Trunk termination types.
To support packet connectivity, Network Integrity now includes Flow Identifier entities. Flow identifiers are defined by specifications in Design Studio. Flow identifiers are used to represent the ways that various packet network technologies identify and distinguish network traffic. Flow Identifier specifications support technologies such as Ethernet, Frame Relay, ATM, and MPLS.
See the Design Studio Modeling Inventory Help for more information.
You can now define the following entity in Design Studio:
You can now define Pipe Signal Termination Point specifications in Design Studio. You can associate Pipe Signal Termination Point specifications to either Connectivity specifications or Pipe specifications to define channelized facilities. You use Pipe Signal Termination Point specifications to define signal structures. A signal structure defines a multiplexing hierarchy where data streams are separated into multiple lower data communication links.
See the Design Studio Modeling Inventory Help for more information.
You can now define the following entities in Design Studio:
Units of measure define the units used to measure a type of capacity. A unit of measure is a quantity or increment by which something is divided, counted, or described. For example, Kbps (kilobits per second) is a unit that measures a bit rate.
A measurement type classifies related groups of units of measure. For example, a bit rate measurement type classifies units of measure, such as bits per second (bps), kilobits per second (kbps), and so on. Other possible measurement types include weight and amperage.
See the Design Studio Modeling Inventory Help for more information.
This section provides information about the Network Integrity documentation set.
The Network Integrity 7.3.2 documentation set includes a new guide entitled Network Integrity CLI Cartridge Guide. This guide explains the functionality and design of the Oracle Communications Network Integrity CLI cartridge.
Table 4 lists the known problems in the 7.3.2 release.
Bug Number | Notes |
---|---|
13087174 |
Issue Cartridge deployment fails in a clustered environment when the Cartridge Deployment Tool is configured to use SSL and the keystore location is provided. Workaround Do the following:
|
11676449 |
Issue When a scan action is configured to use the file transfer processor when the Source File Management is set to Rename or Delete, the scan status of a running scan may change from Running to Completed, even though other processes are still running. This issue occurs when Network Integrity incorrectly changes the scan status to Completed after the processor has finished its processing and modeling, instead of changing the status to Completed after the intended file has been renamed and deleted. You may observe this issue in situations where the remote file operation is required to delete or rename a large number of files or when the network connection is slow. Failures related to the remote file rename or delete operations are not reported by the Network Integrity user interface. Workaround None. |
11071255 |
Issue Manage Scans page is not displayed properly when you log in to Network Integrity again after the session times out in Internet Explorer. Workaround Refresh your browser if you are using Internet Explorer, or use Firefox. |
10065856 |
Issue If the Correct in UIM operation fails due to a session time out, no error message is displayed. Workaround None. |
19940521 |
Issue If you create new roles or policies using Oracle Enterprise Manager, the changes are not propagated to the managed servers unless the managed servers are restarted. Workaround After you create the roles and policies, you must restart the managed servers. Doing so enables the managed servers to receive updates related to the local LDAP server from the Administration server, and subsequently the new policies and roles are propagated to the managed servers. |
