Reference for Oracle Database Autonomous Recovery Service

This guide lists the predefined objects in OCI Resource Analytics for the Database Autonomous Recovery Service. You can find information about views, entity relationships, subject areas, and sample queries.

Views

This section provides information about views within OCI Resource Analytics Database Autonomous Recovery Service and their columns, data types, keys, and the referred view and column names. The following views are available:

Database Autonomous Recovery Service Views
Name Description
DATABASE_RECOVERY_PROTECTED_DATABASE_DIM_V This view stores information on protected databases, which are Oracle Cloud Databases whose backups are managed by Database Autonomous Recovery Service.
DATABASE_RECOVERY_PROTECTION_POLICY_DIM_V This view stores information on the details of a protection policy.
DATABASE_RECOVERY_SERVICE_SUBNET_DIM_V This view stores information on the details of a recovery service subnet.
DATABASE_RECOVERY_PROTECTED_DATABASE_FACT_V Fact table for Database Autonomous Recovery Service protected databases.

The suffixes in the view names specify the view type:

  • FACT_V: Fact
  • DIM_V: Dimension

Relationship Diagram

This section provides diagrams that define the logical relationship of a fact table with different dimension tables.

The contents of each view and their relationships are listed in the following file: Database Recovery views.

DATABASE_RECOVERY_PROTECTED_DATABASE_FACT_V

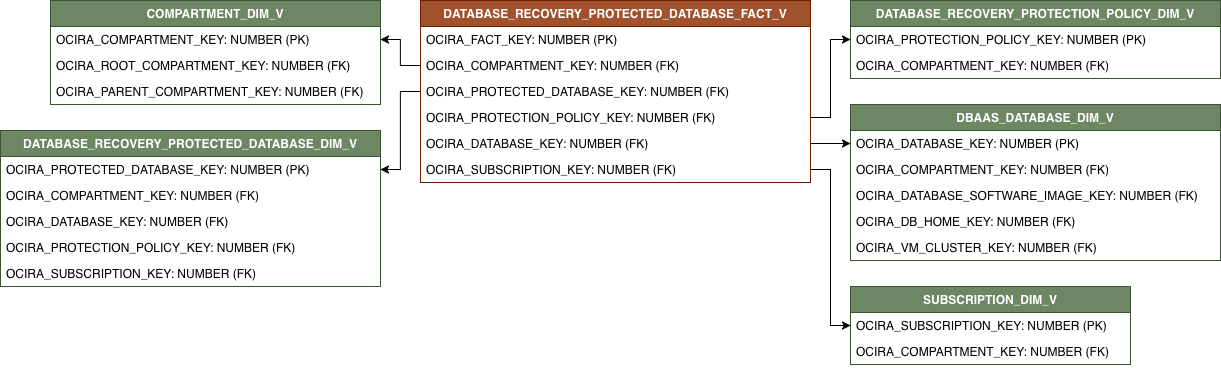

Relationship diagram showing DATABASE_RECOVERY_PROTECTED_DATABASE_FACT_V and its related dimension tables.

Relationships exist among dimensions. Dimensions can be joined directly to each other. This diagram shows the relationship between dimension views.

DATABASE_RECOVERY_SERVICE_SUBNET_DIM_V

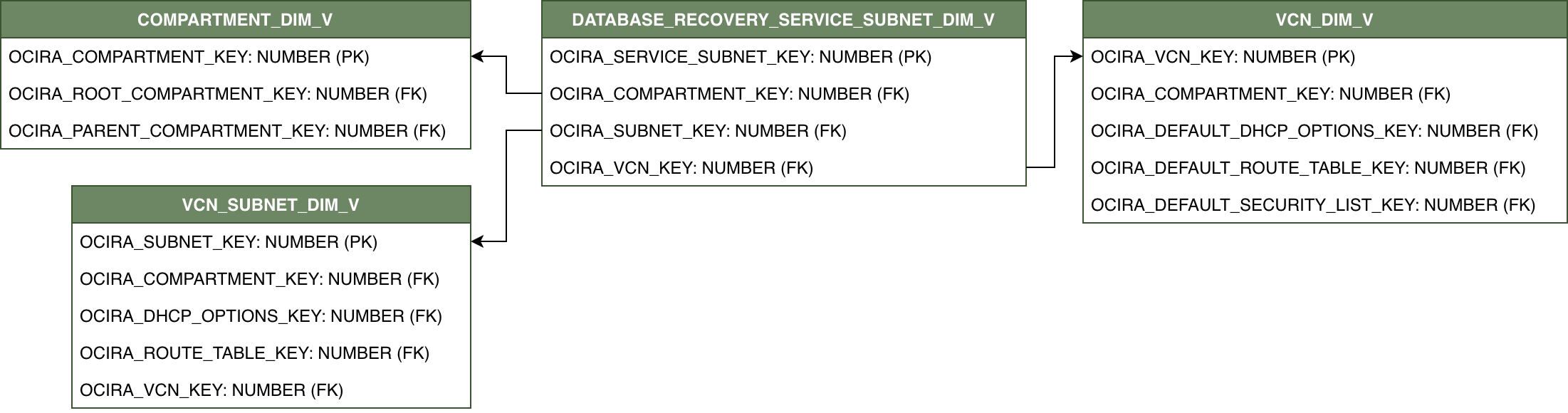

Relationship diagram showing DATABASE_RECOVERY_SERVICE_SUBNET_DIM_V and its related dimension tables.

Sample Queries

Sample queries for the Database Autonomous Recovery Service.

List the number of protected databases by protection policy.

SELECT
    PROTECTION_POLICY_ID,
	COUNT(PROTECTED_DATABASE_ID) AS PROTECTED_DATABASE_COUNT
FROM OCIRA.DATABASE_RECOVERY_PROTECTED_DATABASE_FACT_V F
GROUP BY PROTECTION_POLICY_ID;
