Reference for Network Firewall

This section provides information about views within Resource Analytics Network Firewall and their columns, data types, keys, and the referred view and column names. The following views are available:

The suffixes in the view names specify the view type:

• FACT_V: Fact
• DIM_V: Dimension

This section provides diagrams that define the logical relationship of a fact table with different dimension tables.

The contents of each view and their relationships are listed in the following file: Network Firewall views.

This diagram shows the relationship of the Network Firewall fact view with different dimension views.

NETWORK_FIREWALL_FACT_V

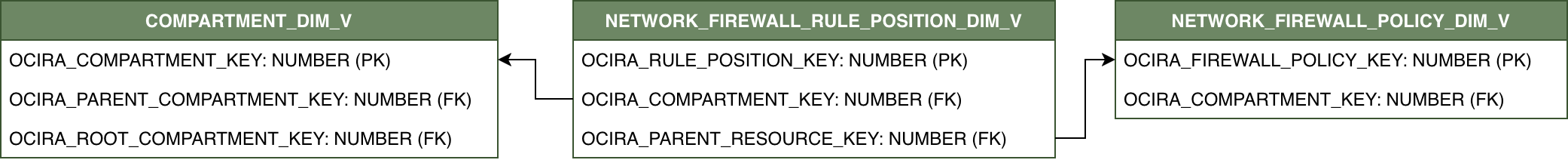

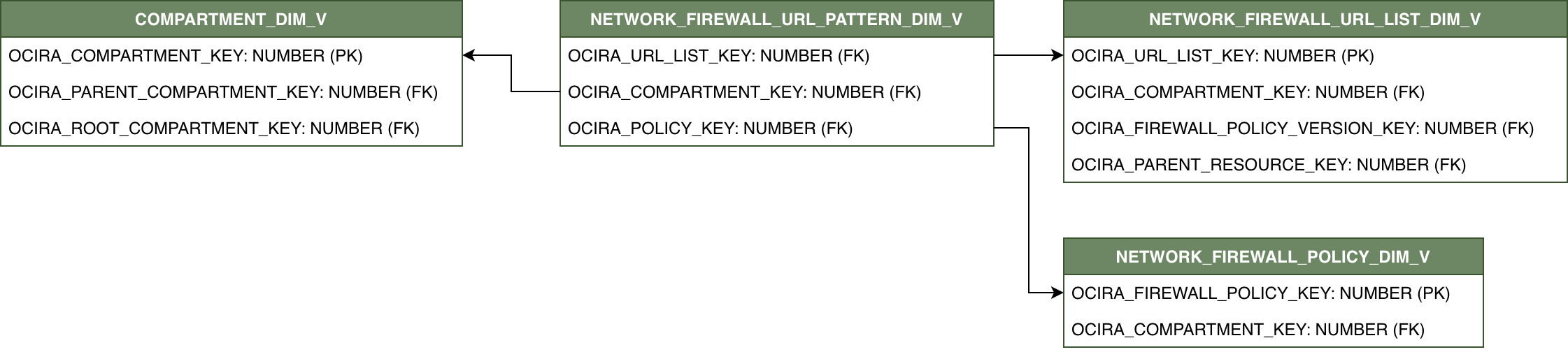

Relationships exist among dimensions. Dimensions can be joined directly to each other. These diagrams show the relationship between dimension views.

NETWORK_FIREWALL_ADDRESS_LIST_DIM_V

NETWORK_FIREWALL_APPLICATION_GROUP_DIM_V

NETWORK_FIREWALL_APPLICATION_DIM_V

NETWORK_FIREWALL_DECRYPTION_PROFILE_DIM_V

NETWORK_FIREWALL_DECRYPTION_RULE_DIM_V

NETWORK_FIREWALL_MAPPED_SECRET_DIM_V

NETWORK_FIREWALL_NAT_RULE_DIM_V

NETWORK_FIREWALL_SECURITY_RULE_DIM_V

NETWORK_FIREWALL_SERVICE_LIST_DIM_V

NETWORK_FIREWALL_SERVICE_DIM_V

NETWORK_FIREWALL_TUNNEL_INSPECTION_RULE_DIM_V

NETWORK_FIREWALL_URL_LIST_DIM_V

NETWORK_FIREWALL_CHILD_RESOURCE_DETAILS_DIM_V

Sample queries for Network Firewall.

SELECT COMPARTMENT_ID, NETWORK_FIREWALL_ID, NETWORK_FIREWALL_POLICY_ID
FROM OCIRA.NETWORK_FIREWALL_FACT_V;

SELECT N.NETWORK_FIREWALL_ID, S.*
FROM OCIRA.NETWORK_FIREWALL_FACT_V N
LEFT JOIN OCIRA.VCN_SUBNET_DIM_V S ON N.OCIRA_SUBNET_KEY = S.OCIRA_SUBNET_KEY;

SELECT
    OCIRA_RESOURCE_KEY,
    COMPARTMENT_ID,
	NAME,
	PARENT_RESOURCE_ID,
	RESOURCE_TYPE,
	REGION
FROM
    OCIRA.NETWORK_FIREWALL_CHILD_RESOURCE_DETAILS_DIM_V
WHERE
    PARENT_RESOURCE_ID = '<YOUR_FIREWALL_POLICY_OCID>'  -- replace with the target firewall policy OCID;

The Customer Experience Semantic Model Lineage spreadsheet and Metric Calculation Logic spreadsheet for Network Firewall provides an end-to-end data lineage summary report for physical and logical relationships in your data.

For more information, see Data Lineage.

This section provides information on the subject areas with data you maintain in Network Firewall. These subject areas, with their corresponding data, are available for you to use when creating and editing analyses and reports. The information for each subject area includes:

• Description of the subject area.

• Business questions that can be answered by data in the subject area, with a link to more detailed information about each business question.

• Job-specific groups and duty roles that can be used to secure access to the subject area, with a link to more detailed information about each job role and duty role.

• Primary navigation to the work area that's represented by the subject area.

• Time reporting considerations in using the subject area, such as whether the subject area reports historical data or only the current data. Historical reporting refers to reporting on historical transactional data in a subject area. With a few exceptions, all dimensional data are current as of the primary transaction dates or system date.

• The lowest grain of transactional data in a subject area. The lowest transactional data grain decides how data are joined in a report.

• Special considerations, tips, and things to look out for in using the subject area to create analyses and reports.
