GoldenGate
Using the GoldenGate subject area, you can create reports about GoldenGate resources. With these reports, you can track the different attributes and metrics for GoldenGate resources across tenancies and compartments.
Business Questions
The subject area can answer the following business questions:
- How many Cpu cores are being used?
- How much storage is utilized?
- What upgrades, backups, and connection assignments are associated with a deployment?
- Which compartment does a deployment or a zero etl pipeline belong to?
Logical Model
The GoldenGate subject area is based on a relationship-driven logical model.

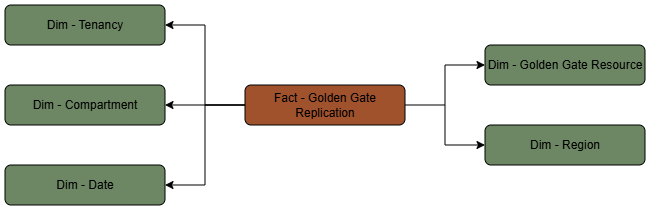

This diagram shows how the Golden Gate Replication fact table is related to the following dimension tables:

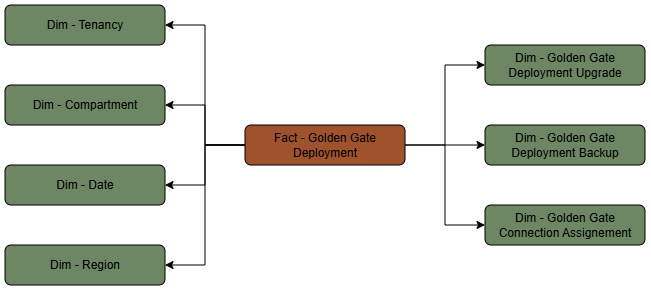

This diagram shows how the Golden Gate Deployment fact table is related to the following dimension tables:
Metric Details
The fact folders in this subject area show the following metrics:
| Metric | Description |
|---|---|
| Cpu Core Count | This metric is calculated as the total number of Cpu cores. |
| Storage Utilization in Bytes | This metric is calculated as the total amount of storage being utilized (in bytes). |
