Multicloud
The Multicloud subject area tracks multicloud network anchors and resource anchors across OCI tenancy, compartment, region, and time dimensions. It enables analysis of anchor inventory, lifecycle state, linked compartments, subscriptions, cluster placement group associations, and resource URLs for operational drill-down.
Business Questions:
The Subject Area can answer following business questions:
- How many multicloud network anchors and resource anchors exist by tenancy, compartment, or region?
- How has multicloud anchor inventory changed over time?
- Which anchors are active or in another lifecycle state?
- Which resource anchors are associated with linked compartments or subscriptions?
- Which network anchors are associated with resource anchors or cluster placement groups?
Logical Model
The model centers on two visible fact families: Multicloud Network Anchor and Multicloud Resource Anchor.

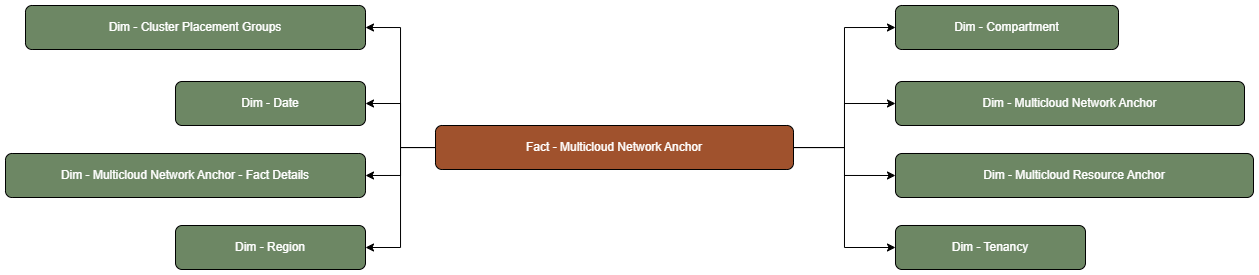

Multicloud Network Anchor

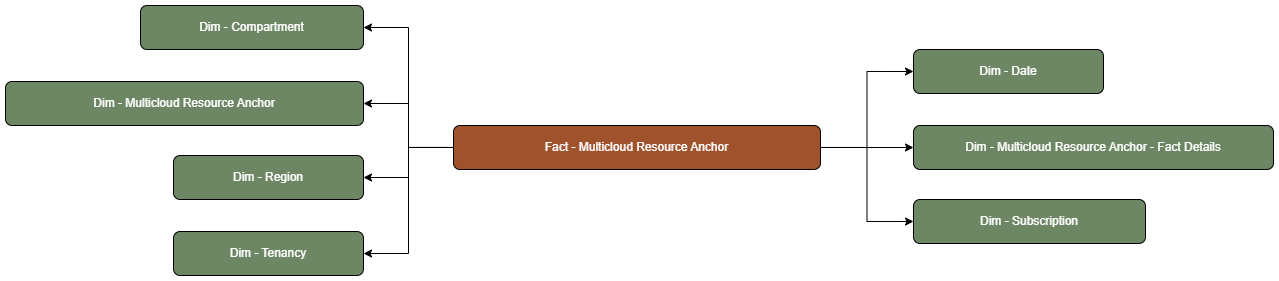

Multicloud Resource Anchor
Metric Details
| Fact Folder | Metric | Definition |
|---|---|---|
| Fact - Multicloud Network Anchor | Resource Count | SUM visible presentation metric. |
| Fact - Multicloud Network Anchor | Multicloud Network Anchor Count | COUNT visible presentation metric. |
| Fact - Multicloud Resource Anchor | Resource Count | SUM visible presentation metric. |
| Fact - Multicloud Resource Anchor | Multicloud Resource Anchor Count | COUNT visible presentation metric. |
