MySQL HeatWave
MySQL HeatWave is a fully managed cloud database service for running MySQL in production with high availability, automated operations, and strong security controls. It provides automated provisioning, patching, backups, monitoring, and scaling. This subject area enables tracking MySQL DB systems, Heatwave clusters, and backup details.
Business Questions
The subject area can answer the following business questions:
- Which DB systems / backups / Heatwave clusters are in which lifecycle states?
- How many DB systems / backups / Heatwave clusters exist?
- How many backups / DB system storage / Heatwave clusters are being used by each display name?
Logical Model
The MySQL HeatWave subject area is based on a relationship-driven logical model.

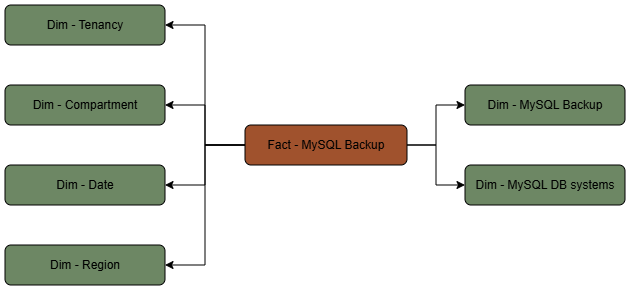

This diagram shows how the MySQL Backup fact table is related to the following dimension tables:

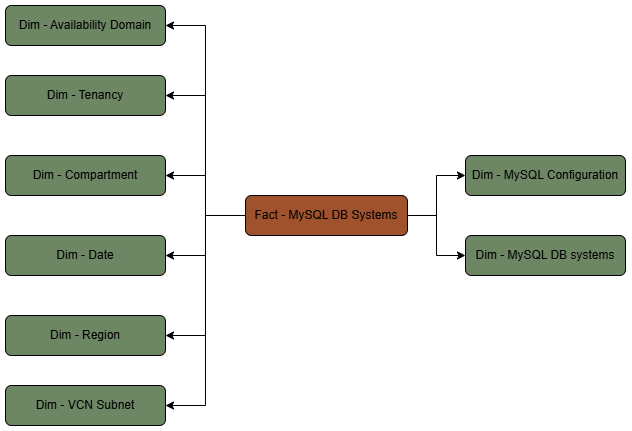

This diagram shows how the MySQL DB Systems fact table is related to the following dimension tables:

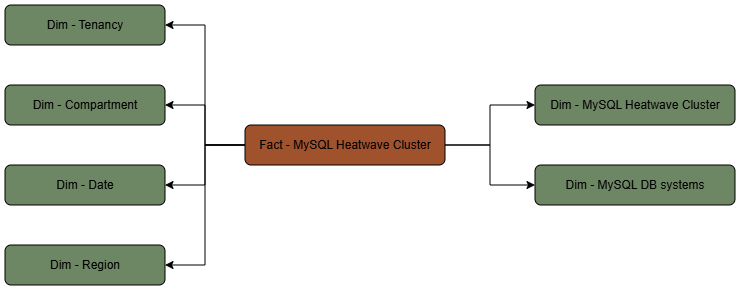

This diagram shows how the MySQL HeatWave Cluster fact table is related to the following dimension tables:
Metric Details
The fact folders in this subject area show the following metrics:
| Fact | Metric | Description |
|---|---|---|
| MySQL - Backup | Backup size in GB | Provides the size of the backup, in gigabytes. |
| MySQL - DB systems | Allocated DB system storage in GB | Provides the size of the allocated DB systems storage, in gigabytes. |
| MySQL - Heatwave cluster | Cluster size | Provides the number of instance in the DB systems. |
