Reference for Secure Desktops

This section provides information about views within OCI Resource Analytics Secure Desktops and their columns, data types, keys, and the referred view and column names. The following views are available:

The suffixes in the view names designate the view type:

• FACT_V: Fact
• DIM_V: Dimension

The contents of each view and their relationships are listed in the following file: Secure Desktops views.

Each tab in the Excel spreadsheet contains the details of a view.

This section provides diagrams that define the logical relationship of a fact table with different dimension tables.

These diagrams show the relationship of the Secure Desktops fact view with different dimension views.

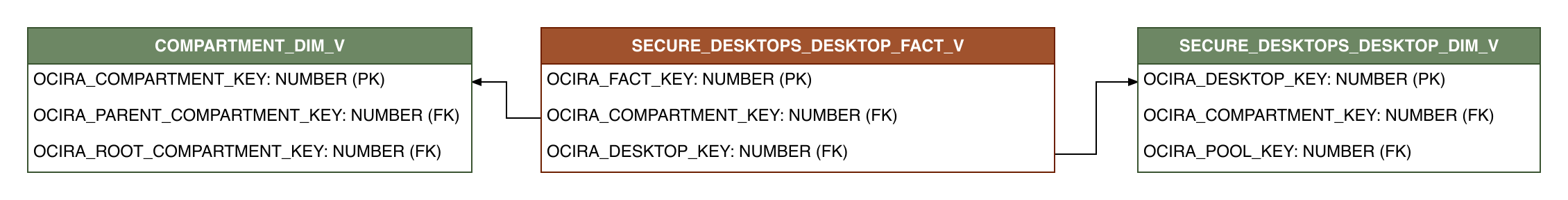

SECURE_DESKTOPS_DESKTOP_FACT_V

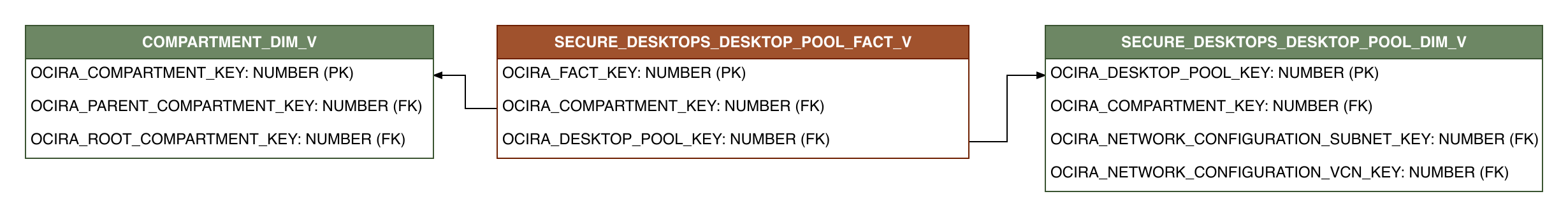

SECURE_DESKTOPS_DESKTOP_POOL_FACT_V

Sample queries for Secure Desktops.

List the number of desktops associated with each pool ID.

SELECT
    POOL_ID,
    COUNT(DESKTOP_ID) AS DESKTOP_COUNT
FROM OCIRA.SECURE_DESKTOPS_DESKTOP_FACT_V F
GROUP BY POOL_ID;

List the number of desktop pools associated with each image ID.

SELECT
    IMAGE_ID,
    COUNT(DESKTOP_POOL_ID) AS DESKTOP_POOL_COUNT
FROM OCIRA.SECURE_DESKTOPS_DESKTOP_POOL_FACT_V F
GROUP BY IMAGE_ID;

The Customer Experience Semantic Model Lineage spreadsheet and Metric Calculation Logic spreadsheet for Secure Desktops provide an end-to-end data lineage summary report for physical and logical relationships in your data.

For more information, see Data Lineage.

This section provides information on the subject areas with data you maintain in Secure Desktops. These subject areas, with their corresponding data, are available for you to use when creating and editing analyses and reports. The information for each subject area includes:

• Description of the subject area.

• Business questions that can be answered by data in the subject area, with a link to more detailed information about each business question.

• Job-specific groups and duty roles that can be used to secure access to the subject area, with a link to more detailed information about each job role and duty role.

• Primary navigation to the work area that's represented by the subject area.

• Time reporting considerations in using the subject area, such as whether the subject area reports historical data or only the current data. Historical reporting refers to reporting on historical transactional data in a subject area. With a few exceptions, all dimensional data are current as of the primary transaction dates or system date.

• The lowest grain of transactional data in a subject area. The lowest transactional data grain decides how data are joined in a report.

• Special considerations, tips, and things to look out for in using the subject area to create analyses and reports.
