Example Messages

This topic shows examples of messages sent by service connectors  that use Notifications as target.

A service connector with a Notifications target sends messages to all subscriptions for the specified topic. The contents and appearance of each message depends on the subscription protocol, such as Email.

For friendly formatting of email messages, select Formatted for the service connector's message format.

Email (Raw) and Slack

Text

{"data":{"additionalDetails":null,"availabilityDomain":"AD3","compartmentId":"ocid1.compartment.oc1..exampleid","compartmentName":"tests","definedTags":null,"eventGroupingId":null,"eventName":"ListVolumes","freeformTags":null,"identity":{"authType":null,"callerId":null,"callerName":null,"consoleSessionId":null,"credentials":"examplecredentials","ipAddress":"130.35.16.187","principalId":"oci-optimizer/AC:30:AA:03:F8:E1:56:36:17:A5:EB:A4:64:69:FE:18:49:3C:EC:91:D9:4E:6B:B1:49:83:EE:A8:7E:F9:BF:2C","principalName":"oci-optimizer","tenantId":"ocid1.tenancy.oc1..exampleid","userAgent":"Oracle-JavaSDK/1.30.1 (Linux/4.14.35-2025.404.1.2.el7uek.x86_64; Java/1.8.0_271; Java HotSpot(TM) 64-Bit GraalVM EE 19.3.4/25.271-b09-jvmci-19.3-b18-dev)"},"message":"ListVolumes succeeded","request":{"action":"GET","headers":{"Accept":["application/json"],"Connection":["keep-alive"],"Date":["Wed, 17 Feb 2021 01:18:40 GMT"],"User-Agent":["Oracle-JavaSDK/1.30.1 (Linux/4.14.35-2025.404.1.2.el7uek.x86_64; Java/1.8.0_271; Java HotSpot(TM) 64-Bit GraalVM EE 19.3.4/25.271-b09-jvmci-19.3-b18-dev)"],"X-Forwarded-For":["130.35.16.187"],"X-OCI-LB-NetworkMetadata":["{\"originalConnection\":{\"sourceIp\":\"130.35.16.187\",\"sourcePort\":45276,\"destinationIp\":\"129.146.14.226\",\"destinationPort\":443,\"protocol\":\"https\"}}"],"X-Real-IP":["130.35.16.187"],"X-Real-Port":["45276"],"oci-original-url":["https://iaas.us-phoenix-1.oraclecloud.com/20160918/volumes"],"oci-skip-authorization-for-splat":["true"],"opc-client-info":["Oracle-JavaSDK/1.30.1"],"opc-principal":["{\"tenantId\":\"ocid1.tenancy.oc1..exampleid\",\"subjectId\":\"oci-optimizer/AC:30:AA:03:F8:E1:56:36:17:A5:EB:A4:64:69:FE:18:49:3C:EC:91:D9:4E:6B:B1:49:83:EE:A8:7E:F9:BF:2C\",\"claims\":[{\"key\":\"h_date\",\"value\":\"Wed, 17 Feb 2021 01:18:40 GMT\",\"issuer\":\"h\"},{\"key\":\"authorization\",\"value\":\"Signature headers=\\\"date (request-target) host\\\",keyId=\\\"examplekey\\\",algorithm=\\\"rsa-sha256\\\",signature=\\\"*****\\\",version=\\\"1\\\"\",\"issuer\":\"h\"},{\"key\":\"svcHostingTenantId\",\"value\":\"ocid1.tenancy.oc1..exampleid\",\"issuer\":\"authService.oracle.com\"},{\"key\":\"opc-instance\",\"value\":\"ocid1.instance.oc1.iad.exampleid\",\"issuer\":\"authService.oracle.com\"},{\"key\":\"svc\",\"value\":\"oci-optimizer\",\"issuer\":\"authService.oracle.com\"},{\"key\":\"opc-tenant\",\"value\":\"ocid1.tenancy.oc1..exampleid\",\"issuer\":\"authService.oracle.com\"},{\"key\":\"opc-compartment\",\"value\":\"ocid1.compartment.oc1..exampleid\",\"issuer\":\"authService.oracle.com\"},{\"key\":\"ttype\",\"value\":\"x509\",\"issuer\":\"authService.oracle.com\"},{\"key\":\"ptype\",\"value\":\"service\",\"issuer\":\"authService.oracle.com\"},{\"key\":\"is_svc\",\"value\":\"true\",\"issuer\":\"authService.oracle.com\"},{\"key\":\"h_(request-target)\",\"value\":\"get /20160918/volumes?compartmentId=ocid1.compartment.oc1..exampleid&limit=1000\",\"issuer\":\"h\"},{\"key\":\"fprint\",\"value\":\"AC:30:AA:03:F8:E1:56:36:17:A5:EB:A4:64:69:FE:18:49:3C:EC:91:D9:4E:6B:B1:49:83:EE:A8:7E:F9:BF:2C\",\"issuer\":\"authService.oracle.com\"},{\"key\":\"h_host\",\"value\":\"iaas.us-phoenix-1.oraclecloud.com\",\"issuer\":\"h\"},{\"key\":\"opc-certtype\",\"value\":\"instance\",\"issuer\":\"authService.oracle.com\"}]}"],"opc-request-id":["exampleid"]},"id":"exampleid","parameters":{"availabilityDomain":["neVL:PHX-AD-3"],"compartmentId":["ocid1.compartment.oc1..exampleid"],"limit":["198"]},"path":"/20160918/volumes"},"resourceId":null,"response":{"headers":{"Content-Length":["3"],"Content-Type":["application/json"],"Date":["Wed, 17 Feb 2021 01:18:43 GMT"],"opc-request-id":["exampleid"]},"message":null,"payload":null,"responseTime":"2021-02-17T01:18:43.966Z","status":"200"},"stateChange":{"current":null,"previous":null}},"dataschema":"2.0","id":"7e83304f-453f-415e-b749-8770e1998126","oracle":{"compartmentid":"ocid1.compartment.oc1..exampleid","ingestedtime":"2021-02-17T01:18:49.151Z","loggroupid":"_Audit","tenantid":"ocid1.tenancy.oc1..exampleid"},"source":"","specversion":"1.0","time":"2021-02-17T01:18:43.953Z","type":"com.oraclecloud.BlockVolumes.ListVolumes","subject":"2c4f8f9f-ea38-463d-94ce-d1cbcaf20dfc"}

--

You are receiving notifications as a subscriber to the topic: sch_integ_test_topic_email (Topic OCID: ocid1.onstopic.oc1.ap-chuncheon-1.exampleid). To stop receiving notifications from this topic, unsubscribe.

Please do not reply directly to this email. If you have any questions or comments regarding this email, contact your account administrator.

Email (Formatted)

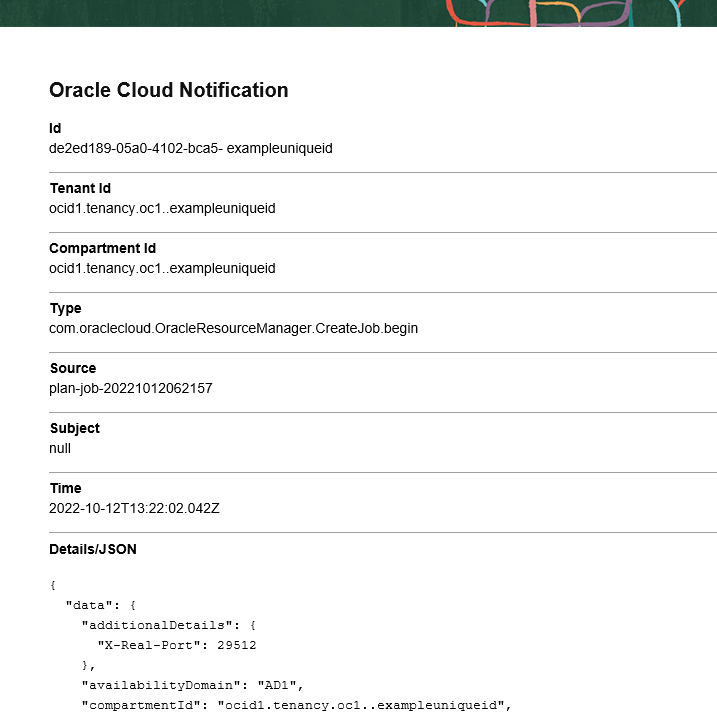

This image shows an example message sent by a service connector to an Email subscription (through the topic specified for the service connector's Notifications target).

SMS

OCI SCH:New log. Id:6e6dbfd3-4bce-4484-848d-af53f19bd6c9 Tnt:ocid1.tenancy.oc1..exampleid
