Conditional Masking

Conditional masking allows you to set multiple logical conditions that alter the masking format of a masking column. Conditional masking can only be done when editing an existing masking format of a masking column in a masking policy.

Example 1: Protecting Sensitive Identifiers Across Diverse Geographic Regions

Learn how conditional masking can be used to mask unique personal identifiers based on country.

Problem

A large organization manages a database containing personal identifiers such as Social Security Numbers, National Insurance Numbers, and so on from individuals living in various countries. They are required by regulations and data protection laws to safeguard the sensitive information while having to maintain usability for authorized purposed. However, sharing this data for testing, development, or analysis poses significant privacy risks.

Solution

By utilizing Data Masking available in Data Safe, the organization is able to assign the appropriate masking formats to the personal identifiers to meet the privacy regulations. Using conditional masking allows for the masking format to change based on the country of residence listed in the database.

Consider the database contains the following information about employee personal identifiers:

Employee Country Identifier
Alice US 987-65-4320
Bill UK BH 123654G
Carol UK AJ 763482K
Denise US 798-66-4329

Following the implementation of a conditional masking format on country, the database may look something like the following:

Employee Country Identifier
Alice US 674-58-2371
Bill UK PA 123456C
Carol UK AB 987654B
Denise US 543-23-5431

Benefits

By implementing conditional masking formats, an organization:

  • Prevents unauthorized access to sensitive personal identifiers.

  • Complies with diverse regional privacy laws and data protection requirements.

  • Preserves data integrity and usefulness for authorized activities, such as testing and analysis.

  • Reduces the risk of data breaches and potential harm to individuals.

  • Enables secure data sharing for collaboration and knowledge advancement.

Example 2: Protecting Sensitive Salary Data Across Different Employee Groups

Learn how conditional masking can be used to mask salary data based on an employee’s role.

Problem

A company needs to analyze salary data to identify potential pay gaps between different employee groups, but is unable to share actual salary figures due to internal privacy concerns or competitive reasons.

Solution

By utilizing Data Masking available in Data Safe, the company is able to create a pseudonymized dataset suitable for salary disparity analysis. Using conditional masking allows for the original salary data to be masked by a random number in a specified range based on the employee group.

Consider the database contains the following information about employee salary data:

Employee Job Category Salary
Alice Manager 90,000
Bill Manager 88,000
Carol Worker 72,000
Denise Worker 57,000
Eddie Worker 70,000
Frank Worker 45,000
George Assistant 45,000

Following the implementation of a conditional masking format on job category as follows:

  • If job category is Manager, replace salary with a random number from 100000 through 150000.

  • If job category is Worker, set salary to a fixed number (75000).

  • Default is to preserve the existing value.

The employee salary data may look something like the following:

Employee Job Category Salary
Alice Manager 100,200
Bill Manager 132,000
Carol Worker 75,000
Denise Worker 75,000
Eddie Worker 75,000
Frank Worker 75,000
George Assistant 45,000

Benefits

By implementing conditional masking formats, the company:

  • Protects individual employee salary information while enabling analysis of potential pay gaps between different job categories.

  • Maintains data utility by creating a masked dataset that retains the statistical properties necessary for identifying salary disparity trends.

  • Supports internal fairness by enabling data-driven decisions to promote fair compensation practices within the organization.

Add Conditions to a Masking Format

You can implement conditional masking formats in your masking policies.

  1. Under Data Safe - Database Security, select Data masking.

  2. Under Data masking, select Masking policies.

  3. Click the name of a masking policy.

  4. Locate the row for the column for which you want to add conditional masking in the Masking Columns tab.

  5. Select View/Edit masking format from the ... menu at the end of a row.

  6. Enter the desired condition in the Condition field, removing the default condition 1=1.

  7. Select the Masking Format Entry.

  8. Fill out any additional fields related to the selected masking format.

  9. To add another condition, click Another format entry and repeat steps six through eight.

  10. Click Update once you have set all your conditional masking formats.

Example: Personal Identifiers Based on Country

In this example, the goal is to create a masking format where unique personal identifiers are masked differently based on the country that the unique personal identifiers apply to. American (USA) identifiers can be masked using the Social Security Number masking format, and British (UK) identifiers can be masked using the National Insurance Number masking format. The below screenshot shows the conditions that could be set to implement a similar conditional masking format.

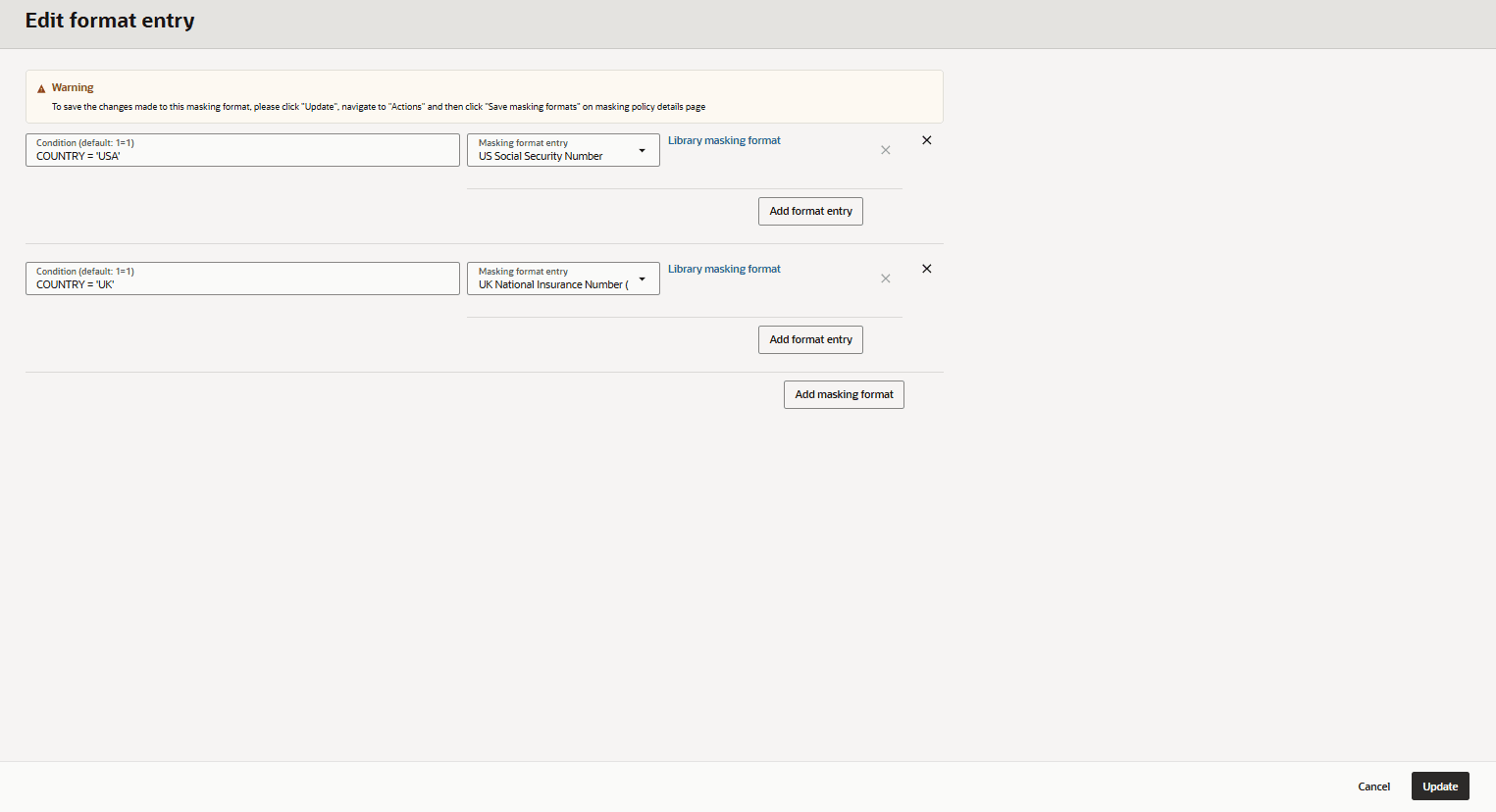

The following conditions have been applied to this sensitive data: Condition: COUNTRY = USA, Masking Format Entry: US Social Security Number, Condition: COUNTRY = UK, Masking Format Entry: UK National Insurance Number (Space Separated).

Description of the illustration conditional_masking_country.png

Example: Fixed Salary Based on Job Category

In this example, the goal is to create a masking format where salaries are masked by being set to different values based on the employees job category. The below screenshot shows the conditions that could be set to implement a similar conditional masking format.

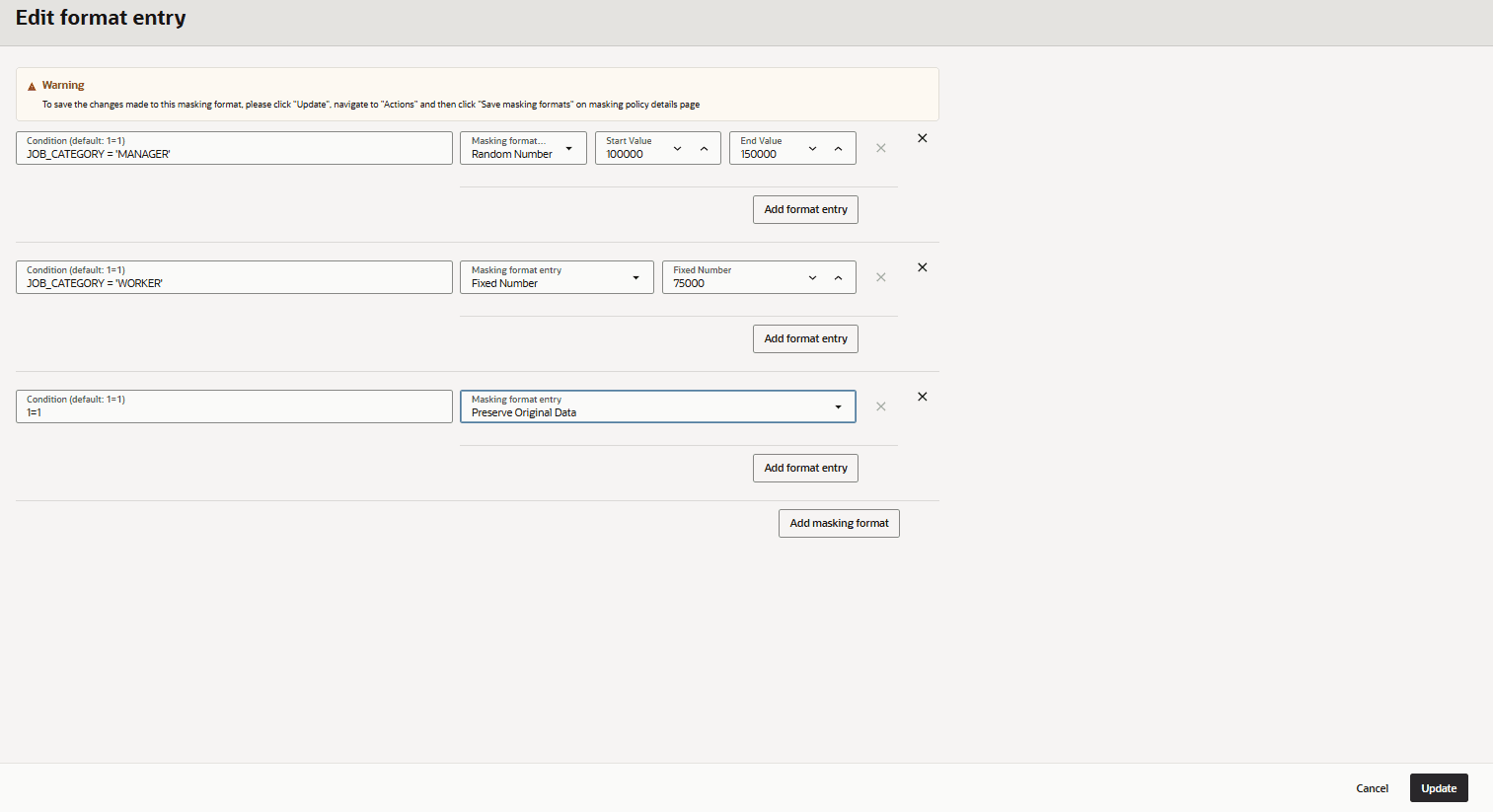

The column to be masked is the SALARY column in the EMPLOYEES table in the TEST schema.There was no original masking format, but it has now been edited according to the following conditions: Condition: JOB_CATEGORY = MANAGER, Masking Format Entry: Random Number, Start Value: 100000, End Value: 150000. Condition: JOB_CATEGORY = WORKER, Masking Format Entry: Fixed Number, Fixed Number: 25000. Condition: 1 = 1, Masking Format Entry: Preserve Original Data.

Description of the illustration conditional_masking_employee1.png

Example: Fixed Salary Based on Salary Amount

In this example the goal is to create a masking format where salaries are masked by being set to fixed values based on the salary amount. The below screenshot shows the conditions that could be set to implement a similar conditional masking format.

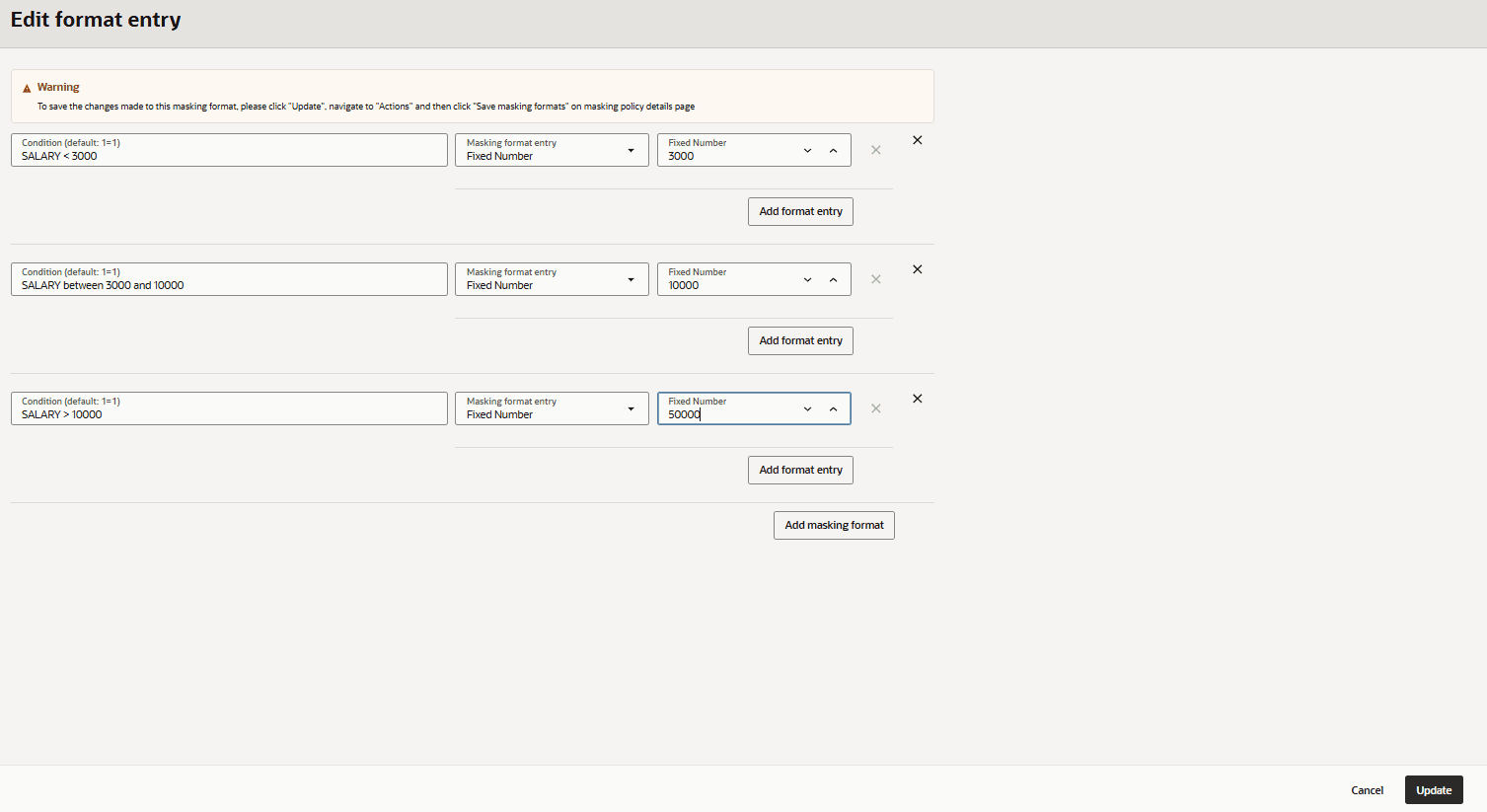

The column to be masked is the SALARY column in the EMPLOYEES table in the HCM1 schema. The original masking format was Income, but it has now been edited according to the following conditions: Condition: SALARY < 3000, Masking Format Entry: Fixed Number, Fixed Number: 3000. Condition: SALARY between 3000 and 10000, Masking Format Entry: Fixed Number, Fixed Number: 10000. Condition: SALARY > 10000, Masking Format Entry: Fixed Number, Fixed Number: 50000.

Description of the illustration conditional_masking_fixed_income.png
