Completing the Initial Setup and Configuration from the Graphical User Interface

Log in to the workstation you connected to the appliance, and browse to https://100.96.2.32:30099.

From the First Boot page, create the primary administrative account for your appliance, which is used for initial configuration and will persist after the first boot process. Additional accounts can be added later.

1. Enter an Administrative Username.

2. Enter and confirm the Administrative Password.

   Note



   Passwords must contain a minimum of 12 characters with at least one of each: uppercase character, lowercase character, digit, and any punctuation character – except for double quote ('"') characters, which are not allowed.

3. Click Create Account & Login.

   Caution



   At the Service Enclave Sign In page, Do not sign in and do not refresh your browser.

Unlock the system. This step must be performed from the Service CLI.

1. Open a terminal window and log in to one of the management nodes using the primary administrative account.

   Note



   Management nodes are named pcamn01, pcamn02 and pcamn03 by default.

   $ ssh admin@pcamn01 -p 30006
   Password authentication
   Password:
   PCA-ADMIN>

2. Enter the systemStateunlock command.

   PCA-ADMIN> systemStateunlock

3. Verify the system is unlocked.

   PCA-ADMIN> show pcaSystem
   Data:
     Id = 5709f72b-c439-4c3a-8959-758df94eff25
     Type = PcaSystem
     System Config State = Config System Params
     system state locked = false

4. Enter the exit command or close the terminal window.

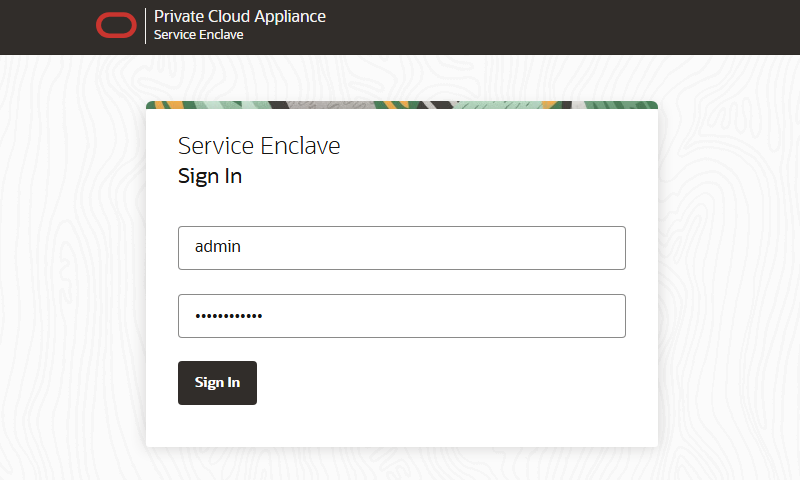

Return to the browser window displaying the Service Enclave Sign In page. Use the primary administrative account to sign in.

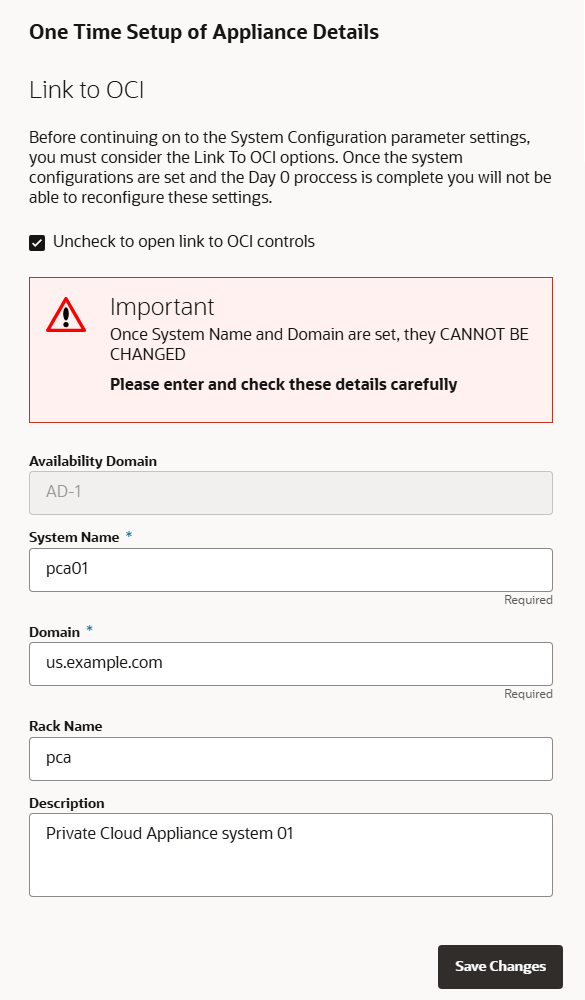

In the One Time Setup page, configure the operating mode and related system parameters.

1. Private Cloud Appliance must not be connected to OCI.

   Keep the checkbox under Link to OCI selected. The controls to link the system to OCI must not be used.





2. Provide the following appliance details.

   The Availability Domain cannot be modified. Required entries are marked with an asterisk.

   • System Name*

   • Domain*

   • Rack Name

   • Description

   Note



   The system name and domain fields support only lowercase characters. If you enter uppercase characters in these fields, they are converted to lowercase when changes are saved.

Confirm the parameters you entered are correct. After this step they can no longer be changed. Click Save Changes when you are ready to proceed.

Keep the browser window open. Proceed to the next section of this initial setup procedure.

Return to the browser window you left open at the end of the preceding section. Refresh the page and sign in to the system with the primary administrative account.

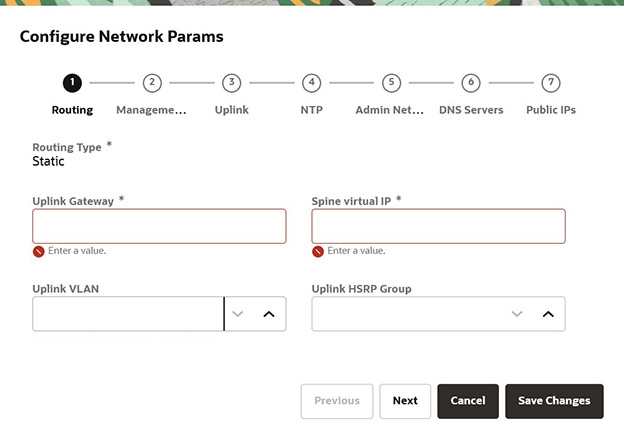

In the Configure Network Params wizard, select the routing design for the logical connection between Private Cloud Appliance and the data center network.

The options are (A) static routing or (B) dynamic routing. The required parameters are different depending on the routing design you selected.

Option A: Static Routing

Enter the following data center information:

• Routing Type: Static*

• Uplink gateway IP Address*

• Spine virtual IP* (comma-separated values if using the 4 port dynamic mesh topology)

• Uplink VLAN

• Uplink HSRP Group

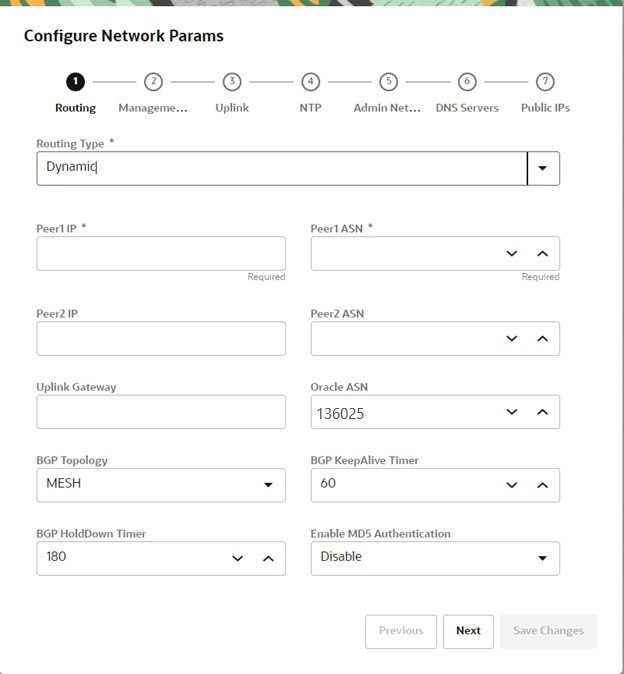

Option B: Dynamic Routing

Enter the following data center information:

• Routing Type: Dynamic*

• Peer1 IP and ASN*

• Peer2 IP and ASN

• Uplink Gateway

• Oracle ASN

  Note

  The default Oracle ASN is 136025. The default BGP ASN inbound path filtering does not accept your own ASN in the AS path. If there is more than one Private Cloud Appliance site, then customers must adjust the Oracle ASN field to be unique in their data center network.

• BGP Topology (square, mesh, triangle), KeepAlive Timer and HoldDown Timer

• MD5 Authentication: enable or disable

Note

Communication between VCNs on different DRGs within a Private Cloud Appliance environment is possible if route entries and firewall access are provided on the data center network that connects the two VCNs.

Click Next to proceed to the wizard page for management node network parameters.

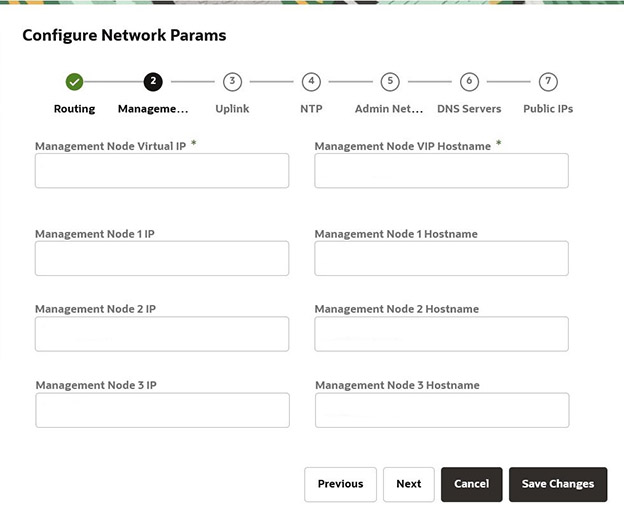

Enter a shared virtual IP and associated host name for the management node cluster. Add an IP address and host name for each of the three individual management nodes.

Click Next to proceed to the wizard page for uplink parameters.

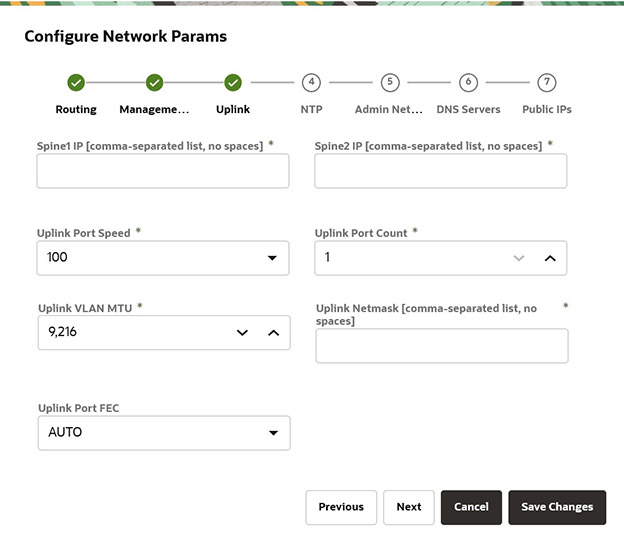

Enter the following data center uplink information:

• IP Address for Spine Switch 1 and 2*

• Uplink Port Speed and Port Count*

• Uplink VLAN MTU and Netmask*

• Uplink Port FEC

Click Next to proceed to the wizard page for NTP parameters.

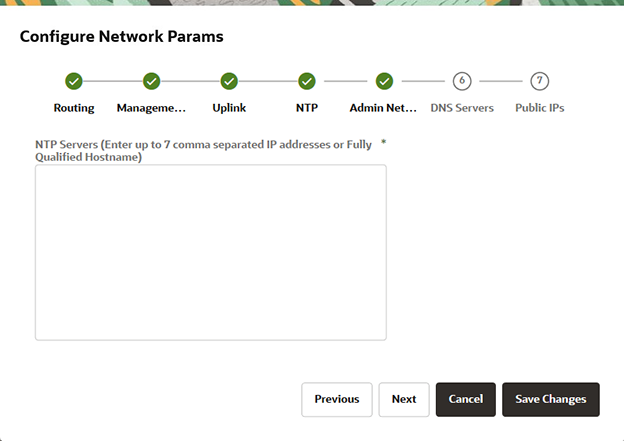

Enter the IP address or fully qualified domain name of at least one NTP server. Use a comma separated list to specify multiple NTP servers.

PCA-ADMIN> checkNtpServers
Data:
  id              Accessible
  --              ----------
  10.64.0.252     true
  192.0.2.2       true

Click Next to proceed to the wizard page for Admin Network parameters.

(Optional) If you don't intend to configure a segregated appliance administration network, leave it disabled and skip this step.

If you elected to segregate administrative appliance access from the data traffic, configure the administration network by entering the following mandatory and optional information.

• Admin Networking: Enable

• Admin Management VIP address and Hostname

• Admin Management 1 and 2 and 3 IP address and Hostname

• At least 1, but up to 3, Admin DNS Server IP addresses

• Admin Port Speed, Port Count, and Admin Router Group

• Admin VLAN, MTU, Port FEC, and Gateway IP

• Admin IP Address for Spine Switch 1 and 2, and a shared Virtual IP

• Admin Peer1 and Peer2 IP address and ASN for BGP

• Admin Topology (Triangle, Square, Mesh)

• Admin BGP Authentication (Enable/Disable). Keepalive Timer, Hold Down Timer, and Static Routing

Click Next to proceed to the wizard page for DNS parameters.

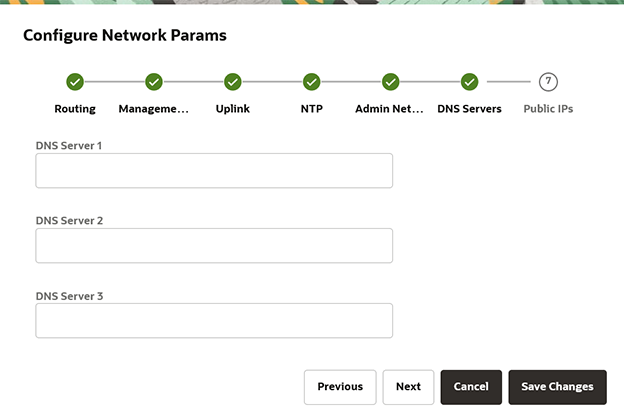

Enter at least one and up to three DNS servers in the respective fields.

Click Next to proceed to the wizard page for public IP addresses.

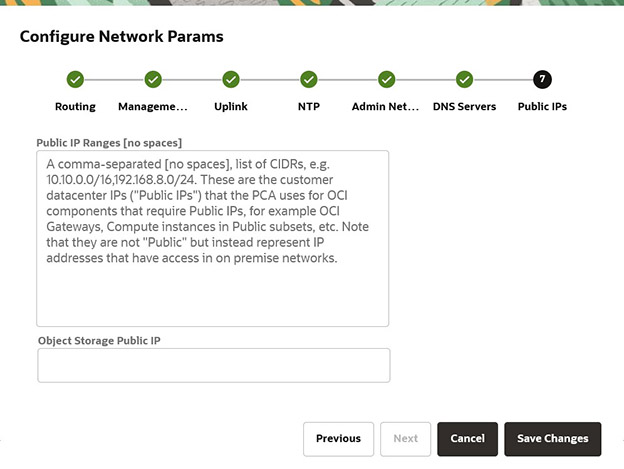

Enter the data center IP addresses that the system controller software can assign to resources as public IPs.

• Public IP list of CIDRs in a comma-separated list

• Object Storage Public IP (must be outside the public IP range)

Keep the browser window open. Proceed to the next section of this initial setup procedure.

Verify the parameters you entered in each of the wizard. Use the Previous/Next buttons to scroll through the pages.

The network configuration information is persisted when a test procedure is completed successfully. Testing starts when you save the network configuration in the next step. If you need to change any parameters after testing begins, you must reenter all information.

Save the network configuration parameters by clicking Save Changes.

A network configuration test begins, and can take up to 15 minutes. Do not close the browser window before it's completed.

If a problem is encountered, the Configure Network Params wizard reopens and the error is displayed.

In the Testing Network Parameters page, select the appropriate option:

• Click Reenter Network Configuration.

  You are returned to a blank Configure Network Params wizard where you must enter all your information again.

• Click Commit Changes.

  The network parameters are locked. When locked, the routing type and public IPs cannot be changed.

If a problem is encountered, the Configure Network Params wizard reopens and the error is displayed. Otherwise, a Configuration Complete message is displayed.

Click Sign Out. You are returned to the Service Enclave sign in page.

Verify the system configuration.

1. Connect to the Service Web UI at the new virtual IP address of the management node cluster: https://<virtual_ip>:30099.

2. From the Dashboard, click Appliance to view the system details and click Network Environment to view the network configuration.

# ssh 100.96.2.32 -l admin -p 30006

PCA-ADMIN> show pcaSystem
PCA-ADMIN> show networkConfig
