Entity Dimension

The metadata file provided with the application includes a sample entity structure. The dimension is hierarchical and is based on the legal entity structure of your organization. The main structure contains two groups of entities with their corresponding legal entities. There is also an Alternate Hierarchy structure to illustrate the Jurisdiction Netting and Unitary Filing features.

You must modify the Entity hierarchy structure to reflect the proper entity members for your application. You can use keyword entries to define entity properties for processing. In the sample application, keyword entries are provided as examples.

Make sure to add the appropriate keyword entries for user-defined properties as necessary.

Legal Entities Hierarchy

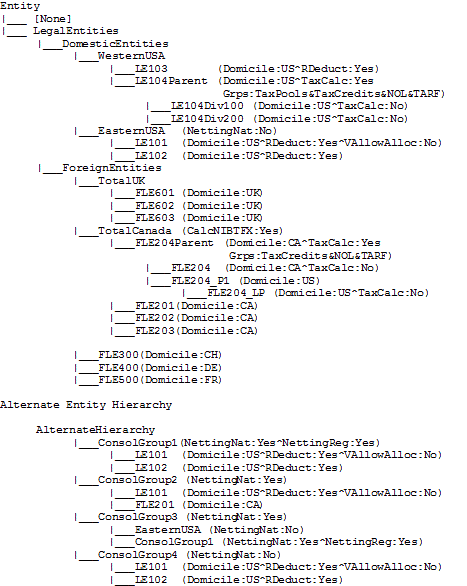

The following graphic shows the legal entities hierarchy and its UD properties that is provided in the sample application.
