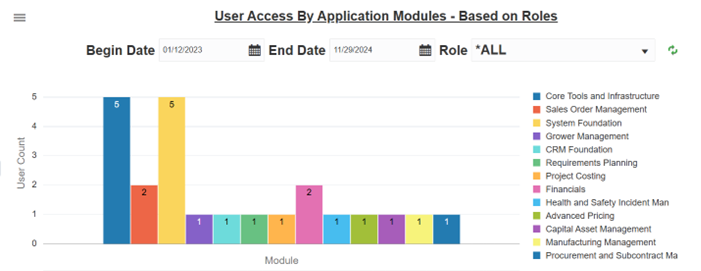

User Access by Application Modules – Based on Roles

Use this chart to view application access count by Roles in EnterpriseOne. The graph is based on the Object Usage Tracking Detail table (F98911) and can show the number of users accessing each Application Module based on their roles.

You can use the available fields to filter the data.

• The Begin Date and End Date fields determine the date range for which you want to view the user access count based on user roles.
• For the Roles field, All Roles is selected by default. Use the dropdown menu to select the appropriate role.

The dropdown menu lists only those roles that have been used to access the application modules within the date range.

Click the refresh icon, next to the role dropdown, after you change the role to refresh the data.

You can select or deselect specific application modules from the legend to filter the data in the chart.
