Before You Begin
Purpose
This OBE shows you how to enable Centralized Configuration for EnterpriseOne HTML Servers in the Server Manager Console.
Time to Complete
45 minutes.
Background
HTML Servers are a critical component of the JDE architecture with a wide range of settings and configurations. Any single change to a setting that has to be done on multiple servers requires complex navigation and multiple steps through the server manager interface of each enterprise server. This can be simplified and optimized with a centralized configuration mechanism. Starting with Tools Release 9.2.7, you can use Centralized Configuration in Server Manager Console to configure settings for EnterpriseOne HTML Servers. Centralized Configuration allows to set up a default configuration that servers can inherit as well as eliminates the manual effort to populate common settings across multiple servers.
Scenario
For this OBE, consider a scenario in which you want to create a new server group with Centralized Configuration settings enabled and a new HTML server instance that will inherit the same configuration settings from the server group. Additionally, you will update the default configuration settings in the server group to verify changes are applied across HTML servers that belong to the group.
Prerequisite
Before performing the tasks in this OBE, you must ensure that
- The Sever Manager Console and the HTML server should be on Tools Release 9.2.7.
- All the required drivers and certificates must be installed on both Server Manager Console and JAS for Server Manager Console to communicate with the database.
- Latest Rollup ESU must be installed.
Enabling
Centralized Configuration
In this task, you will enable the Centralized Configuration for EnterpriseOne HTML Servers in the Server Manager Console.
After you save the settings in the Centralized Configuration for the first time, it is applied to the server group's HTML server configuration setting and all the HTML instances within that group. Upon a successful save, Centralized Configuration inserts a group level configuration to the database. See Understanding How to Enable Centralized Configuration for EnterpriseOne HTML Servers in the Server Manager Guide for details.
- Log in to the Server Manager Console.
- In the Configure section, click Centralized
Configuration to access the details.
Note: Make sure you have required drivers and certificates installed to allow the JAS instances and the Server Manager Console to connect with the database.
- In Centralized Configuration page, complete the following
fields:
Field Value Username Enter the username to use for centralized configuration when connecting to the configured database. Password Enter the password to use for centralized configuration when connecting to the configured database. Database Type Use the drop-down menu to select a database where the centralized configuration table is stored.
For the purpose of this OBE, we will select Oracle Database as the Database Type.
Note: Tnsname.ora field is populated when you select Oracle Database and the TLS field is populated when you select either IBM UDB or AS/400.Owner Enter the database object owner where the centralized configuration table is stored. Server Enter the server name where the centralized configuration table is stored. Database Name Enter the database name where the centralized configuration table is stored. Physical Database Enter the physical database name where the centralized configuration table is stored. Server Port Enter the database server port where the centralized configuration table is stored. Data Source Name Enter the database server port where the centralized configuration table is stored. TLS The TLS option appears for selection after you select either IBM UDB or AS/400. Select the checkbox if you want a secure TLS connection to either of the databases. Tnsname.ora The Tnsname.ora field appears for modification after you select Oracle Database in Database Type. Enter the Tnsname.ora connection details. - Click Save.
Centralized Configuration fields
Creating
a New Server Group
In this task you will create a new server group and verify that the configuration settings of the HTML servers are being inherited from the values defined in the Centralized Configuration.
Note: You must have the consoleConfig
permission to create a new server group.
To create a new server group:
- In the Quick Links section of the Management Console, click the Server Groups link.
- On Server Groups, enter a unique name in the Server Group
Name field. We will enter
CConfig_Test
for the purpose of this OBE. - Add a Description in the Group Description field. We will
enter
Centralized Config Test
. - Click the Create Group button.
- The Management Console displays the new server group, CConfig_Test in the grid.
- Open CConfig_Test to access the configuration settings.
- Navigate to EnterpriseOne HTML Server under Server Group Default Configuration section.
- Click Database to check the database configuration settings.
- Note that the Database Type is Oracle Database.

Creating
a New EnterpriseOne HTML Server Instance
In this task you will create a new EnterpriseOne HTML server instance.
- Select the Managed Home in which you wish to create the HTML server instance.
- Click the Create a New Managed Instance button to create the Managed Instance in the Managed Home.

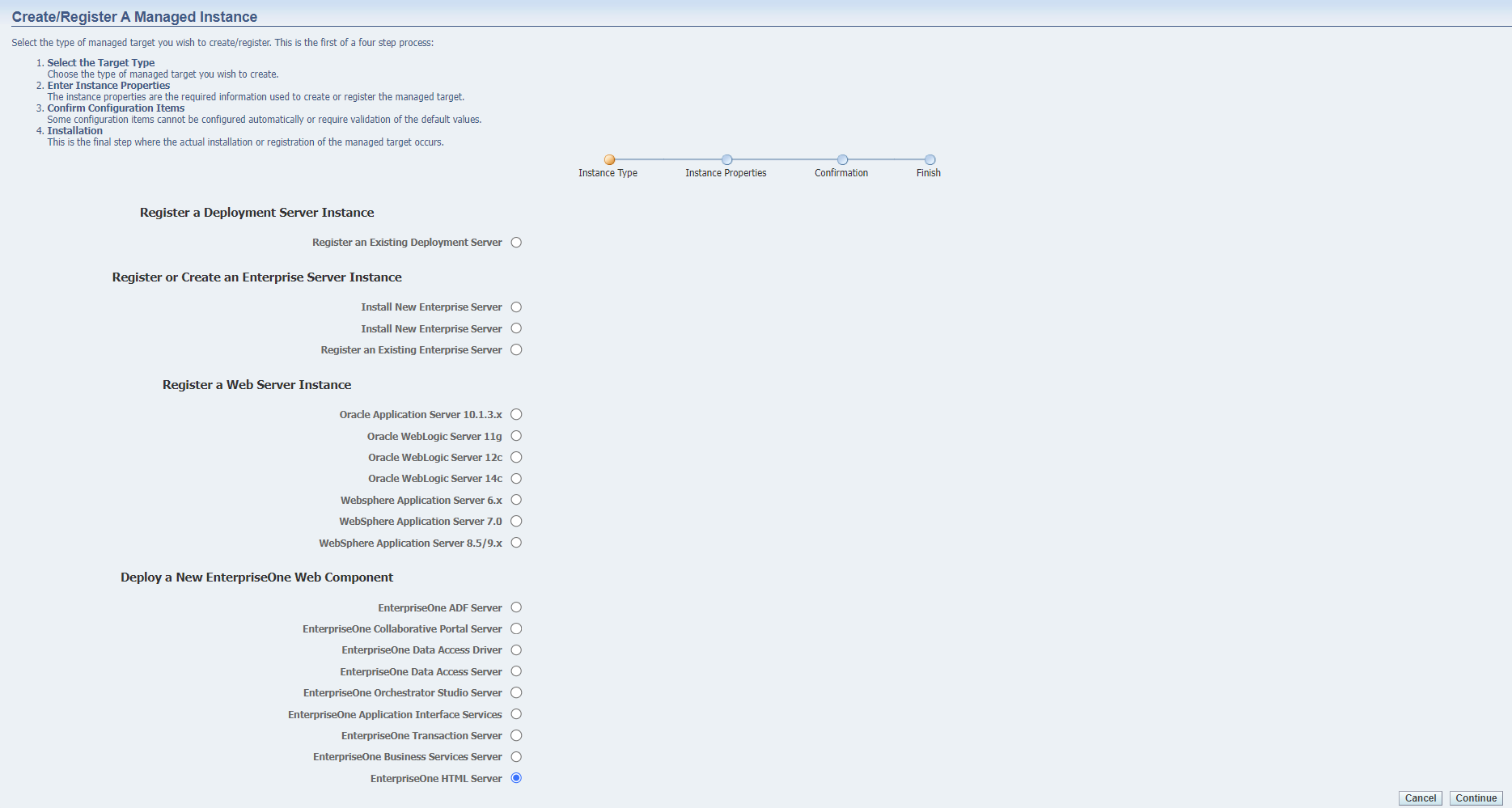

- On Create/Register a Managed Instance, Instance Type, select the EnterpriseOne HTML Server radio button.
- Click Continue.
Note: The Propagate Enterprise Server Config drop-down appears only if any enterprise server is registered within the Server Manager console. The Propagate Enterprise Server Config drop-down contains the available enterprise server instances registered with the SM console within a particular selected server group. NONE is added to the drop-down by default.
-

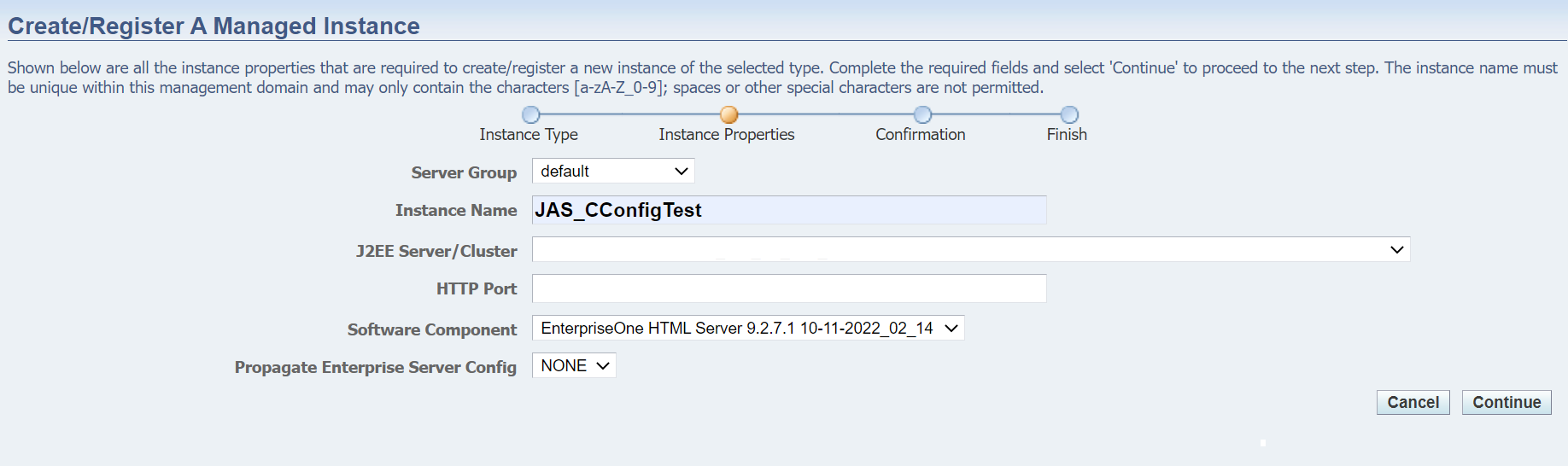

On Create/Register a Managed Instance, Instance Properties, complete these fields:
Field Value Server Group Use the drop-down menu to select the default server group. Instance Name Enter JAS_CConfigTest
as the instance name.J2EE Server Use the dropdown to select a valid J2EE server. HTTP Port You must ensure that the port that you specify is available and is not being used by any other application currently installed and running on the server on which the application server is running. Software Component Use the dropdown to select the version of this Software Component that you wish to install. Propagate Enterprise Server Config By default, the selected item is set to NONE. Selecting NONE signifies that you do not wish to propagate configurations from any available enterprise server. Keep the selection as NONE. - Click Continue.
- On Create/Register a Managed Instance, Confirmation, review the key configuration items. The page displays a variety of fields depending on your application server (WAS or WLS). The values on this form must be confirmed manually. You must validate or update, as appropriate, all configuration items. Based on your selections, respective entries will be added to database.
- Click Continue.
- On Create/Register a Managed Instance, Finish, click the Create Instance button.


After the instance is created, the browser redirects to the Management Console page for the newly registered HTML Server. The server also appears as a Managed Instance in the corresponding Managed Home.
Adding
the New HTML Server Instance to the Server Group
In this task you will add the newly created HTML server instance to the server group and verify that the server instance is inheriting the same configuration settings that are defined in the Centralized Configuration.
- In Server Manager Console, click Server Groups.
- Click CConfig_Test.
- In the Configure Server Group page, navigate to Add Server Group Members section.
- The drop-down menu in Instance Name lists all the servers that do not belong to the current server group. Select the newly created instance, JAS_CConfigTest.
- Click Add Group Member button. The system will now display the new instance under the Server Group Members heading.
- Open the JAS_CConfigTest instance and navigate to Configuration section.
- Click any configuration head. For the purpose of this OBE, we will access Database.
- Verify that the database in the Database Type field is Oracle Database which we selected while enabling Centralized Configuration.
Updating
Configuration Settings in the Server Group
In this task you will update the configuration settings of the newly created server group and verify that the changes are applied to the HTML server instance as well.
- Access Server Groups in Server Manager Console.
- Click CConfig_Test to open the server group.
- Navigate to Server Group Default Configuration Section and click Database under EnterpriseOne HTML Server.
- From the drop-down menu in Database Type, select MS SQL Server.
- Click Apply.
- After updating the Database Type, open the newly created managed instance JAS_CConfigTest.
- The system displays a warning message along with a Synchronize Configuration button. Click the Synchronize Configuration button to sync the configuration setting changes and restart the instance.
- Navigate to Configuration and click Database.
- Verify that the Database Type is updated to MS SQL Server.
Want
to Learn More?
- “Using Centralized Configuration for EnterpriseOne HTML Servers (Release 9.2.7)” in the Server Manager Guide.
