Setting Up the Data Source for Control Tables

To setup the data source for control tables:

This image is described in the surrounding text.

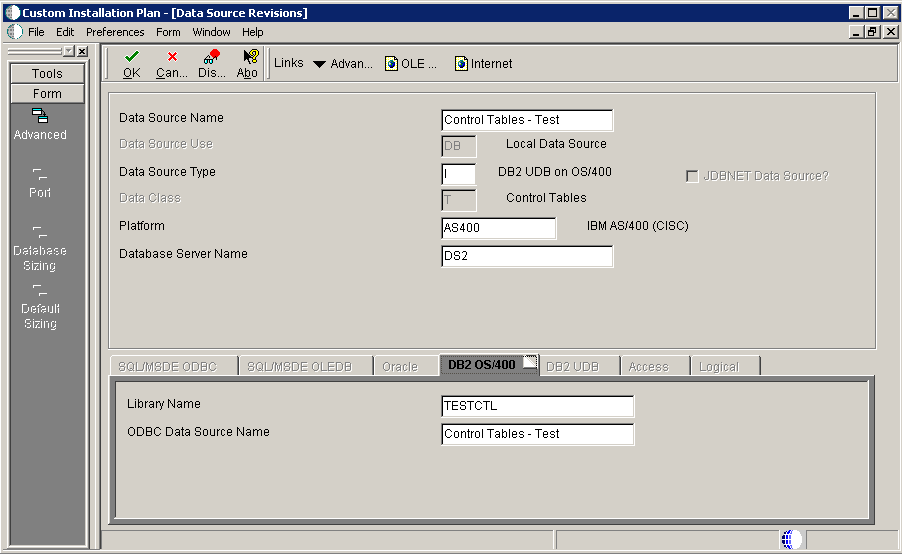

  1. On Data Source Revisions, verify the accuracy of the Control Tables data source.

    Field

    Description

    Data Source Name

    Verify the name of the data source.

    Server Name

    Verify the name of the Enterprise Server.

    Library Name

    Enter the name of the library housing your Control Tables for the selected environment.

    ODBC Data Source Name

    Enter the name of the data source. For example, Control Tables - Test.
    Note:

    Control tables data sources are specific to the environment and pathcode.

  2. Click the OK button.
