Introduction

This 30-minute Oracle by Example (OBE) describes how to deploy language fix and language update packages using the web client.

In this OBE, you will:

    1. Download the Japanese language fix package (JPN_LF0042) from the Oracle JD Edwards Update Center.
    2. Import the package using the web client.
    3. Deploy the package using the web client and verify the deployment reports.

Note:

You can follow the same steps to deploy language update packages using the web client.

Background

Starting with Tools Release 9.2.26.0, Update Manager supports the deployment of multi-platform deliverable (PAR) language package files using the Work With Software Updates application.

You can deploy these language packages using the web client:

  • Cumulative (UN) language packages
  • Language fix packages
  • Language update packages

The language fix and language update packages are multi-platform language packages available on the JD Edwards Update Center.

  • Language Fixes (LNG_LF####, example JPN_LF0042)

  • Language Update Packages (LNG{PartNumber}_enhancement, example JPN242_OTC)

This enhancement enables you to deploy language packages without any dependency on the Windows Deployment Server.

Applying language updates using the web client enables remote patch management and automation.

Task 1: Downloading a Language Fix Package from the Update Center

To download the Japanese language fix package JPN_LF0042 which is in the multi-platform format:

  1. Access the Oracle JD Edwards Update Center.
  2. In the Search section, set the following criteria:
    1. In the Type field, select JD Edwards EnterpriseOne.
    2. In the Release field, select 9.2.
    3. In the Platform field, select Multi-platform.

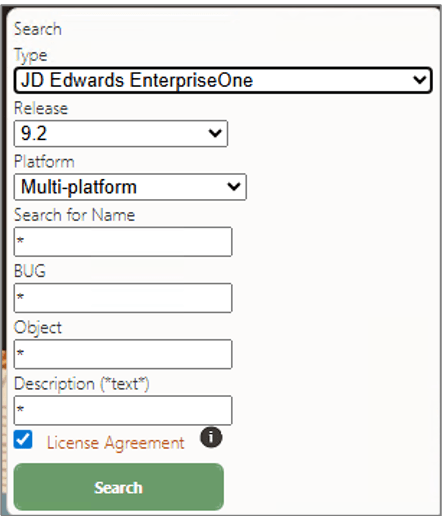

      4. Search criteria on the Oracle JD Edwards Update Center
      Search Criteria on the Oracle JD Edwards Update Center

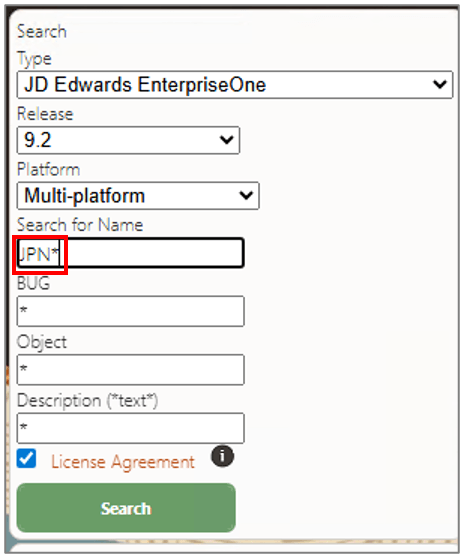

  3. Enter the language name JPN* for Japanese in the Search for Name field to further limit the language package search and click Search.
    Search criteria on the Oracle JD Edwards Update Center
    Search Criteria on the Oracle JD Edwards Update Center
  4. Review the search results.

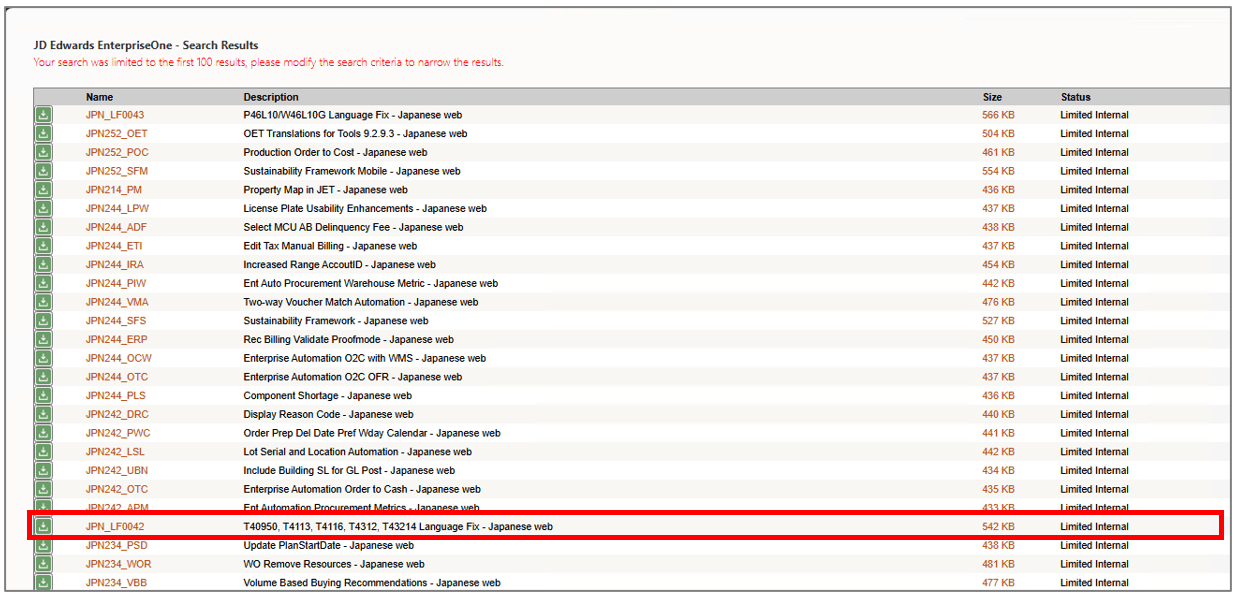

    Search Results on the Oracle JD Edwards Update Center
    Search Results on the Oracle JD Edwards Update Center

    Note:

    The name of the language packages are in these formats:
    • Language Fixes (LNG_LF####, example JPN_LF0042)
    • Language Update Packages (LNG{PartNumber}_enhancement, example JPN242_OTC)
  5. Click Download icon to then left of the package name JPN_LF0042, to add it to your downloads. The package is added to your Download Basket.
  6. From the Download Basket, download the portable archive (.PAR) JPN_LF0042_20_70.par file.

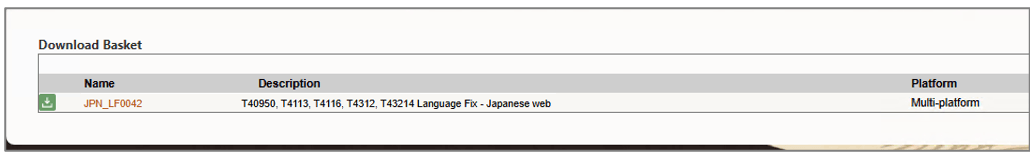

    Download Basket on the Oracle JD Edwards Update Center
    Download Basket on the Oracle JD Edwards Update Center

Task 2: Importing a Language Fix Package Using the Web Client

To import the JPN_LF0042 language fix package using the web client:

  1. Sign in to EnterpriseOne on the web client.
  2. From the Software Updates menu (GH9612), select Work with Software Update (P96470W).

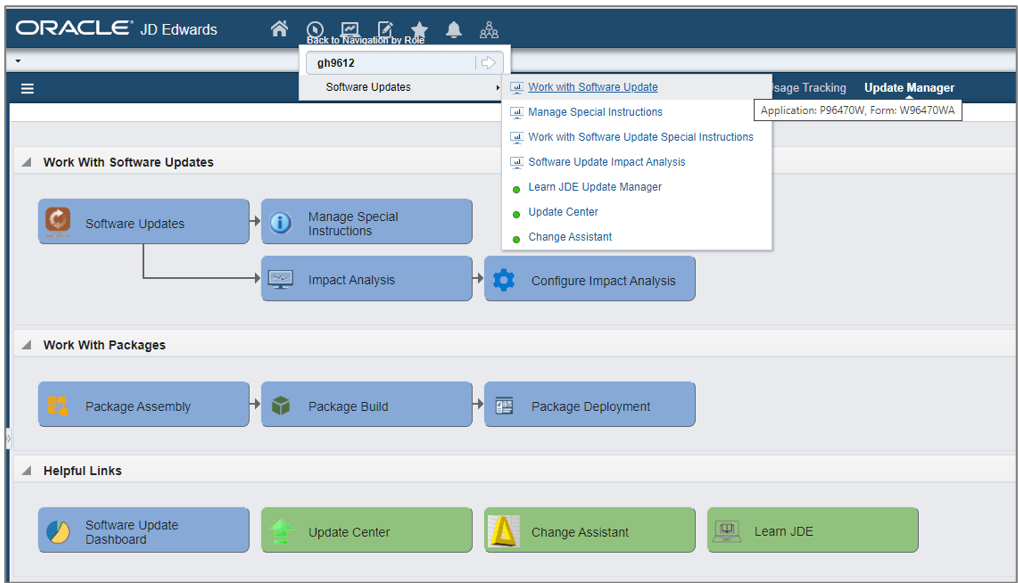

    Navigation to Work with Software Update Application (P96470W)
    Navigation to Work With Software Updates (P96470W)
  3. On the Work With Software Updates form, enter 03 (Languages) in the Software Update Type field and click Find.
    Work With Software Updates Form
    Work With Software Updates Form
  4. Select the Form menu and click Import.

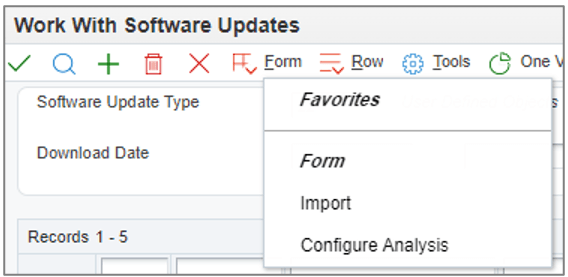

    Work With Software Updates - Import
    Work With Software Updates - Import
  5. On the File Upload dialog box, click Choose File and select the downloaded language package file JPN_LF0042_20_70.par. You can only import one package at a time.

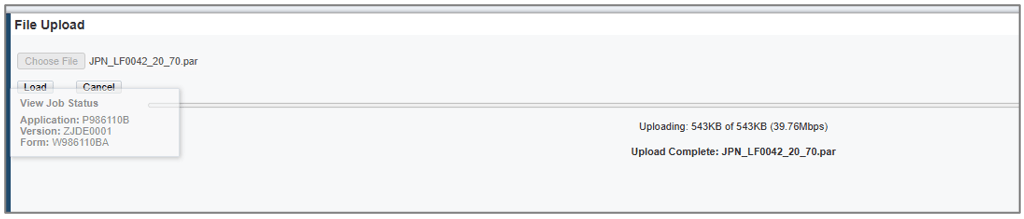

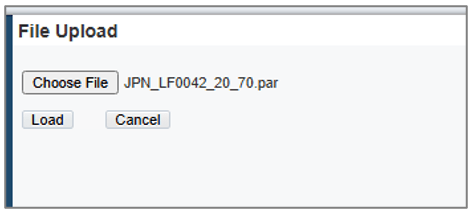

    File Upload
    File Upload
  6. Click Load. The system imports the file and returns to the Work With Software Updates (P96470W) form.
    Work With Software Updates – UN Language Package Populated

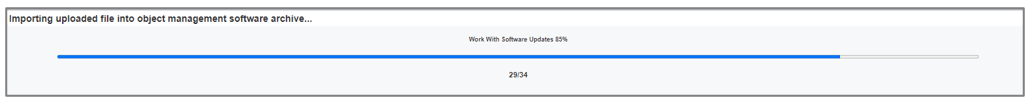

    Import Status Window
    Import Status Window
  7. Click Find to refresh the grid. The imported language package appears in the grid.

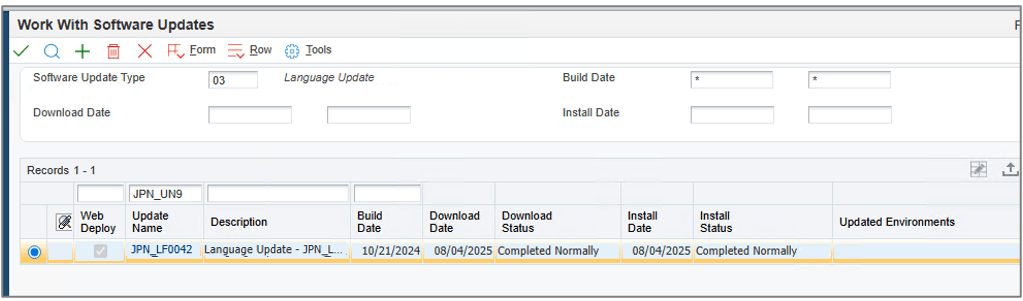

    Work With Software Updates – Language Fix Populated
    Work With Software Updates – Language Fix Package Populated

    The system also displays the Software Update Status pane on the screen which displays a visual of the deployment status, highlighting the current deployment step and the percentage of updates remaining.

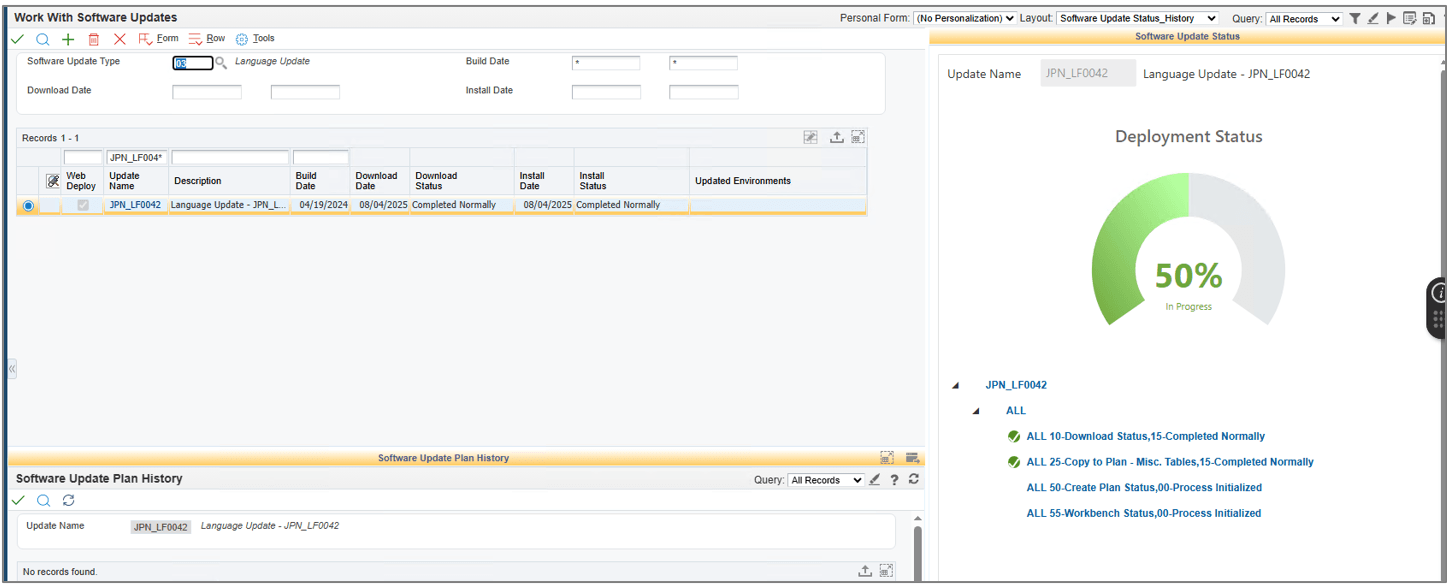

    Work With Software Updates - Deployment Status Pane
    Work With Software Updates - Deployment Status Pane

Task 3: Deploying the Language Fix Package and Reviewing Reports Using the Web Client

To deploy the imported language package file using the web client:

  1. Access the Work With Software Updates application from the Software Updates menu (GH9612).
  2. On the Work With Software Updates form, enter 03 (Languages) in the Software Update Type field and click Find.
  3. Select the language package JPN_LF0042 from the grid.

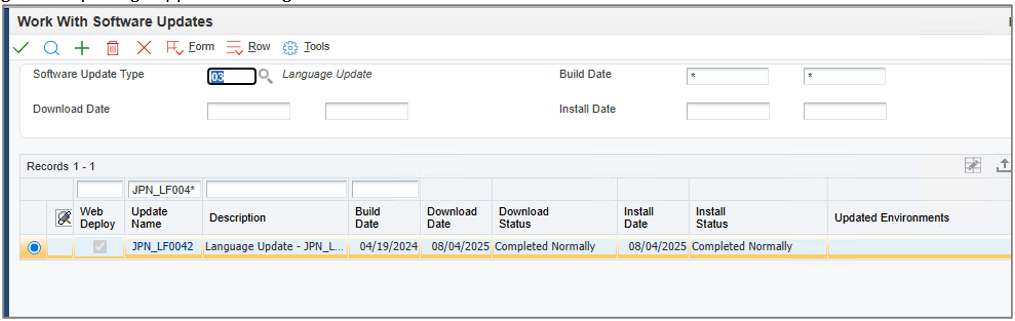

    Work With Software Updates – Language Fix Package Populated
    Work With Software Updates – Language Fix Package Populated
  4. Select the Row menu and click Deploy.

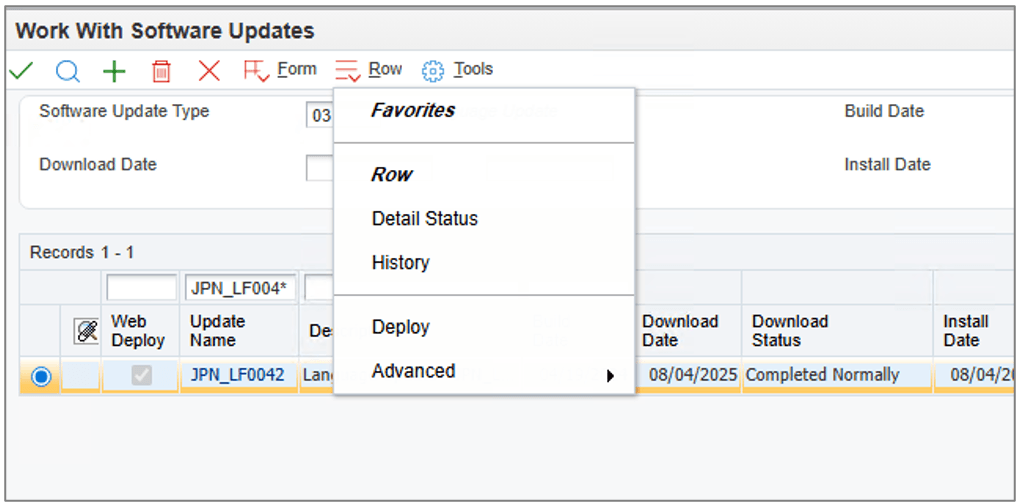

    Work With Software Updates Form - Deploy
    Work With Software Updates Form - Deploy
  5. The Software Update Environment Selection form is displayed. Select the Replace checkbox to replace records using R96701L instead of appending them. The Replace checkbox is not selected by default.
  6. Select the checkbox corresponding to the environment(s) where you want to deploy the package. For Trial Edition, use PS920.
  7. Click OK on the Software Update Environment Selection form to launch the package deployment.

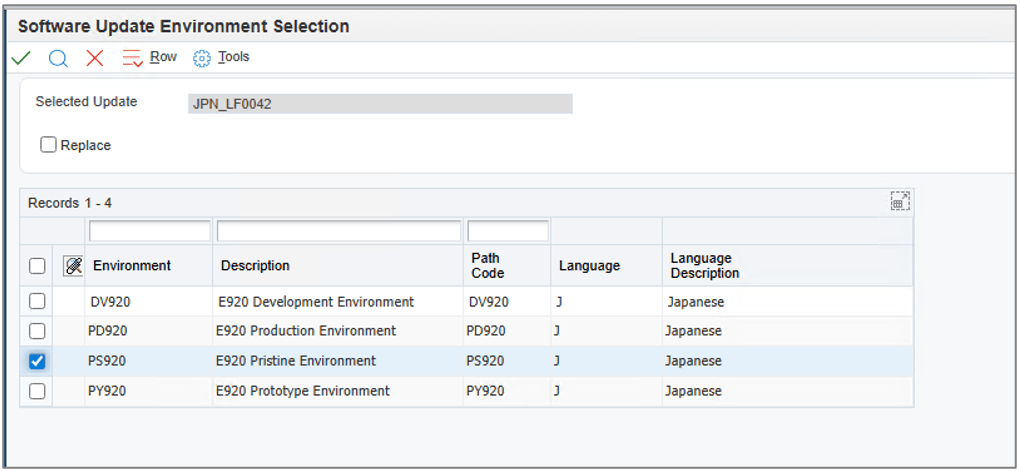

    Software Update Environment Selection Form
    Software Update Environment Selection Form
  8. The Deployment Status on the Work With Software Updates form displays the percentage complete.

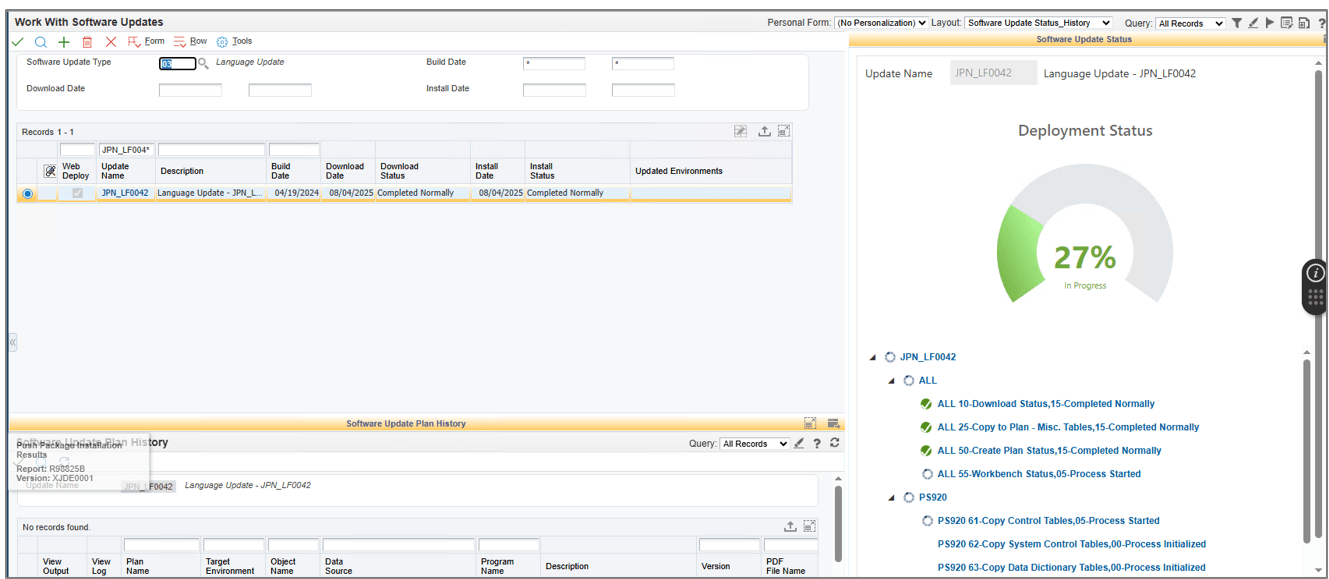

    Work With Software Updates - Software Update Status
    Work With Software Updates - Software Update Status

    When the deployment is complete, the system displays 100% complete status in the Deployment Status pane.

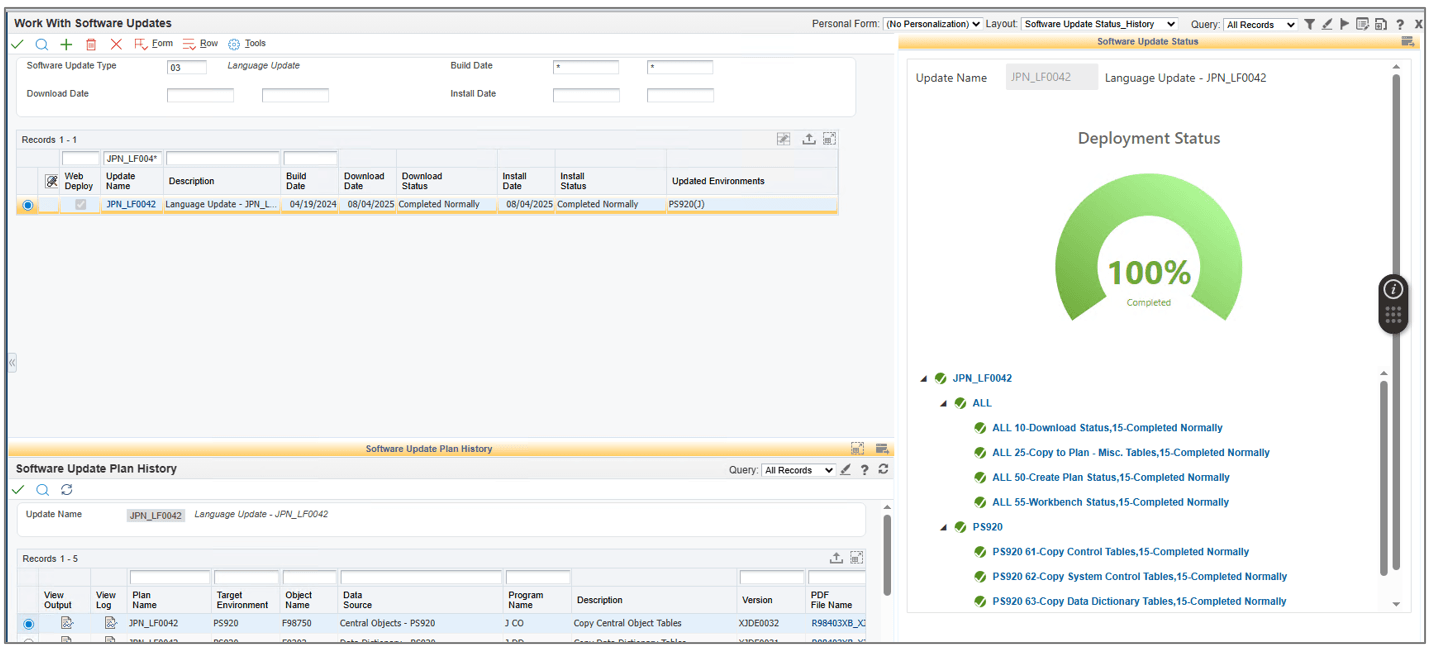

    Work With Software Updates Form - Deployment Status
    Work With Software Updates Form - Deployment Status
  9. Click Find on the Work With Software Update form to refresh the grid columns.
  10. Click Refresh in the Software Update Plan History pane.

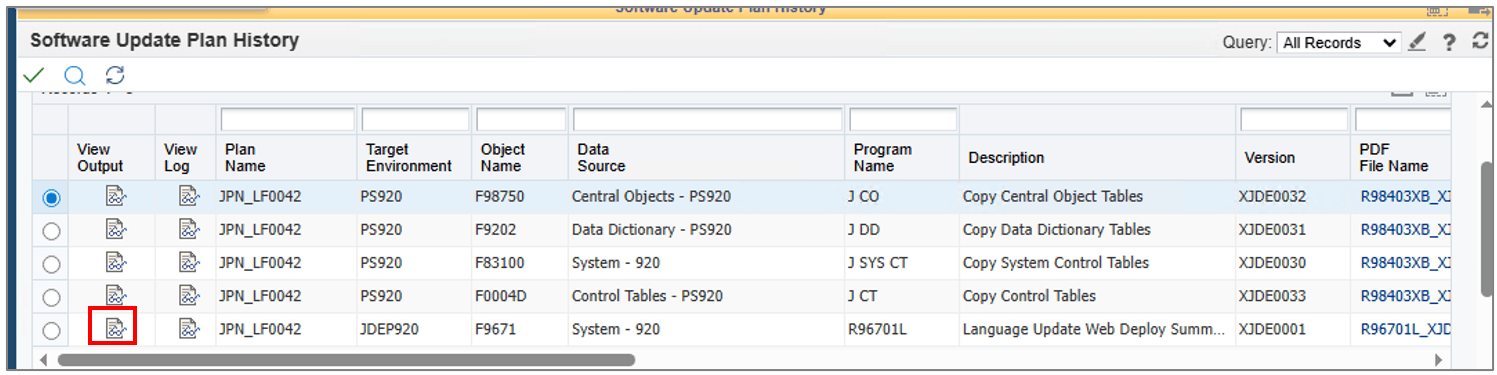

    Software Update Plan History Form
    Software Update Plan History Pane

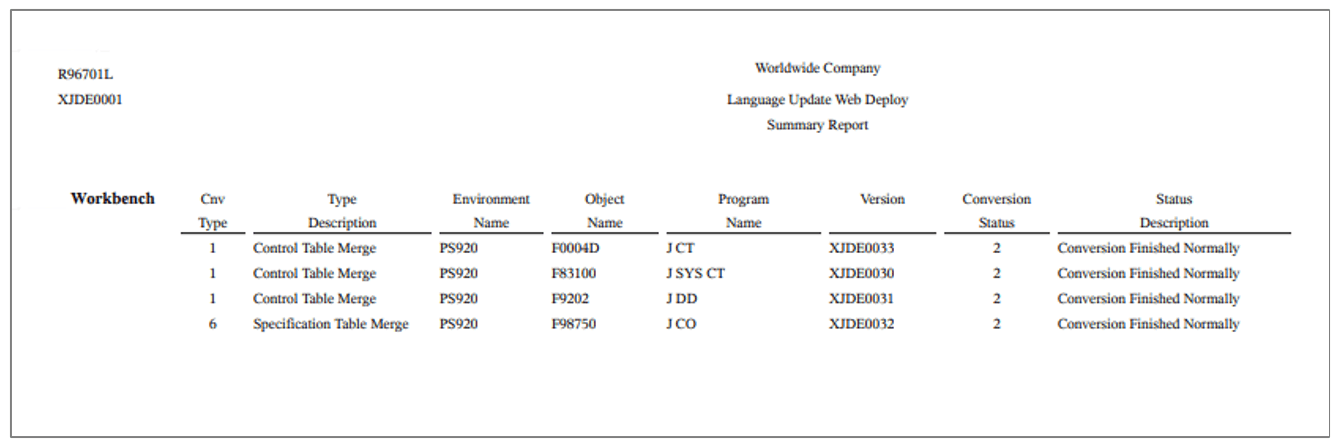

  11. Click Download icon corresponding to R96701L in the grid column to download the Language Update Web Deploy Summary Report (R96701L). This report provides summary of the language fix package JPN_LF0042 deployment.

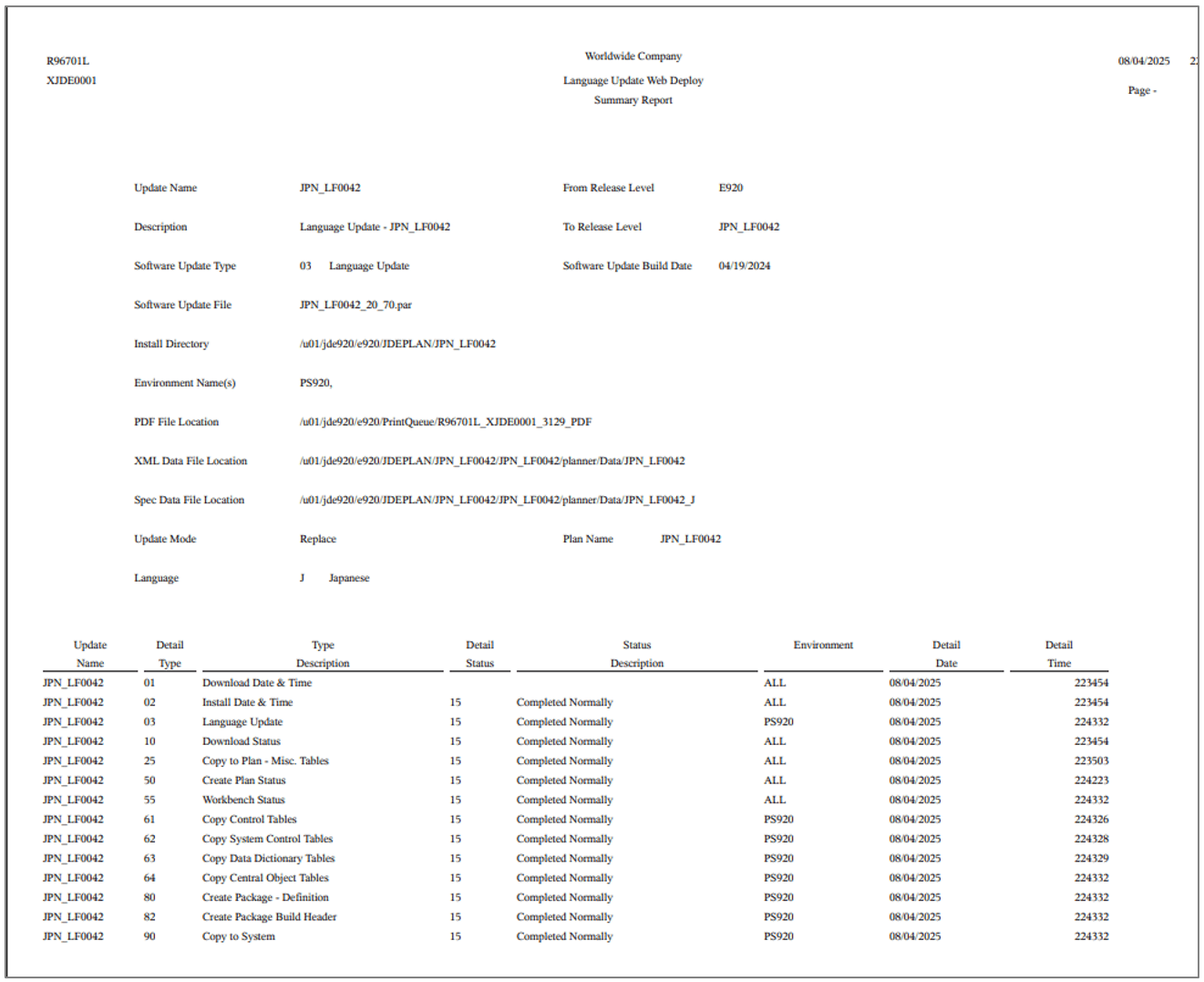

    Language Update Web Deploy Summary Report Language Update Web Deploy Summary Report
    Language Update Web Deploy Summary Report

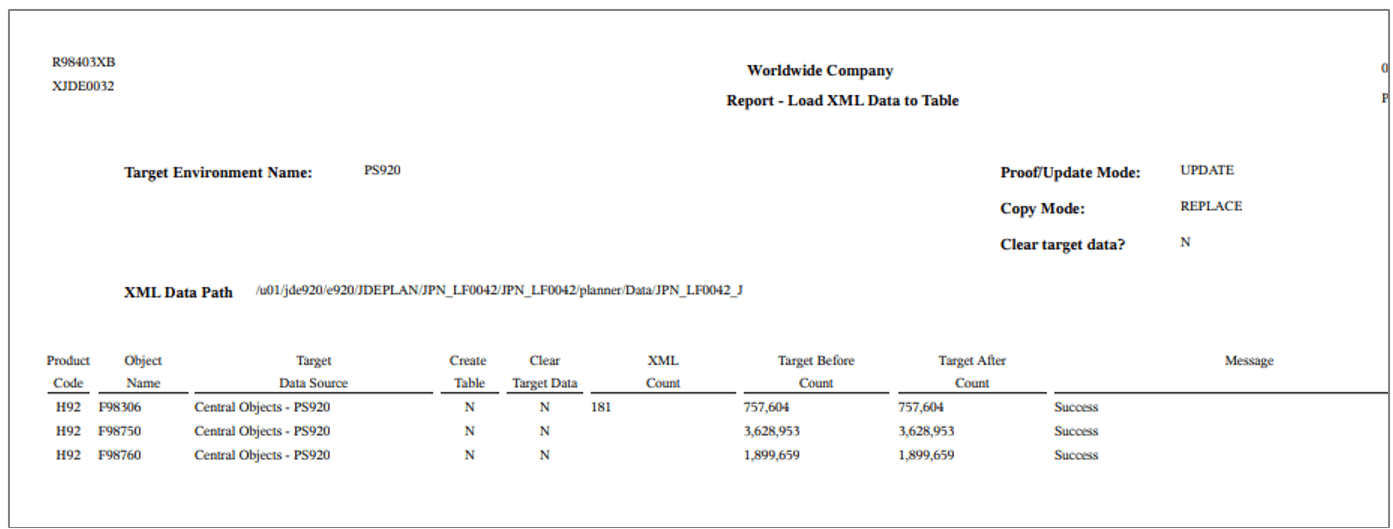

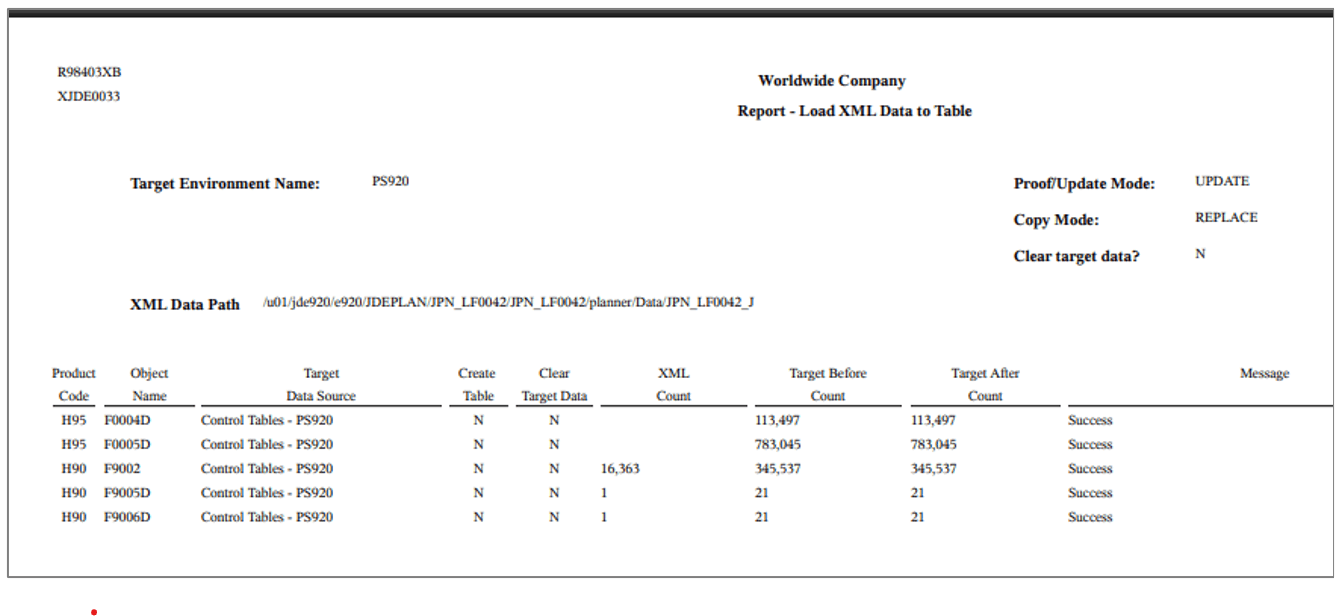

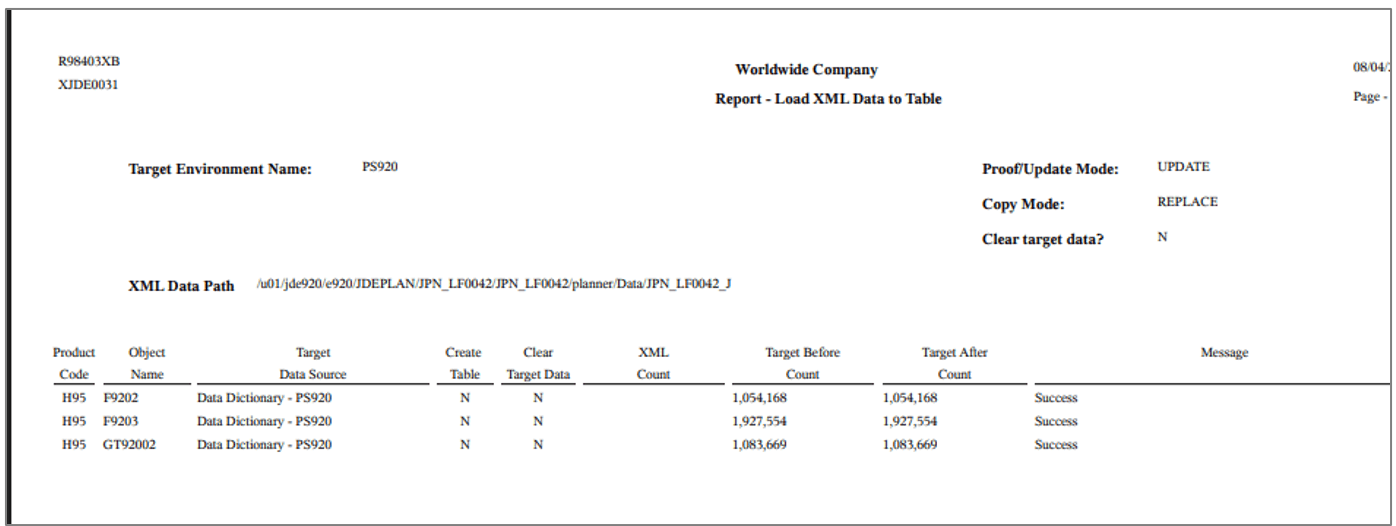

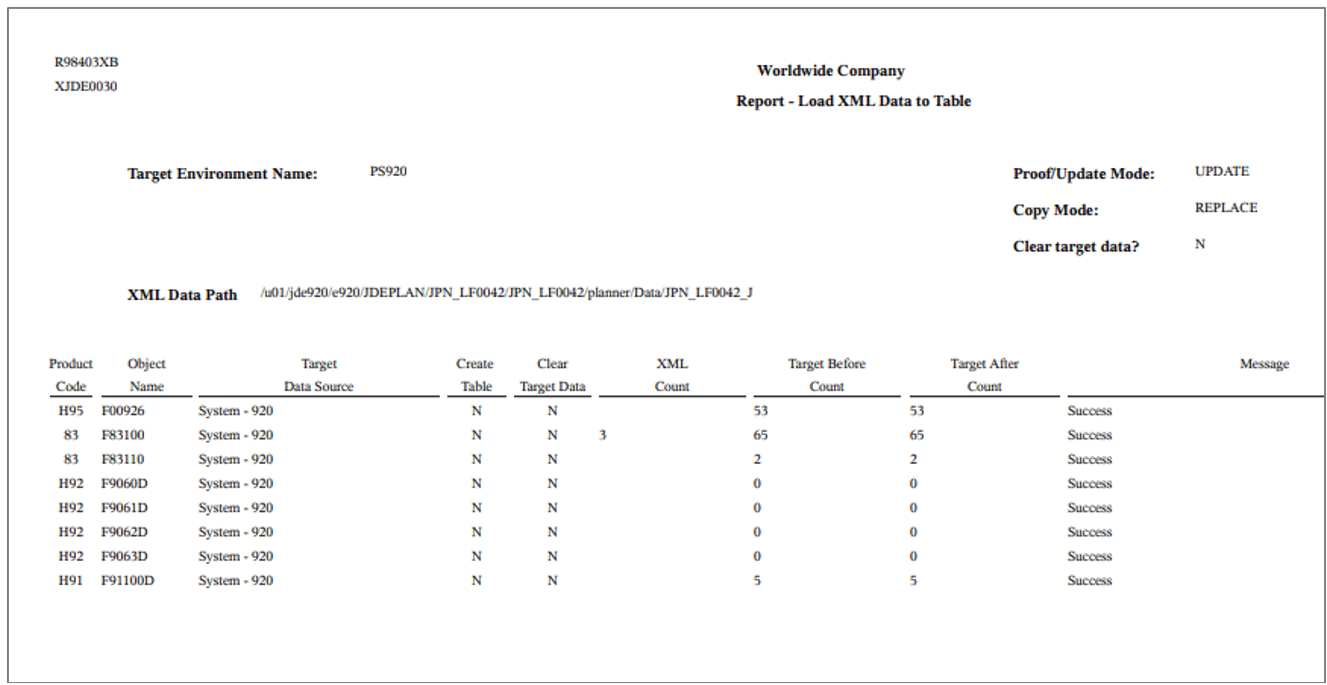

  12. The system generates four versions of the Language Data Copy (R98403XB) report for the various language tables copied. Click the View Output icons corresponding to these versions in the grid column to download and review them.
