Oracle by Example brandingDeploying User Defined Objects (UDOs) Using the Web Client

section 0Before You Begin

This 30-minute OBE shows you how to deploy UDO patches and validate using the web client.

In this OBE, you will:

  • Download a UDO from the Oracle JD Edwards Update Center.
  • Download Special Instructions from Change Assistant.
  • Import the UDO using the web client.
  • Deploy the UDO using the web client.
  • Validate the UDO deployment using web OMW.
  • Run the UDO Impact Analysis on the web client.

Background

Starting with Tools Release 9.2.8.2, you can use the JD Edwards EnterpriseOne Update Manager's Web Client to deploy User Defined Object (UDO) patches.

Applying updates using the web client enables remote software update management and automation.


section 1Downloading the UDO from the Update Center

The UDOs are in the CLIENT format.

  1. Access the Oracle JD Edwards Update Center.
  2. In the Search section, set the following criteria:
    • In the Type field, select EnterpriseOne User Defined Objects.
    • In the Release field, select 9.2.
    • In the Platform field, select CLIENT.
    Description of image-1.png follows
    Oracle JD Edwards Update Center - UDO Search Criteria

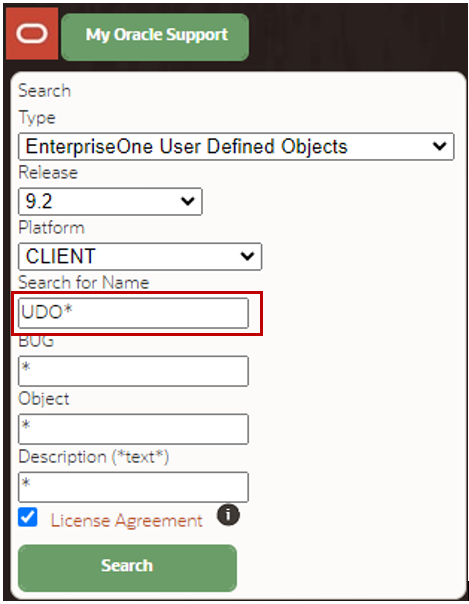

  3. Enter the UDO name or UDO* in the Search for Name field to further limit the UDO search.
    Description of sample-image-2.png follows
    UDO Search on the Oracle JD Edwards Update Center
  4. Click Search.
  5. Review the search results. Click the download icon corresponding to UDO_9.2_10609 to add it to your Download Basket.
    Description of sample-image-1.png follows
    UDO Search Results on the Oracle JD Edwards Update Center
  6. From the Download Basket, download the UDO as a portable archive (.PAR).
    Description of sample-image-1.png follows
    Download Basket on the Oracle JD Edwards Update Center

section 2Download Special Instructions from Change Assistant

  1. Open Change Assistant from the desktop link with an Update Center connection.
    Description of sample-image-1.png follows
    Navigation to Change Assistant
  2. Expand the Search for Packages navigation node to begin searching the Update Center and click Advanced Search.

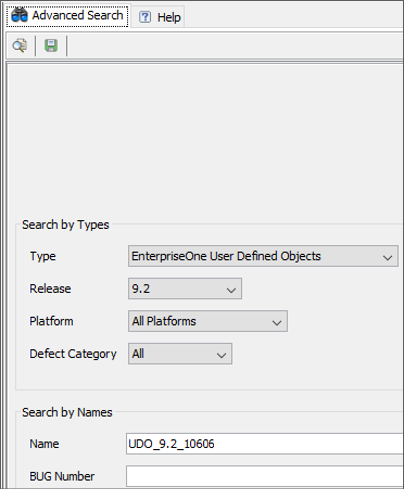

  3. Enter the following search criteria and click Search.
    • Type: EnterpriseOne User Defined Objects
    • Release: 9.2
    • Name: UDO_9.2_10606
    Description of sample-image-1.png follows
    Advanced Search in Work With Software Updates
  4. Select the package.
    Description of sample-image-1.png follows
    UDO Package Selection

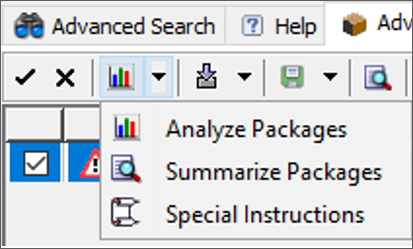

  5. Use the Tool drop-down to select Special Instructions.
    Description of image follows
    Tools Drop-Down - Special Instructions Option

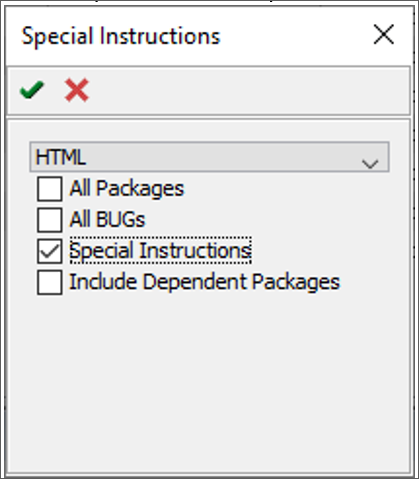

  6. In the Special Instructions options, select Special Instructions
    Description of image follows
    Special Instructions Option Selection

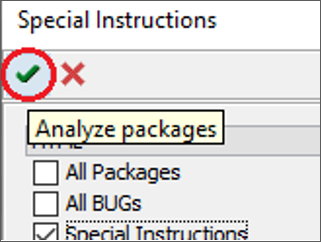

  7. Click Analyze Packages. When the analysis process finishes, the Summary Analysis Report appears. The system downloads the
    Description of image follows
    Analyze Packages
    Note: Hover over the processing icon at the top of the browser window to view background processes.
  8. The Summary Analysis report includes the special instructions for the list of selected packages.
    Description of image follows
    Summary Analysis Report
  9. To review the special instructions for the selected UDO package on the Web Client, sign in to the Web Client and run the Work with Software Update Special Instructions (P96700RW ) program from the fast path. Alternatively, you can navigate to Software Updates menu (GH9612) and run the Work with Software Update Special Instructions (P96700RW) program.
    Description of image follows
    Navigation to the Work with Software Update Special Instructions Form

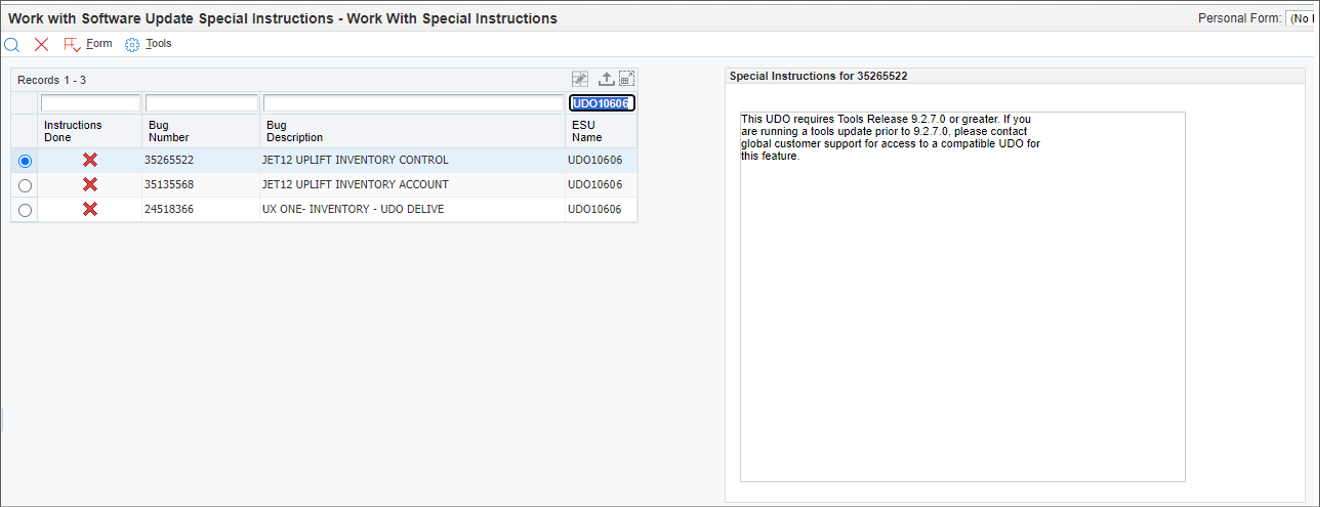

  10. In the Query by Example (QBE) field, enter the ESU Name UDO10606 and click Find to filter the special instructions.
    Description of image follows
    Special Instructions for the Filtered ESU
  11. Review the special instructions.


section 3Importing the UDO Using the Web Client

  1. Sign in to EnterpriseOne on the web client.

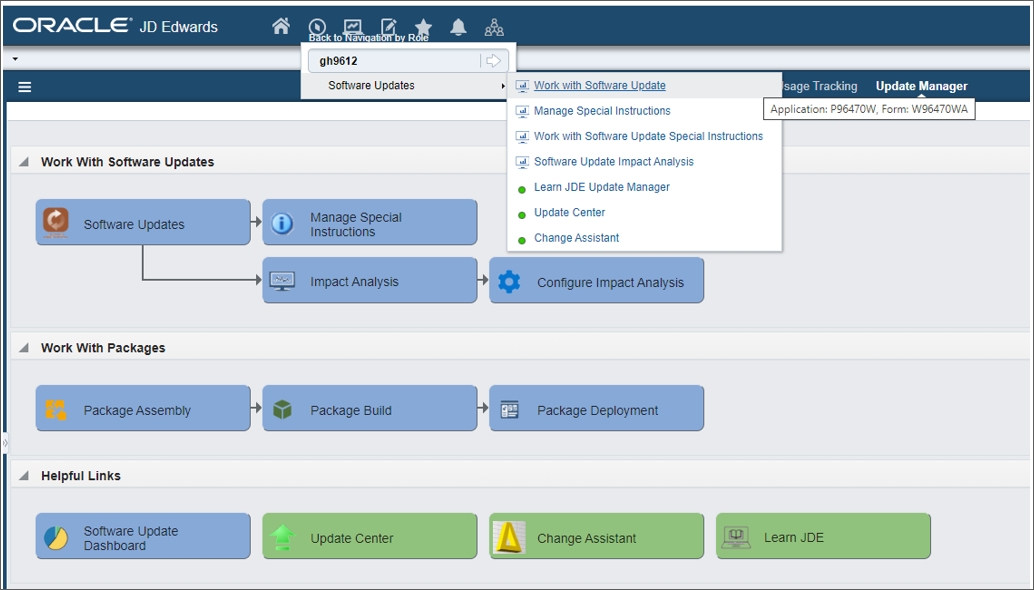

  2. From the Software Updates menu (GH9612), select Work with Software Update application (P96470W).
    Description of sample-image-14.png follows
    Navigation to the Work with Software Updates Form
  3. On the Work With Software Updates form, enter 22 (User Defined Objects) in the Software Update Type field and click Find.

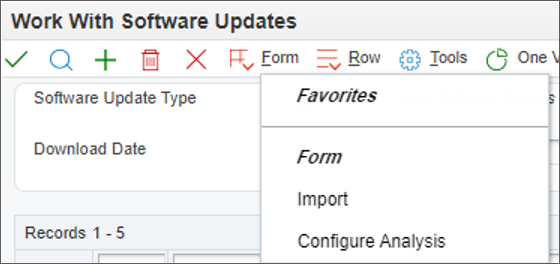

  4. Select the Form menu and click Import.
    Description of sample-image-1.png follows
    Work With Software Updates - Import UDO

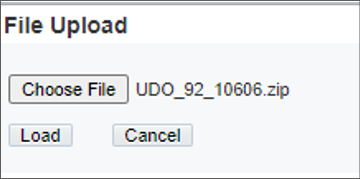

  5. On the File Upload dialog box, click Choose File and select the UDO_92_10606 file you downloaded. Only one UDO can be imported at a time.
    Description of sample-image-1.png follows
    UDO File Upload

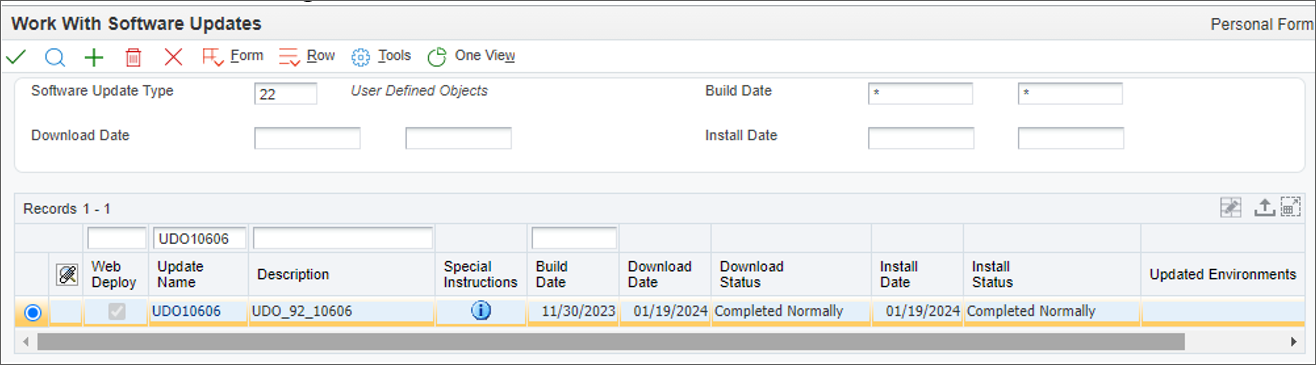

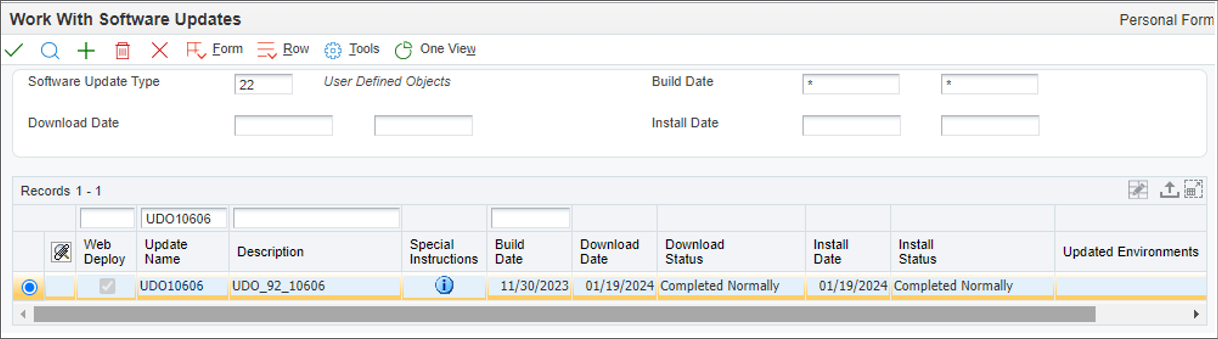

  6. Click Load. The system imports the file and returns to the Work With Software Updates (P96470W) form. The new UDO appears in the grid.
    Description of sample-image-1.png follows
    Work With Software Updates Form - Imported UDO Shown in the Grid

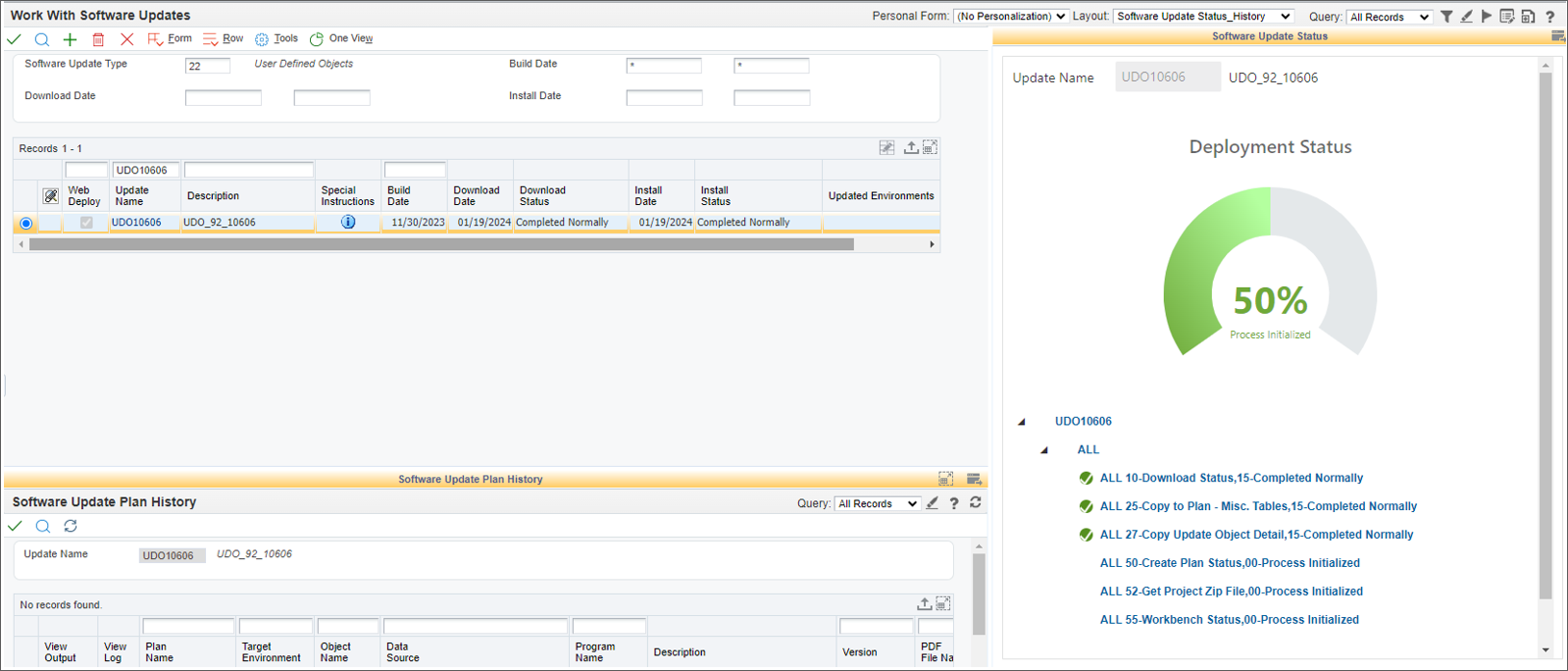

  7. The system also populates the Software Update Status pane on the screen which displays a visual of the deployment status, highlighting the current deployment step and the percentage of updates remaining.
    Description of sample-image-1.png follows
    Work With Software Updates Form - Deployment Status

    Note: If the Software Update Status window does not appear, select Software Update Status_History from the Layout drop-down list.

  8. To view objects delivered with this UDO, click the Row menu and select Objects.
    Description of sample-image-1.png follows
    Work With Software Updates Form - Objects Menu Option
    Description of sample-image-1.png follows
    User Defined Objects Form - Objects Delivered with Selected UDO
  9. Click Close.

section 4Deploying the UDO Using the Web Client

  1. Access the Work With Software Updates application from the Software Updates menu (GH9612).
  2. On the Work With Software Updates form, enter 22 (User Defined Objects) in the Software Update Type field and click Find.
  3. Select the UDO from the grid.
    Description of sample-image-1.png follows
    Work With Software Updates Form - UDO selection from Grid

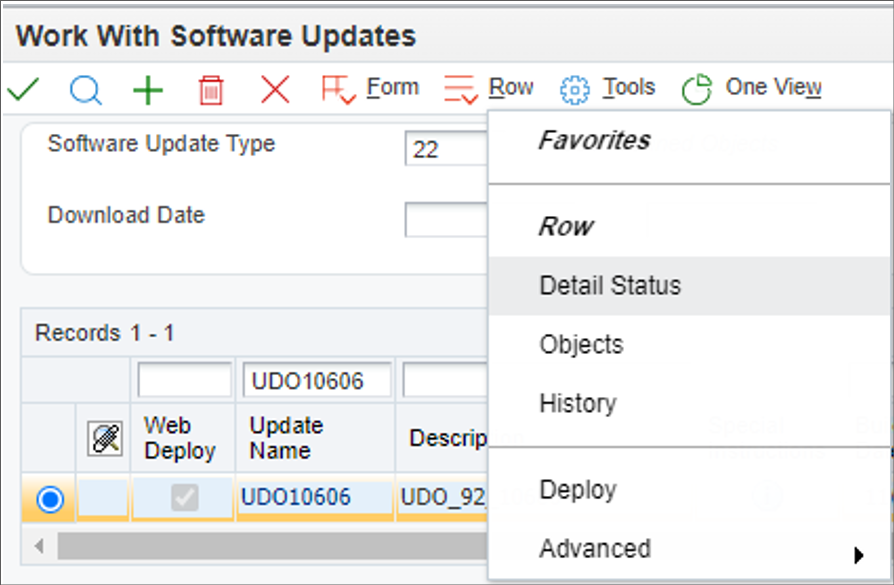

  4. Select the Row menu and click Deploy.
    Description of sample-image-1.png follows
    Work With Software Updates Form - Deploy Option

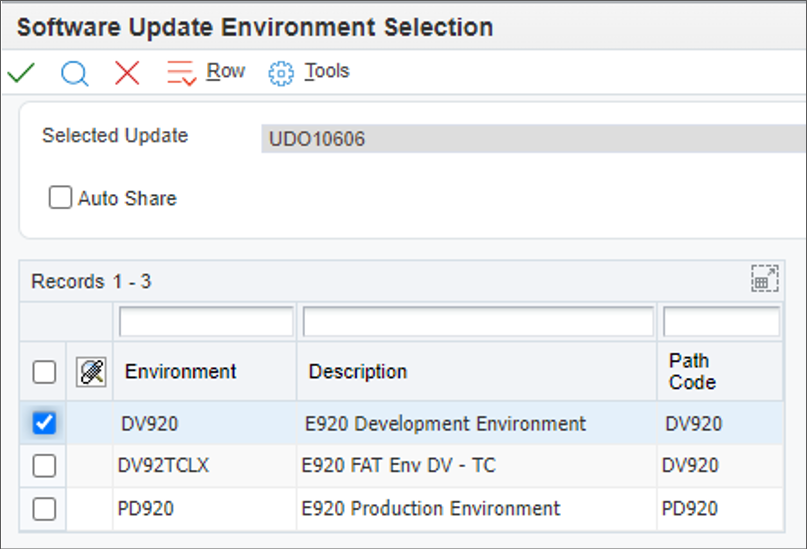

  5. The Software Update Environment Selection form is displayed. The Auto Share check box is NOT selected by default.

    If you select the Auto Share check box, the system promotes the UDO object(s) to the ‘Shared’ (08) status after import and deploy.

    Description of sample-image-1.png follows
    Software Update Environment Selection Form - Auto Share
  6. Select the check box corresponding to the Environment(s) that you want to deploy the UDO UDO10606 to.

    Note: For Trial Edition, use PS920 because DV920 does not exist.

    Description of sample-image-1.png follows
    Software Update Environment Selection Form
  7. To verify the list of objects that will be applied, click the Row menu and select Affected Objects.
    Description of sample-image-1.png follows
    Software Update Environment Selection Form - Affected Objects Menu Option

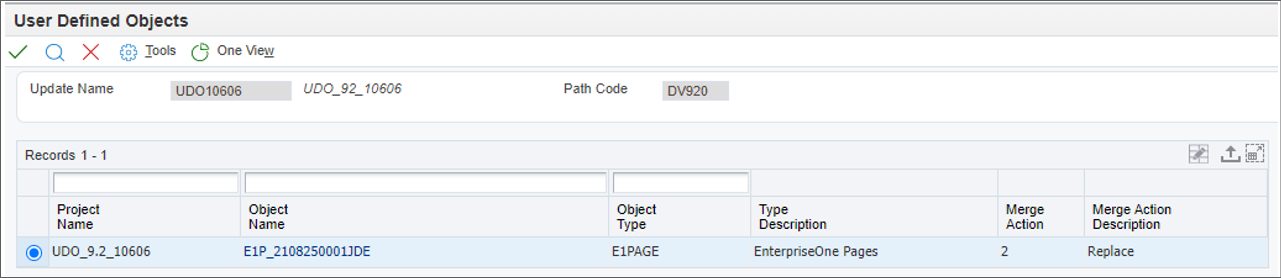

  8. The Merge Action is set to 2 (Replace) if UDO object already exists, and the Merge Action is set to 1 (Add) if this is a new UDO object.
    Description of sample-image-1.png follows
    User Defined Objects Form - Merge Action Status
  9. Click OK to exit.
  10. Click OK on the Software Update Environment Selection form to launch the UDO deployment.

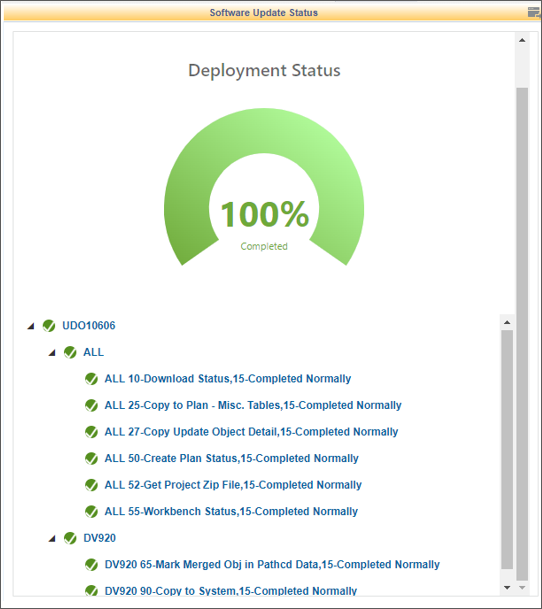

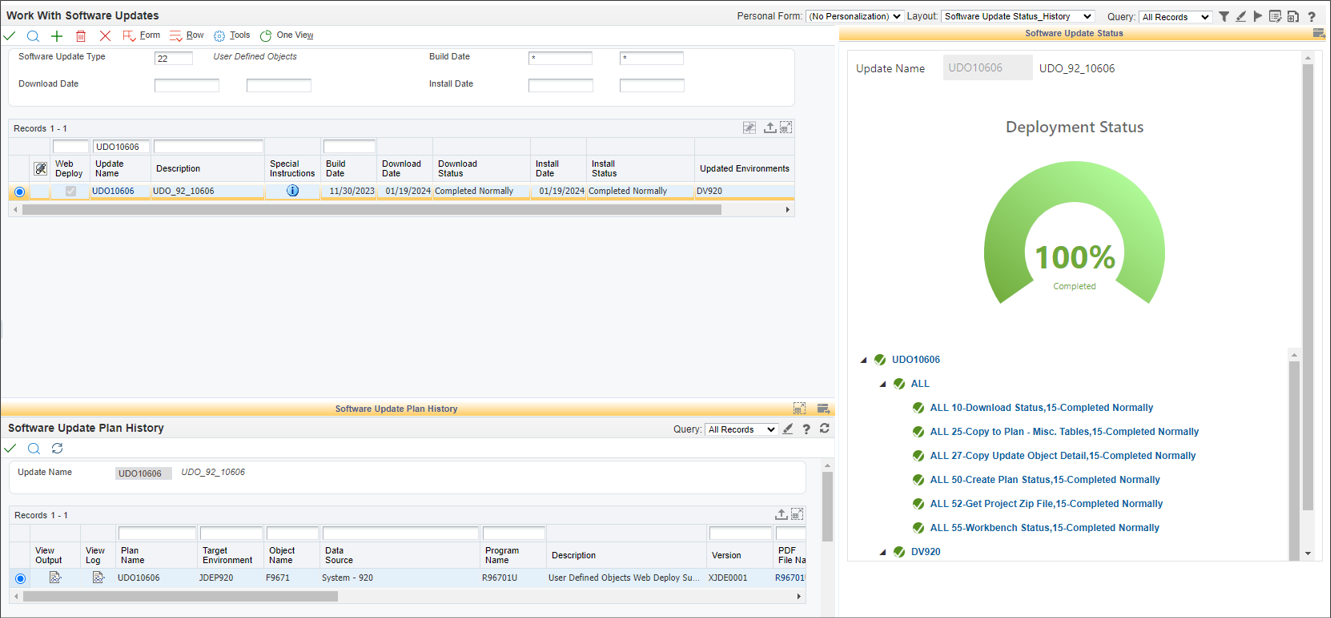

  11. The Software Updates Status on the Work With Software Updates form shows the progress. When the UDO deployment is complete, the system displays 100% Complete status in the Deployment Status.
    Description of image follows
    Work With Software Updates Form - UDO Deployment Status
    Description of sample-image-1.png follows
    Work With Software Updates Form - UDO Deployment Completion
  12. Click Find on the Work With Software Updates form to refresh the grid columns.
  13. Click Refresh on the Software Update Plan History pane.
    Description of sample-image-1.png follows
    Software Update Plan History Pane
  14. Click the View Output icon in the Grid Column to download the UDO Web Deploy Summary Report.
    Description of sample-image-1.png follows
    UDO Web Deploy Summary Report

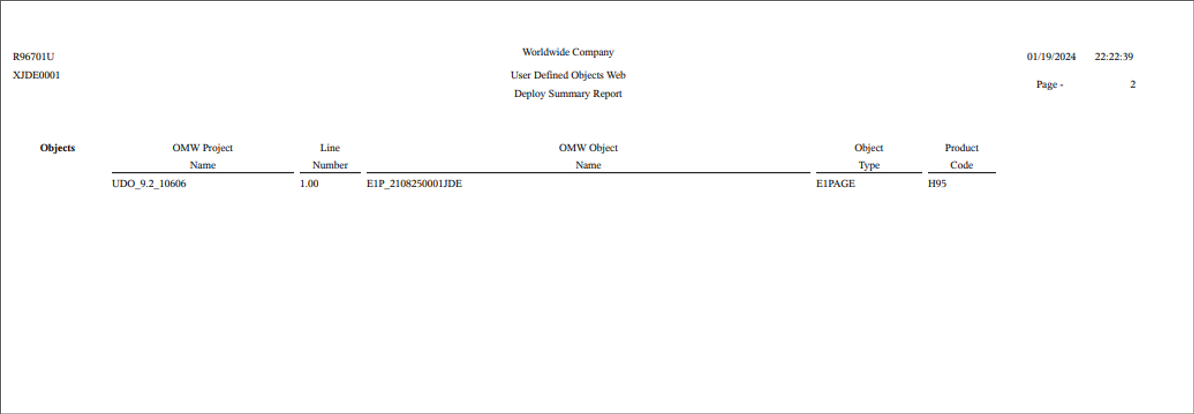

    Description of sample-image-1.png follows
    UDO Web Deploy Summary Report - OMW Objects


section 5Validating the UDO Deployment

  1. To verify the UDO deployment using Web OMW, run the Object Management Workbench – Web application (P98220W).

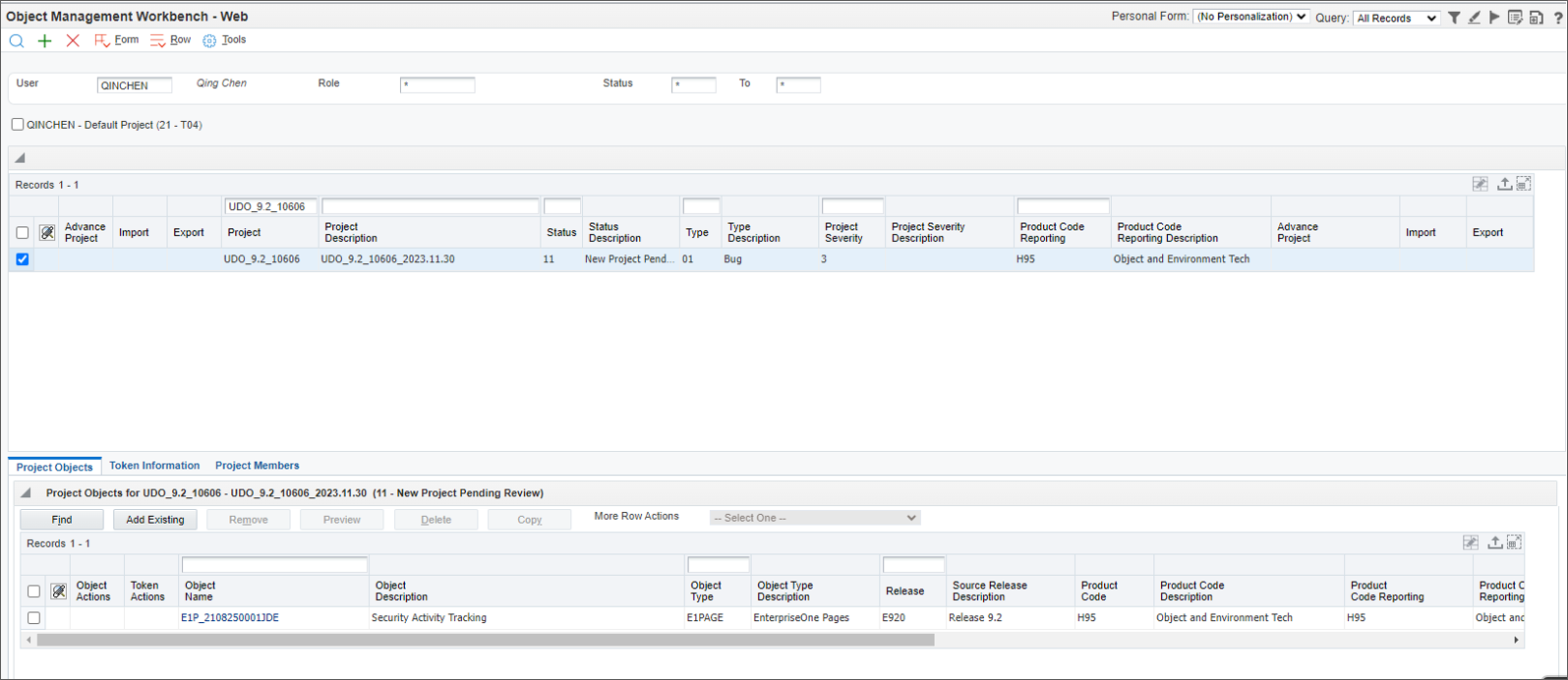

  2. Search for the UDO Project UDO_9.2_10606 and click Find. The system displays the deployed objects in the Project Objects tab.
    Description of sample-image-1.png follows
    Object Management Workbench - Web Form

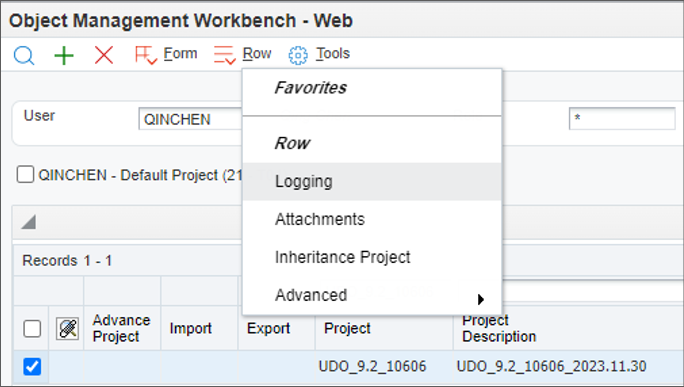

  3. Select Logging from the Row menu.
    Description of sample-image-1.png follows
    Object Management Workbench - Web Form - Logging Menu Option
  4. Click Find on the Work With Project Logs form.

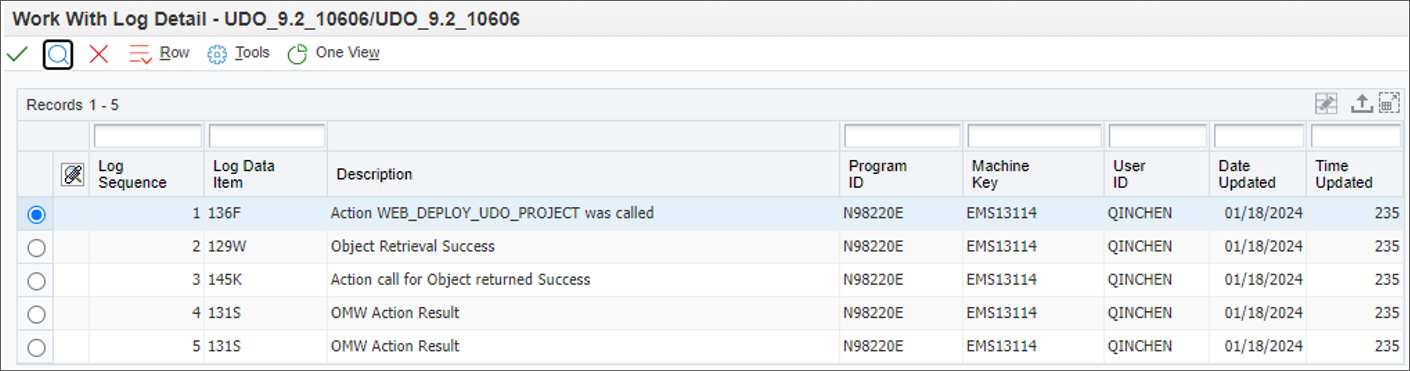

  5. Click the log data item and view the log detail.
    Description of sample-image-1.png follows
    Work With Log Detail Form


section 6Running the UDO Impact Analysis on the Web Client

    Enable Impact Analysis environment tracking from the Work With Software Updates application (P96470W).

  1. Click Configure Analysis from the Form menu. The Revise Software Update Impact Analysis Tracking Enablement form is displayed.
    Description of sample-image-1.png follows
    Work With Software Updates Form - Import Menu Option

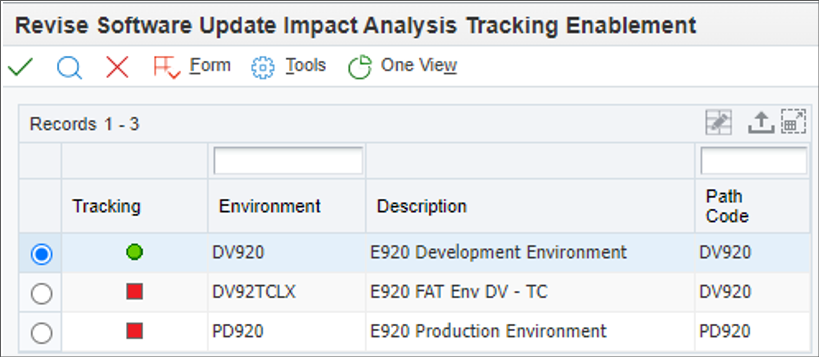

  2. Select the tracking environment and click OK.
    Description of sample-image-1.png follows
    Revise Software Update Impact Analysis Tracking Enablement Form

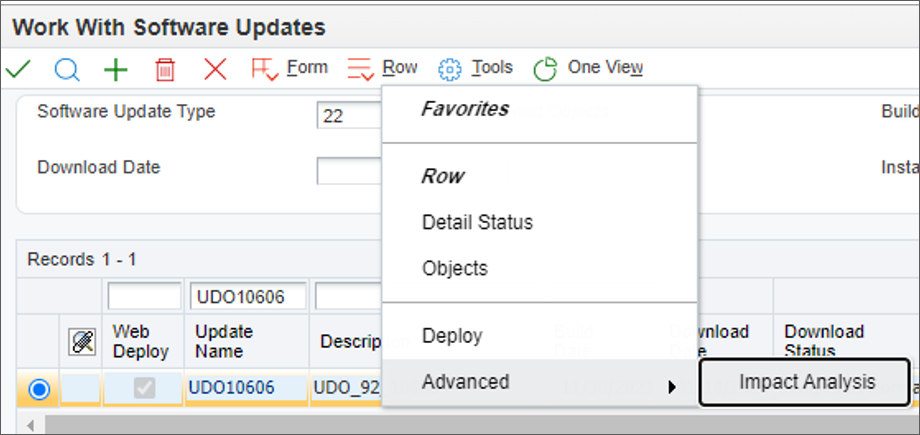

  3. On the Work With Software Updates form, select Advanced and Impact Analysis from the Row menu. The Work With User Defined Object Impact Analysis form is displayed.

    Note: If Impact Analysis Tracking is enabled for the environment, the system populates the Impact Analysis data (F96710) during Add and Import, and displays the Impact Analysis option when you select Advanced option from the Row menu.

    Description of sample-image-1.png follows
    Work With Software Updates Form - Impact Analysis Menu Option

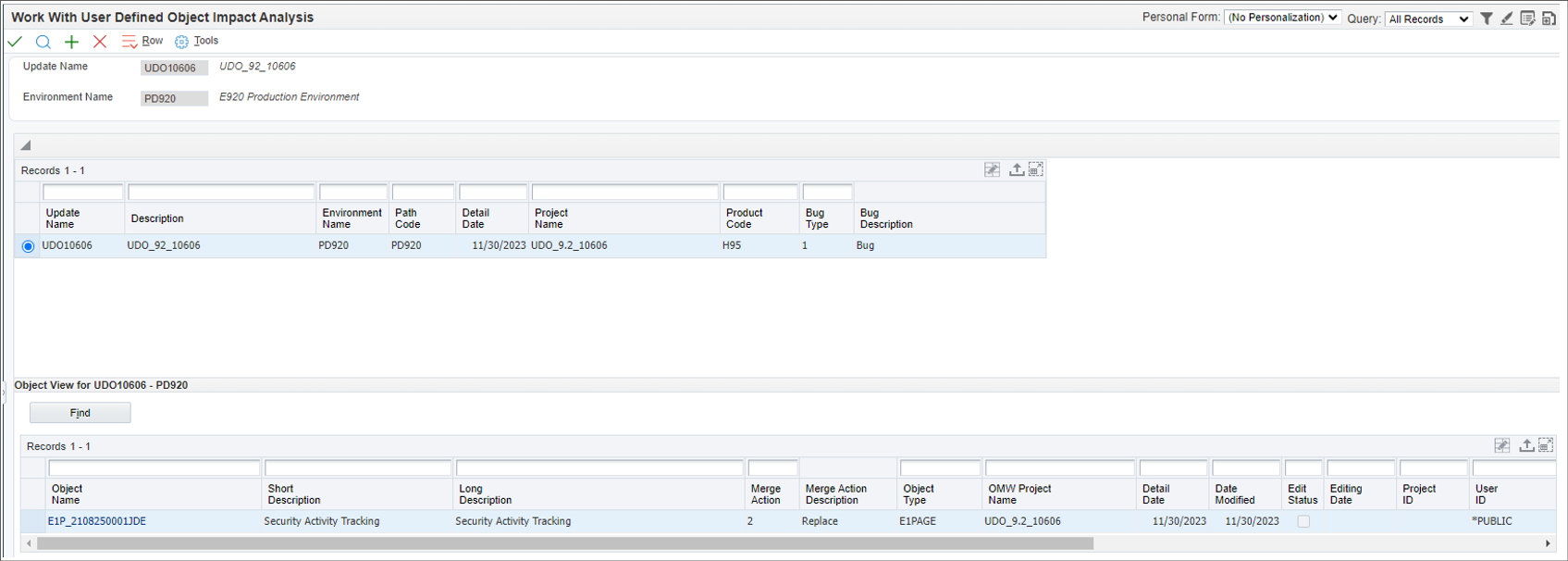

    Description of sample-image-1.png follows
    Work With User Defined Object Impact Analysis Form

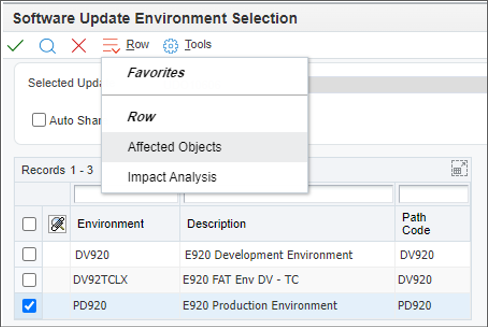

  4. You can also run Impact Analysis from Software Update Environment Selection form before deploying to the target environment. Click Impact Analysis from the Row menu.
    Description of sample-image-1.png follows
    Software Update Environment Selection Form - Impact Analysis Form
    Description of sample-image-1.png follows
    Work With User Defined Object Impact Analysis Form

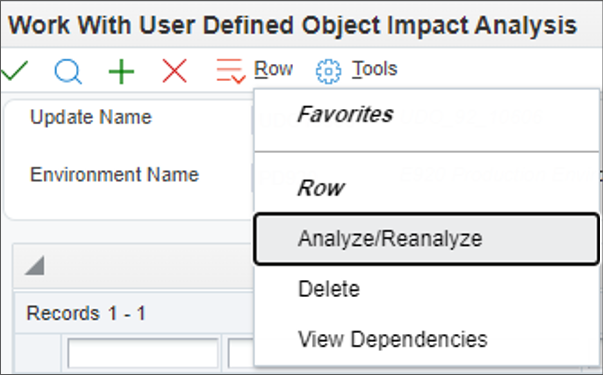

  5. On the Work With User Defined Object Impact Analysis form, click View Dependencies from the Row menu. The Work with Project Object Dependencies form is displayed.
    Description of sample-image-1.png follows
    Work With User Defined Object Impact Analysis - View Dependencies Menu Option

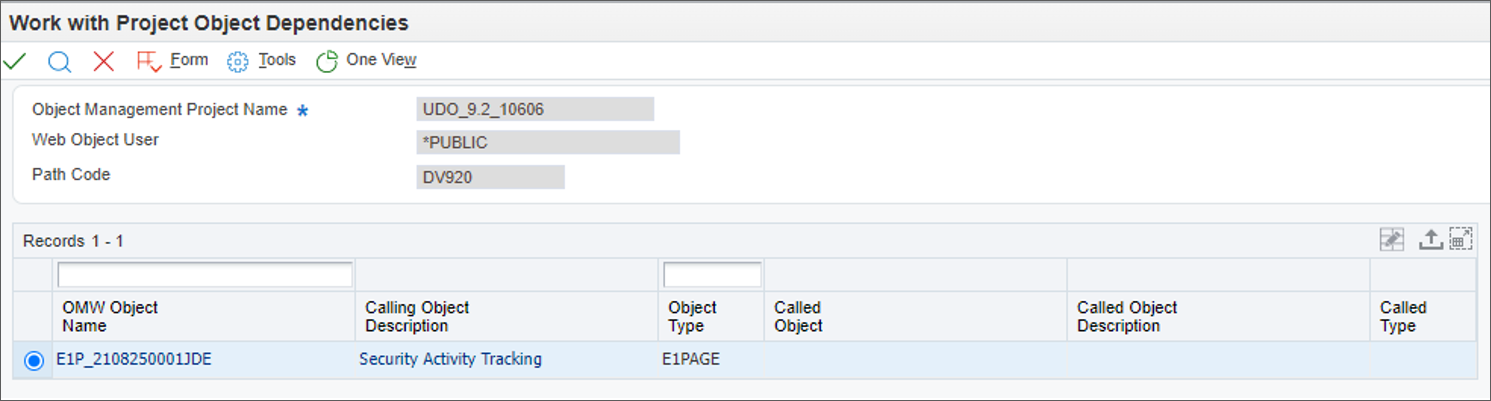

    If there is a dependent UDO for the project (UDO_9.2_10606), it is displayed in the grid.

    Description of sample-image-1.png follows
    Work with Project Object Dependencies Form
