Orchestrating the Quick Start Plan Using the Oracle Database Server

This section shows you how to orchestrate a Basic Deployment Plan using the Quick Start mode.

Use the Quick Start mode in the JD Edwards One-Click Provisioning Console to create a Deployment Plan using the Oracle Database Server that includes all the core components of JD Edwards EnterpriseOne.

Prerequisite

To perform the steps in this tutorial you must have:

Configured the administrator passwords for the WebLogic Server and the Server Manager Console in the Configure section of the JD Edwards One-Click Provisioning Console.

Orchestrating the Quick Start Plan Using the Oracle Database Server

To use the JD Edwards Provisioning Console to orchestrate and deploy the Quick Start plan using the Oracle Database Server:

On the Welcome to JD Edwards One-Click Provisioning Console page, click the Orchestrate icon.

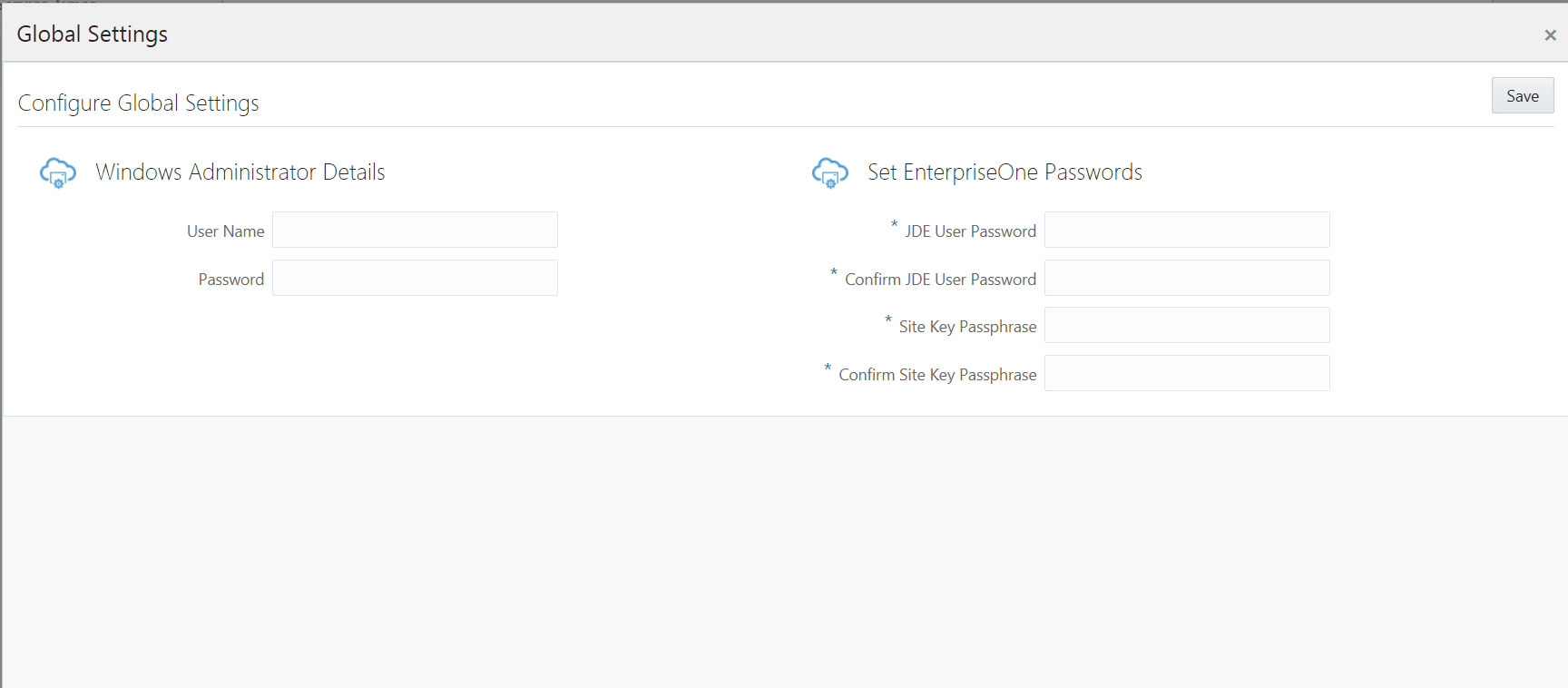

If you are creating an orchestration using JD Edwards One-Click Provisioning for the first time, the following Global Settings screen will appear first.
In the Windows Administrator Details section, enter the User Name and Password to access the Windows environment. All servers in the provisioning cycle must be configured with the same Microsoft Windows user name and credentials, where the user name must be opc. This common user must have administrator rights; that is, the user must be part of the Administrator group.
Important:
The password for the opc user is the same as the password you set when you created this user as described in the preceding section of this Learning Path entitled: "Performing Common Setup for All Microsoft Windows Servers". As described in that section, when you set the password it must have conformed to specific requirements of the One-Click Provisioning Console; else an error is given and you cannot proceed until the password conforms to the stated requirements. To reiterate, the password requirements are:
- Minimum of 12 characters
- Minimum of one lower case character
- Minimum of one upper case character
- Minimum of one numeric character
- Minimum of one special character, where only these are supported:
```
  Underscore (_)
  At sign(@)
  Tilde (~)
  Exclamation point (!)
  Number sign (#)
  Percent sign (%)
  Asterisk (*)
  Plus sign (+)
  Parentheses ()
  Braces ({})
  Brackets ([])
  Period (.)
  Question mark (?)
```
In the Set EnterpriseOne Passwords section, enter and then confirm these passwords:
- JDE User Password

  Create the password for JD Edwards EnterpriseOne. In support of the long password functionality provided by JD Edwards Tools Release 9.2.4.5, the password must be between 12 and 30 characters. It can contain only alphanumeric characters, and can only include this special character: _ (underscore).
- Site Key Passphrase

  Enter the passphrase for generating the site key. The passphrase must start with a letter, end with an alphanumeric character, must be between 8 and 40 characters, and contain at least 2 uppercase letters, 2 lowercase letters, 2 numbers, and 2 underscore characters.
Tip: The conditions to set the passwords appear in the tooltip when you click the fields.

Important:
It is highly recommended that you keep a record of these critical passwords. If you have not already done so, you should ensure that these values are recorded on the Preinstallation Worksheet.
Click the Save button to exit the Global Settings screen.

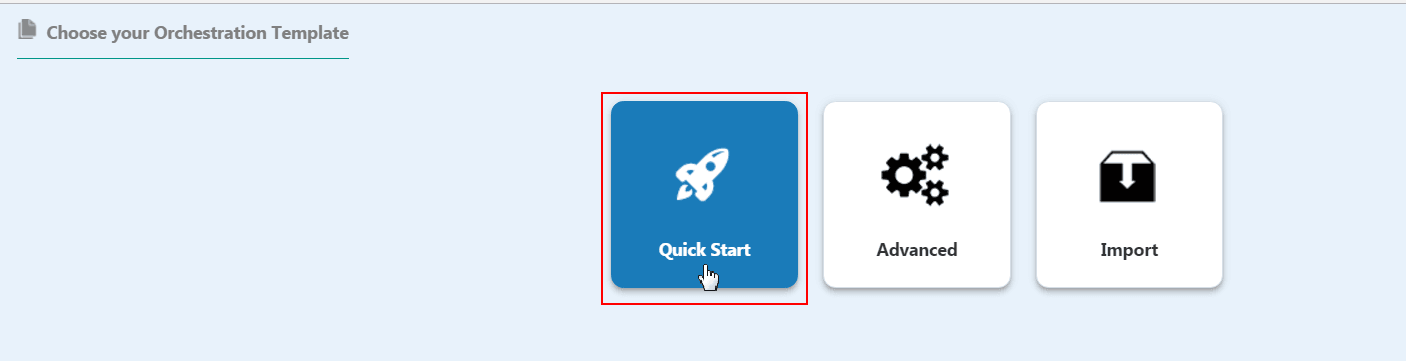

On the Choose your Orchestration Template page, click the Quick Start icon to create your Quick Start JD Edwards Deployment Plan.
Note: Refer to the applicable sections of this Learning Path for instructions on using the Advanced, Export, and Import orchestration functions.

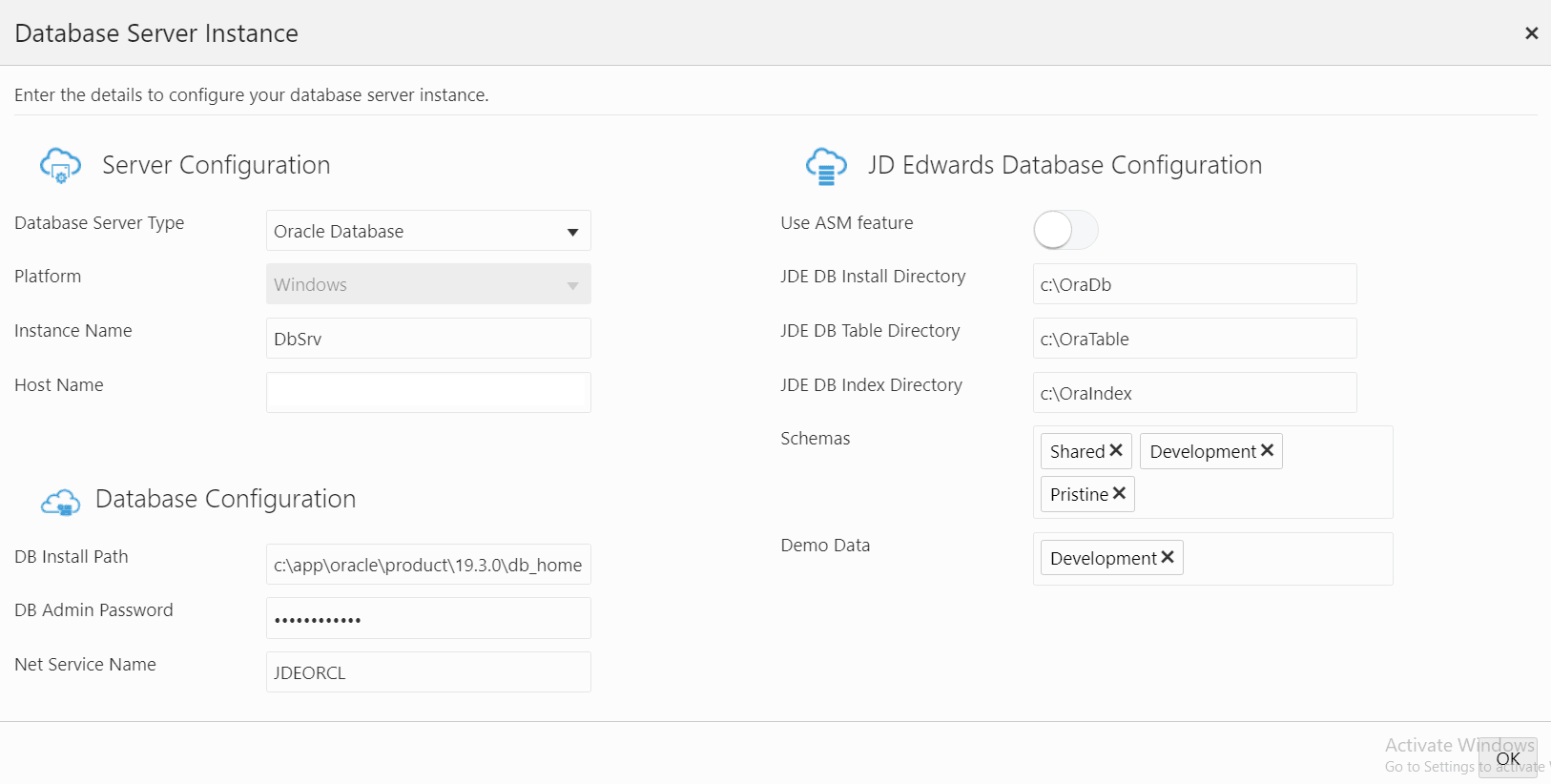

On the JD Edwards Database Server page, complete these fields to create and configure the Database Server instance.
Important:
You must enter the same password for this Windows Server that you previously specified in the section of this OBE entitled: Logging in to the Windows VM.

Server Configuration
- Database Server Type

  Select the Database Server Type as Oracle Database. The server types available are: Oracle Database and SQL Server.
- Platform

  This field is disabled and is automatically populated as Windows.
- Instance Name

  Create an instance name for your database instance.
- Host Name

  Enter the host name.
Database Configuration
- DB Install Path

  Enter the path of the directory where you have installed the Database Server components.
- DB Admin Password

  Enter the password of the database administrator.
  Note:
  JD Edwards EnterpriseOne One-Click Provisioning supports only these special characters for the Oracle database admin password:
```
 Underscore (_)
 Pound Sign (#)
 Hypen (-)
```
- Net Service Name

  Enter the Net Service Name. See Finding DB Unique Name, Oracle SID, and Service Name.
JD Edwards Database Configuration
- Use ASM feature

  Enable this option if required.
- JDE DB Install Directory

  Enter the installation path.

  Path Rules: All the directories in the specified path must preexist, except the last directory in the path. The name of the last directory must be unique. One-Click validation checks that the parent directory exists. The child directory is created by One-Click using the name provided in the input. If there are sub folders leading to the child directory, they must be created manually. For example, if the specified JDE DB Install directory is C:\JDEdwards\DBInstallPath, then C:\JDEdwards is the parent directory and it must be created manually. DBInstallPath is the child directory and should not be created manually, One-Click uses the name provided in the input and creates it.
- JDE DB Table Directory

  Enter the path to install the table data.

  Path Rules: All the directories in the specified path must preexist, except the last directory in the path. The name of the last directory must be unique. One-Click validation checks that the parent directory exists. The child directory is created by One-Click using the name provided in the input. If there are sub folders leading to the child directory, they must be created manually. For example, if the specified JDE DB Table directory is C:\JDEdwards\Table, then C:\JDEdwards is the parent directory and it must be created manually. Table is the child directory and should not be created manually, One-Click uses the name provided in the input and creates it.
- JDE DB Index Directory

  Enter the path to install the indexes.

  Path Rules: All the directories in the specified path must preexist, except the last directory in the path. The name of the last directory must be unique. One-Click validation checks that the parent directory exists. The child directory is created by One-Click using the name provided in the input. If there are sub folders leading to the child directory, they must be created manually. For example, if the specified JDE DB Table directory is C:\JDEdwards\Index, then C:\JDEdwards is the parent directory and it must be created manually. Index is the child directory and should not be created manually, One-Click uses the name provided in the input and creates it.
- Schemas

  Click the Schemas field and select the schemas you want from the auto-suggest. The schemas available are: Shared, Development, Prototype, Production, and Pristine with Demo Data.

  Note:
  It is mandatory to add the Shared schema. If you do not add the Shared schema, the message "You must select Shared schema" is displayed.

  Important:
  At this point you should ensure that you specify all the schemas you might use. The schemas you install on the Database Server can be deployed only once. This information is specified on the Provisioning Console. After the configuration is deployed, you can use the Provisioning Console to programmatically add additional schemas.
- Demo Data

  Click the Demo Data field and select the demo data available from the auto-suggest. Demo data will be available depending on the schema selected. For example, if you select the schema as Development, the Development demo data will be available.
Click the Next button. Because you will be connecting to an existing Oracle database instance, the system validates all the inputs that are provided. If the validation is successful, the JD Edwards Enterprise Server page is displayed.

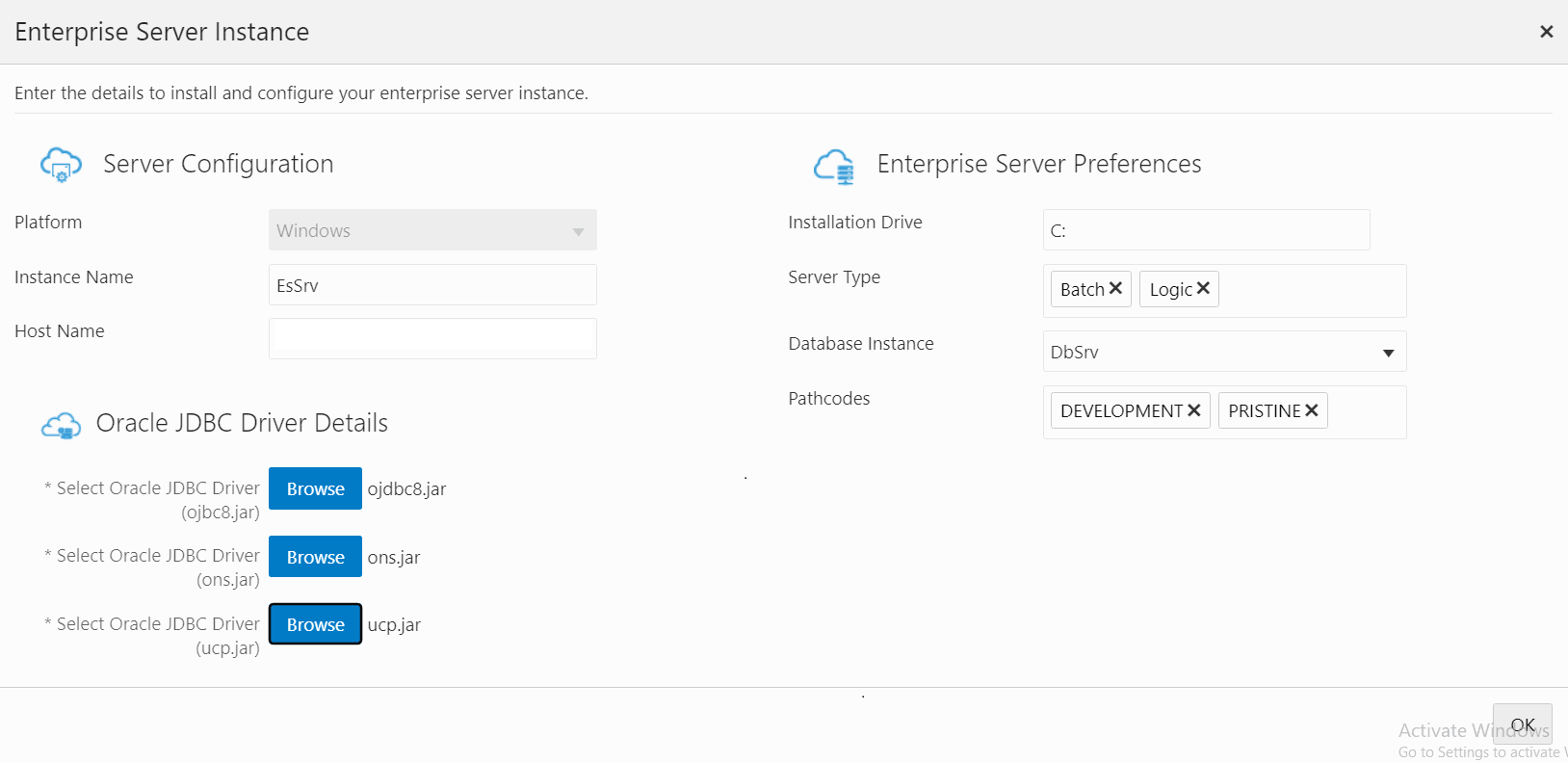

On the JD Edwards Enterprise Server page, complete these fields to create and configure the Enterprise Server instance.
Server Configuration
- Platform

  This field is disabled and it is automatically populated as Windows.
- Instance Name

  Create an instance name for the Enterprise Server. The conditions to set the instance name are displayed in the tooltip when you click the field.
- Host Name

  Enter the host name.
Oracle JDBC Driver Details
The Oracle JDBC driver is required for connectivity between the Enterprise Server and the Oracle database server.
Click the Browse button to select the location for each of the required components for the Oracle JDBC driver. For example:
- odbc8.jar
- ons.jar
- ucp.jar
Note:
Refer to Oracle Certifications for the version of the supported driver and associated components.

Enterprise Server Preferences
- Installation Drive

  Enter the Installation Drive.
- Server Type

  Select one or both of the available server types for this Enterprise Server.

  Single Enterprise Server. If you are deploying only a single Enterprise Server, select both Logic and Batch.

  Multiple Enterprise Servers. If you are deploying multiple Enterprise Servers, at least one must be specified as a Logic server per pathcode. The others can be specified as Batch servers.
- Pathcodes

  Click the Available Pathcodes field and select the pathcodes required from the auto-suggest. The four available pathcodes are: Development, Prototype, Pristine, and Production.

  Important:
  It is a good practice to select pathcodes that correlate to the schemas you selected for the Database Server. The Provisioning Console programmatically enforces this correlation. If you select pathcodes on the Enterprise Server that are a superset of the database schemas you selected, the Enterprise Server will not be able to access the data required to function correctly. The pathcodes you choose to install on the Enterprise Server can only be deployed once, which is specified at this point in the Provisioning Console.

  You can use the Provisioning Console to programmatically add additional schemas after deploying the orchestration.
Click the Next button. Because you will be connecting to an existing Oracle instance, the system validates all the inputs that are provided. If the validation is successful, the JD Edwards HTML Server Instance page is displayed.

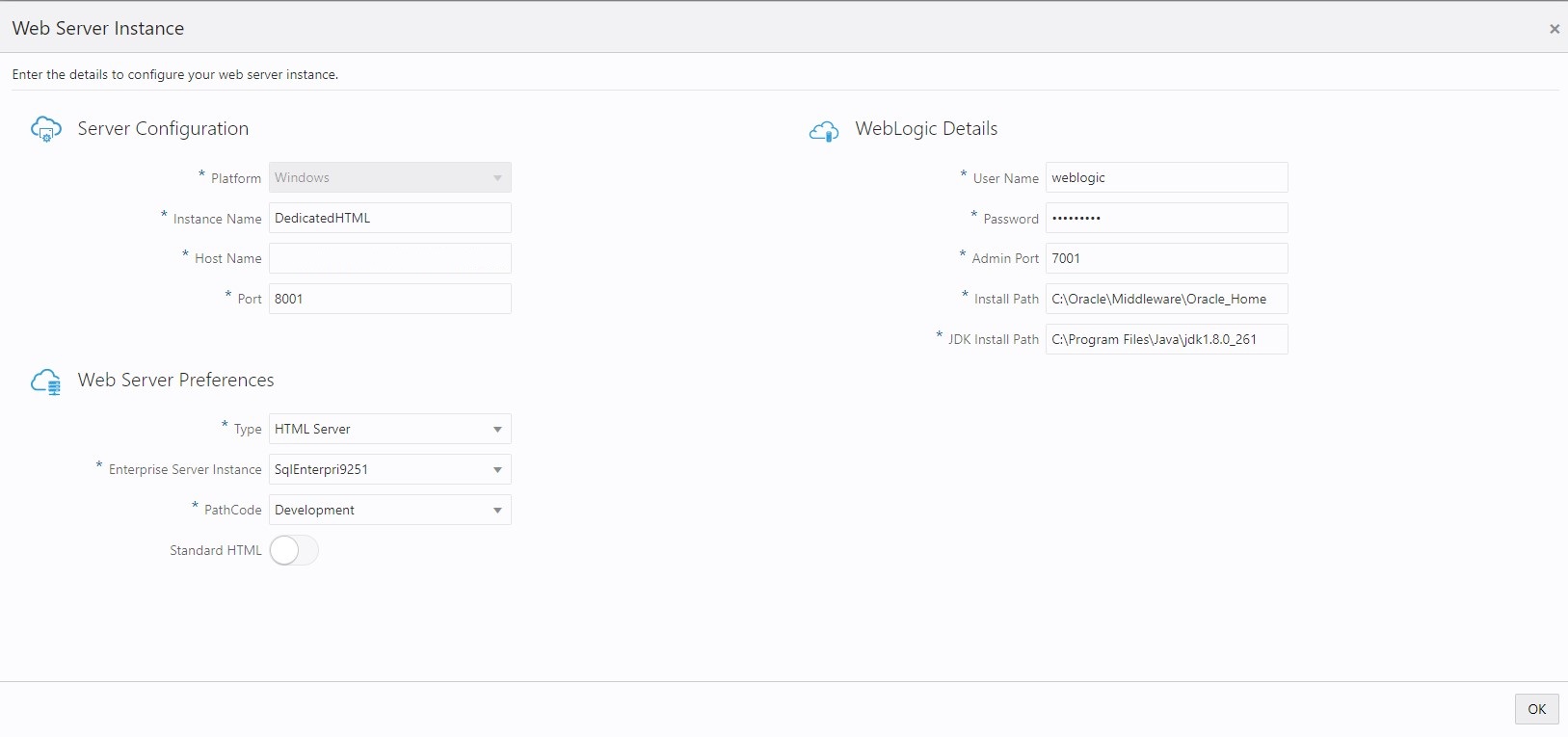

On the JD Edwards HTML Server page, complete these fields to create and configure the HTML Server instance.
Server Configuration
- Platform

  This field is disabled and is automatically populated as Windows.
- Instance Name

  Create the name of the HTML sever instance.
- Host Name

  Enter the Fully Qualified Domain Name (FQDN) if the DNS service is enabled.

  Otherwise, enter only the host name that is configured in the host machine.
- Port

  Enter a unique (available) port number for this server which will use an SSL connection. This port number must be between 1024 and 65535. This port number is used by HTTPS to create a container and deploy the web component. For whichever port number you enter here, ensure that the port for one less is also available. This is, if you specify port 8081, you must also ensure that port 8080 is available.

  Important: For each SSL port that you open in the firewall, you must also open a companion port for use by non-SSL access required for the Server Manager. The value for the companion port must be a numeric value that is one less than that specified for the SSL port. For example, if you specify a port value of 8081 for SSL, in the firewall you must also open a port one less than that value; For example, if you specify a port value of 8081 for SSL, in the firewall you must also open the port 8080. For more information, refer to the section "Enable Inbound Ports in the Firewall" of the OBE "Performing Common Setup for All Microsoft Windows Servers" in this Learning Path.
Web Server Preferences
- PathCode

  Select the required pathcode from the drop-down menu.
WebLogic Details
- User Name

  Enter the user name.
- Password

  Enter the WebLogic Server password.
- Admin Port

  Enter the port number to access the WebLogic Administration Console.
- Install Path

  Enter the installation path of the WebLogic instance.
- JDK Install Path

  Enter the JDK installation path.
Important: Each HTML Server can only support one pathcode. If you want additional HTML instances to support additional pathcodes, you should use the advanced mode of the Provisioning Console. Refer to the section "Orchestrating an Advanced Deployment Plan Using the Oracle Database Server" of this Learning Path.
Click the Next button. The system validates the inputs. If the validation is successful, the JD Edwards AIS Server page is displayed.
On the JD Edwards AIS Server, complete these fields to configure your AIS Server instance.
Server Configuration
- Platform

  This field is disabled and is automatically populated as Windows.
- Instance Name

  Create an instance name for the WebLogic Server.
- Host Name

  Enter the host name.
- Port

  Enter a unique (available) port number for this server that will use an SSL connection. This port number must be between 1024 and 65535. This port number is used by HTTPS to create a container and deploy the web component. For whichever port number you enter here, ensure that the port for one less is also available. That is, if you specify port 8081, you must also ensure that port 8080 is available.
Important: For each SSL port that you open in the firewall, you must also open a companion port for non-SSL access required for using the Server Manager. The value for the companion port must be a numeric value that is one less than that specified for the SSL port. For example, if you specify a port value of 8081 for SSL, in the firewall you must also open the port 8080. For more information, refer to the section "Enable Inbound Ports in the Firewall" of the OBE "Performing Common Setup for All Microsoft Windows Servers" in this Learning Path.
WebLogic Details
- User Name

  Enter the user name.
- Password

  Enter the WebLogic password.
- Admin Port

  Enter the admin port number.
- Install Path

  Enter the installation path of the WebLogic instance.
- JDK Install Path

  Enter the JDK installation path.
Click the Next button. The system validates the inputs. If the validation is successful, the JD Edwards Deployment Server page is displayed.

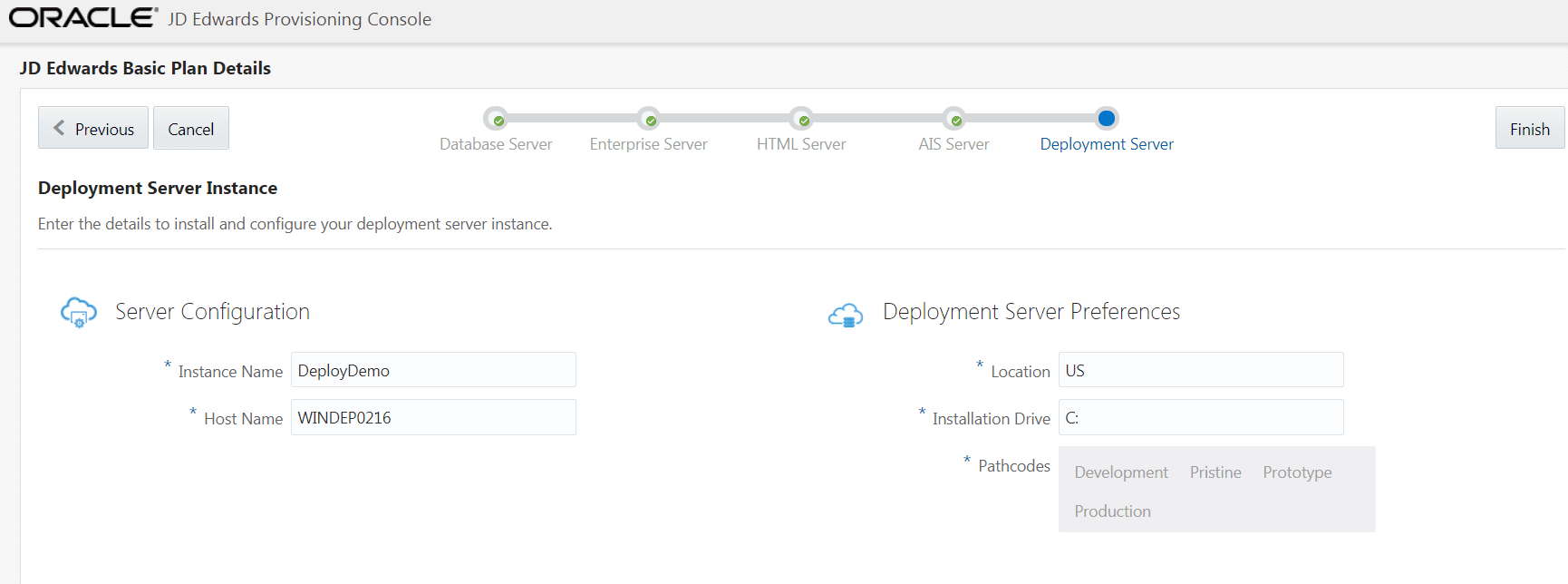

On the JD Edwards Deployment Server, complete these fields to create and configure your Deployment Server instance.
Server Configuration
- Instance Name

  Create an instance name for the Deployment Server instance. The conditions to set the instance name are displayed in the tool tip when you click the field.
- Host Name

  Enter the host name.
Deployment Server Preferences
- Location

  Enter the location.

  This value is the base location for your JD Edwards EnterpriseOne machines. For example, typical values might be a city name (such as Denver or Austin), a geographical region name (such as US or India), or a general location name (such as Corporate).
- Installation Drive

  Enter the drive for the installation.
- Pathcodes

  This field is automatically populated.

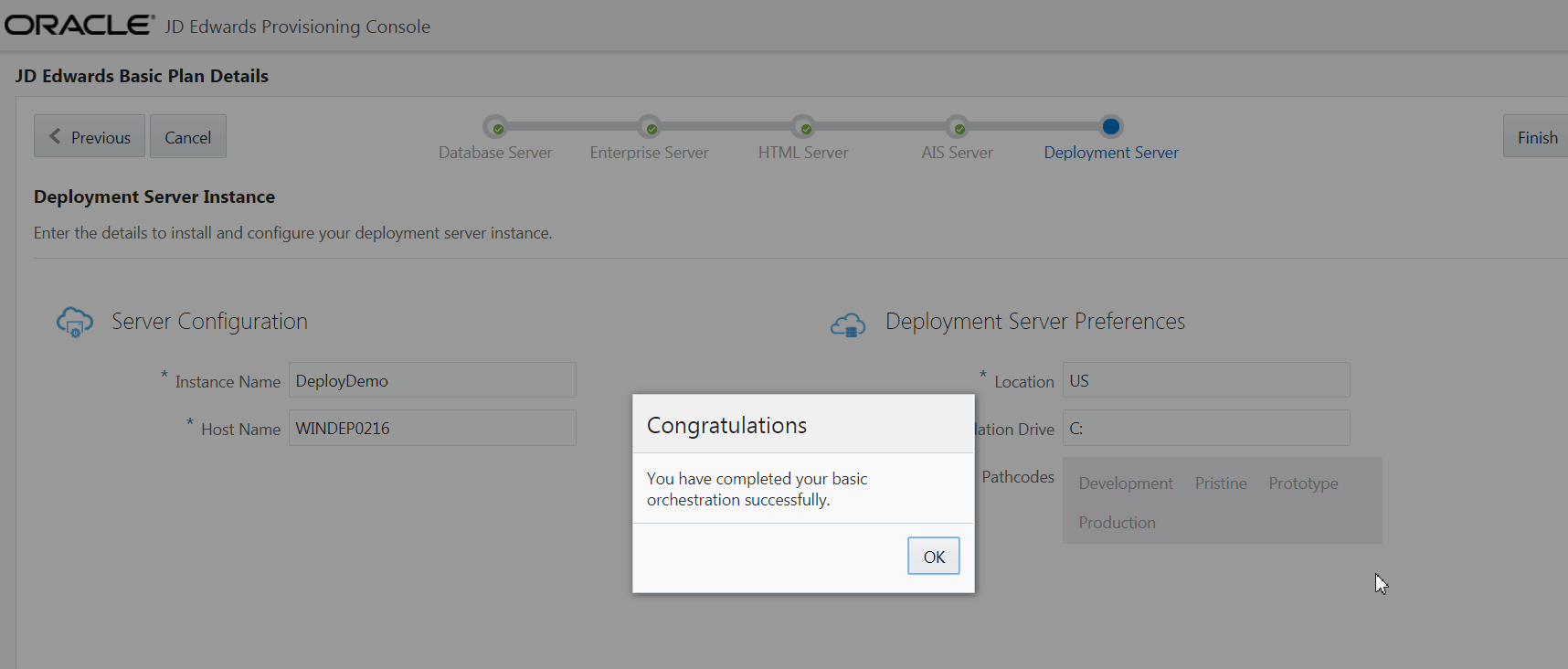

Click the Finish button. A success message is displayed.
Click the OK button.

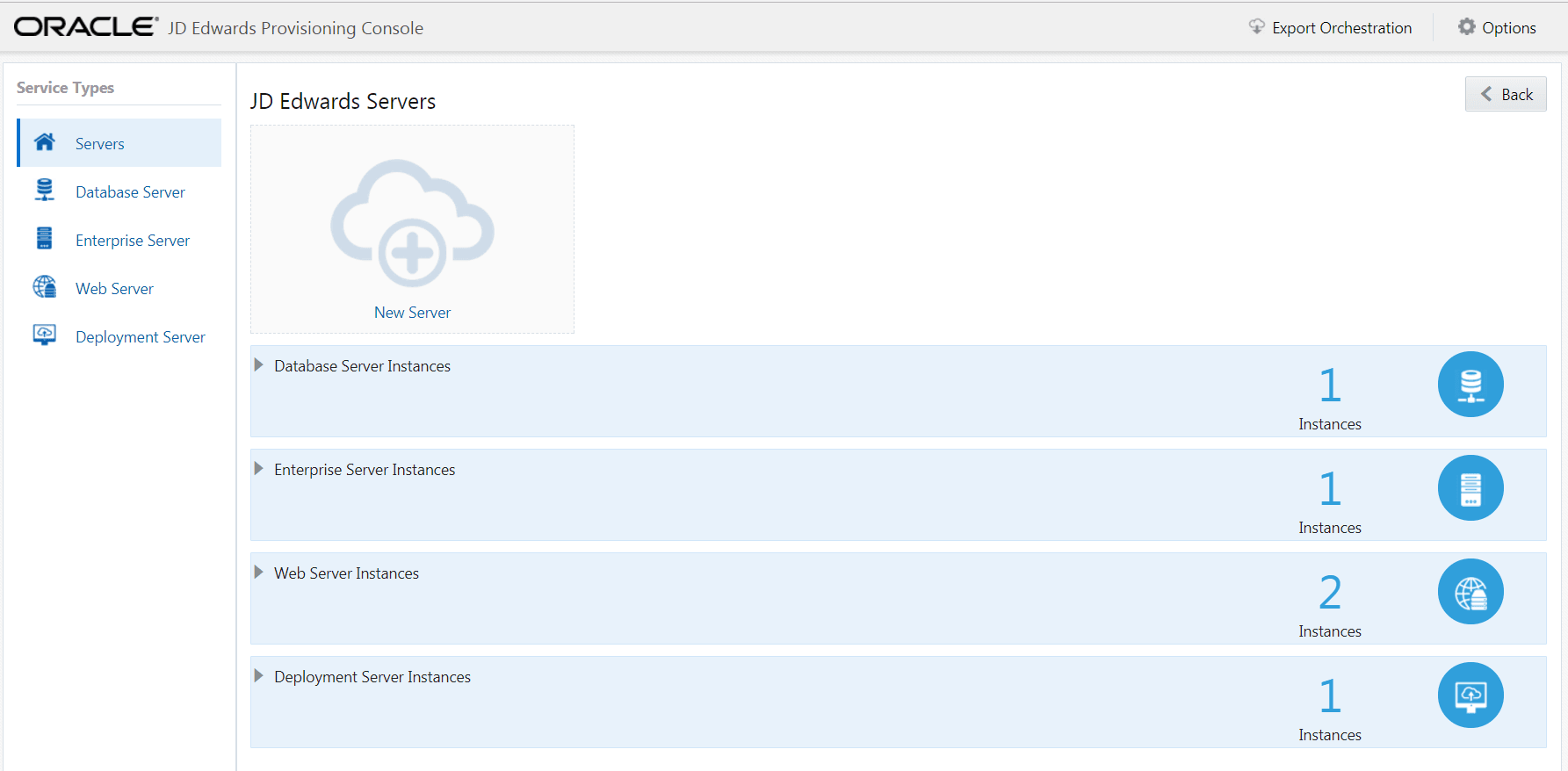

The summary window is displayed. In the summary window, you can see that one instance is created for each of the servers. Click the Back button to proceed to deploy your services by performing the steps described in the section "Deploying an Orchestration" in this Learning Path.
Note:
For this Quick Start Deployment Plan, you can click the Options function from the menu bar to change your global settings or to reset your settings (that is, to delete your configuration details, global settings, and orchestration data). Also optionally, you can further customize a completed Quick Start Deployment Plan using the Advanced deployment function of the JD Edwards Provisioning Console. For more information, refer to the section "Orchestrating the Advanced Deployment Plan Using the Oracle Database Server" of this Learning Path.
